VT6090CCD multi-layer rack - automatic printing line is mainly an automatic production line for printing products according to the process requirements from automatic loading, printing and receiving as a whole. The film is sheet material, the material can be ABS or PC, acrylic board and other series of materials. The process of automatic feeding, initial positioning, printing and receiving is completed in turn, the whole process is automatic and can achieve high efficiency action. The CCD vision system is used for printing, with high positioning accuracy, high speed and stable operation of the equipment.
See the chart below for details
| General machine model specifications | |||
Overall footprin | 5200x2800x 2950(mm) | Gas consumptio | 2.6L/cycle |
Fixed wa | floor-standing | Air pressur | 5～6kg/cm2 PSI |
Overall weight | 3500k | Printing table size | 880*1400mm（customizable） |
The total power | 40K | Maximum printing area | 700*1000mm（customizable） |
Working voltage | （380V、220V）50HZ | Maximum screen frame siz | 1100*1800mm（customizable） |
Environment temperature | Room temperatur | Maximum screen frame thicknes | 25～55mm（customizable） |
Product siz | MAX：700*1000mm MIN： 450*500mm | CCD positioning accurac | ±0.02mm |
Maximum printing spee | about 400PCS/H | Printing accuracy | ±0.05mm |
Features：
CCD visual positioning printing, high positioning accuracy;
The whole line adopts automatic feeding, which has a high degree of automation and saves labor;
Using a stable control system, the equipment runs stably, and the use is safe and reliable;
The power drive adopts high-precision accessories such as servo screw to ensure the accuracy and stability of operation;
Simple operation, the touch screen settings are concise and clear, easy to operate.
This production line is suitable for printing on various types of sheet materials, including but not limited to:
Electronic Product Casings: Whether it's the casing of a phone, tablet, or computer, this production line can achieve high-precision printing, making the product appearance more exquisite and appealing.
Automotive Parts: Printing requirements for automotive interior parts, dashboards, and other components can be fulfilled by this production line, enhancing product quality and visual appeal.
Industrial Labels: The printing of various industrial labels requires high precision and stability, and the high-precision printing capability of this production line meets this demand.
Electronic Components: Printing small electronic components often requires micrometer-level precision, and the high-precision printing technology of the sheet material CCD screen printing machine can easily handle this.
Moreover, the functions of the sheet material CCD screen printing machine are not limited to printing but also include:
Automatic Alignment Function: Utilizing CCD vision technology, it can automatically identify features or markers on the surface of the printed material, thereby achieving automatic alignment and adjustment during the printing process, improving production efficiency and printing accuracy.
Smart Control System: With a smart control system, it can monitor and adjust printing parameters in real-time, optimize the printing process, and provide fault diagnosis and remote monitoring functions, enhancing production stability and reliability.

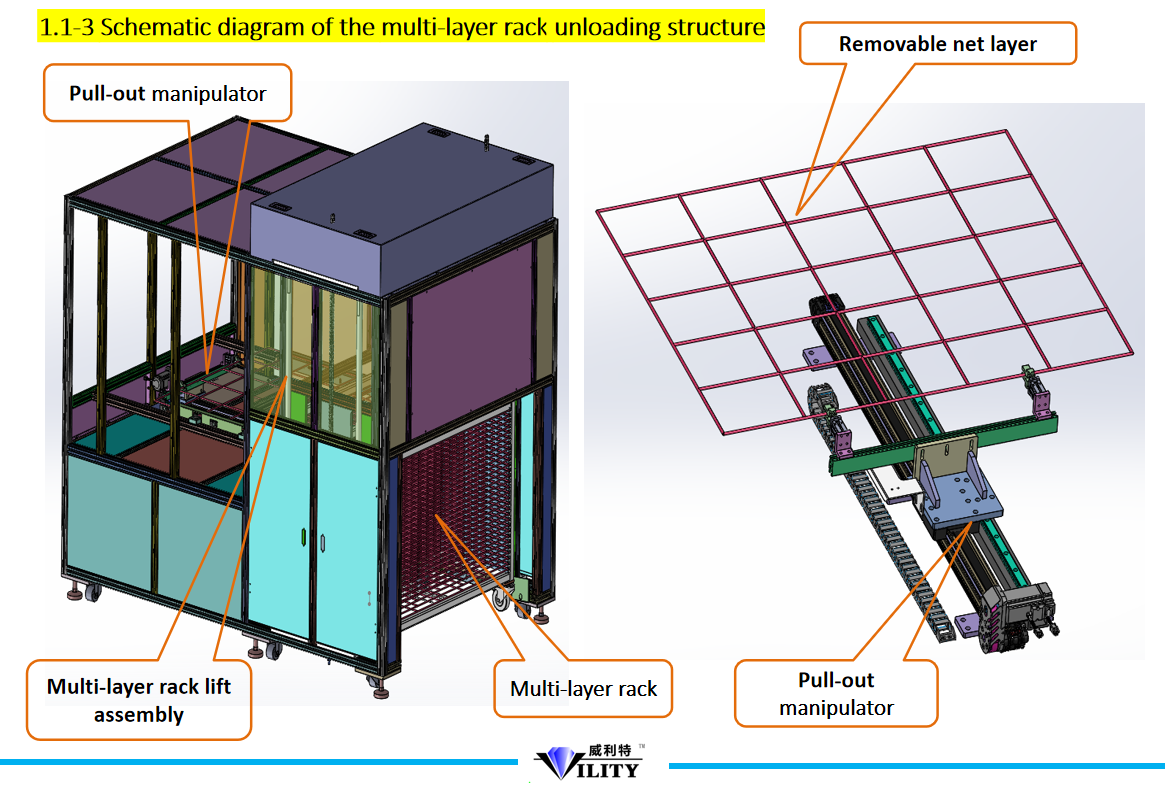

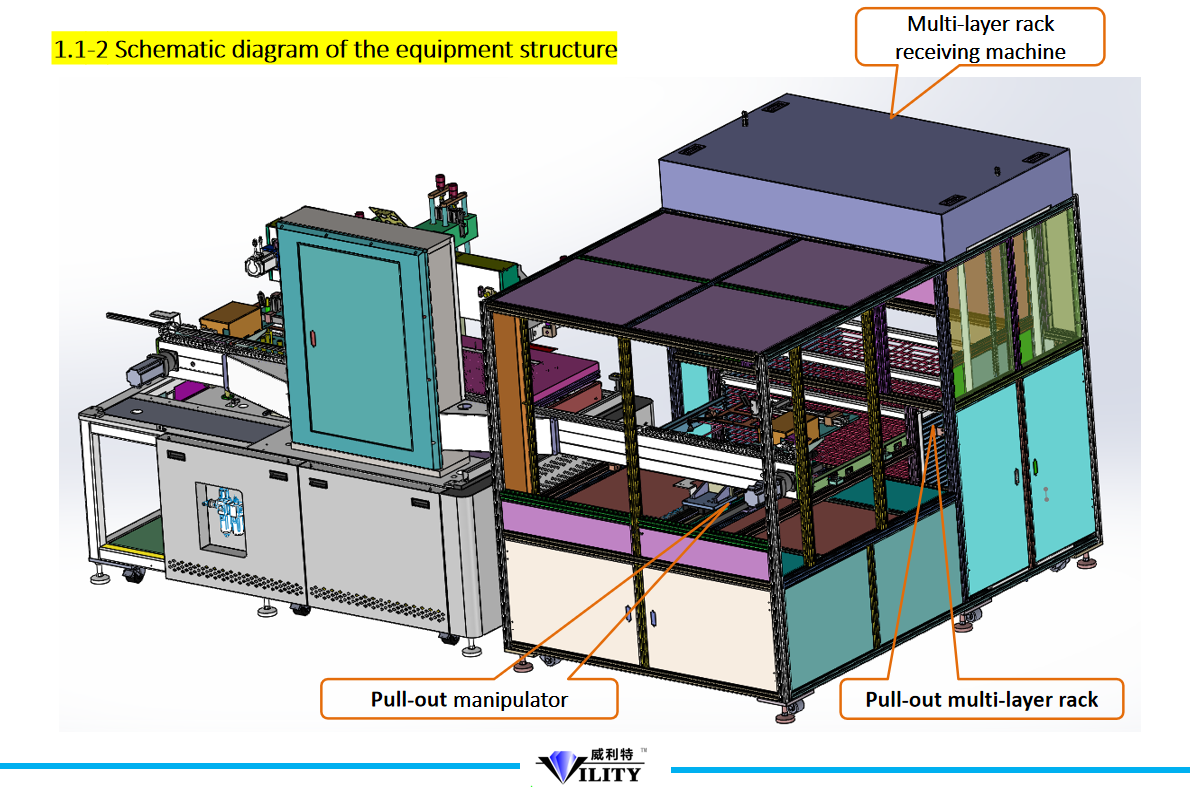

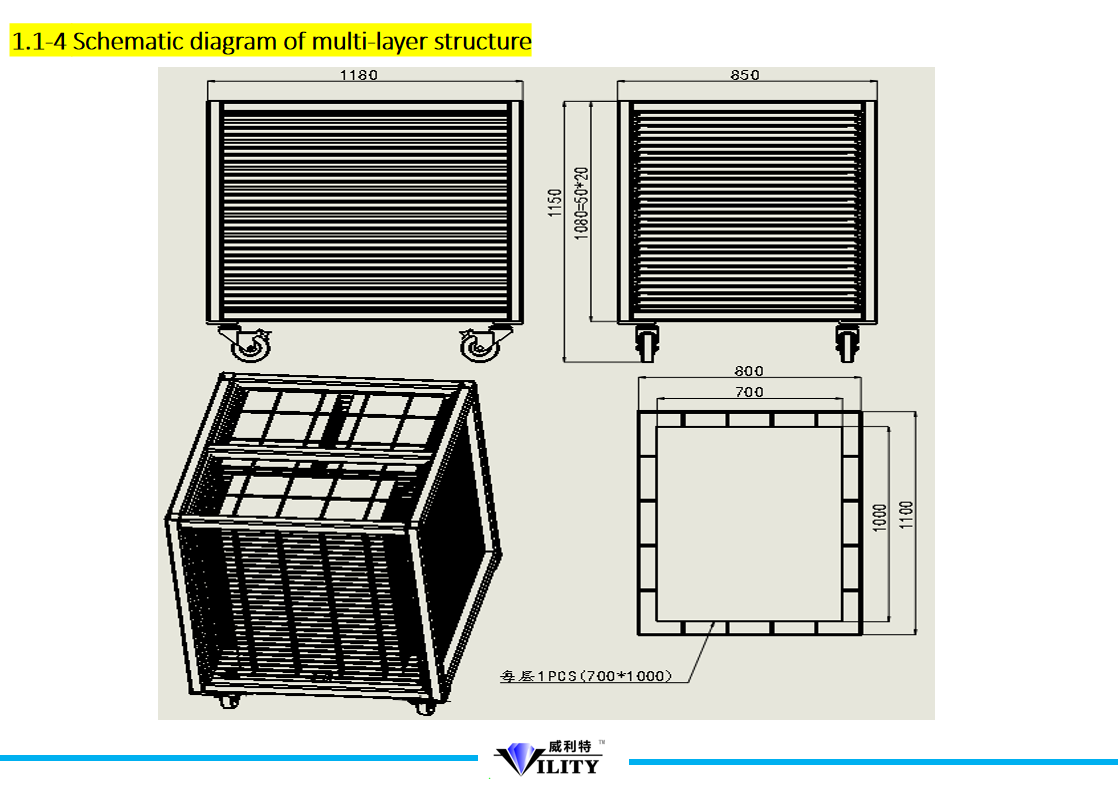

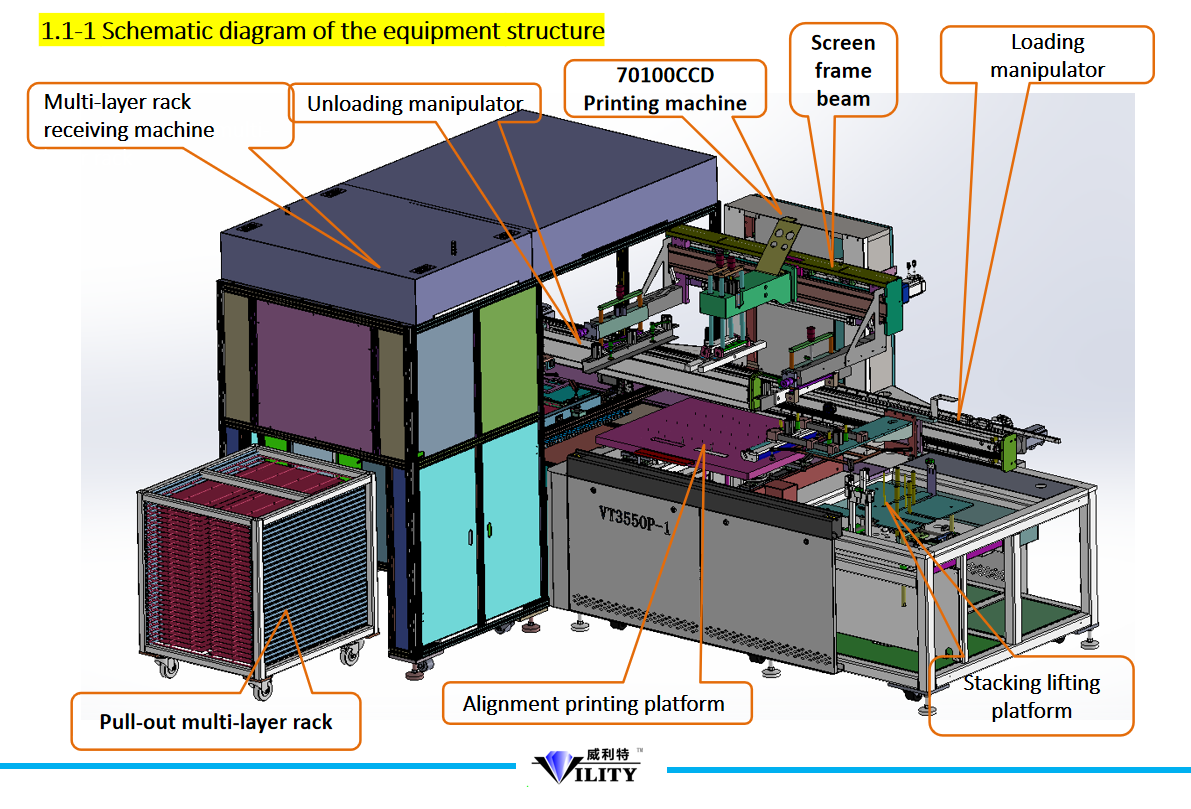

As shown in the figure below
Lock the fixing bolts of the wing after assembling it

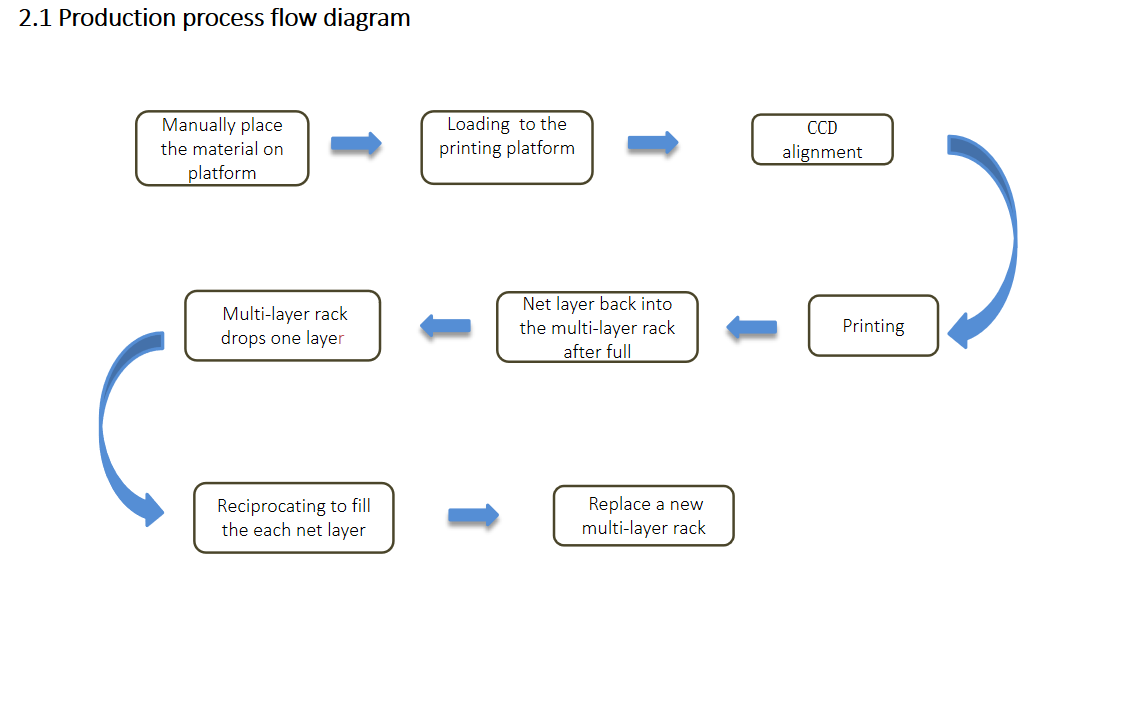

Description of the production process of the equipment
Operation panel and buttons
1: Manually place the stacking material on the stacking lifting platform, and take the material by the loading manipulator to the printing alignment platform
2: The material on the printing alignment platform is aligned by the CCD, and the alignment platform is moved for calibration
3: After the alignment is completed, lift and move the scraper group to print the product.
4: After printing, the material is taken by the unloading manipulator to the net layer of the multi-layer rack.
5: When the net layer is full of materials, the net layer manipulator moves the net layer into the multi-layer rack.
6：After the net layer is back in place, the multi-layer rack drops one layer and the net layer manipulator moves the unloaded net layer to the waiting position.
7: After reciprocating to fill the inner net layer of the multi-layer rack, manually push the multi-layer rack away and replace it with a new one.
