Vility: Film-Tearing Screen Printing Machine

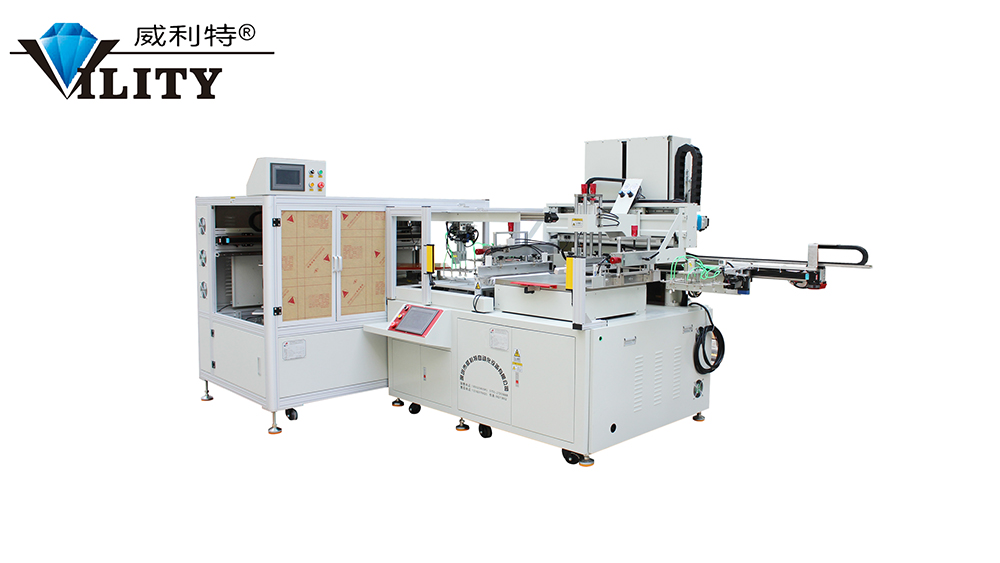

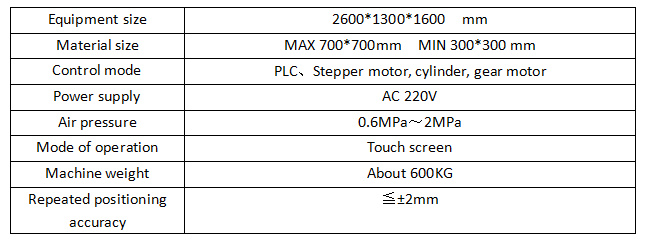

Equipment Size: 2600*1300*1600 mm
Material Size: MAX 700*700mm, MIN 300*300
Control Mode: PLC, Stepper motor, cylinder, gear motor
Power Supply: AC 220V
Air Pressure: 0.6MPa ~ 2MPa
Mode Of Operation: Touch screen
Machine Weight: About 600KG
1. Material preparation and adjustment

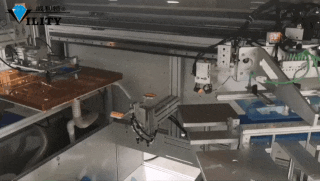

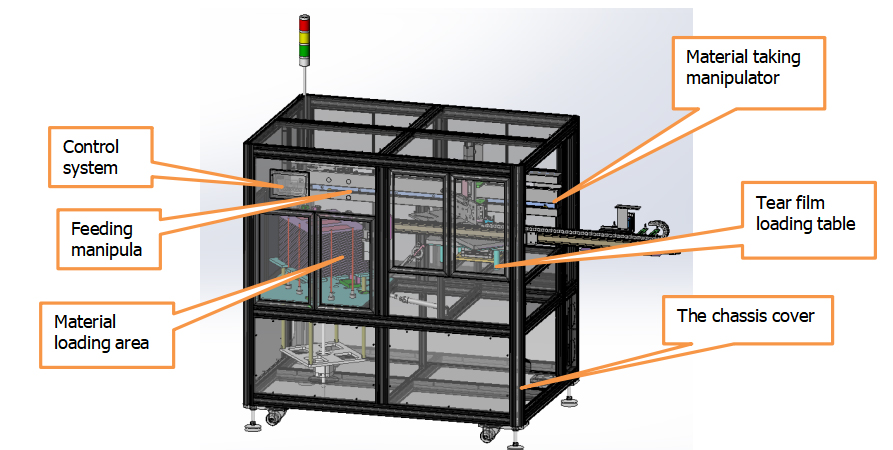

Place the stack of materials on the loading platform, and adjust the loading platform's jamming position and the loading and picking positions of the picking robot.
2. Loading and tearing the film by the tearing robot
The film-tearing robot takes a sheet of material from the loading table to the film-tearing loading table. When the robot returns, the sticky layer roller presses down to hold down the edge and corner of the material, and the sticky liner rolls on the roller to tear off the film.
3. Material pick-up robot pick-up
After the film is torn off from the tearing table, the material is then taken by the pick-up robot and placed on other workstations to complete the tearing process.
1: Application Scope
This machine is widely used in FPC, PET, PVC, various labels, transfer paper (film), floor heating film, geothermal film, electrothermal film, colour paper, film, nameplate, flexible circuit board, mobile phone keys, Membrane switch, trademark printing, scratch CARDS, self-adhesive stickers, paper, ribbon, aluminium foil and copper foil this roll material silk screen printing.
2: Features and performance.
A: Main machine feature---screen printing machine
(1). CCD automatic alignment system, if the similarity is not within the setting range, any abnormal, it will stop and automatically start adjusting the alignment successfully and continue to work.
(2). Using a numerical control motor, printing speed, and return to the ink speed can be set in a random block.
(3). Using a numerical control motor, printing distance, and return to the ink distance can be set in random data.
(4). Automatic computing printing, and calculating the qty, and printing can be set automatically stop.
(5). Photoelectric control feeding and discharging to avoid the surface damage of substrates, can improve the printing quality.
B: The Feeder features:
(1). Photoelectric control feeding, avoid the surface damage of the material.
(2). Feeding speed, and time, can adjust at will.
(3). The feeding starting speed, can adjust at will, with start frequency starting from 0 up to run slowly, avoid starting too fast, causing the material surface scratches.
(4). Equipped with an automatic protective device.
C: The dryer features:
(1). Circulating hot air drying, temperature adjustable, automatic winding.
(2). The oven covers a small area, 32-60 meters in length, which can realize low-temperature drying, ensure printed material has no shrinkage deformation, multicolour printing.
Name | Parameter | Remark | |
CCD Printing machine | Working place area(mm) | 1000*660 |
|
Max inputting width(mm) | 450 | ||
Max printing area(mm) | 600*450 | ||
Mix printing area(mm) | 400*500 | ||
Max size of screen frame(mm) | 1100*800 | ||
Mix size of screen frame(mm) | 300*200 | ||
printing thickness(mm) | 0.075-0.125 | ||
Mix print skip distance(mm) | 2 | ||
Working voltage (v) | 380-50Hz | ||
Maine machine Max power (kW) | 40 | ||
Working pressure（kg/cm2） | 5-8 | ||
Precision of printing（mm） | ±0.05 | ||
First printing speed | 1000-1200 times/hour | ||
Second printing speed | 800-1000 times/ hour | ||
Scraper stroke（mm） | 900 | ||
CCD precision | ±0.02 | ||
CCD center space | 330mm | ||
Main machine size （mm） | 3300*1600*2200 | ||
Receiving oven | Oven temperature（℃） | 0-190 | A laminating device can be added to in Oven |
Oven working voltage（V） | 380 | ||
Oven max power （KW） | 24 | ||
Max size（mm） | 450 | ||
Oven size （mm） | L2400*W1200*H2100 | ||
feeding goods max size（mm） | 450 | ||
Feeding machine | Feeder peak voltage(V) | 220 | According to your requirement |
POWER(KW) | 0.3 | ||
size （mm） | 800*1000*1100 | ||
Film-Tearing →Automatic feeding machine →Automatic printing→Automatic UV or oven →Automatic receiving →End product.
◪ We have rich experience, technical goods, and service awareness ahead of the professional team, and can be timely and effective in solving the problem for you.
◪ Installation and debug machine for you without any charge. Also, giving a technical training for your employees.
◪ All of our machines can have a one-year guarantee and lifelong maintenance.
CONSULT OUR CUSTOMERS FOR SURPRISE DISCOUNTS
Please provide us with the information below to complete your request. Just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs!
VILITY is a Professional manufacturer, providing ONE-STOP SOLUTION for intelligent printing industry.
