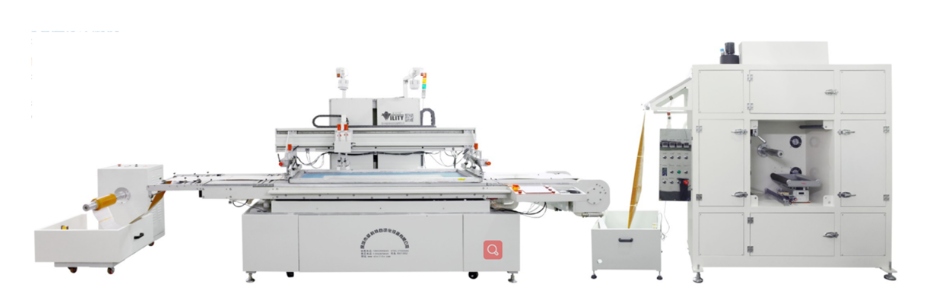

Vility Automatic Roll To Roll Mark-Tracking Screen Printing Machine

This screen printing machine is composed of a feeder, a printing unit and a hot air dryer.

① The feeder has dust removal rollers, which can alarm when the roll material runs out.
② The printing unit table has a vacuum to fix PET film in position to ensure printing accuracy. It is equipped with three photocell sensors for automatic registration.
③ The hot air dryer has 30M, 60M and 80M length passes for option. It can cool and wind-cured film into a roll after being dried.

RFID, heat transfer labels, labels and stickers, membrane switches, graphic overlay, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplates non-woven fabrics, etc.

1. The printing seat adopts a 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and durability.
2. With off-screen function, printing a large area of background colour and printing glue, to prevent the sticky screen.
3. With anti-drip ink function, prevent colour difference between ink with ink, to achieve high-quality printing.
4. Optional with automatic punching function, can easily realize double-sided printing.

The above parameters are for our standard Automatic mark-tracking Screen Printing Machine. If this specification meets your production requirements you can place your order directly and we will ship it to you immediately.

If you need to customize some of these parameters, we will improve them for you to ensure that the product meets your requirements exactly.

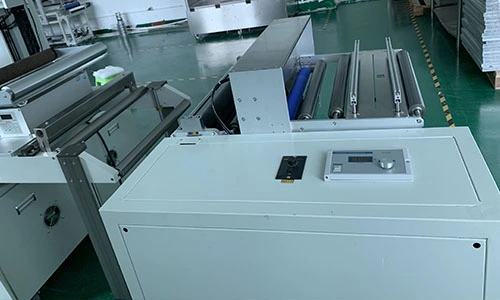

Feeding Machine -----Unwinder

Air shaft for the roll unwinding with tension control.
Air shaft for protective film peel off.
Dust cleaning rollers for film cleaning.
Splicer with cutting guide slot for easy film connection.
Static eliminator----Ionizing Air Blower.
Automatic stop and alarm when the film runs out.

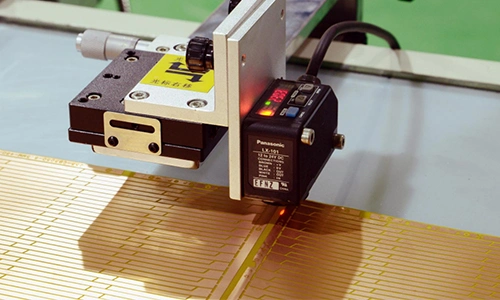

Photoelctric Eye Tracking:

This equipment adopts photoelectric eye tracking to automatically detect the colour mark, and it will automatically stop if there is an abnormality.
High-precision photoelectric detector with printing accuracy of 0.1mm.
Electric servo control, high-efficiency automatic variable-speed tracking, high thrust and quick response.

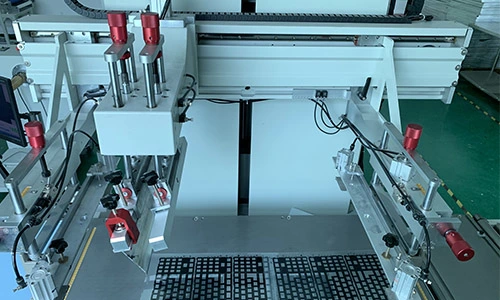

Vacuum Printing Table & Printing Head Vacuum table with air suction during the printing process.

3 sensors for automatic register in X-Y directions.
Frame and printing head up-down by pneumatic.
Printing head horizontal movement by servo motor.
High-precision rails and bearings for running parts.Squeegee dripless design.

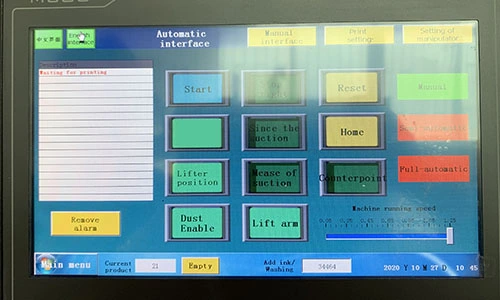

Touch Screen Operation

User-friendly PLC control combined with touch screen monitor for maximum operational convenience.
The default language is Chinese-English, which customers can convert to use, we also accept other language customization.
The touch screen is used to control the lifting of the printing head to facilitate the maintenance, loading, unloading and cleaning of the screen and scraper.

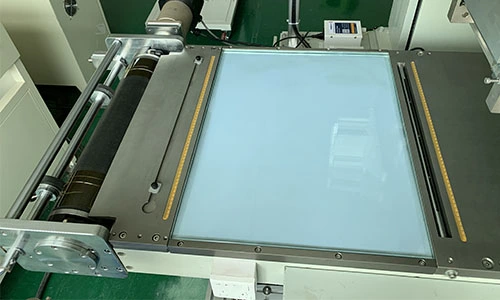

Quality Inspection Glass Table

Glass table for printing quality inspection, if there's a quality issue, the buzzer will alarm.
Touch screen control panel in the English language.
Automatic reminding when an operation error occurs.
Panasonic PLC for machine control.
Machine software can be upgraded for a long time.

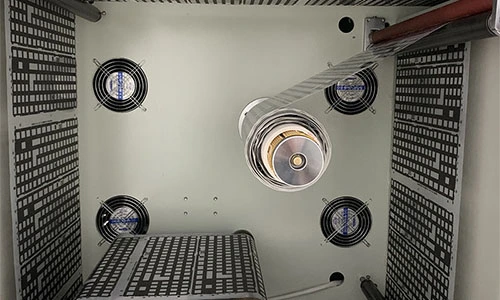

Hot Air Dryer----Rewinder

Chamber film pass length 60 meters.
Heating ranges from room temperature to 200°C.
Insulation layer to keep heat inside the chamber.
6 fans for cured film cooling.
3-inch dia. air shaft to rewind the cured film into a roll.
A laminator can be added to the dryer.
