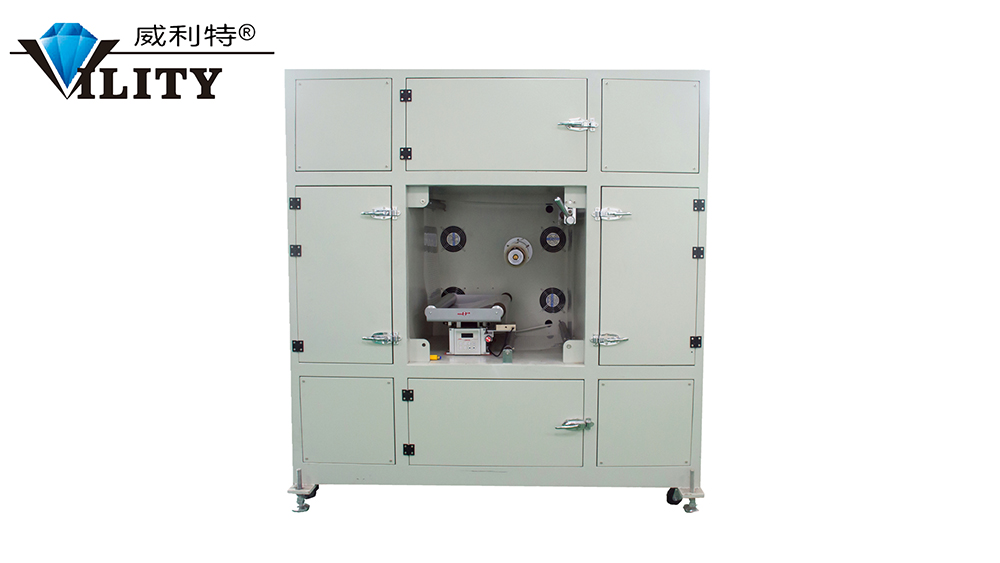

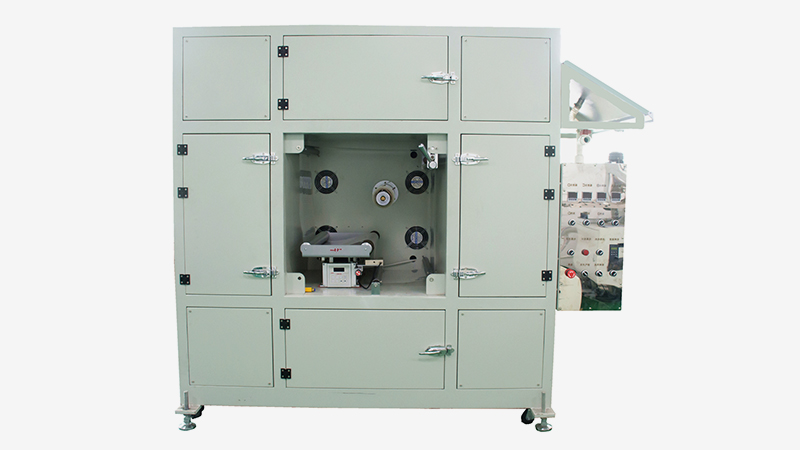

Name: Post-Printing Equipment Hot Air Dryer
1. Adopts uniform speed function to ensure that the material stays in the oven at any position for the same time and rewinding speed.

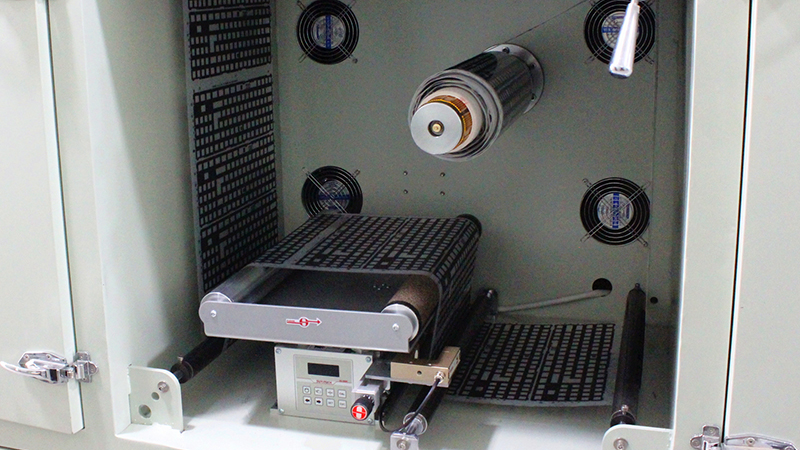

2. Oven with 4 sides, 4 sides heating, air circulation more smooth.
3. Equipped with a heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
4. The suction tension can be arbitrarily step-less adjustment, convenient for controlling the material tension, to ensure that the printing material does not stretch deformation.
1.Is it possible for you to assign engineers to our company?
yes. Our engineers can go to your company for on-site service. However, you need to pay the corresponding fee.
2.Do you provide installation and training services?
Yes, we will provide you with professional installation and training manuals and video tutorials. Live video conversations will also be provided to guide you through the operation.
3.What is your company’s production capacity?
30 Sets/ Month.
1. All equipment is CE certified. And can be customized to meet customer requirements of other certification.
2. Our equipment is highly automated, and one person can man multiple production lines.
3. Accept OEM/ODM, screen printing industry whole line customization.
4. Printing, punching, die cutting precision 0.02mm.CCD camera visual alignment system, fast and accurate positioning and fine tuning, to ensure accuracy requirements.
Shenzhen VILITY Automatic Machinery Co.,Ltd established in 2010 year, located in Shenzhen city, China. Our company’s development approach is : People-oriented, Technological innovation , service-oriented. VILITY is a combine-word, comes from Victory& Ability and Victory &Quality which means we always pursue high quality and good service to meet customers requirements and high competitive market. We believe: Service first, customers supreme. VILITY is a Professional manufacturer, providing ONE-STOP SOLUTION for intelligent printing industry. Recent years, We have pay most of the techniques and technologies to implement Industry 4.0 Robotic. VILITY has been successfully Provide unmanned production lines for many customers. Therefore, it is honored to get a high degree of social affirmation. Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material. With substantial ongoing investment in research and development, VILITY is ideally positioned to continue doing high precision CCD robotic machines for both the commercial and domestic markets. We are looking forward to establishing well long –term business relationship with you and your esteemed companies.
1. Adopts uniform speed function to ensure that the material stays in the oven at any position for the same time and rewinding speed.
2. Oven with 4 sides, 4 sides heating, air circulation more smooth.
3. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
4. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Technical Parameters | ||||
Name | Hot air dryer | |||
Model | LTB-350 | LTB-460 | LTB-600 | LTB-800 |
Material quality | Baogang-45#steel plate | |||
Power | 14kw | 14kw | 22kw | 22kw |
temperature | Room temperature-140℃ | |||
Insulation layer thickness | 50mm | 50mm | 50mm | 100mm |

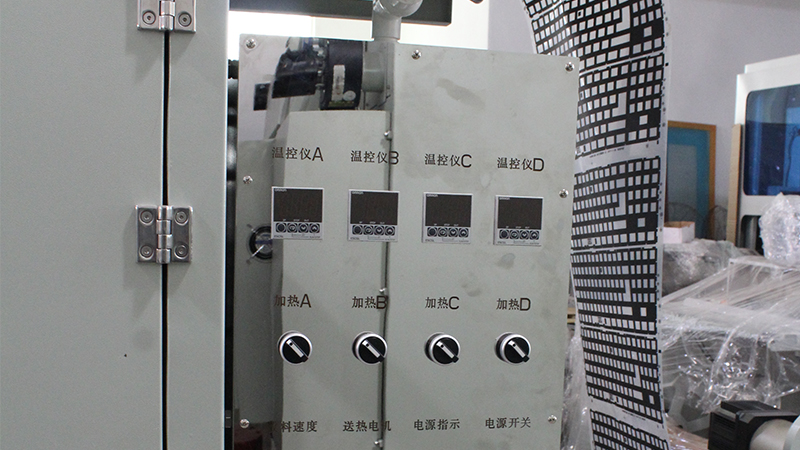

Temperature controller | 2pcs | 2pcs | 4pcs | 4pcs |
Weight | 400kg | 500kg | 600kg | 700kg |
Machine Size | L1970*W780*H1810mm | L1970*W900*H1810mm | L2830*W1060*H2150mm | L3000*W1260*H2260mm |
Optional functions | ||||
◪ We have rich experience, good technology, service awareness ahead of the professional team, can be timely and effective to solve the problem for you.
◪ Installation and debug machine for you without any charge. Also, giving technical training for your employees.
◪ All of our machines can have one year guarantee and lifelong maintenance.
◪ We can also provide you with printing materials, printing ink and solvents and other raw materials.
