Name: Semi-Auto Screen Printing Machine
Machine Size: L1200*W1000*H1650mm
Maximum Frame Size: 900*1100mm
Printing Station: 780*1100mm
Maximum Printing Area: 600*900mm
Scraper Pressure: 3-5kg/cm2

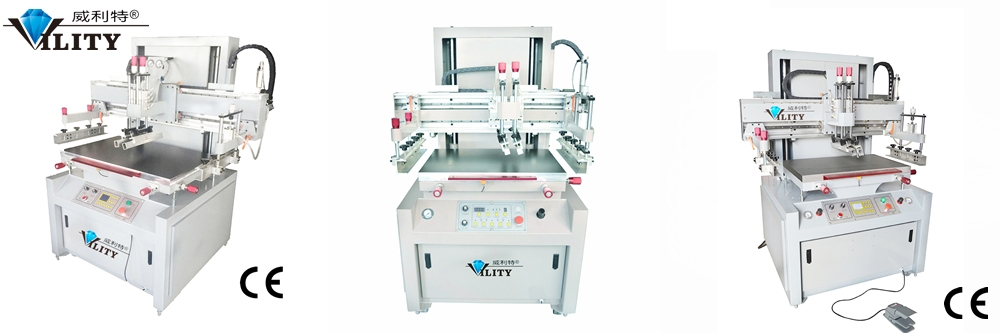

VT6090 semi-automatic screen printing machine
1: Application Scope
The machine is suitable for printing on sheet materials such as membrane switches, glass covers, acrylic, ITO, conductive films, composite back covers, etc. High alignment accuracy, fast printing speed and the entire production line can be operated by just one person.
2: Features and performance.
Main machine feature---screen printing machine
1. PLC coordinating soft-touch panel compile programmes
2. Auto 4-digit counter built-in
3. kinds of printing cycles designed by printing action, you can be free to choose according to your printing craftwork.
4. Airframe adopts coin alloy, and metal coating surface
5. distyle vertical structure, high precision, steady operation

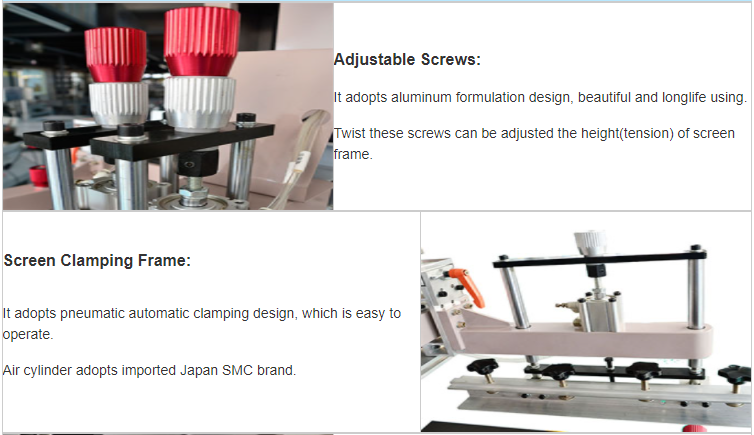

6. installing scraper constant pressure equipment
to make sure pressure is steady when printing
7. the angle of the scraper and reclaim blade can be adjusted randomly
8. you can regulate the work-table back and forth or right and left, and then fasten it
9. you can regulate the screen frame back and forth, right and left or level orientation
10. The printing head can be lifted, which is convenient for picking and placing screen frame
Machine size | L1200*W1000*H1650mm |
Maximum frame size | 900*1100mm |
Printing station | 780*1100mm |
Maximum printing area | 600*900mm |
Scraper pressure | 3-5kg/cm2 |
Printing speed | 500-900 times/ hour |
Air pressure | 6-8kg/cm2 |
Voltage | 220V/50HZ |
Total power | 2.7KW |
Weight | 400KG |
Printing accuracy | 0.2mm |
◪ We have rich experience, technical goods, and service awareness ahead of the professional team, and can be timely and effective in solving the problem for you.
◪ Installation and debug machine for you without any charge. Also, giving a technical training for your employees.
◪ All of our machines can have one one-year guarantee and lifelong maintenance.
