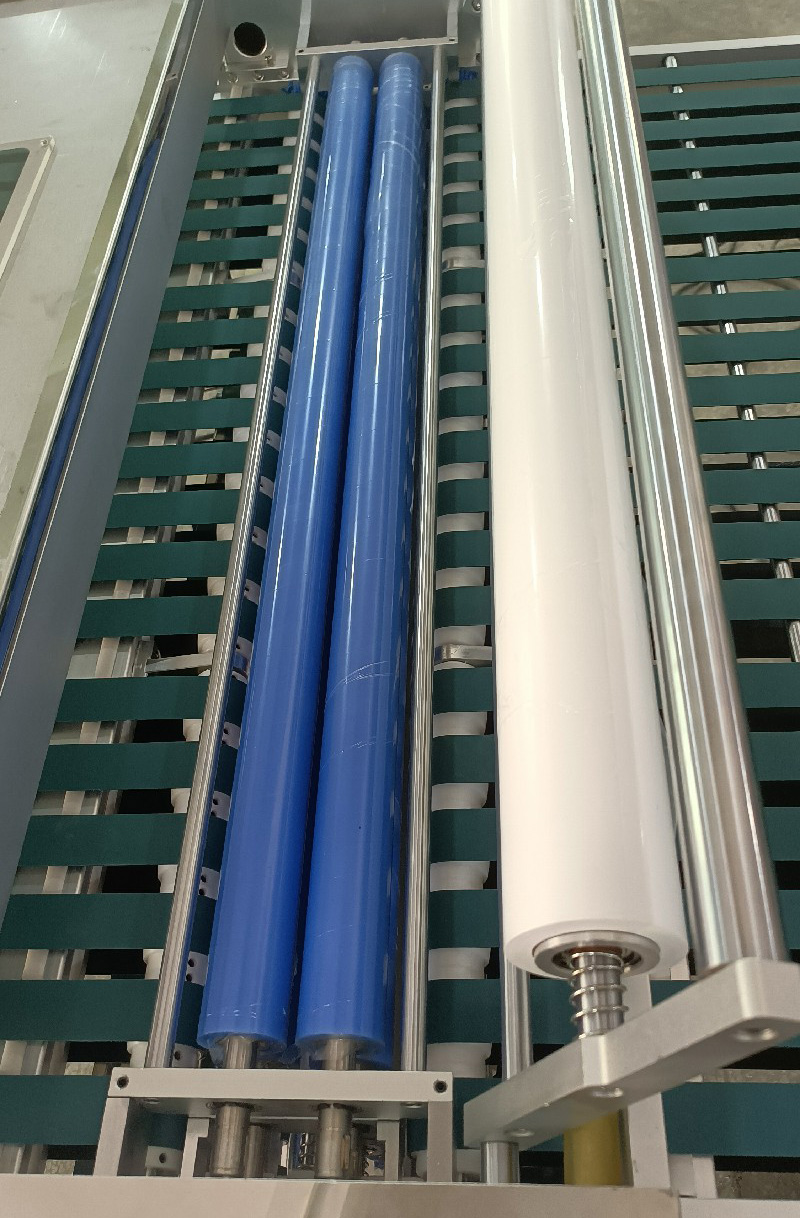

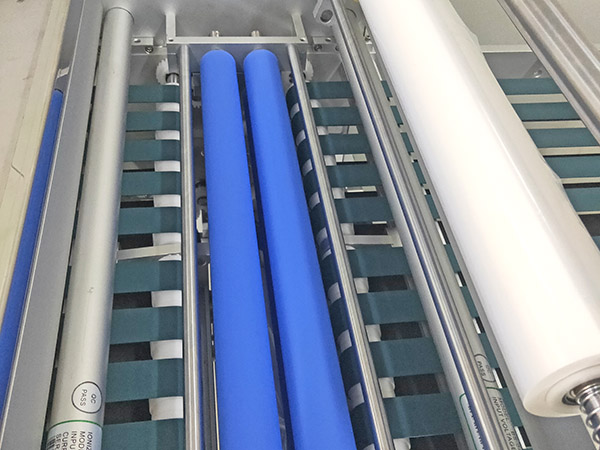

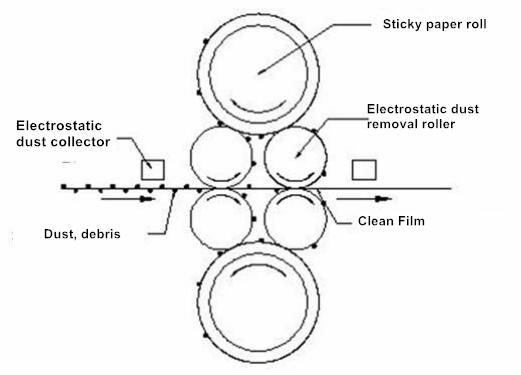

Double-sided double cleaning, eliminating static electricity, automatic separation of sticky paper. Automatic board feeding and releasing with drive wheel set. Various conveyor modes are available for infeed and outfeed. Super anti-static and dust removal ability, not easy to fold and roll the board, not scratch the board surface, can set The value according to the material cleanliness, after the number can alarm prompt to switch the paper roll in time to ensure the material cleanliness, flip cover side pull design, easy to clean the sticky dust roller .
Product Name: Dust cleaning machine
Model: VT5070-W
Factory number: VT5070202200415
Factory date: April 15, 2022
Our electrostatic precipitator has stable operation, low failure rate, and easy operation. Upper and lower independent drawer cleaning method, easy to clean and maintain. Operation mode can be selected by yourself. Double-sided cleaning at the same time. Design number alarm function. Working environment: temperature <50 degrees Celsius.
| General machine model specifications | |||
| Model | VT5070-W | Effective running size | Maximum width ≤850mm |
| Working thickness | 0.1mm～3.2mm | Machine Size | L1600xW1169xH900(mm) |
| Air Source | 3~5Kg/cm2 | Net weight | 200Kg |
| Power supply | 220V/5A | ||
◪ Handling and installation process. The following items should be considered to determine the installation position of the machine
1. Device requires independent power supply.
2. Equipment gas supply requires an independent gas source and with a gas source processor (air pressure of not less than 3Kg/cm2).
3. The working environment of the equipment must have enough space to facilitate the maintenance and servicing of the machine.
4. The wing needs to be adjusted to the level.
◪ Please note when the machine is installed
1. Device requires independent power supply.
2. equipment gas supply requires an independent gas source and with a gas source processor (air pressure of not less than 3Kg/cm2).
3. The working environment of the equipment must have enough space to facilitate the maintenance and servicing of the machine.
4. The wing needs to be adjusted to the level.
◪ Wing mounting

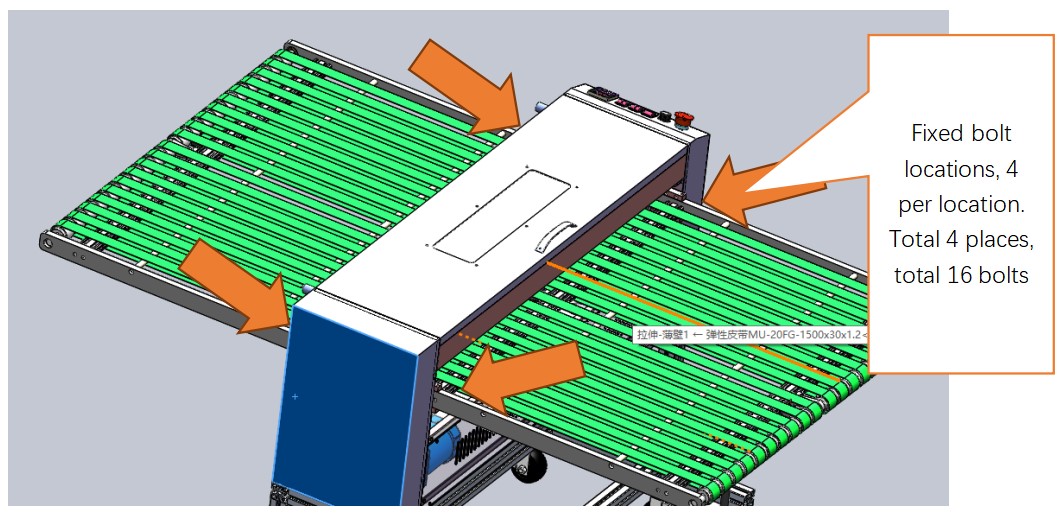

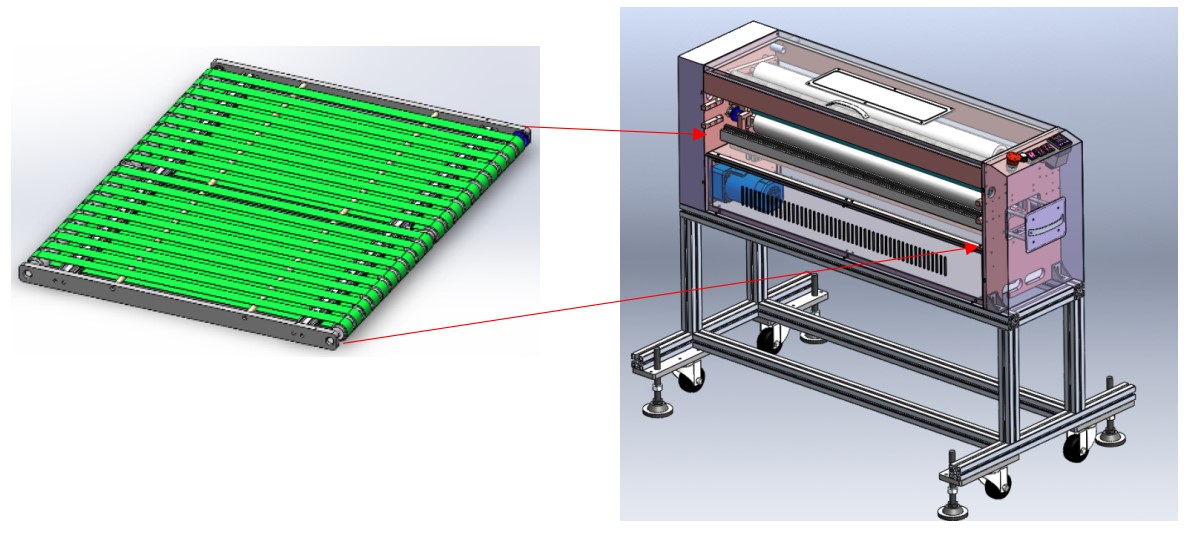

1. Wing installation pattern Refer to the figure below, insert the wing into the fuselage from the slots on both sides of the fuselage.
2. Remove the cover and secure the wing from the body aluminum plate with matching screws (note the transmission gear butt).
3. inserted into the body must check the gear mesh and smoothness, to confirm that the error, lock the Bolt and outer cover.

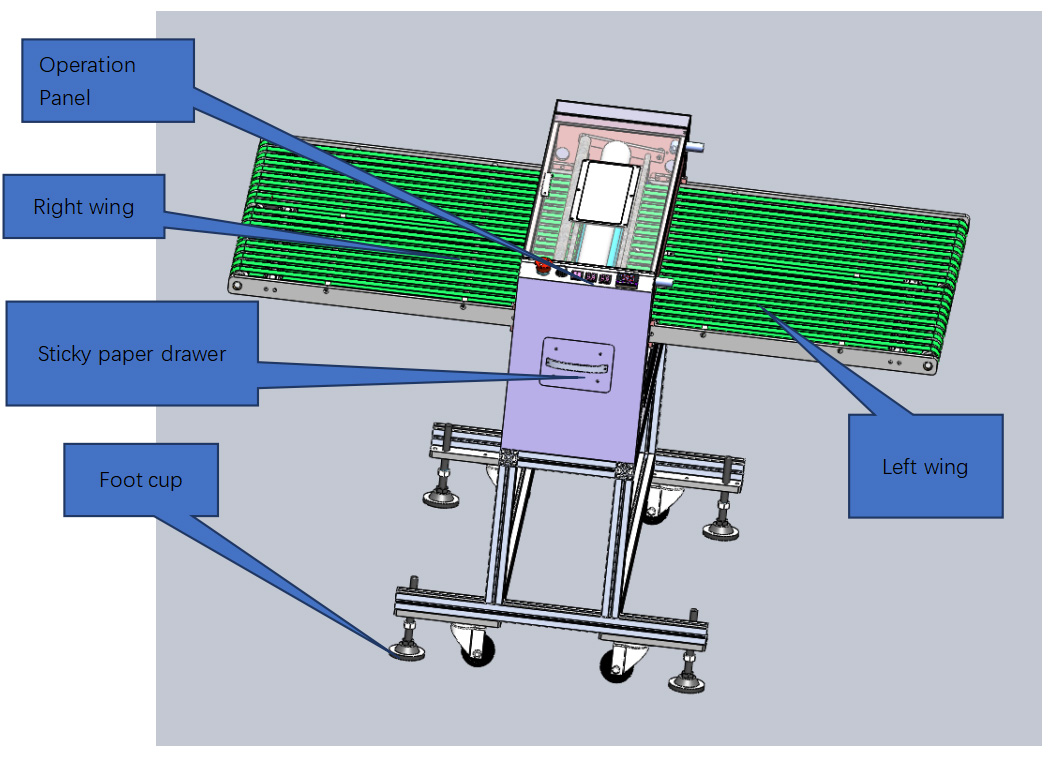

Diagram of wing mounting
When installing the wing, pay attention to the direction of the transmission gear, align the gear edge with the direction of the rubber roller transmission gear, align the left and right wings with the wing card slot, align the upper and lower fixed screw holes with the locking screws, pay attention to the direction of the inlet and outlet material wing, and install the belt retaining shaft upward.
As shown in the figure below

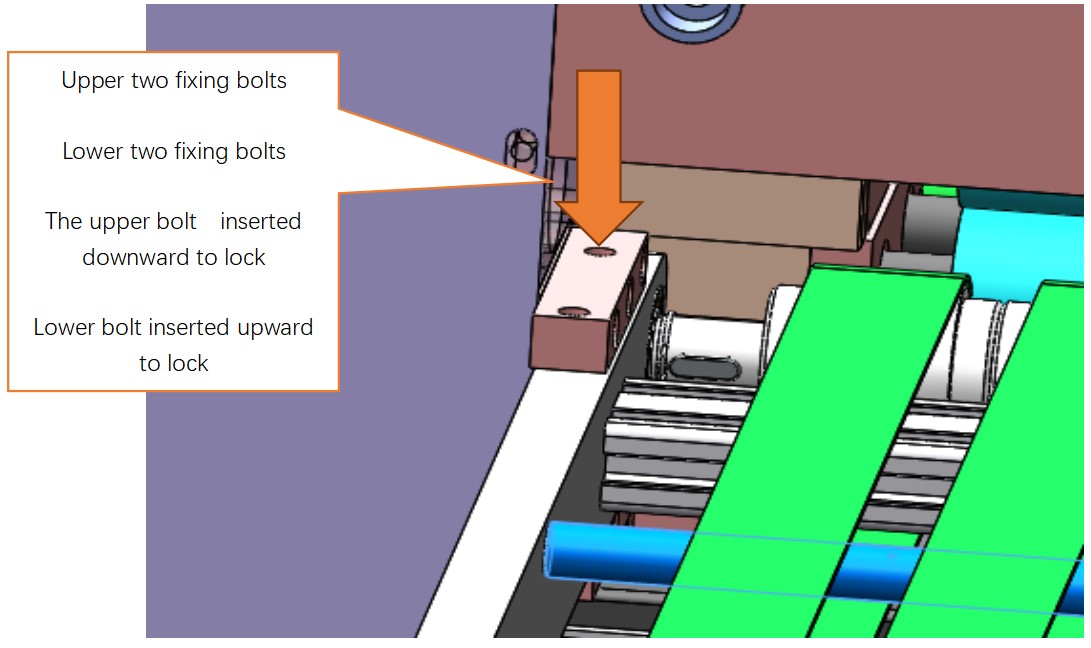

Lock the fixing bolts of the wing after assembling it
See the chart below for details

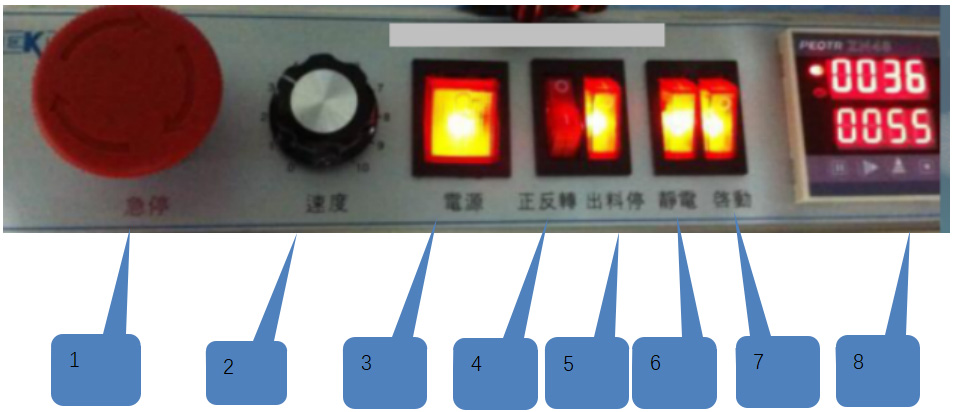

Operation panel and buttons
1. Emergency stop button: Emergency brake
2. Speed:It can adjust the conveyor belt speed of the equipment.
3. Power switch: in the case of power and ventilation to turn on the power, the equipment is in standby mode.
4. Reverse switch: switch the direction of motor rotation.
5. Unloading stop switch: Turn on the unloading stop switch, the product is fed by the feeding conveyor line, and the product is waiting at the equipment unloading sensor after cleaning is completed. Close the unloading stop switch conveying line body continues to run, need personnel to cooperate with timely pick up material.
6. De-Electrostatic switch: Turn on the electrostatic dust removal, the electrostatic dust removal starts, and the ion rod starts to blow air to remove the electrostatic work.
7. Motor start switch: Turn on the switch and the equipment conveyor belt starts to run.
8. Counter: Current equipment running output, the number can be set. When the preset quantity is reached buzzer alarm prompt.
◪ Connect the power cord: single-phase AC 220V 5A. please plug into a socket with grounding (3 holes ). If there is only a 2-hole outlet, plug into a 2P outlet, but a grounding wire is required for safety.
◪ Observe whether the sticky paper roll is installed correctly.
◪ Observe whether the working position of sticky paper roll and dust removal rubber roller is correct.
◪ Air hose connection: use φ8 air hose to access the machine (air pressure range 3-5KG).
▍ Turn on the power (single-phase AC220V three-wire with grounding).
▍ Click the start switch, and the equipment will run normally. If you need to change the running direction, stop the machine and click the forward and reverse switch. (Warning: Please do not change the motor running direction when the motor is running at high speed, so as not to affect the service life of the motor).
▍ motor operation after the need to enable the discharge stop function or electrostatic dust removal function.
▍ equipment after normal operation, please adjust the size of the electrostatic bar blowing (Note: to ensure that the value of the air pressure table is 3 ~ 5KG).
▍ Usage

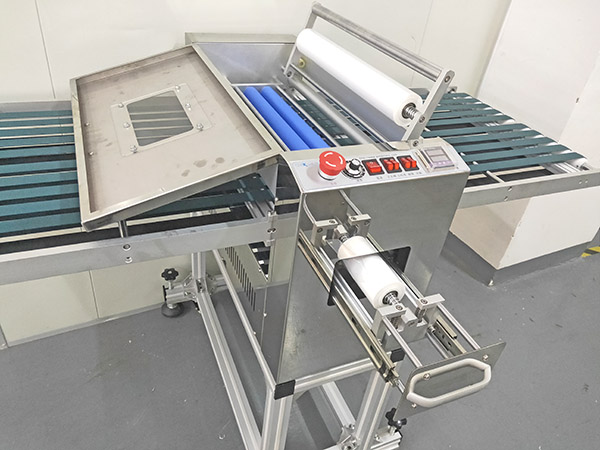

As shown in the picture: place the material on the conveyor wing (when placing the material, please note: do not insert the material into the middle of the conveyor belt, so as not to cause material damage and roll material phenomenon)
▍ Material cleaning process, according to the quality requirements of your company in a timely manner to clean up the sticky paper rolls.
▍ Sticky paper roll cleaning method.
The upper sticky dust paper roll can be held upwards when placed.
Lower sticky dust paper roll placed first of which the slider to the downward pressure, you can take out the sticky paper roll, and then put down to the positioning, take out when first push backward, upward to take out.

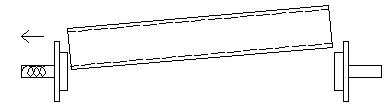

▍ sticky paper roll placement direction, please be sure to refer to the diagram (do not reverse the direction of the paper roll, so as not to roll the paper into the stick)
▍ Please make sure the emergency stop switch is in the disengaged position.
▍ Please level, positive put need to clean material , do not put the material diagonally or uneven put material, so as to avoid material inserted into the anti-roll tape will be damaged.
Note: It is not necessary to clean the middle two groups of cleaning rollers frequently, so as not to affect the service life.
1. Machine body cleaning, cleaning once per shift.
2. cleaning sticky paper roll. Every time there is obvious dirt on the cleaning wheel will be cut off the surface layer, prohibit the use of other hard objects or other organic solvents to clean, so as not to damage the cleaning wheel or destroy the stickiness of the cleaning wheel.
3. Each bearing rotating part to increase the lubricant, once a month.
4. air pressure adjustment valve every six months to check the water in the screening program shall be regularly excluded.
1. need to have a person to operate, the operator needs to be familiar with the operating principles, the equipment needs to be maintained on a regular basis;
The main power supply must be disconnected before circuit maintenance can be performed.
2. work at any time to pay attention to the working condition of the motor, such as motor noise or motor operation is not smooth, need to stop in time to check, to avoid misoperation caused by mechanical collision damage to other components.
3. often keep the equipment lubricant dose sufficient, refueling oil to stop the operation, can not be mixed with a variety of liquid lubricants, new equipment should be used for two months to power system lubricant supplement operation, after six months should be supplemented every six months. Such as in high temperature. High humidity. If it works continuously in high temperature, high humidity and high dust place, it needs to shorten the period of lubricant replenishment.
4. If the equipment is not used for a long time, all the adjustment knobs should be relaxed to prevent the spring from permanent deformation and affect the performance of the components.
Daily Maintenance
1. Clean the surface, conveyor belt and inner cavity dust to keep the body clean and hygienic.
2. check whether the motor operation is normal, there is no abnormal sound, such as immediately shut down the machine, notify the maintenance workers to overhaul.
Monthly Maintenance
1. Check if the motor rotation is abnormal.
2. The maintenance worker checks the current for abnormalities.
3. Check whether the motor heat pipe is damaged and whether the line is aging.
4. Check whether the motor is running normally and whether the speed regulation is accurate.
5. Drive chain oiling, sprocket oiling.
Semi-Annual Maintenance
1. Check whether the switch and wiring are normal and in no aging.
2. drive shaft, sprockets have no looseness, gears are worn.
3. Is the belt elasticity appropriate.
4. Oil and water separator cleaning.
