Combined with unwinder + sensor registering screen printe + composed dryer (IR + hot air) + auto winder, connected into automatic printing line.
Machine Name: Automatic CCD Visual Inspection AOI Screen Printing Machine Production Line
Weight: 1800kg
Installation Mode: floor type (front and rear are connected with feeder and tunnel furnace frame with L-shaped fixed plate)
Maximum Network Frame: 1100 x 900mm
CCD Alignment Accuracy: ±0.03mm
CCD Number: 2
Printing Table Vacuum Hole: φ 0.8mm
1.Is it possible for you to assign engineers to our company?
yes. Our engineers can go to your company for on-site service. However, you need to pay the corresponding fee.
2.Do you provide installation and training services?
Yes, we will provide you with professional installation and training manuals and video tutorials. Live video conversations will also be provided to guide you through the operation.
3.What is your company’s production capacity?
30 Sets/ Month.
1. All equipment is CE certified. And can be customized to meet customer requirements of other certification.
2. Our equipment is highly automated, and one person can man multiple production lines.
3. Accept OEM/ODM, screen printing industry whole line customization.
4. Printing, punching, die cutting precision 0.02mm.CCD camera visual alignment system, fast and accurate positioning and fine tuning, to ensure accuracy requirements.
Global population of diabetic is growing gradually year by year, in this huge market and is actively promoted by government of every country, research and improvement of biochemical technology becomes main direction of every country developmentAnd the comsummable of blood sugar tester is the testing strip, which is purchased and replaced frequently, it is processed by screen printing
Resistance value of testing strip includes three elements, which can be discussed as screen mesh count for Sliver paste, deposit layer thickness of conductive Sliver paste and Carbon
This automatic screen printing line is dedicated to massive production, accuracy and ink layer uniform thickness can be achieved easily to meet manufacturer requirement.

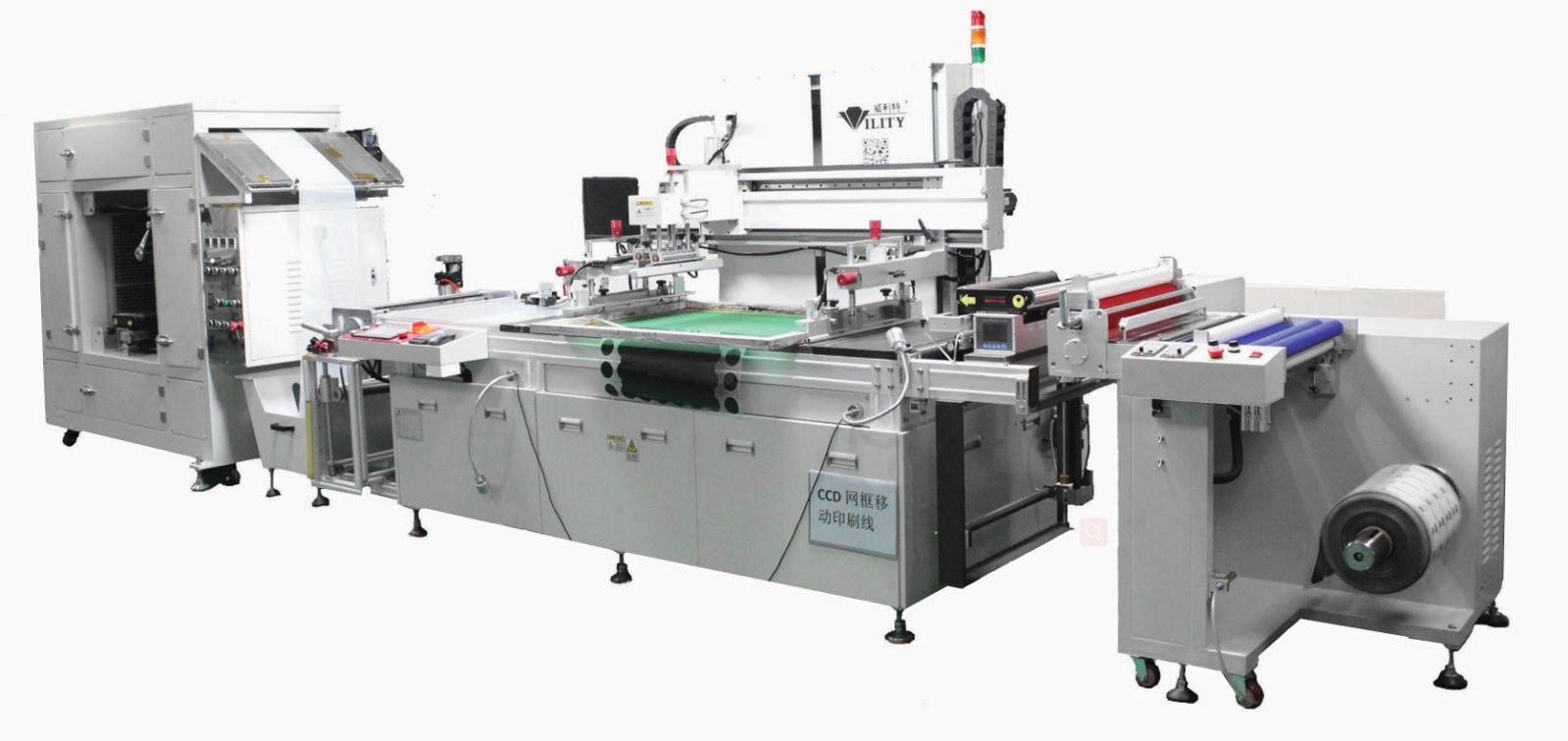

This line is a fully automatic screen printing equipment designed to improve production efficiency and product quality based on PET/ITO printing field. It is characterized by the unmanned production of the whole line, whose processes include automatic tension discharge, automatic film tearing, automatic dust removal, corona treatment, automatic CCD alignment printing, automatic AOI inspection, automatic UV baking, automatic receiving and other processes. The whole line is to ensure the cleanliness of the working environment by dust cover and FFU, which greatly improves the product yield.
The overall size of the equipment: External dimensions (LxWxH): L10000xW1600x2300(mm);

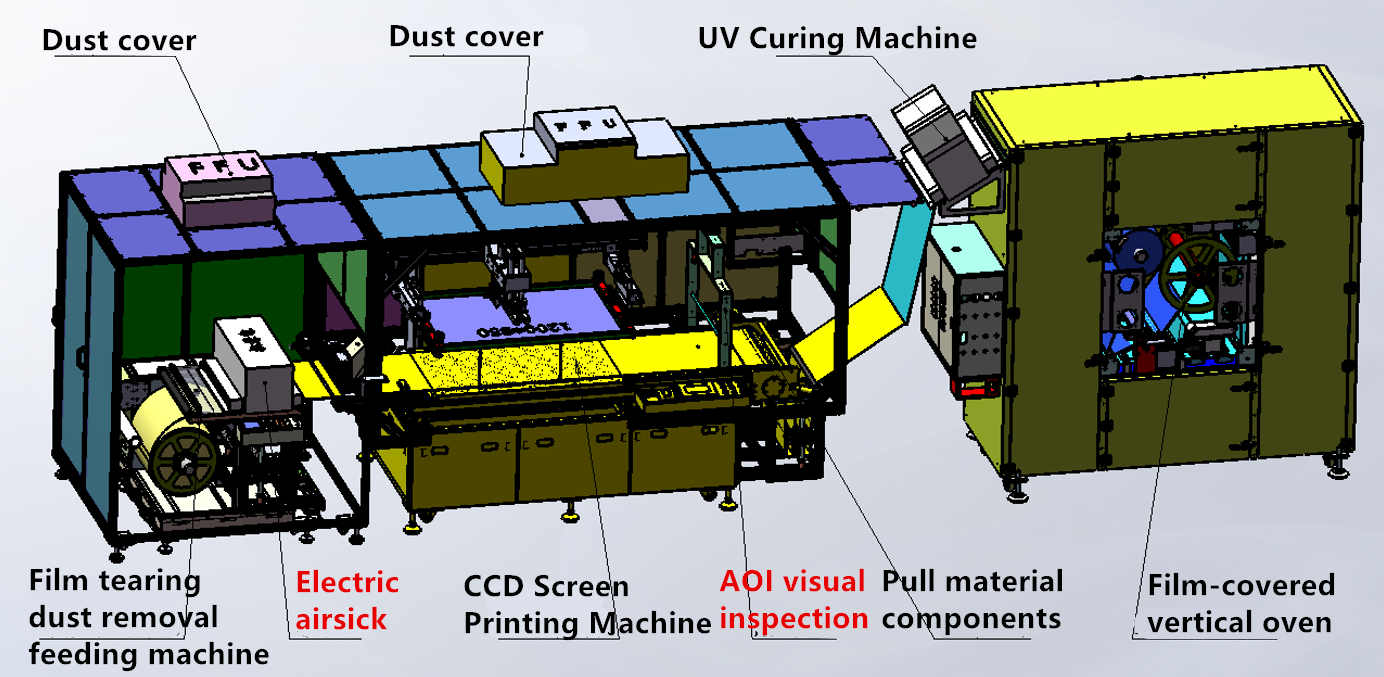

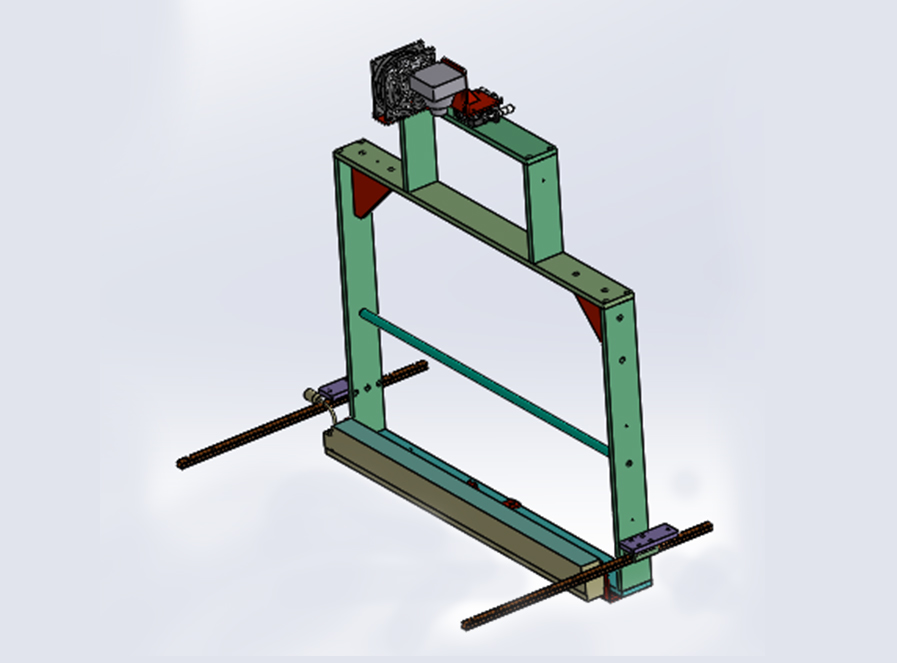

Composition 1. Feeding system; 2. tension system; 3. alignment system; 4. printing system; 5. pulling system; 6. AOI inspection system; 7. lifting system; 8. baking system (with UV); 9. receiving system

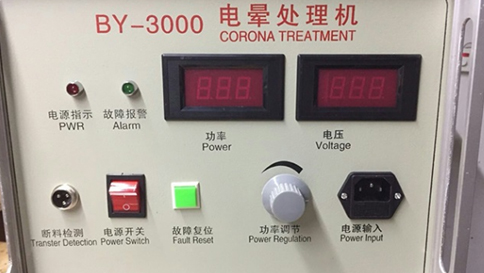

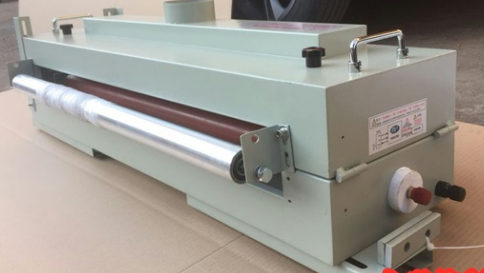

The feeding machine is mainly used magnetic powder brake and automatic tension detection together to control the tension of feeding, at the same time on the material under the dust removal electrostatic, as well as the material surface automatic corona treatment, used to meet the process requirements before screen printing.
6090CCD registration screen printing machine

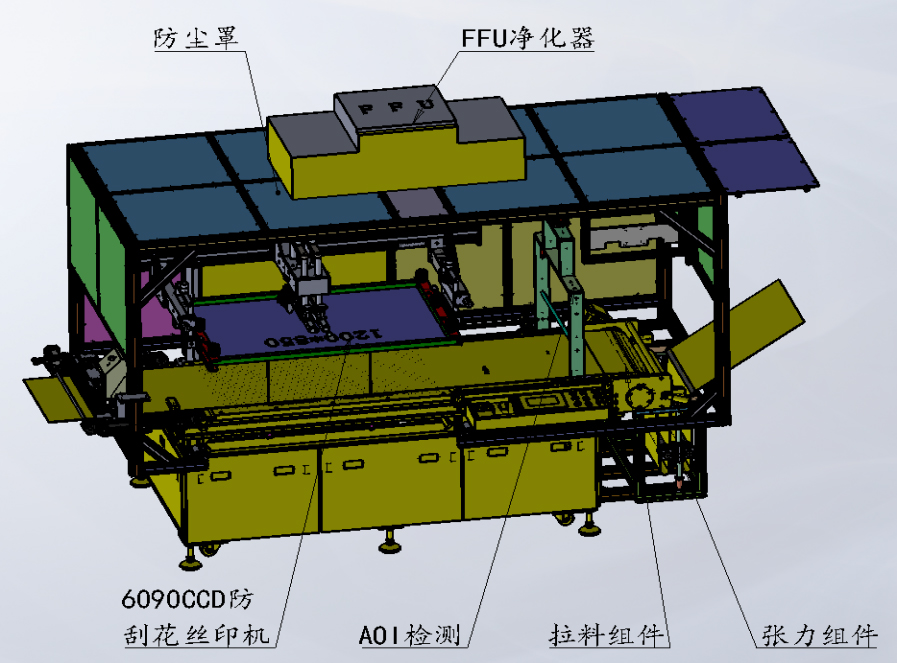

The screen printing machine is mainly composed of guide frame system, CCD alignment system, screen printing squeegee system, operating system, AOI detection and pulling system, which has good screen printing effect for PET film and can fully meet customer screen printing requirements.
Machine name | 6090 roll to roll CCD automatic precision printing machine |
Weight | 1800kg |
Installation mode | Floor type (front and rear are connected with feeder and tunnel furnace frame with L-shaped fixed plate) |
Maximum network frame | 1100 x 900mm |
CCD alignment accuracy | ±0.03mm |
CCD number | 2 |
Printing table vacuum hole | φ 0.8mm |
CCD adjustable distance | 30mm |
Screen printing table parallelism, flatness | 0.05mm |
Scraper/ink knife Angle adjustment | 90±30° |
Inspection light box | 660*600 glass and acrylic inverted light board constitute inspection stand |
Control system | C++(CCD vision) and touch screen |

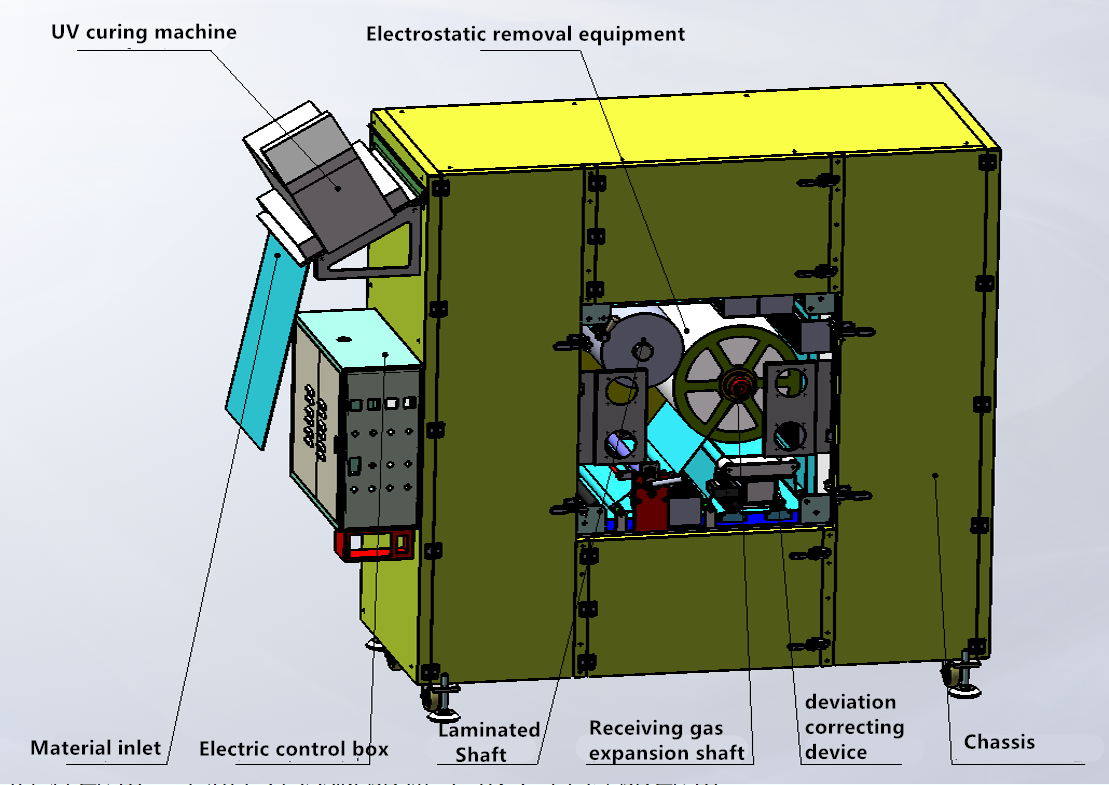

The oven is mainly composed of UV machine, stainless steel liner, four groups of temperature sensors, heating tube, heat insulation protection layer, material receiving shaft, deviation rectifying device, film-covered shaft. It can effectively control the difference of temperature in the furnace and the effect of heat insulation, and also has a good effect on the drying of materials.
1. Screen printing material: PET material transparent, frosted or opaque
2. Product size: width W=300~510mm, thickness T=0.05~0.25MM
3. MARK point: solid circle ●, solid square ■, hollow circle ○, hollow square □, + word, circle ◎, cross + circle
4. Coil core: Coil core inner diameter of 3 inches and 6 inches
5. material surface characteristics: 1. surface static electricity; 2. material printing before the front and back with a protective film; 3. material surface coating, low hardness, contact friction is easy to produce scratches
