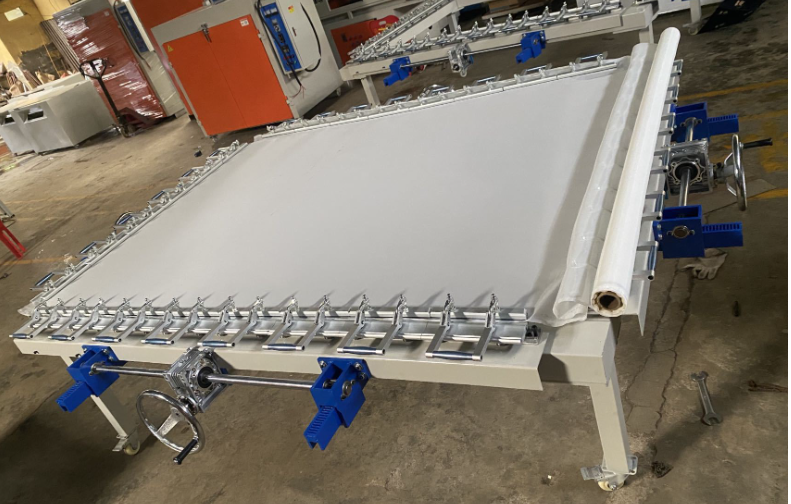

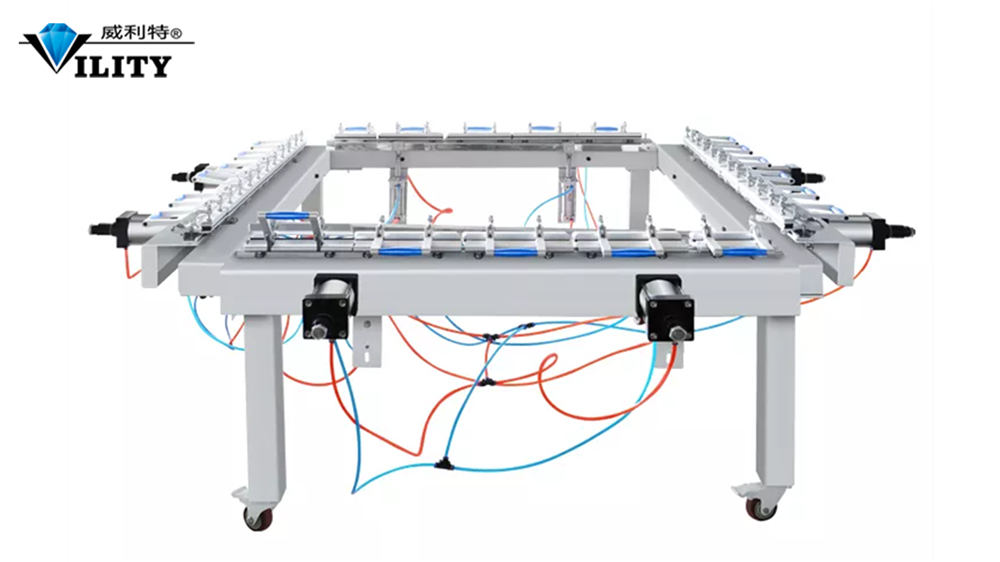

Mesh Stretching Machine: mainly used for screen printing mesh stretching system,
especially suitable for overlay printing screen,
high precision single and double-sided circuit board.
Simple, convenient and fast operation.

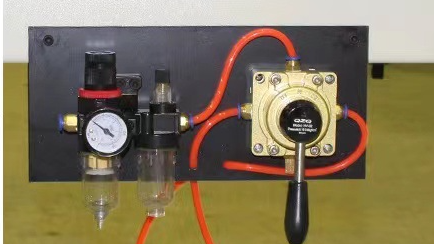

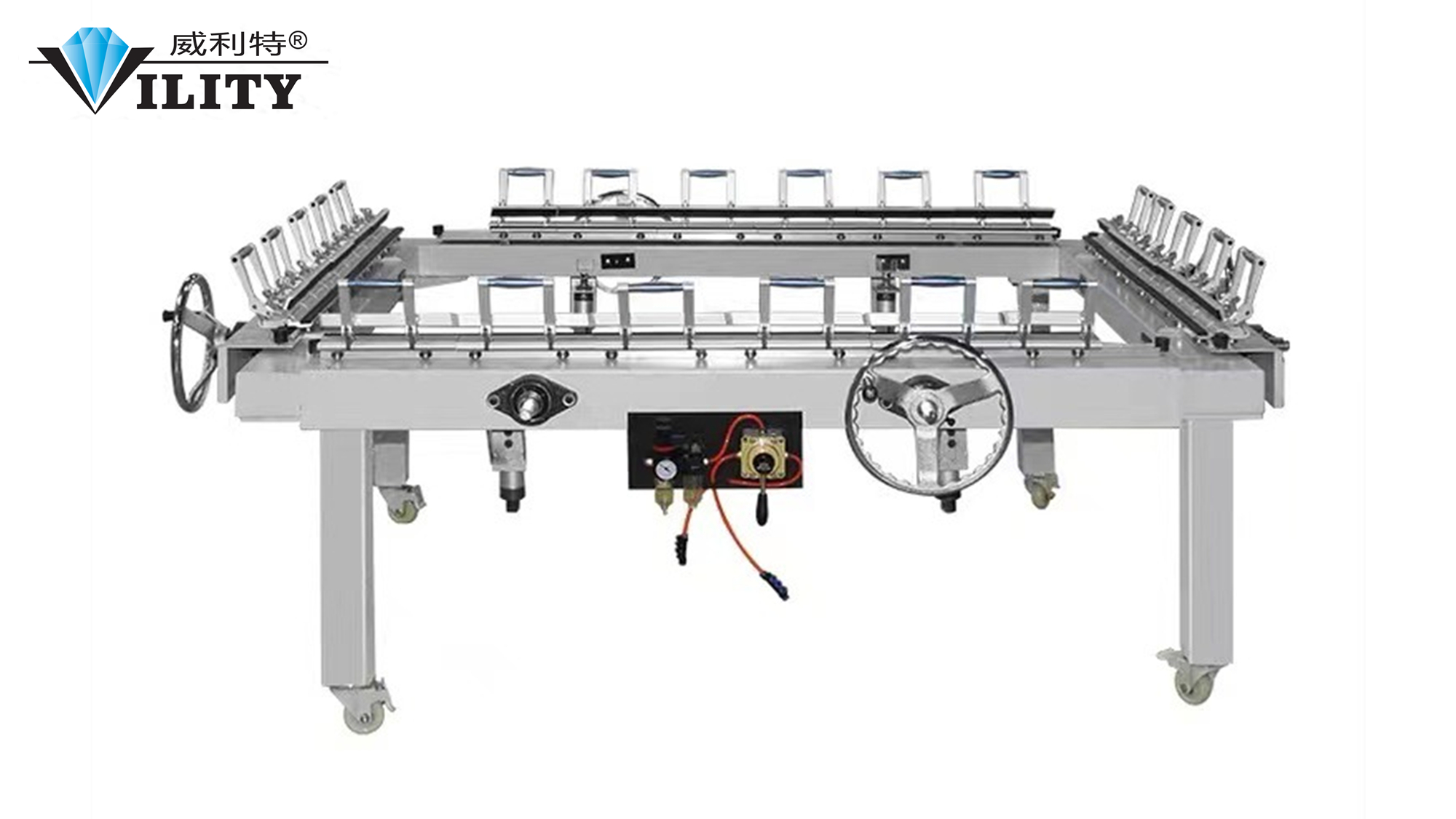

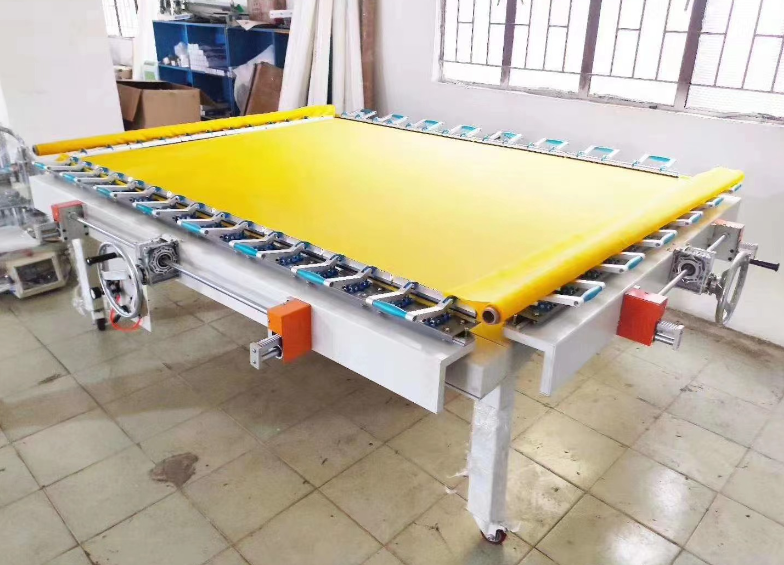

Model:VT-LW1212
Max Frame's Size:1200x1200mm
Min Frame's Size:600*800mm
Max Tension:30 N/cm
Cylinder:4 Pcs
1.Is it possible for you to assign engineers to our company?
yes. Our engineers can go to your company for on-site service. However, you need to pay the corresponding fee.
2.Do you provide installation and training services?
Yes, we will provide you with professional installation and training manuals and video tutorials. Live video conversations will also be provided to guide you through the operation.
3.What is your company’s production capacity?
30 Sets/ Month.
1. All equipment is CE certified. And can be customized to meet customer requirements of other certification.
2. Our equipment is highly automated, and one person can man multiple production lines.
3. Accept OEM/ODM, screen printing industry whole line customization.
4. Printing, punching, die cutting precision 0.02mm.CCD camera visual alignment system, fast and accurate positioning and fine tuning, to ensure accuracy requirements.
Shenzhen VILITY Automatic Machinery Co.,Ltd established in 2010 year, located in Shenzhen city, China. Our company’s development approach is : People-oriented, Technological innovation , service-oriented. VILITY is a combine-word, comes from Victory& Ability and Victory &Quality which means we always pursue high quality and good service to meet customers requirements and high competitive market. We believe: Service first, customers supreme. VILITY is a Professional manufacturer, providing ONE-STOP SOLUTION for intelligent printing industry. Recent years, We have pay most of the techniques and technologies to implement Industry 4.0 Robotic. VILITY has been successfully Provide unmanned production lines for many customers. Therefore, it is honored to get a high degree of social affirmation. Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material. With substantial ongoing investment in research and development, VILITY is ideally positioned to continue doing high precision CCD robotic machines for both the commercial and domestic markets. We are looking forward to establishing well long –term business relationship with you and your esteemed companies.
It is special not only for its ingenious, practical and elegant appearance, but also for its firm structure, light weight, durability and reliability. Therefore, it becomes an indispensable production in screen printing industry.

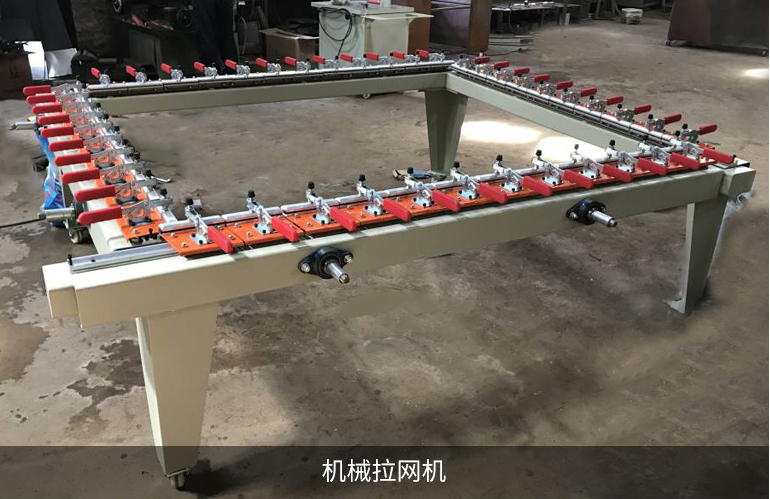

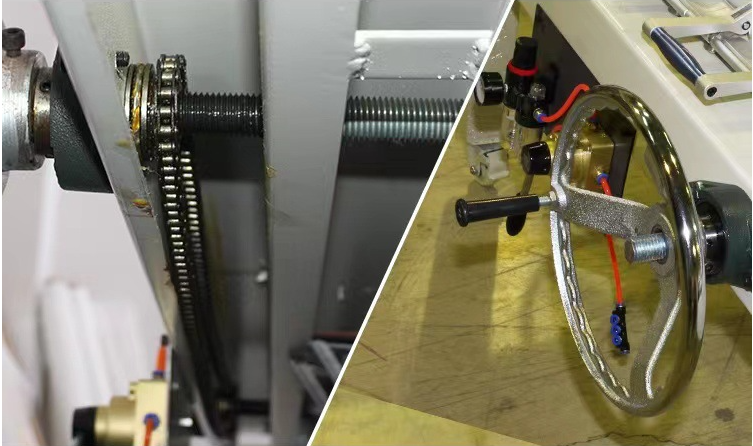

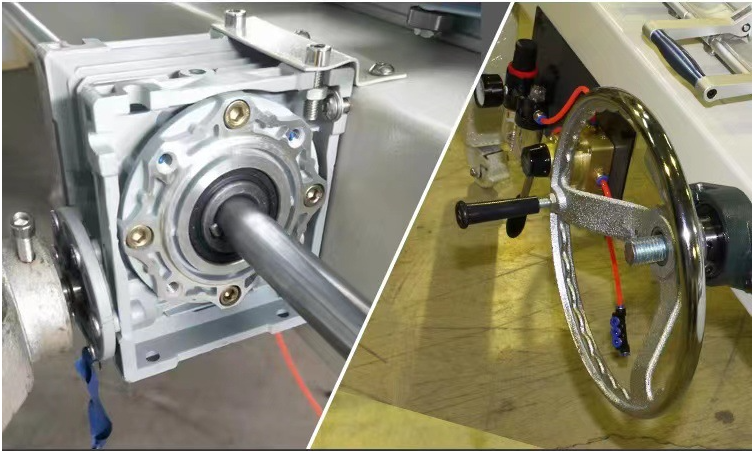

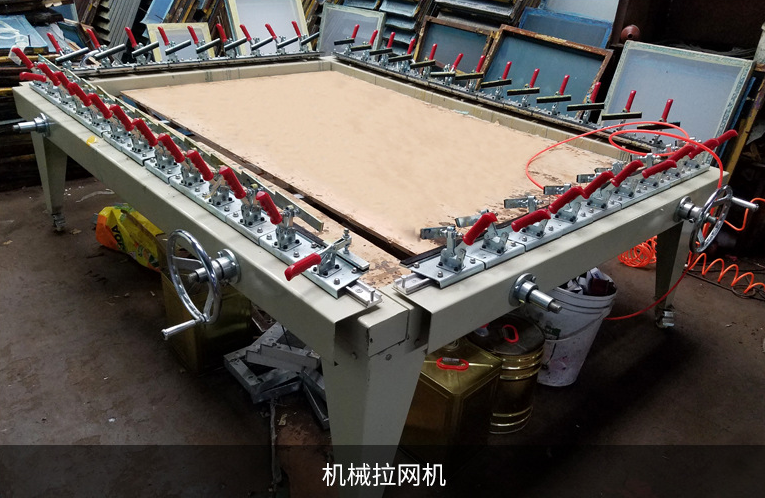

The screw-type mesh stretching mechanism comprises a workbench and stretched meshes fixed at the two ends of the top side of the workbench; a silk screen with the two ends fixed by clamp plates are tightly propped against the stretched meshes; screw rods fixedly connected with the bottom ends of the clamp plates are mounted on a pillar below the workbench; hand wheels are fixedly connected with the screw rods. The screw-type mesh stretching mechanism is reasonable in design, solves the problem of cooperation of the silkscreen and the stretched meshes, ensures that a pulling force applied on the edge of a metal screen by a mesh stretching device is uniform, and can meet the mesh stretching operation with relatively high. requirements on precision and automation.
Main specification parameters
| Specifications For Automatic turbo-worm mechanical stretching Machine | |||||
Model | VT-LW121 | VT-LW1215 | VT-LW1616 | VT-LW1620 | VT-LW2020 |
| Max Frame Size | 1200x1200m | 1200x1500mm | 1600x1600mm | 1600x1600mm | 2000x2000mm |
Min Frame Size | 600*800mm | 600*800mm | 600*800mm | 600*800mm | 600*800mm |
| Max Tension | 30 N/cm | 30 N/cm | 30 N/cm | 30 N/cm | 30 N/cm |
Cylinders | 4 Pcs | 4 Pcs | 4 Pcs | 8 Pcs | 8 Pcs |
Main Features
(1)Easy operation, evenly stretching tension during meshing,and the stretching area can be adjusted,so we
can process many printing plates in the same time, which enhance the efficiency;
(2)The screen mesh will not rubbed with the screen frame during meshing, which can lessen breakage,
improve economic returns;
(3)Mainly applied to the industries of SWT Mask Laser,PCB,Bid board,EL&LCD manufacturing,membrane
switch etc;
(4)The general features of these industries are large quantities of stretching,high tension,high precision etc;
(5)No need for external gas source, energy saving of high efficiency.
Operating instructions

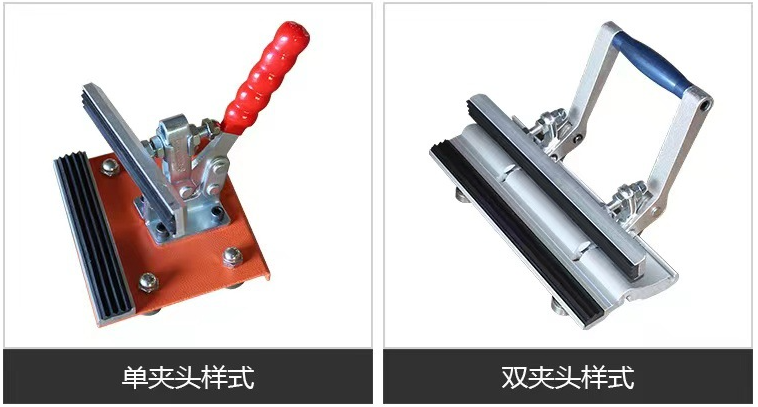

1.Check whether the clamp mouth is clamped before use
to prevent the mesh from withdrawing when pulling it. If it is loose, tighten the clamp screws first.
2. The 4 diagonal collets should be evenly distributed. After the 4 diagonal mesh is clamped ,the mesh should be relaxed.
3. When pulling the mesh, it is generally pulled vertically first and then horizontally. It should be divided into three times, pull and relax for every time.
4. The mesh frame should be viscose first and then put the mesh and pull the mesh after the glue is a little dry and the pull pressure should notexceed0.2Mpa.
5. When pulling the mesh,such as uneven cloth resulting in the tension imbalance he chuck can be relaxed so that the net is loose and the clamping can achieve the purpose of balance after exiting.
6. Frame is 20 mm higher than the mesh which can make the glue stick more tightly.
