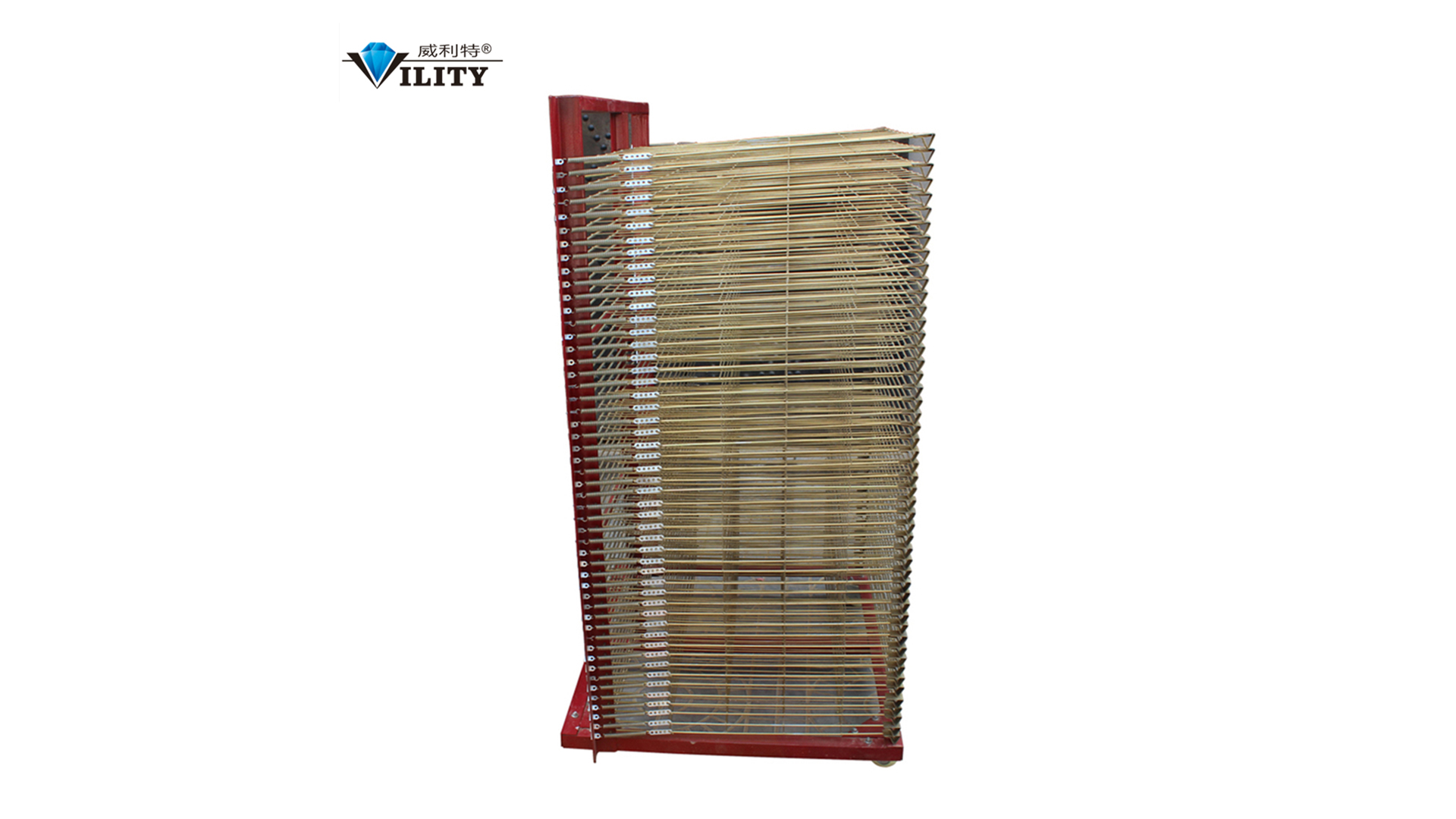

Screen Printing Dryer
VR

Product Description


The drying rack is an auxiliary equipment, you can put paper, film, screen plates &other flat items on it to dry in nature, it is very convenient and space-saving. This screen print storage rack is suitable for storing prints, paintings, metal name plates and other flat substrates it is an auxiliary equipment you can put t-shirts, film, and screen plates. etc on it to dry in nature.

These drying racks are the perfect choice for industrial drying applications. Built on a welded steel frame, these racks provide a safe and sturdy resting place for your substrates as they dry. Longer lasting than rubber, steel bumpers come standard on all of our heavy-duty racks and are welded to the outside of the shelf for maximum drying room. For smooth up/down operation, the individually adjustable shelf springs give you tension control over each shelf, and all shelves feature a rust- and solvent-resistant, powder-coated finish to extend the life of your rack. To promote quick evaporation, racks come with non-warping shelves spaced at 1" or 2" intervals. Available in heat-resistant models for baking applications, these heavy-duty racks stand ready to fulfil all your industrial drying needs.


Product Specification

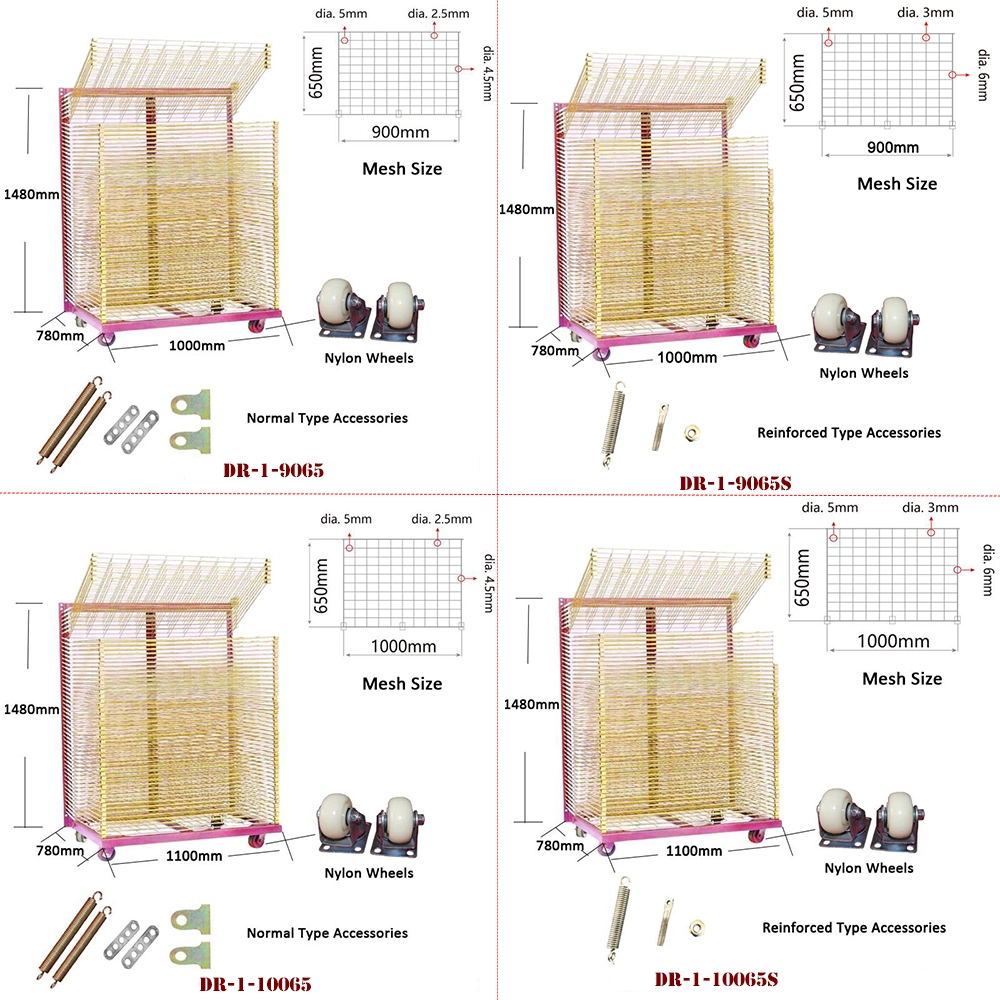

VT-DR-1-9065

Model 1

Multilayer Drying rack

Parameter

Mesh size:900x650mm

Size: 1000*780*1480mm

Wire diameter:5mmx2.5mmx4.5mm

Layer:50

Wheel: 4 pcs

Mesh hole: 100x130mm

Distance between layers:2.5cm

Feature

Mesh galvanized. The rack's main frame was painted sprayer. Screw rod reinforcement fittings three-inch universal wheel

Packing size

1350 MM*1050 MM*290 MM

Weight

64 kg


VT-1-9065S

Model 2

Multilayer Drying rack

Parameter

Mesh size:900x650mm

Size: 1000*780*1480mm

Wire diameter:6mmx3mmx5mm

Layer:50

Wheel: 4 pcs

Mesh hole: 100x130mm

Distance between layers:2.5cm

Feature

Mesh galvanized. The rack's main frame was painted sprayer. Screw rod reinforcement fittings three-inch universal wheel

Packing size

1350 MM*1050 MM*350 MM

Weight

90KGS


VT-DR-1-10065

Model 3

Multilayer Drying rack

Parameter

Mesh size:1000x650mm

Size: 1100*780*1480mm

Wire diameter:5mmx2.5mmx4.5mm

Layer:50

Wheel: 4 pcs

Mesh hole: 100x130mm

Distance between layers:2.5cm

Feature

Mesh galvanized. The rack's main frame was painted sprayer.  Screw rod reinforcement fittings three-inch universal wheel

Packing size

 1370 MM*1160 MM*290 MM

Weight

75KGS


VT-DR-1-10065S

Model 4

Multilayer Drying rack

Parameter

Mesh size:1000x650mm

Size: 1100*780*1480mm

Wire diameter:6mmx3mmx5mm

Layer:50

Wheel: 4 pcs

Mesh hole: 100x130mm

Distance between layers:2.5cm

Feature

Mesh galvanized. The rack's main frame was painted sprayer. Screw rod reinforcement fittings three-inch universal wheel

Packing size

1370 MM*1160 MM*350 MM

Weight

100KGS



Main Feature
  • ◪  Versatile Design for Many Applications.

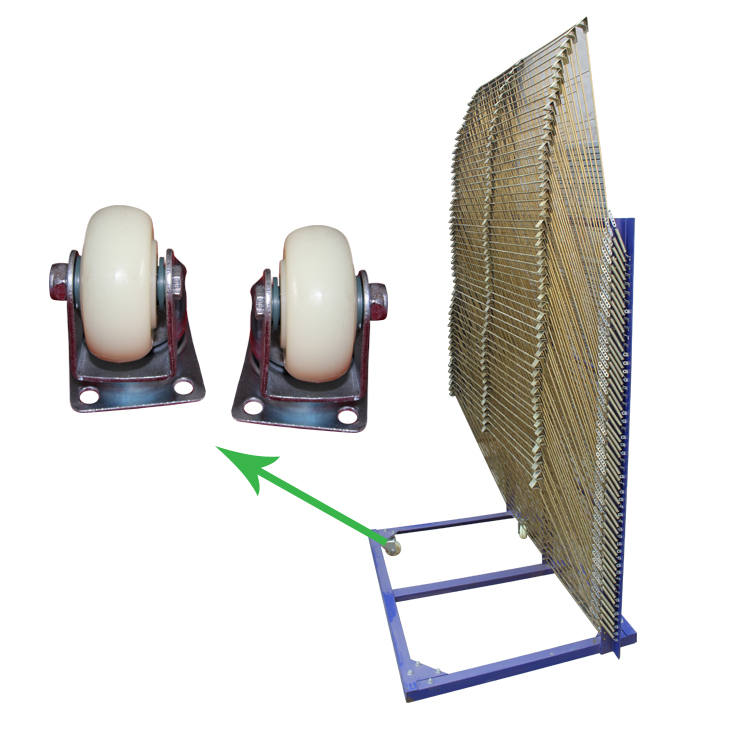

  • ◪ Move freely with the rubber wheel.

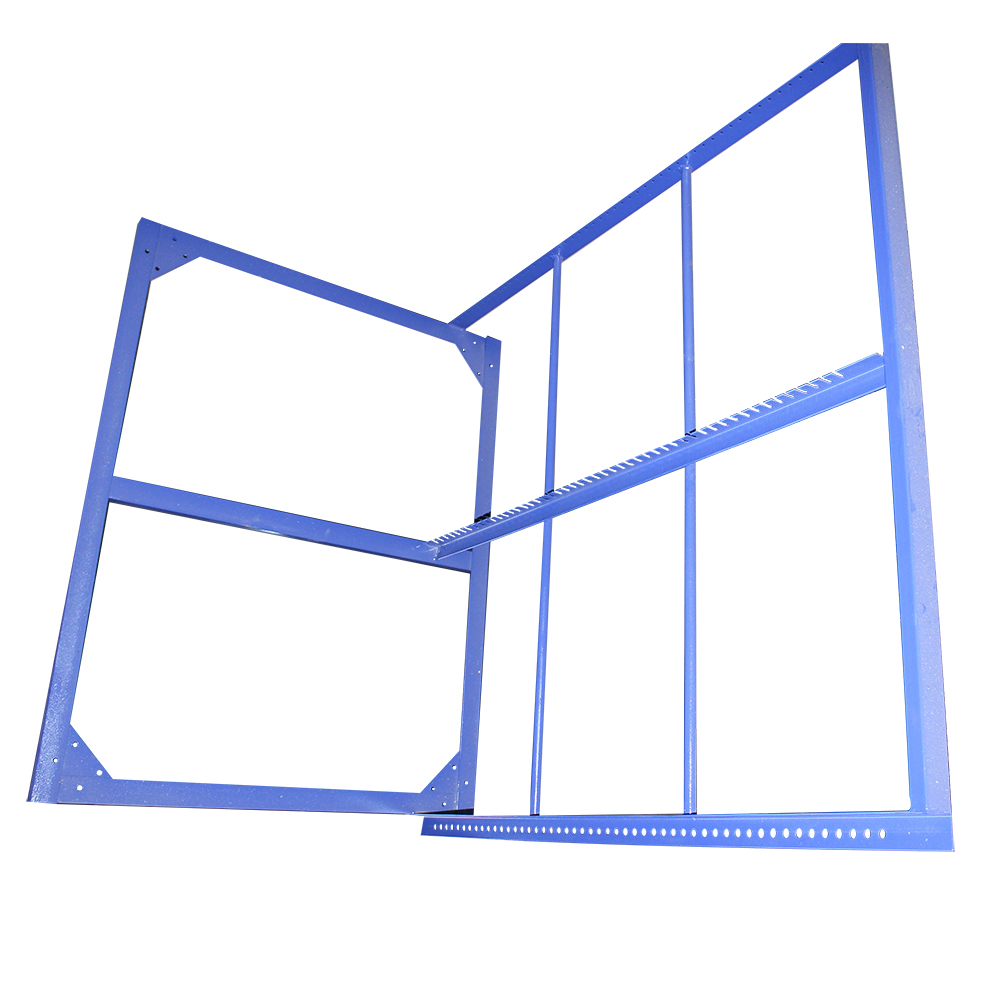

  • ◪ All-steel structural framework with an enamelled finish.

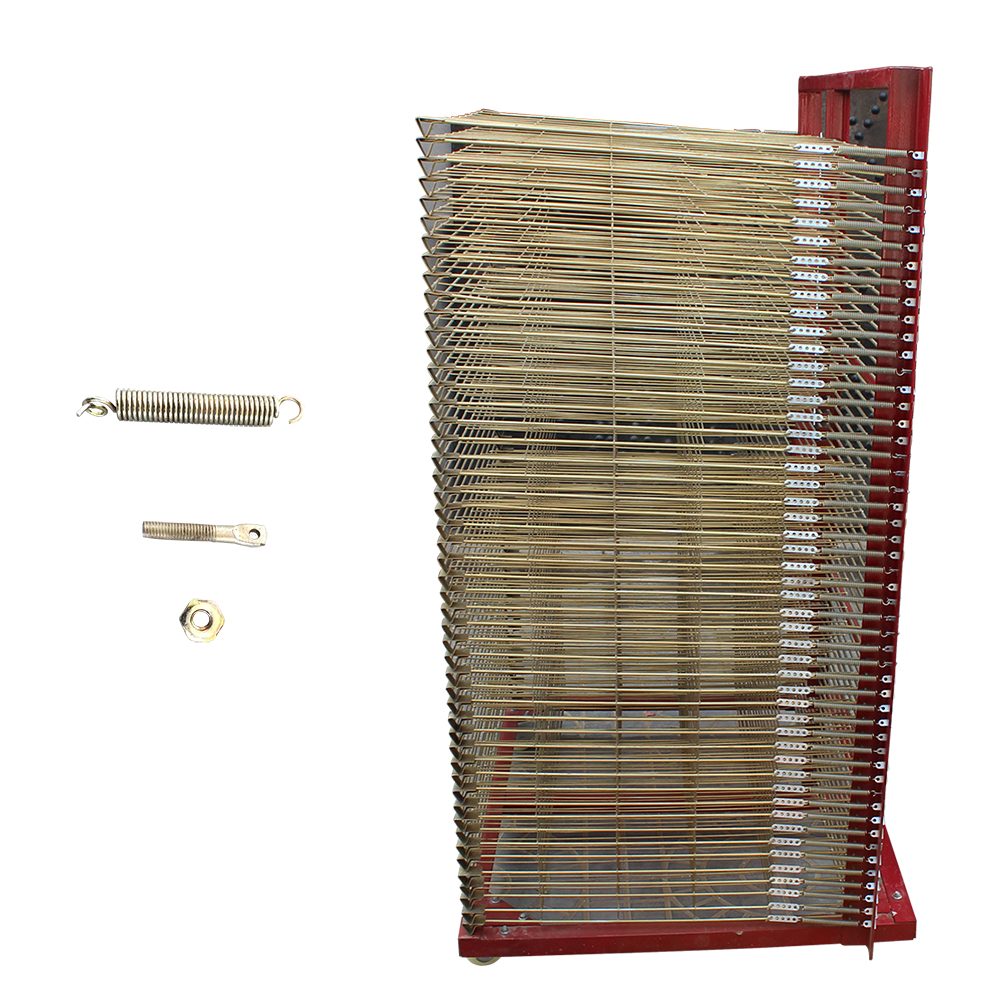

  • ◪ Spring tension arms hold the shelves in any convenient position.

  • ◪ Departable for transport and save freight.

  • ◪ Custom size and materials according to requirements.

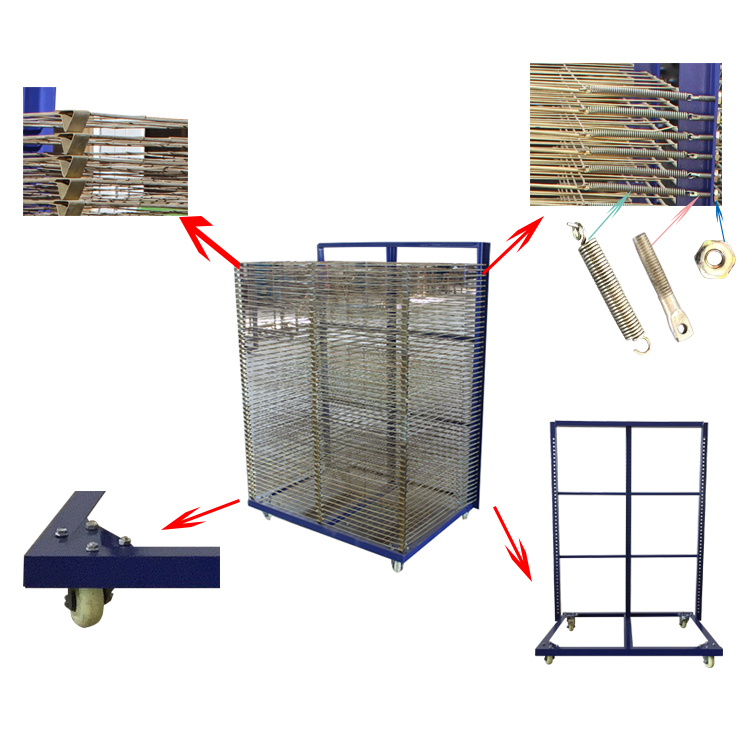

Details Images



Application


The dry metal frame is an auxiliary device. After screen printing, it is used to dry flat large-size products such as glass, acrylic plates, textile t-shirts/clothes, national flags, aluminium plates, films, screens, etc. Save space.
