Features:
It also can be used to dry the printed electronic, plastic and hardware products or other oil-sprayed products.……
With infrared heater.
The uniform temperature available anywhere in the cabinet with the fan blades.

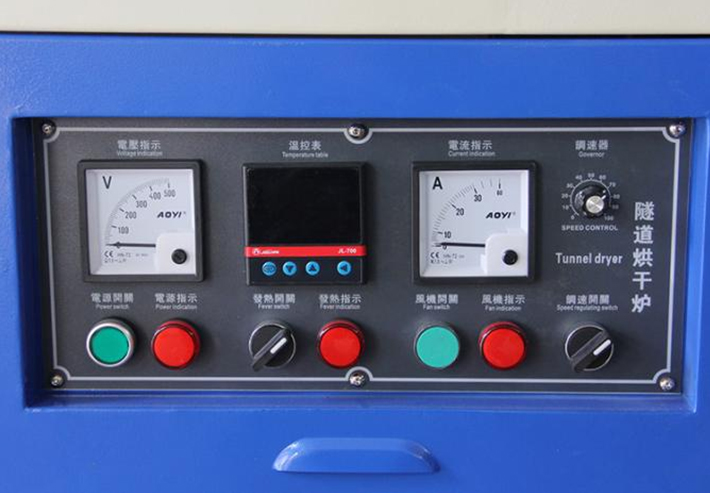

Built-in digital automatic temperature controlled system.
Working temperature: 40~200℃;
Mode of temperature control: Steplessly adjustable;
Conveyor speed: 0~10m/min;
Mode of regulating speed: Electronic stepless;
Power supply: 380V/50Hz ;
Special sizes can be custom made....
1.Is it possible for you to assign engineers to our company?
yes. Our engineers can go to your company for on-site service. However, you need to pay the corresponding fee.
2.Do you provide installation and training services?
Yes, we will provide you with professional installation and training manuals and video tutorials. Live video conversations will also be provided to guide you through the operation.
3.What is your company’s production capacity?
30 Sets/ Month.
1. All equipment is CE certified. And can be customized to meet customer requirements of other certification.
2. Our equipment is highly automated, and one person can man multiple production lines.
3. Accept OEM/ODM, screen printing industry whole line customization.
4. Printing, punching, die cutting precision 0.02mm.CCD camera visual alignment system, fast and accurate positioning and fine tuning, to ensure accuracy requirements.
Shenzhen VILITY Automatic Machinery Co.,Ltd established in 2010 year, located in Shenzhen city, China. Our company’s development approach is : People-oriented, Technological innovation , service-oriented. VILITY is a combine-word, comes from Victory& Ability and Victory &Quality which means we always pursue high quality and good service to meet customers requirements and high competitive market. We believe: Service first, customers supreme. VILITY is a Professional manufacturer, providing ONE-STOP SOLUTION for intelligent printing industry. Recent years, We have pay most of the techniques and technologies to implement Industry 4.0 Robotic. VILITY has been successfully Provide unmanned production lines for many customers. Therefore, it is honored to get a high degree of social affirmation. Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material. With substantial ongoing investment in research and development, VILITY is ideally positioned to continue doing high precision CCD robotic machines for both the commercial and domestic markets. We are looking forward to establishing well long –term business relationship with you and your esteemed companies.

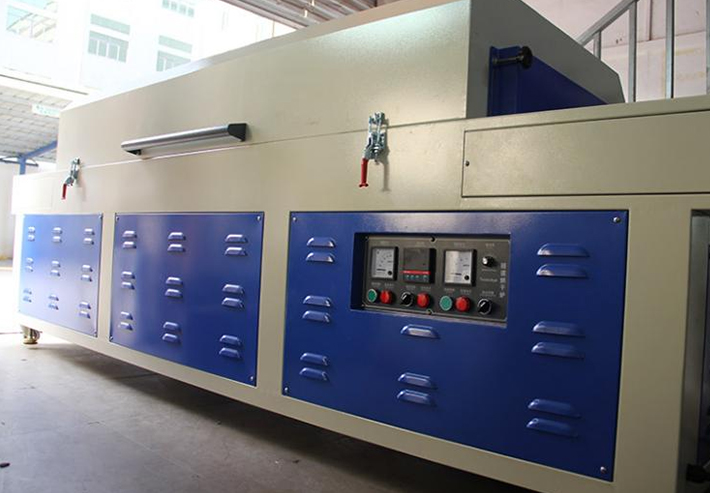

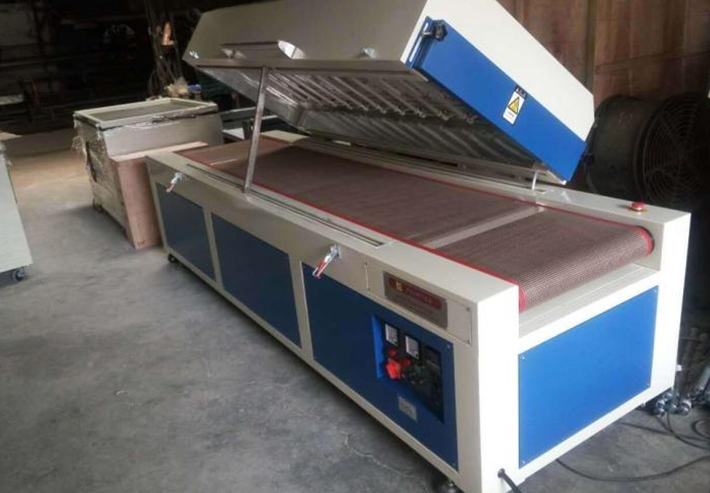

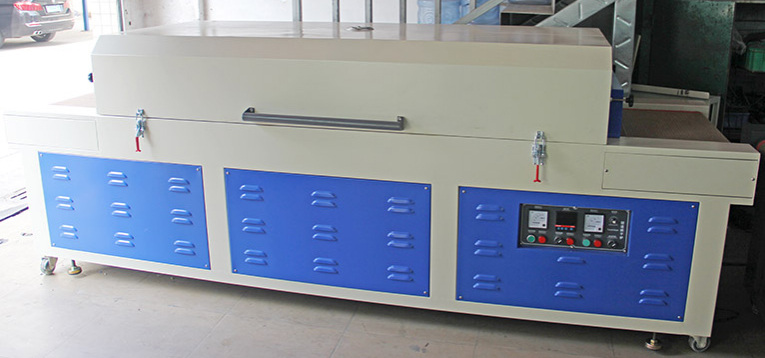

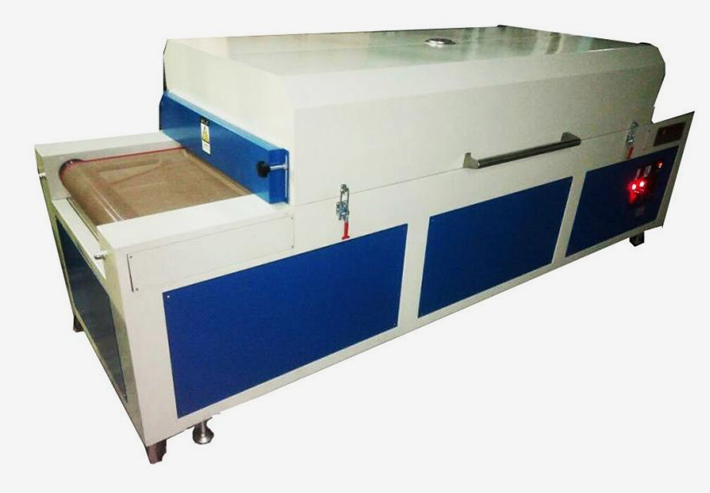

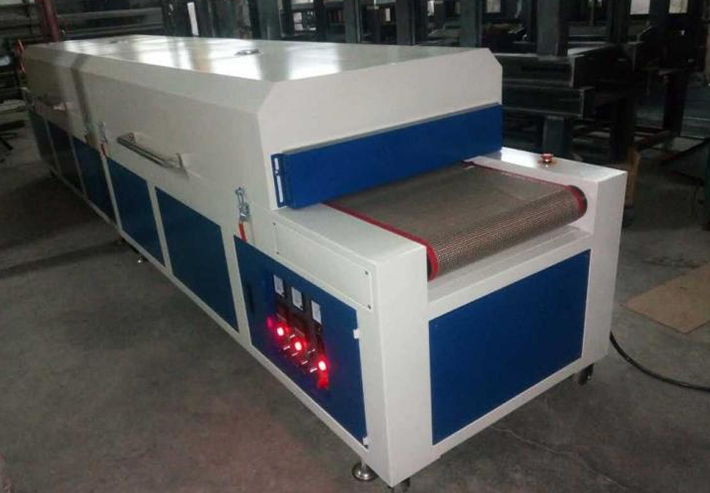

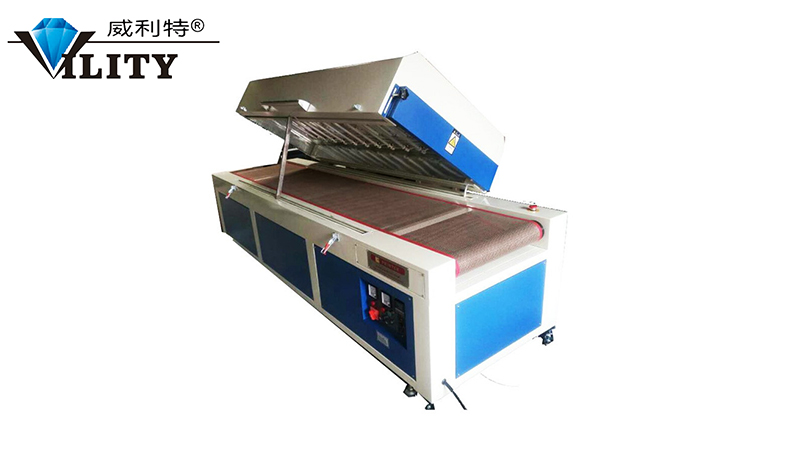

IR drying machine IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products,(silicon, electric membrane film key press, window glass.)
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryer enables the production of printed products with good colorfastness, high flexibility and high gloss.
This machine total 7M, 2 heating zone 2m*2, with one preheating zone and cooling zone.
The machine length7M,width:960mm,height:800mm(from the ground to crossbeam),IR oven size 2000mm*350mm *2, input and output size.

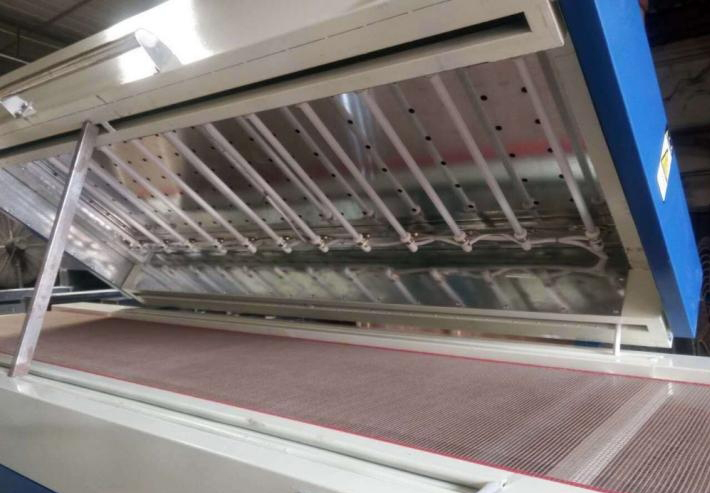

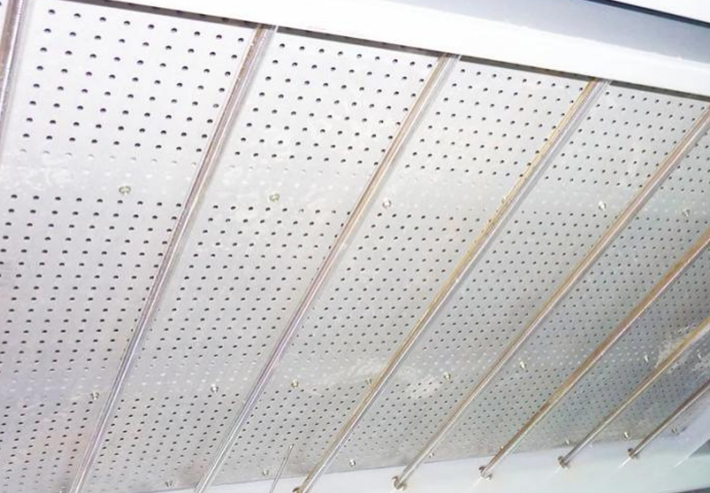

1500mm*150mm,there with 800mm preheating oven at entrance,800mm cooling zone at output area. IR heating oven with 12pcs heater 8.4KW,preheating oven 3pcs heater 2.4KW,cooling zone draught fan 370W.
Specifications For IR Conveyor Belt Drying Tunnel Machine | |||
Model number | SD5000 | Conveyor length | 5000mm |
Conveyor width | 600mm | Machine size | 5100*1050*1260mm |
Height of the entrance | 120mm | Working power | AC 380V 50HZ |
Temperature adjustment | 0-200 Centigrade | Belt speed adjustable | 0-10M/MIN |
1. Air Handling.
2. Forced airflow accelerates drying/curing.
3. High-volume circulation blower reduces energy costs.

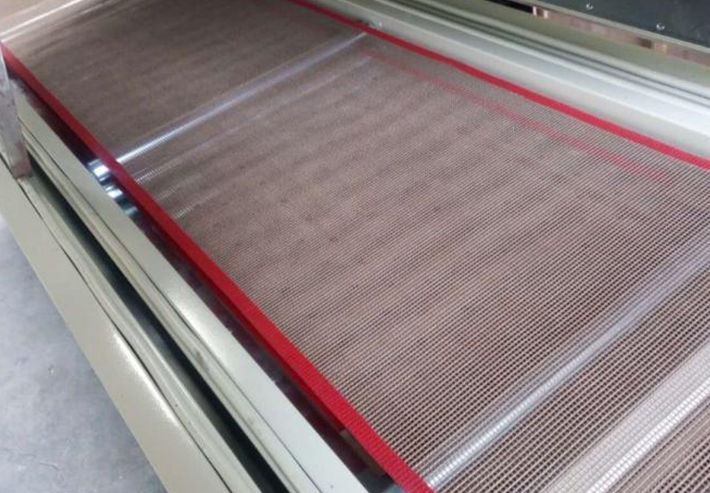

4. Conveyor belt is made of imported antistatic heat-resistant, coated fiberglass coating.
5. Conveyor Driven by a reliable, heavy-duty, variable-speed AC motor with imported variable speed drive and gear box.
6. Conveyor speed & IR system are integrated with each other for safety purpose.
