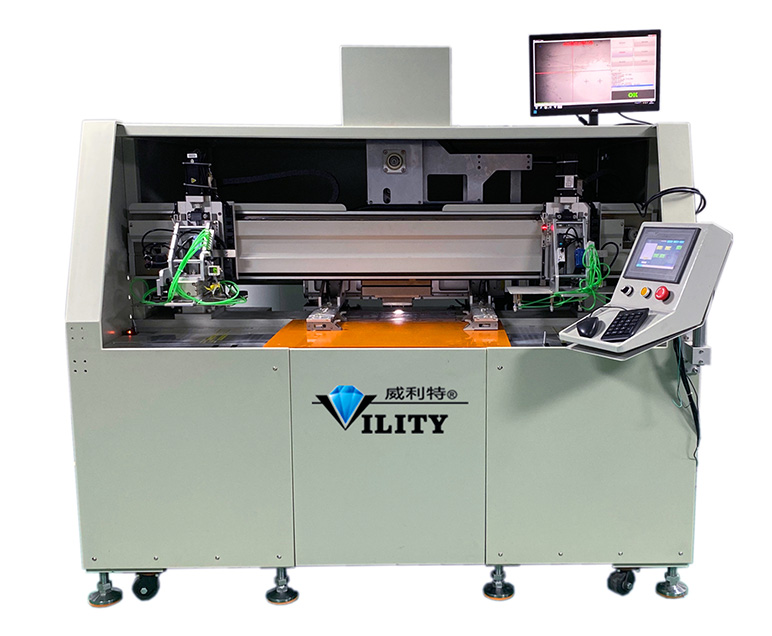

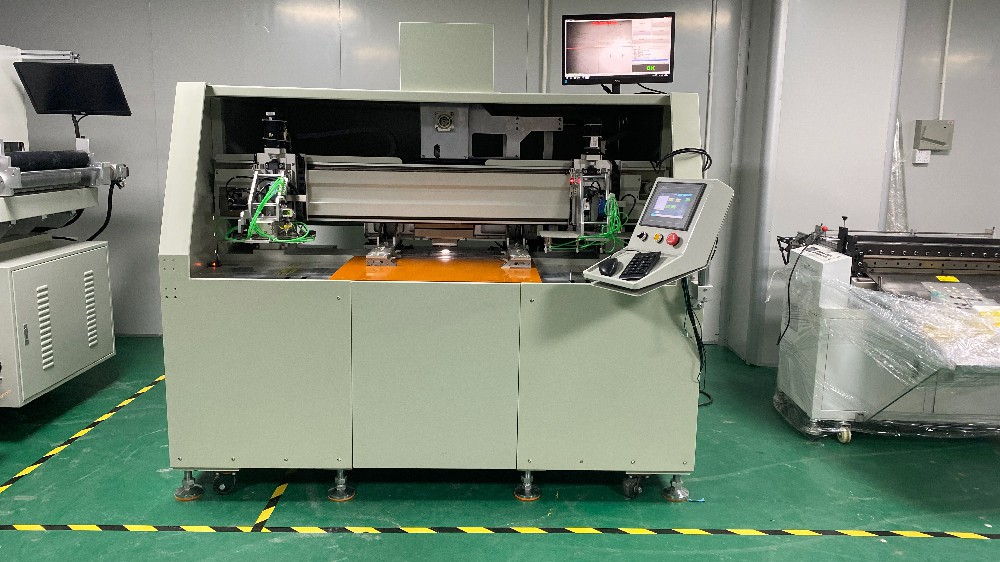

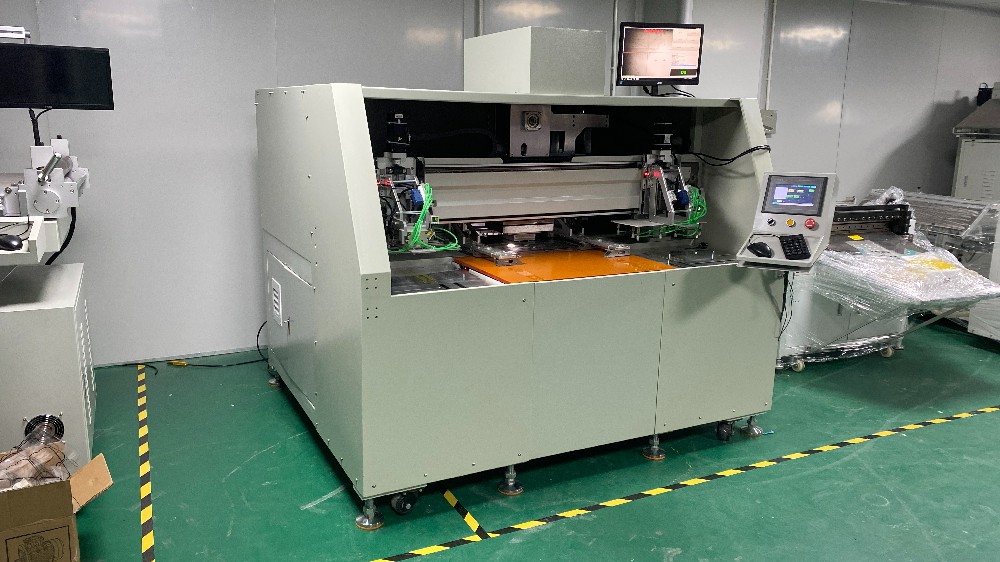

The original punching processing field, most of the manual loading, punching, manual unloading, manual re-hanging material, the cycle of workers heavy operation, low productivity, poor product quality Automatic high-precision shaped punching machine, the use of robot automatic loading, CCD accurate alignment, punching, robot automatic unloading, a worker can simultaneously operate 3 ~ 4 machines, simple operation, high production efficiency, because the use of CCD alignment, greatly improve product quality.

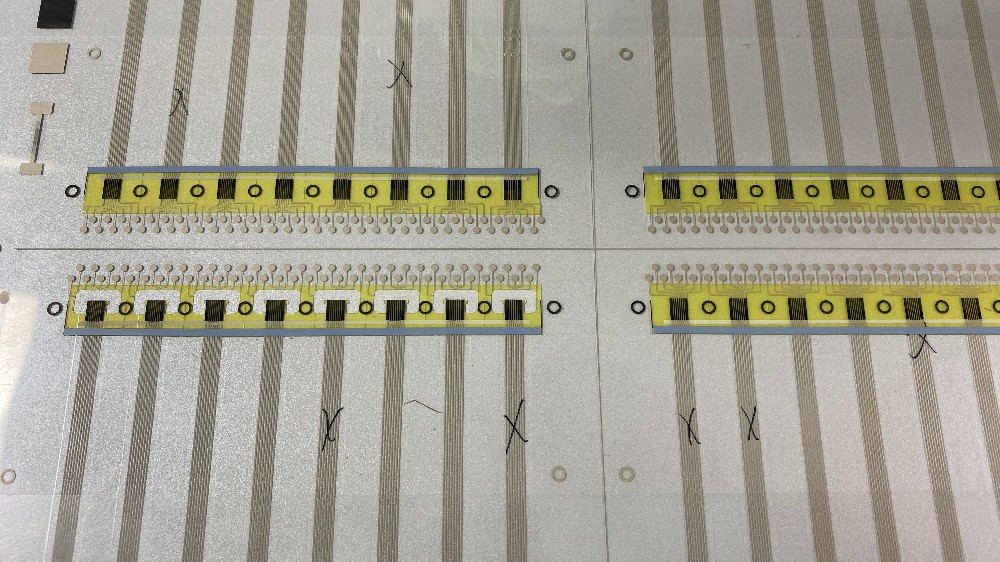

It is mainly used for die-cutting and custom shape cutting of silicone logos, clothing patterns, electronic film sheets, etc.
It is mainly used for die-cutting and custom shape cutting of silicone logos, clothing patterns, electronic film sheets, etc.
The original punching processing field, most of the manual loading, punching, manual unloading, manual re-hanging material, the cycle of workers heavy operation, low productivity, poor product quality Automatic high-precision shaped punching machine, the use of robot automatic loading, CCD accurate alignment, punching, robot automatic unloading, a worker can simultaneously operate 3 ~ 4 machines, simple operation, high production efficiency, because the use of CCD alignment, greatly improve product quality.
With the use of visual CCD in the fully automated equipment, completely replace the previous manual alignment, reduce manual labor intensity, greatly improve the accuracy of product positioning, robotic feeding instead of manual feeding, but also greatly improve the production efficiency is the development trend of modern equipment.
| NO. | Item | Automatic shaped punching machine |
| 1 | Features | This equipment is based on punching processing field in order to improve production efficiency and product quality and design of automatic special-shaped punching equipment. It is characterized by adopting CCD high precision positioning platform positioning, servo drive punching and cutting forming, improving production efficiency and product quality. |

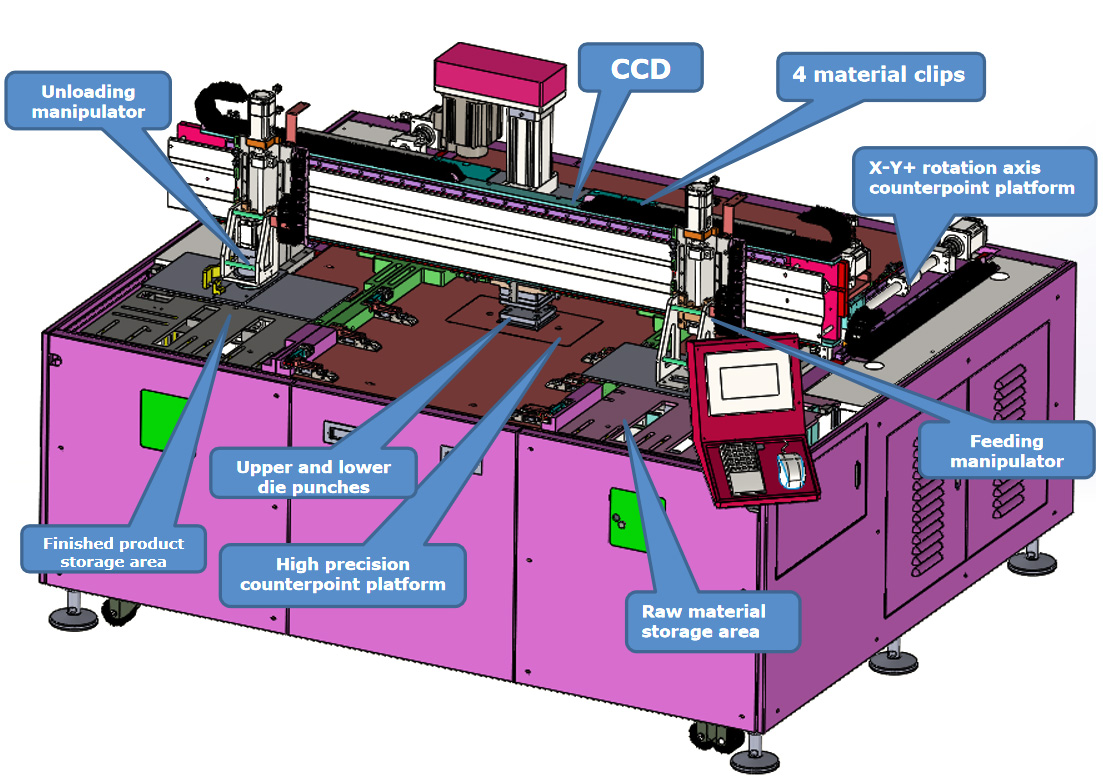

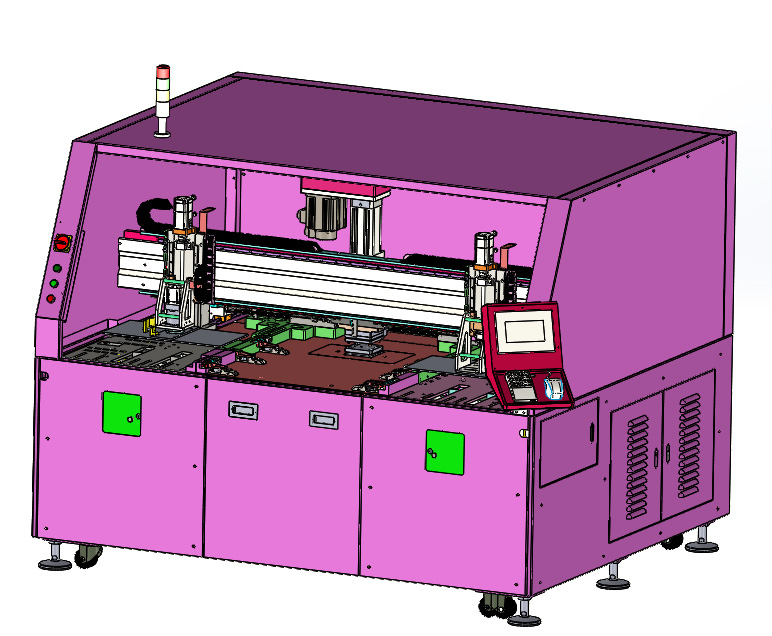

| 2 | Composition | CCD high precision positioning platform mechanism; Servo electric cylinder punching and cutting mechanism. |
| 4 | Capacity | 3600PCS/h |
| 5 | Punching shear | 2~5T |
| 6 | Registration accuracy | ±0.02mm |
| NO. | Item | Parameter |
| 1 | Height of operating surface | 830mm |
| 2 | Applicable air source pressure | 0.6∽0.8(Mpa) |
| 3 | Applicable power supply | AC 220V/380V，50∽60HZ |
| 4 | Fixed way | Floor mounted |

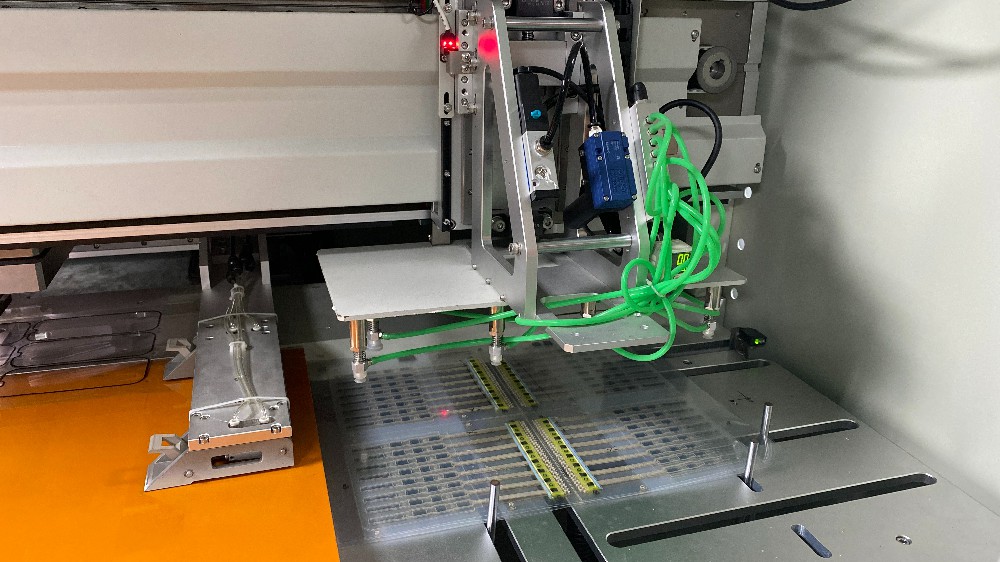

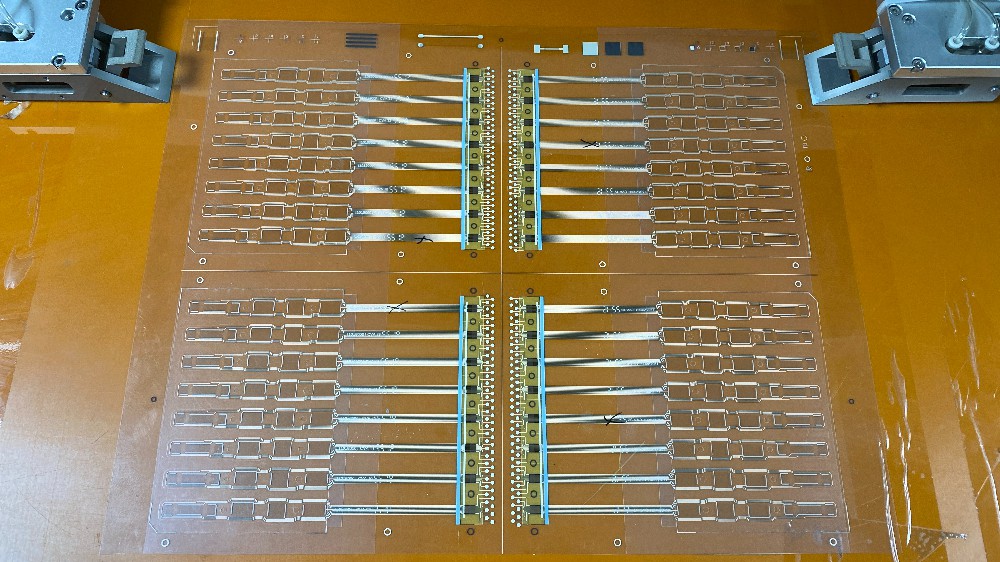

Loading robot take material - feeding material - clip mechanism clip material - feeding material, CCD photo.

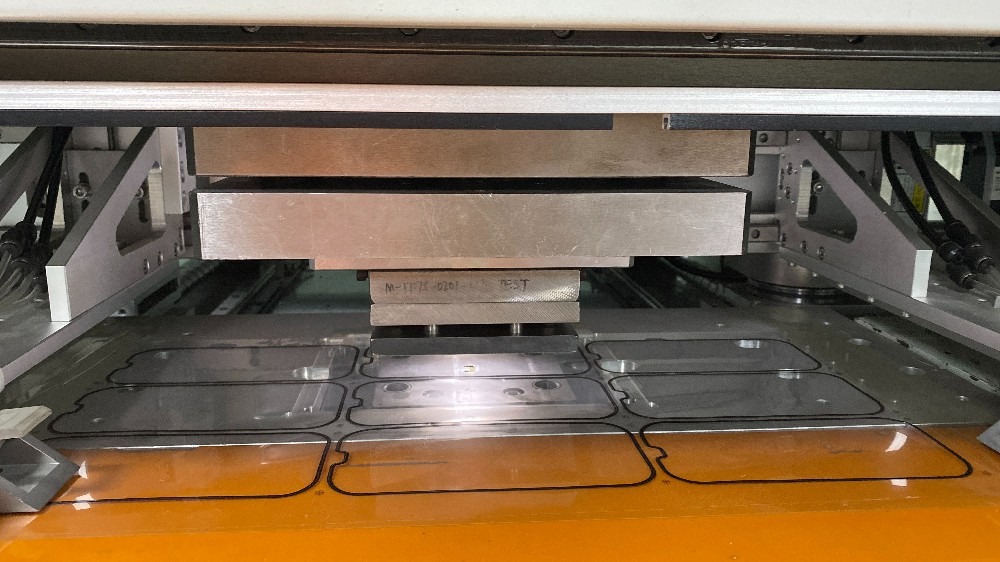

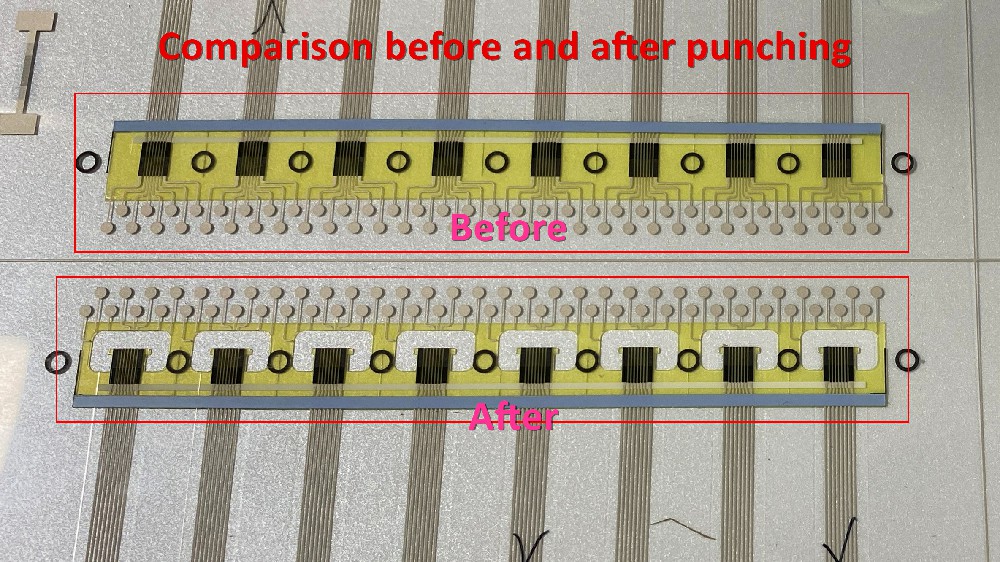

The platform is fine-tuned and aligned, the upper die completes the punching and cutting action, the scrap is discharged, the product is finished and punched.
Take out the finished product by the pick-up robot.
Because the equipment adopts visual CCD positioning, it greatly improves the accuracy of products, and replaces manual loading with mechanical loading and unloading, which also greatly reduces the labor intensity of workers and greatly improves the production efficiency.
