CCD Target Hole Punching Machine
Professional designer and manufacture of CCD machines for ONE STOP SOLUTION.
Language
Professional designer and manufacture of CCD machines for ONE STOP SOLUTION.

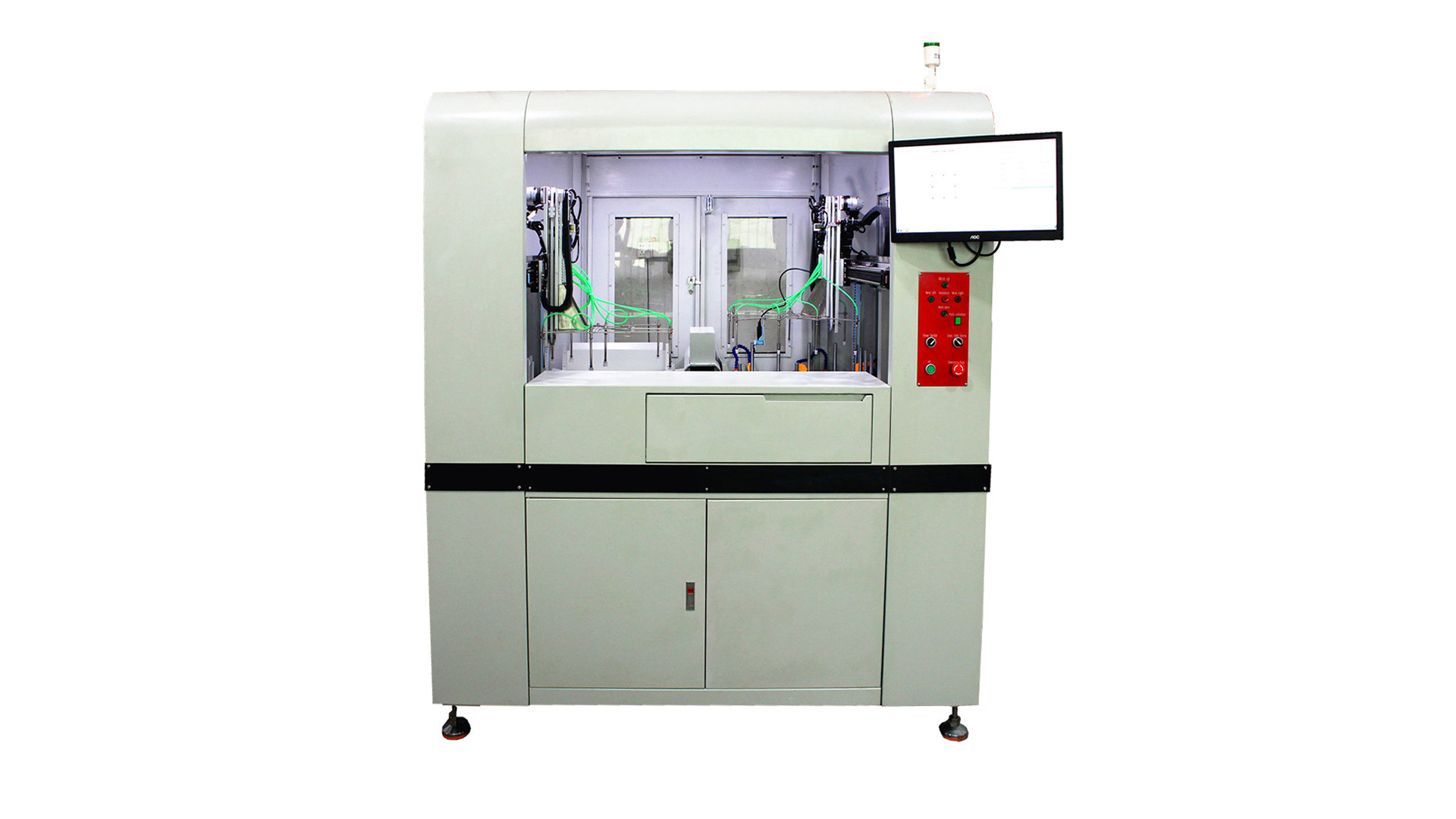

Name: CCD Guide Hole Punching Machine
Model: VTD-D02
Screw: HIWIN
Processing: Automatically loading, punching, unloading
Control System: VT position punching system in English
Material Fixed Method: Air suction nozzle fix it
Max Loading Size: 450mm*450mm
Punching Precision: ±0.02mm
Punching for below sheet materials:
Membrane switch, conductive film, IMD/IML/PET/PVC film, FPC flexible board, label, sticker, PC, panel, aluminium plate, aluminium substrate, Car nameplate, etc
◪ Communication operational system with a mouse operating tool (Windows XP Operational System) enables the procedure of the process to become easier, faster, and more efficient.
◪ Large and wide operational stage enables the object to be moved and rotated easily.
◪ High speed: Super high punching speed enables the process of hole-recognizing and target-punching to be within one second.
◪ Precise-Transmission and Micro-Step Motor Driver is used to enhance the accuracy and stability of process.
◪ Up Light or Down Light enables every material of targeting holes to be identified easily and to enhance the accuracy of recognition in targeting shape.
◪ No Foot Paddle is needed. All the operations are finished by touch-screen. It is sensitive enough to enhance the speed of operation.
◪ Users can choose different tooling sizes to punch different diameters and thicknesses of materials.
◪ Sampling plans can be saved and then can be used directly next time.
◪ Computer systems can support software upgrades for a lifetime.
◪ Automatic loading, punching and unloading.
Model | VTD-D02 |
Screw | HIWIN |
Processing | Automatically loading, punching, unloading |
Control System | VT position punching system in English |
Material fixed method | Air suction nozzle fix it |
Max loading size | 450mm*450mm |
Punching Precision | ±0.02mm |
Hole Diameter | Φ1.0~5.0mm |
Working speed | 0.4s/hole |
Feeding speed | 0.6s/hole |
Max punching | 2.5KN(VT015/VT008) 0.7KN(VTZ15) |
Supply power | AC380V/50Hz/ 1KW |
Light choose | Transmitted infrared light(three colors light can be chosen from) |
Air pressure | 0.4-0.8Mpa |
Machine dimension | L1890*W1500*H1404(mm) |
Weight | 450kg |
*Up Light or Down Light enables every material of targeting holes to be identified easily and to enhance the accuracy of recognition in targeting shape.
*Its CCD camera adopts the brand Mintron, the control system was developed by Vility, and we got a patent for this invention, so, we can give the client free system upgrades for as long as we buy our machine.
*CCD camera positioning accuracy can reach ±0.02mm, high precision, speed is 0.4s/hole, greatly improve efficiency for production.
* Computer control, an interactive communication operating system with a mouse operating tool (Windows XP Operating System) enables the procedure of the process to become easier, faster, and more efficient.
* Sampling records can be saved, and then can be used directly next time.
* Computer systems can support software upgrades for a lifetime.
* Default language is the Chinese-English version.
It adopts high-quality aluminium plates and stainless steel rods, and a long life.
Servo motor driver, makes the platform move smoothly, stable and low sound.
It will automatically lift according to material decrease.
The height of the frame is about 50-55cm, which means you can put a stack of about 55cm height of material on this frame, and the machine will automatically punch till the material is consumed.
1. Adjust the position of the baffle plate of the loading lift platform, separate the first sheet from the next sheet through the air nozzle, and wait for the loading manipulator to take the material.
2. Under the action of the feeding manipulator arm and the air nozzle, the sheet material is separated and sent to the specified position on the left side of the punching machine platform.
3. Adjust the reclaiming manipulator to a suitable position, and adjust the material blocking position of the reclaiming lifting platform.
4. The reclaiming manipulator reclaims the material from the right side of the platform and sends the piece of material to the reclaiming lifting platform.
1. It has a stable transmission ratio, no sliding during work, and accurate transmission.
2. It can buffer and reduce vibration, with low noise and stable transmission.
3. The transmission efficiency is high, generally up to 98%, and the effect of environmental protection and energy saving is remarkable.
4. The range of transmission ratio is large, generally up to 10, with angular speed up to 50M/S, and transmission output power from several watts to hundreds of watts.
The Product Characteristics
Automatic CCD alignment hole punching machine:
(1) Function: The sheet is all OK; CCD fully automatic positioning punching.
(2) High accuracy, overall error less than or equal to 0.015mm.
(3) Fast punching speed, the average punching speed is 7-8 times faster than manual punching speed, only 0.5 seconds per hole.
(4) No material dragging, accurate positioning of icons and automatic punching.
(5) Flexible materials and fragile materials such as acrylic sheets can be punched by the machine without damaging the material. Fast speed, software can be upgraded free of charge for life.
(6) Computerised working system, human-machine interface, direct working mode setting on the touch screen, simple and intuitive.
(7) Special light source identification method, can automatically identify the round figure on various materials, automatic alignment punching.
(8) Punching can be viewed directly on the 8" computer screen or at the punching station.
(9) The presser foot on the machine flattens the film to be punched during punching, making it more accurate.
(10) Specialised settings are available. The computer system can be upgraded and provides you with strong professional technical support.
(11) Image processing: 2-value integrated image processing method.
(12) Capable of punching defective circles with unclear printing or more than half circles, special printing materials, reflective and other mirror materials, etc.

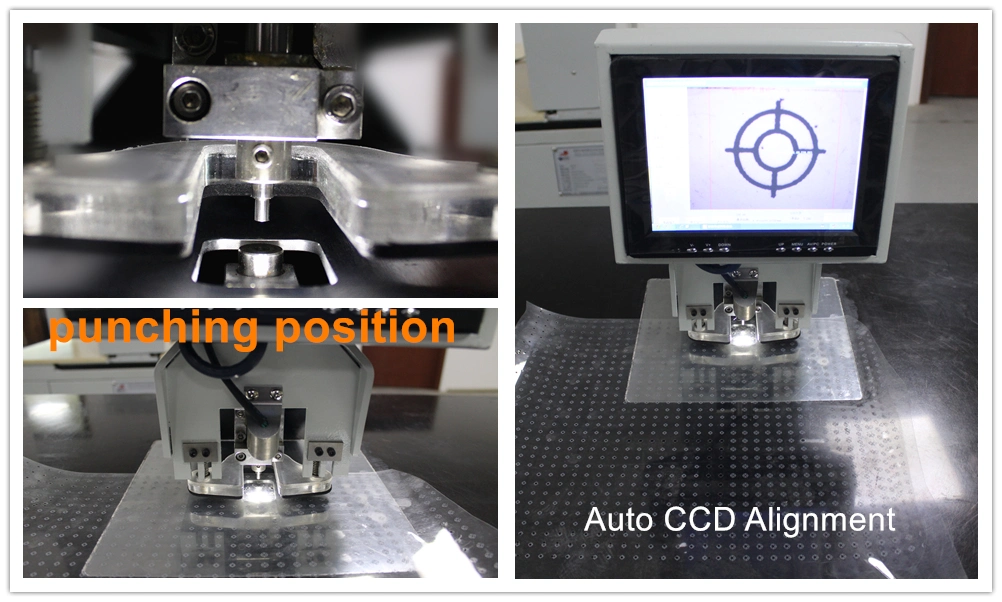

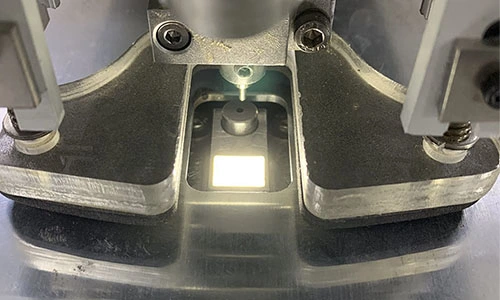

Straight view of the punched position
Special light source identification method can automatically identify the round figure on various materials, automatic alignment punching.
Image processing by CCD alignment system
Capable of punching defective circles with unclear printing or more than half circles, special printing materials, reflective and other mirror materials, etc.
Sample Exhibition
Automatic CCD alignment hole punching machine Suitable for mobile phone keys / mobile phone panel, FPC flexible board, film/palm sheet /dark-frame/ diazo film, IML / IMD, electronic membrane switch and other flexible board; PCB glass fibre board, PVC / PET / PC panel, nameplate signs and other non-metallic materials positioning punching.
Packaging & Shipping
Packing remark:
The Automatic CCD alignment hole punching machine will be packed in strict safety before transportation. As shown in the figure above. Try to ensure that no damage occurs in the course of transportation.
Due to the large size and heavy mass of the printing equipment, we generally use sea or road transport for transportation. You can choose to transport by sea route or by China-Europe Railway Express. As for the terms of trade, we usually adopt EXW, FOB or CIF.
The specific way can be confirmed in the process of communication and confirmation of the order.
