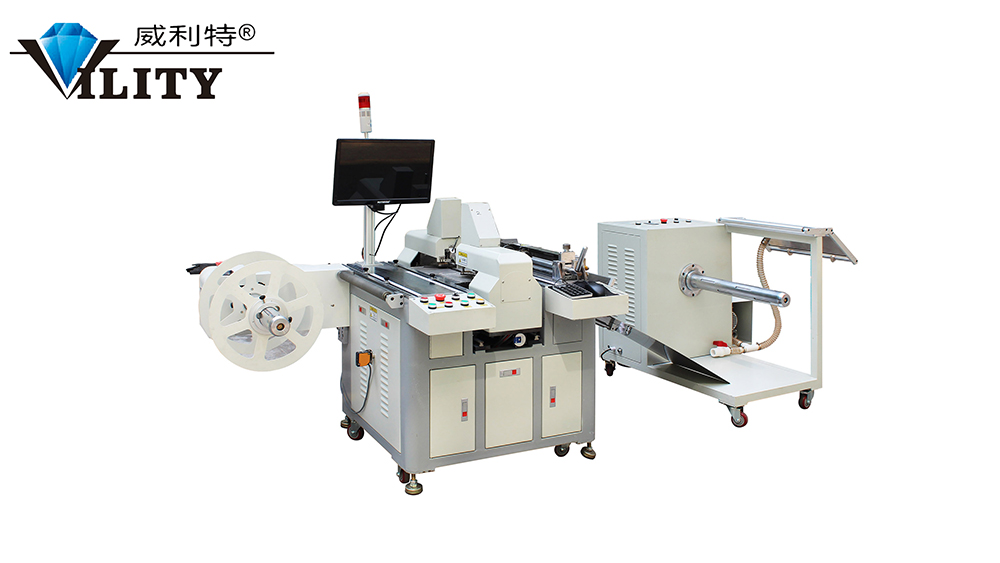

Name: R2R CCD Target Hole Dual Punching Machine
Precision: ±0.02mm
Hole Diameter: φ1.0mm-5.0mm ( customized)
Max Impulse: 2500N ( customized)
Air Pressure: 0.4-0.8Mpa
Table Material: Iron or aluminum
Equipment Descripti
1. Scope of application
All kinds of trademarks, labels, cell phone keys, cell phone panels, conductive film, membrane switches, film, IMD/IML, FPC flexible circuit boards, PET/PVC/PC/PP and other flexible coil positioning hole punching and roll material slicing.
1. Efficiency advantage: The efficiency of the automatic double-headed punching machine is 3-4 times the efficiency of an ordinary single-headed automatic punching machine, an automatic positioning punching machine greatly improves production efficiency.
2. Labor advantage: Single-headed automatic punching machine requires manual discharge, and 1 person can only operate one machine, while automatic punching machine can operate more than one machine at the same time, saving labour.
3. Functional advantage: Automatic positioning punching machine is automatic feeding, automatic positioning punching, automatic de-static, automatic cutting/receiving/die-cutting in, one machine can realize multiple functions, which is the best choice for enterprises to realize automation.
4. Matching advantage: Many large enterprises are equipped with automatic screen printing machine, and automatic punching machine can effectively match the next process of automatic screen printing machine to realize enterprise automation.
5. Working environment: At present, the market is difficult for enterprises to recruit workers, so it is especially important to realize enterprise automation. With automatic positioning punching machine, enterprises will be transformed from the original physical technical work to easy non-technical work, the working hours can be properly extended, and the working environment is greatly improved, which can effectively reduce the work pressure of workers while helping to alleviate the problem of difficult recruitment of enterprises.
6. Process advantage: The automatic positioning punching machine is automatic feeding, automatic positioning punching, automatic de-static, and automatic cutting in one, which can effectively save the cutting process, but also for enterprises to save the equipment and labour costs required for cutting.
Item \ Type | VTQ15-06 | VTQ15-061 |
Precision | ±0.02mm | ±0.02mm |
Material width | 100-550mm | 100-280mm |
Theoretical speed | 0.5 s/hole | 0.35 s/hole |
Actual speed | 0.8-1.2 s/hole | 0.6-1.0 s/hole |
Hole diameter | φ1.0mm-5.0mm ( customized) | φ1.0mm-5.0mm ( customized) |
Max impulse | 2500N ( customized) | 2500N ( customized) |
Running axis | 6 axes + manual adjustment of 1 axis | 6 axes + manual adjustment of 1 axis |
Light | Transmits infra-red reflects tricolour light | Transmits infra-red reflects tricolour light |
Air pressure | 0.4-0.8Mpa | 0.4-0.8Mpa |
Table material | Iron or aluminium | Iron or aluminium |
Dimension | 2610*780*1100mm | 2610*780*1100mm |
The above parameters are specification data for our standard roll-to-roll double needles automatic guide hole punching machine. If this specification meets your needs, we can ship it directly to you. If you have your requirements for the performance of the product, we will customize it according to your requirements. All parameters can be customized. Feed direction, maximum punching force, table material and width can all be produced to your specifications.

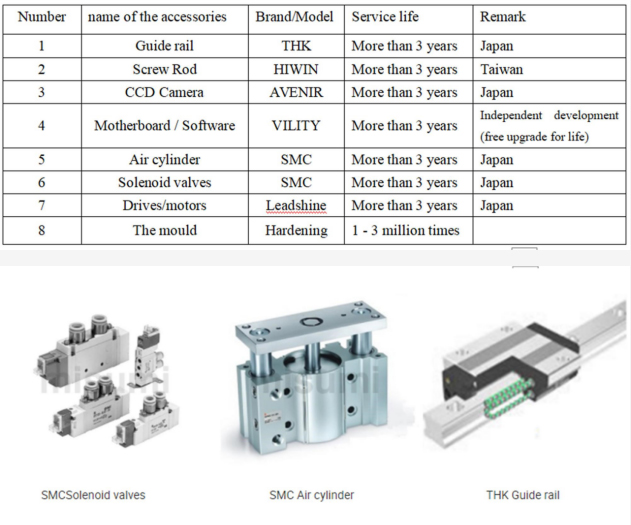

◪ Simple operation, automatic CCD camera positioning punching
◪ High accuracy of punching target. Adopt computer control, CCD camera positioning, imported precision screw guide drive, equipped with precision punching tools, and imported cylinder control punching. Ensure the punching error: ≤±0.02mm.
◪ The working mechanism adopts a combination of mechanical and pneumatic, with stable performance and much higher punching force.
◪ Put the product to be punched into the visual range of CCD, the punching machine will automatically capture the punching pattern and automatically move to complete the punching, the whole process only takes 0.4 seconds.
◪ Specify the hole pattern to be punched directly on the computer screen to set the working mode, easy to operate; special alloy steel lower die, durable; high-speed white steel punching needle, smooth punching mouth.
◪ English (customizable language) operation interface with touch screen operation.
◪ Special light source identification system can automatically identify the round figure on various materials, automatic alignment punching. It can realize fully automatic bilateral and multilateral one-time positioning punching, double drill, and can realize punching 2 holes at one time.
