The operation procedure sequence is as follows.

① Add hydraulic oil 46 #, external three-phase AC380V power supply, in the absence of grounding wire is strictly prohibited to use the machine!

② Open the electric switch, the power indicator light is on

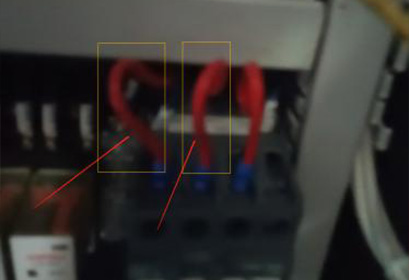

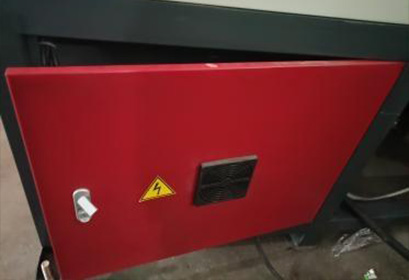

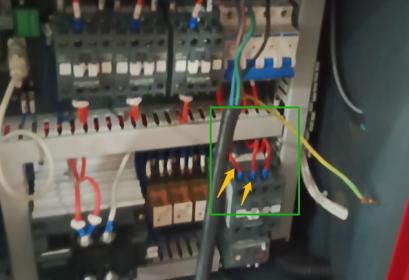

③ Confirm the direction of rotation of the motor, if reversed, then swap any two adjustable fire line position can be.（The specific location is shown in the figure below, open the red cabinet door on the right side of the machine, find the location shown by the arrow, and swap the two wires. ）

④ The hydraulic machine has two methods of operation: automatic and manual

Manual: Select the manual state in the touch screen Press the manual downward pressure cylinder downward, let go of the cylinder to stop, if the cylinder needs to move downward, press the manual downward pressure button, the cylinder will move downward. Similarly, press the manual up, the cylinder will rise and inch up.

Automatic: select the automatic state in the touch screen, press the start button with both hands at the same time, (two states)

1. Molding: the heating plate is launched, heating starts to record time, time arrives, return to the origin, the main cylinder goes down, when the downward pressure reaches the pressurized position, the cylinder starts to pressurize until the downward time arrives, after the downward time arrives, the downward and pressurizing solenoid valve cuts off the power at the same time to keep pressure, and starts to keep pressure timing. After the pressure-holding time is completed, the cylinder quickly back up, induction upper cylinder stop. A cycle of action is completed.

2. Punching and cutting: heating does not make action, the other and forming the same, if you encounter an emergency situation, you can press the urgent rise button, the cylinder immediately back up, such as the decline of objects larger than 25MM diameter into the grating protection range, the motor will stop (only the machine equipped with photoelectric). To play a protective role.

⑤ Pressure adjustment: There is a pressure adjusting handle on the right side of the machine. Counterclockwise rotation pressure decreases, clockwise adjustment pressure increases. 50-140kg can be adjusted (visible on the upper end of the hydraulic cylinder hydraulic pressure table)



part.1

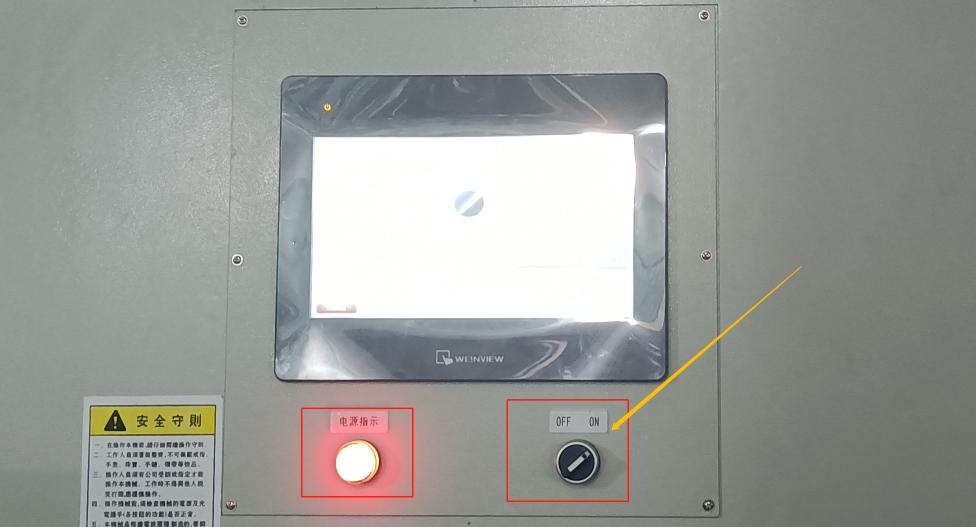

After the power is switched ON, the red indicator light ON the left will light up. Turn the switch to "ON "and the machine will start up.



part.2

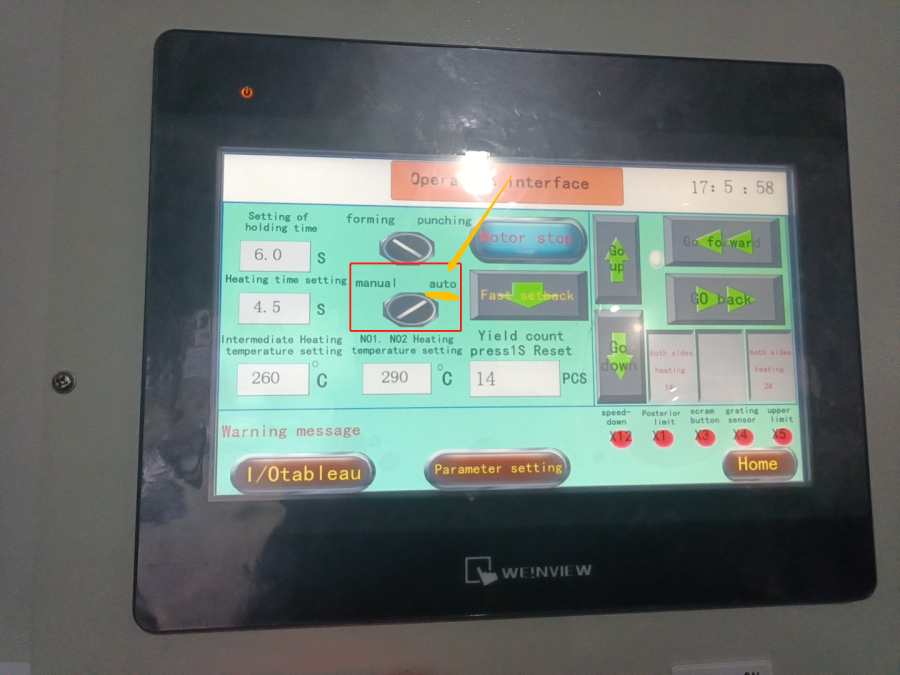

Set parameters on the operation interface as shown in the figure above. And ensure that the machine is in automatic state.



part.3

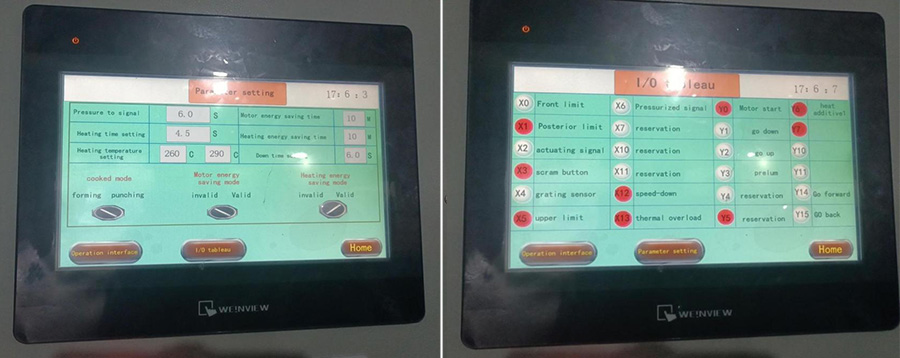

Set and check that the other parameters are consistent with the two figures above.



part.4

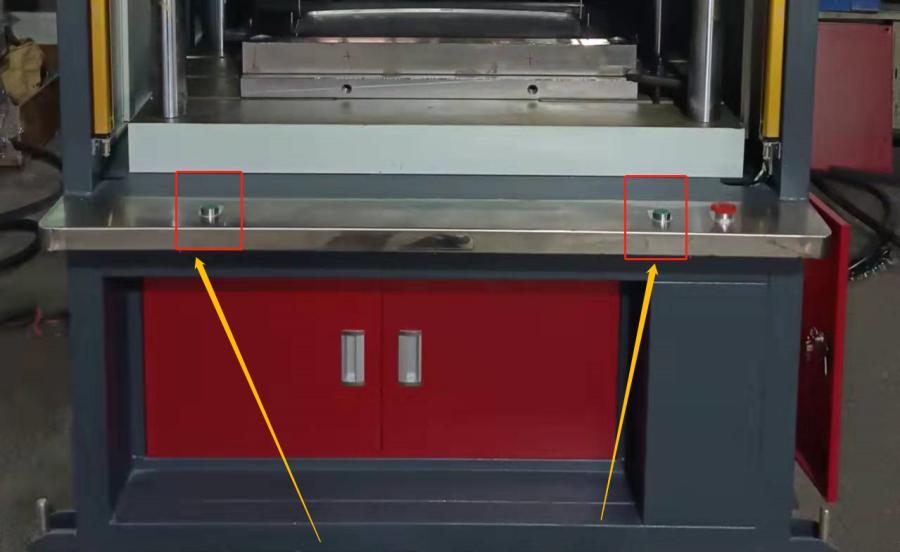

When all the parameters are set, press the two green buttons at the same time and the machine will start working automatically.

Note: Before you officially start processing the materials, please let the baking pan preheat the mold at the set temperature for 5-10 minutes. This gives better processing results.



part.5

Die cutting machine

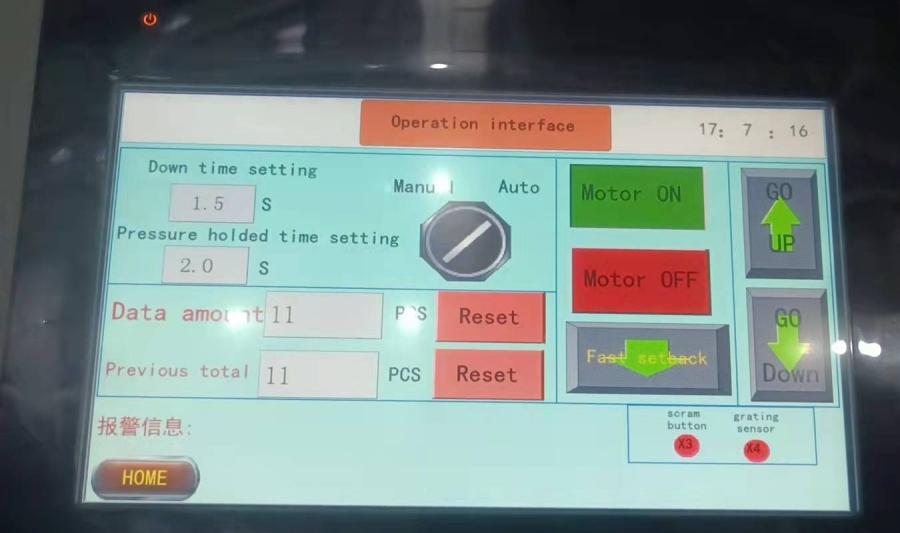

The parameter Settings are shown in the figure, and other operations are the same as those of the hot pressing machine.

① Must be operated by a person, the operator must be familiar with the operating principles, the equipment must be maintained on a regular basis;

② Pay attention to the oil level height and temperature rise at any time, the general working temperature of the oil in 30-60 ℃ is more reasonable, the maximum does not exceed 60 ℃, abnormal temperature should stop the machine to check;

③ Often keep the hydraulic oil clean, refueling oil to be filtered, do not mix with other fluids, new equipment should be replaced with new hydraulic oil for 2 months, and then every six months or once a year to replace. If in high temperature. High humidity. High dust place continuous work, need to shorten the oil change cycle.

④ If the equipment is not used for a long time, the regulating knob should be loosened to prevent permanent deformation of the spring and affect the performance of the components.

⑤ The equipment should not be overloaded for a long time, the maximum pressure of the machine is 30 tons (the pressure on the oil gauge should not exceed 200Kg/ cm².

⑥ Check the circuit of the machine and whether there is leakage in the oil circuit before starting the machine.

Structure description: The advantages of this machine structure: the heating plate is driven by a frequency conversion system, and the operation is very stable to ensure the service life of the heating tube. The machine is fully electro-hydraulic and does not need to be connected to an air source.

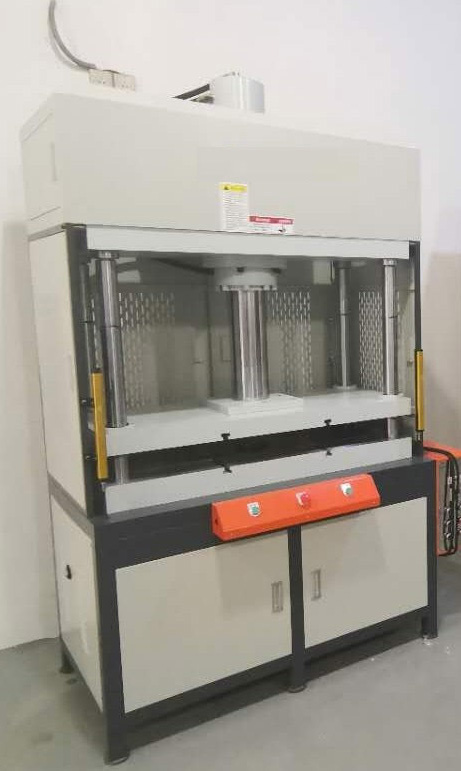

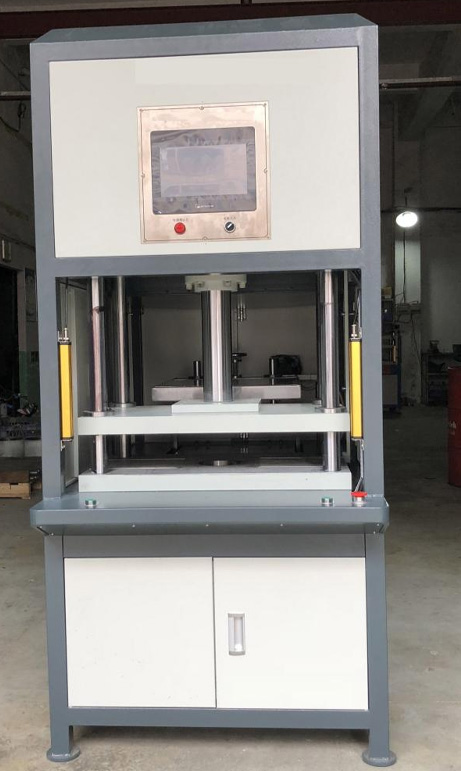

IMD hot  forming machine VT109R-30T

• Basic configuration and features

• The equipment adopts a four-column and three-plate design, with a maximum opening height of 500mm, a cylinder stroke of 300mm, and a minimum closing height of 200mm.

• Effective working area: 800*600mm (inside the front column + side panel width)

• Power configuration: motor equipped with PV2R1 oil pump, low noise and low temperature (servo motor is optional, energy saving and electricity saving)

• Electrical configuration: the power supply is three-phase four-wire 380V, the electric box adopts PLC circuit board control, the main electrical accessories adopt Schneider, Chint and other well-known brands, the heating device adopts a frequency conversion system to control the operation smoothly, and the speed can be adjusted at will; the heating tube is made of carbon fiber material ,long lasting.

• Hydraulic oil model: It is recommended to use Great Wall brand 46# anti-wear hydraulic oil

• The heating tube adopts infrared fiber tube to heat up quickly and have a long life, and the heating is even to ensure the curvature of the product (5 pieces are provided randomly).



Basic configuration and features

• The equipment adopts a four-column and three-plate design, with a maximum opening height of 400mm, a cylinder stroke of 300mm, and a minimum closing height of 100mm.

• Effective working area: 1000*600mm (inside the front column + side panel width)

• Power configuration: motor equipped with PV2R1 oil pump, low noise and low temperature (servo motor is optional, energy saving and electricity saving)

• Electrical configuration: the power supply is three-phase four-wire 380V, the electric box adopts PLC circuit board control, and the main electrical accessories adopt famous brands such as Schneider and Chint

• Hydraulic oil model: It is recommended to use Great Wall brand 46# anti-wear hydraulic oil

1. Above price is FOB shenzhen.

2. Payment terms: T/T

3. 50% deposit;

4. Balance 50% need to be paid before shipping.

5. Lead time: 25 days after getting deposit；

6. Service after sales:We offer video technical support or online support for free,and the Field maintenance and repair service, also welcome customer to check the machine and learn to use the machine (send materials to us) and also support going to customer on-site service. The customer is responsible for round-trip airfare, and it is sufficient to arrange accommodation.

7. This price is based on the exchange rate of the day, if the exchange rate was changed and will convert to previous value and re-quoted.

8.The quotation is valid for 30 days.
