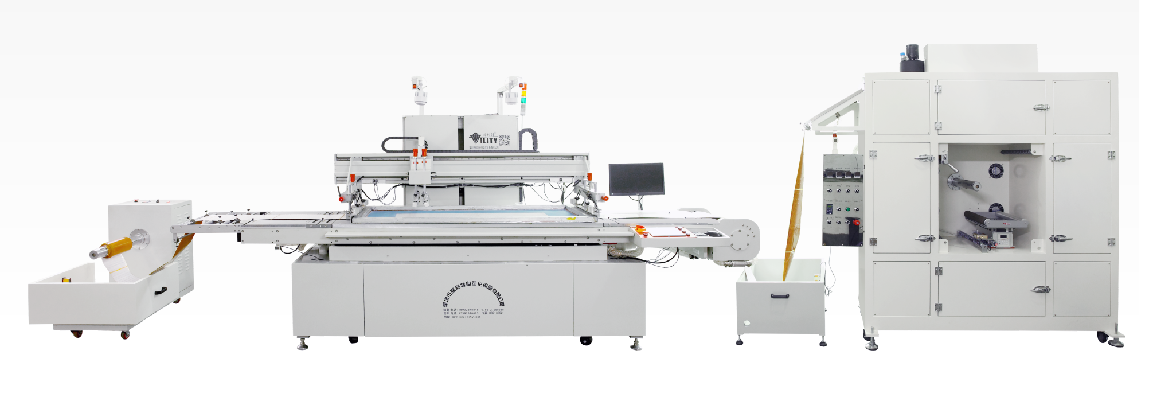

Roll-to-Roll CCD Screen Printing & Hot Air Oven Drying Production Line combines advanced screen printing technology with efficient drying treatment, featuring the following characteristics and application scope:
Characteristics:
Roll-to-Roll Screen Printing: Utilizing roll-to-roll screen printing technology enables continuous and efficient printing processes, suitable for large-scale production requirements.
CCD Vision System: Equipped with a CCD vision system, it can monitor the position and alignment of the printing process in real-time, ensuring printing accuracy and consistency.
Hot Air Oven Drying: Incorporating hot air oven drying technology facilitates rapid and uniform curing and drying of ink or coatings on the surface of printed materials, enhancing production efficiency.
Automation Control: With an automation control system, it can intelligently monitor and adjust the printing and drying processes, improving production stability and reliability.
Versatility: Applicable to various types of printing materials and products, including paper, film, fabrics, etc., catering to diverse industry and application needs.
Application Scope:
Label Printing: Used for printing various types of labels, such as product labels, packaging labels, etc., ensuring printing quality and reliability.
Electronic Component Printing: Suitable for printing on the surface of electronic components, such as circuit boards, electronic product casings, etc., meeting high-precision and high-efficiency printing requirements.
Packaging Printing: Applied in the packaging printing for industries such as food, pharmaceuticals, cosmetics, etc., capable of meeting different material and printing requirements.
Textile Printing: Used for printing on textiles, garments, home textiles, etc., achieving various patterns and colors printing.
Functional Material Printing: Used for printing functional materials, such as solar panels, sensors, flexible electronic products, etc.
In summary, the Roll-to-Roll CCD Screen Printing & Hot Air Oven Drying Production Line possesses efficient, precise, and versatile characteristics, applicable to a wide range of industries, providing reliable printing and drying solutions for various production needs.
1: Application Scope
Roll-to-Roll CCD Screen Printing & Hot Air Oven Drying Production Line combines advanced screen printing technology with efficient drying treatment, featuring the following characteristics and application scope:
Characteristics:
Roll-to-Roll Screen Printing: Utilizing roll-to-roll screen printing technology enables continuous and efficient printing processes, suitable for large-scale production requirements.
CCD Vision System: Equipped with a CCD vision system, it can monitor the position and alignment of the printing process in real-time, ensuring printing accuracy and consistency.
Hot Air Oven Drying: Incorporating hot air oven drying technology facilitates rapid and uniform curing and drying of ink or coatings on the surface of printed materials, enhancing production efficiency.
Automation Control: With an automation control system, it can intelligently monitor and adjust the printing and drying processes, improving production stability and reliability.
Versatility: Applicable to various types of printing materials and products, including paper, film, fabrics, etc., catering to diverse industry and application needs.
Application Scope:
Label Printing: Used for printing various types of labels, such as product labels, packaging labels, etc., ensuring printing quality and reliability.
Electronic Component Printing: Suitable for printing on the surface of electronic components, such as circuit boards, electronic product casings, etc., meeting high-precision and high-efficiency printing requirements.
Packaging Printing: Applied in the packaging printing for industries such as food, pharmaceuticals, cosmetics, etc., capable of meeting different material and printing requirements.
Textile Printing: Used for printing on textiles, garments, home textiles, etc., achieving various patterns and colors printing.
Functional Material Printing: Used for printing functional materials, such as solar panels, sensors, flexible electronic products, etc.
In summary, the Roll-to-Roll CCD Screen Printing & Hot Air Oven Drying Production Line possesses efficient, precise, and versatile characteristics, applicable to a wide range of industries, providing reliable printing and drying solutions for various production needs.
This machine is widely used in FPC,PET, PVC, varies of label,transfer paper (film), floor heating film, geothermal film, electro thermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, Membrane switch, trademark printing, scratch CARDS, self-adhesive stickers, paper, ribbon, aluminum foil and copper foil this roll material silk screen printing.
2: Features and performance
A: Main machine feature---screen printing machine
(1). CCD automatic alignment system, if the similarity is not within the setting range, any abnormal, it will stop and automatically start adjust the alignment successful and continue to work.
(2). Using numerical control motor, printing speed, return to the ink speed can be set in a random block.
(3). Using numerical control motor, printing distance, return to the ink distance can be set in a random data.
(4). Automatic computing printing, and calculate the qty, and printing can be set automatically stop.
(5). photoelectric control feeding and discharging to avoid the surface damage of substrates, can improve the printing quality.
B: The Feeder features:
(1). Photoelectric control feeding, avoid the surface damage of the material.
(2). Feeding speed, time, can adjust at will.
(3). The feeding starting speed, can adjust at will, start frequency starting from 0 up to run slowly, avoid the start too fast, cause the material surface scratches.
(4). Equipped with an automatic protective device.
C: The dryer features:
(1).Circulating hot air drying, temperature adjustable, automatic winding.
(2).The oven cover an small area, 32-60 meters length, which can realize low temperature drying, ensure printed material no shrinkage deformation, multicolor printing.
Name | Parameter | Remark | |
CCD Printing machine | Working place area(mm) | 1000*660 | / |
Max inputting width(mm) | 450 | ||
Max printing area(mm) | 600*450 | ||
Mix printing area(mm) | 400*500 | ||
Max size of screen frame(mm) | 1100*800 | ||
Mix size of screen frame(mm) | 300*200 | ||
printing thickness(mm) | 0.075-0.125 | ||
Mix print skip distance(mm) | 2 | ||
Working voltage (v) | 380-50Hz | ||
Maine machine Max power (kw) | 40 | ||
Working pressure（kg/cm2） | 5-8 | ||
Precision of printing（mm） | ±0.05 | ||
First printing speed | 1000-1200 times / hour | ||
Second printing speed | 800-1000 times/ hour | ||
Scraper stroke（mm） | 900 | ||
CCD precision | ±0.02 | ||
CCD center space | 330mm | ||
Main machine size （mm） | 3300*1600*2200 | ||
Receiving oven | Oven temperature（℃） | 0-190 |
Laminating device can be add in Oven |
Oven working voltage（V） | 380 | ||
Oven max power （KW） | 24 | ||
Max size（mm） | 450 | ||
Oven size （mm） | L2400*W1200*H2100 | ||
Feeding goods max size（mm） | 450 | ||
Feeding machine | Feeder peak voltage(V) | 220 | According to your requirement |
POWER(KW) | 0.3 | ||
Size （mm） | 800*1000*1100 | ||

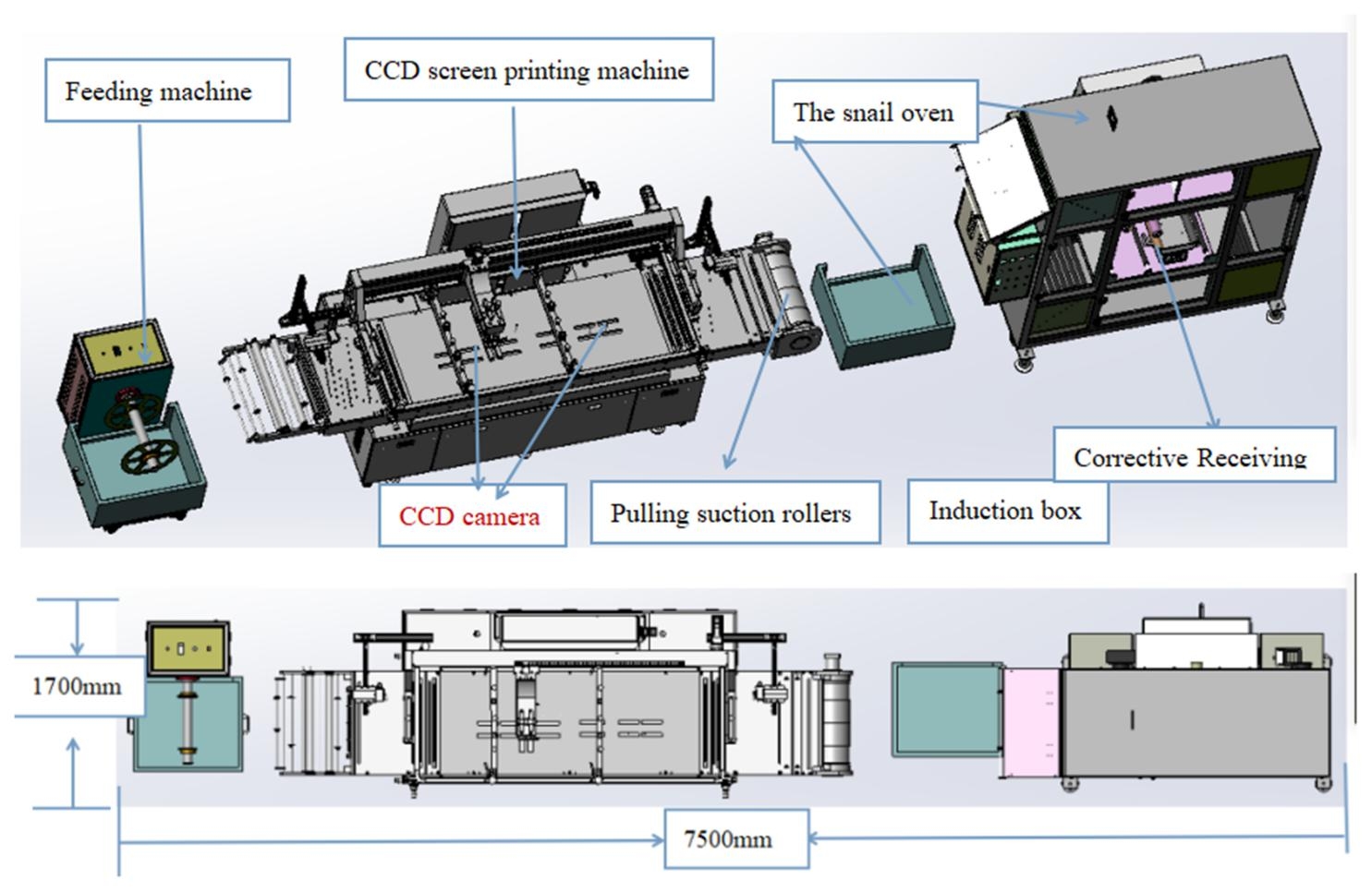

Raw material →Automatic feeding machine →Automatic printing→Automatic UV or oven →Automatic receiving →End product.
◪ We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.
◪ Installation and debug machine for you without any charge. Also, giving a technical training for your employees.
◪ All of our machines can have one year guarantee and lifelong maintenance.
