VT4060P-KS Film-tearing CCD Screen Printing Machine.
Suitable for sheet printing with protective film. Fully automatic robot automatically tears the film without traces.
Then it is automatically and precisely placed on the printing table of the CCD printing machine by the loading manipulator.
CCD camera visual alignment ensures printing accuracy within 0.02mm.
Vility Sheet to Sheet Automatic Film-tearing CCD Screen Printing Machine

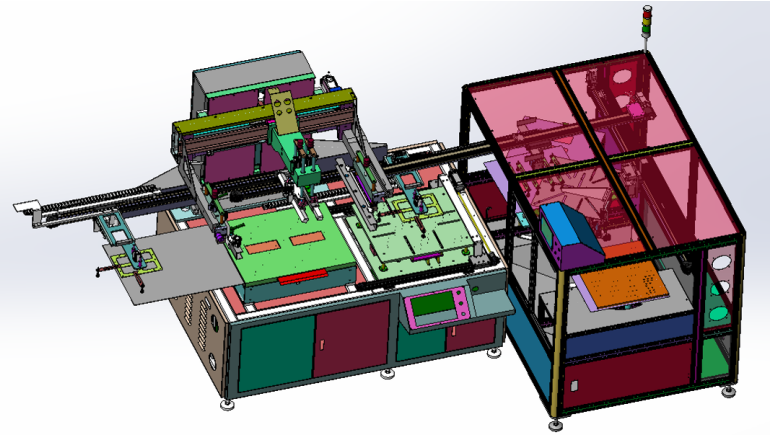

VT4060P-KS Machine physical drawing VT4060P-KS Machine Schematic diagram
Specification of Film-tearing Machine
Schematic diagram of equipment mechanism(Auto film-tearing part)
1. Material preparation and adjustment
Place the stack of materials on the loading platform, adjust the loading platform's jamming position and the loading and picking positions of the picking robot.
2. Loading and tearing the film by the tearing robot
The film tearing robot takes a sheet of material from the loading table to the film tearing loading table. When the robot returns, the sticky layer roller presses down to hold down the edge and corner of the material, and the sticky liner rolls on the roller to tear off the film.
3. Material pick-up robot pick-up
After the film is torn off from the tearing table, the material is then taken by the pick-up robot and placed on other workstations to complete the tearing process.

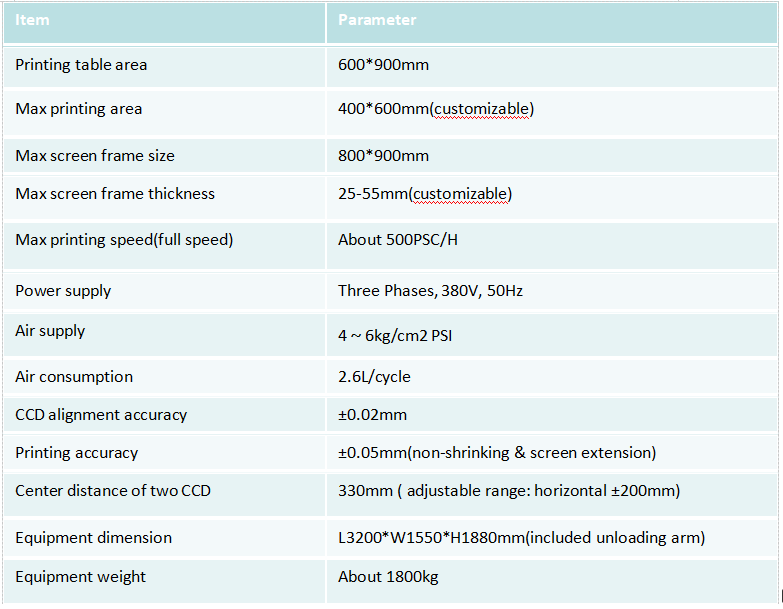

Specification of Sheet CCD Alignment screen printing machine

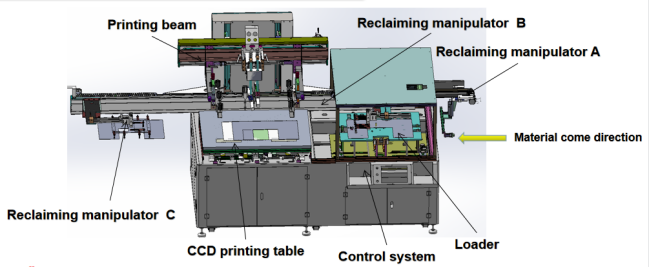

Schematic diagram of equipment mechanism(CCD Alig printer)
1.Features and performance.
1.The sliding seat is processed with an integral aluminum dosage form, which is light in operation without shaking.

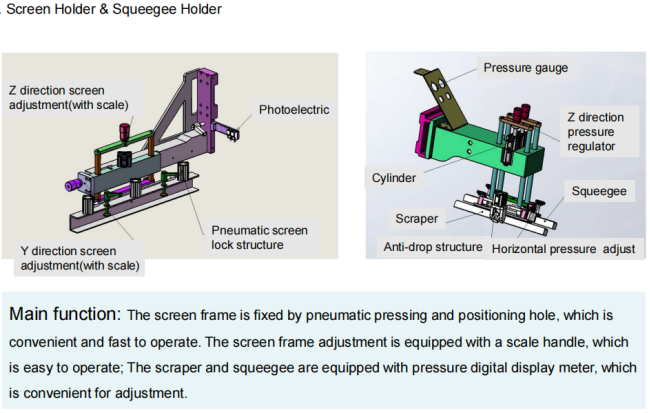

2.The screen clamping frame adopts pneumatic automatic clamping design, which is easy to operate.
3.The printing adopts Panasonic servo motor with linear guide rail guidance, which is fast, stable and accurate.
4.Man machine interface control + button switch, which can set multiple functions and parameters, and is easy to operate.
5.The safety pressing plate, photoelectric switch and emergency stop button shall be carefully protected.

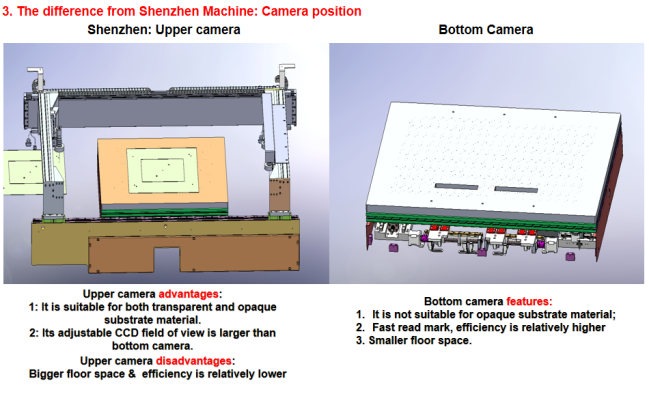

6.CCD automatic positioning printing can automatically adjust the CCD field of vision according to the size of the material.
7.CCD automatically calculates the space position of the material and the screen plate according to the Mark point on the material, and commands the motor to control and adjust the platform X, Y θ Rotary automatic positioning printing.

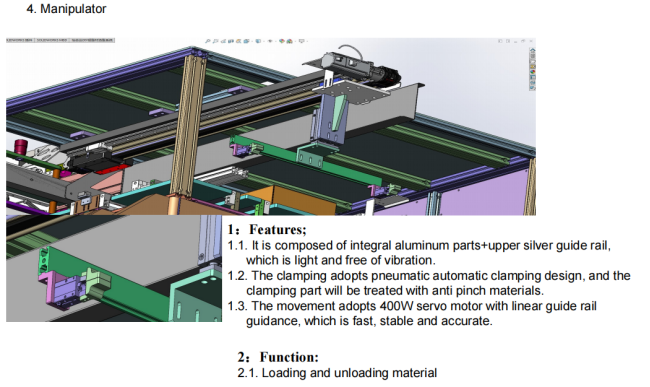

8.The manipulator adopts automatic material separation, automatic dust removal, and automatic positioning printing on the printing machine.
9.The material thickness of the manipulator is 0.05mm~5.0mm. The feeding direction of the manipulator is from right to left.
10.The method of material distribution adopts half sheet separation, overall shaking, and multiple sheets detection after material distribution.
11.It can be customized according to customer requirements to meet different use requirements.
2.Details of the printing machine
1: Application Scope
This machine is widely used in FPC,PET, PVC, varies of label,transfer paper (film), floor heating film, geothermal film, electro thermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, Membrane switch, trademark printing, scratch CARDS, self-adhesive stickers, paper, ribbon, aluminum foil and copper foil this roll material silk screen printing.
2: Features and performance.
A: Main machine feature---screen printing machine
(1). CCD automatic alignment system, if the similarity is not within the setting range, any abnormal , it will stop and automatically start adjust the alignment successful and continue to work.
(2). Using numerical control motor, printing speed, return to the ink speed can be set in a random block.
(3). Using numerical control motor, printing distance, return to the ink distance can be set in a random data.
(4). Automatic computing printing, and calculate the qty, and printing can be set automatically stop.

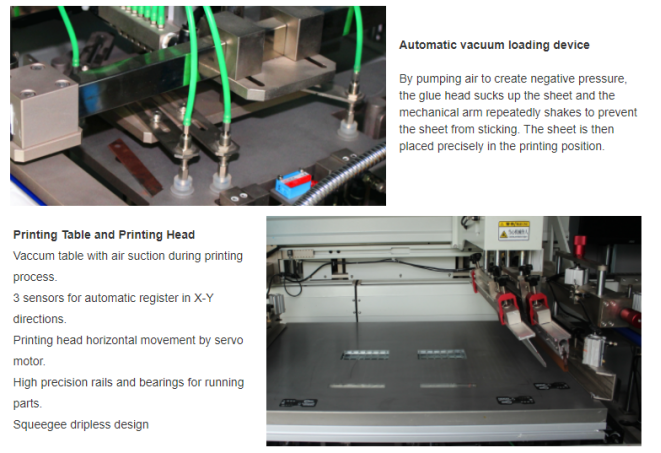

(5). Photoelectric control feeding and discharging to avoid the surface damage of substrates, can improve the printing quality.
B: The Feeder features:
(1). Photoelectric control feeding, avoid the surface damage of the material.
(2). Feeding speed, time, can adjust at will.
(3). The feeding starting speed, can adjust at will, start frequency starting from 0 up to run slowly, avoid the start too fast, cause the material surface scratches.
(4). Equipped with an automatic protective device.
C: The dryer features:
(1). Circulating hot air drying, temperature adjustable, automatic winding.
(2). The oven cover an small area, 32-60 meters length, which can realize low temperature drying, ensure printed material no shrinkage deformation, multicolor printing.

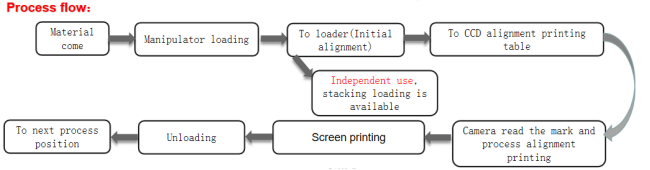

Raw material →Automatic feeding machine →Automatic printing→Automatic UV or oven →Automatic receiving →End product.
