PCB Guide Hole Drilling Machine is used in PCB circuit board, FPC soft board, IMD/IML, film, diazo sheet, cell phone panel, cell phone keypad, sticker, membrane switch, film, PE, PC, PVC, PET film, polyester film, thin aluminum, aluminum substrate, FR4 glass fiber board and many other materials. CCD automatic hole drilling machine is suitable for single and double panel, PCB multi-layer board, fiberglass, PVC panel, acrylic and other fragile plastic sheet positioning drilling.
1.Is it possible for you to assign engineers to our company?
yes. Our engineers can go to your company for on-site service. However, you need to pay the corresponding fee.
2.Do you provide installation and training services?
Yes, we will provide you with professional installation and training manuals and video tutorials. Live video conversations will also be provided to guide you through the operation.
3.What is your company’s production capacity?
30 Sets/ Month.
1. All equipment is CE certified. And can be customized to meet customer requirements of other certification.
2. Our equipment is highly automated, and one person can man multiple production lines.
3. Accept OEM/ODM, screen printing industry whole line customization.
4. Printing, punching, die cutting precision 0.02mm.CCD camera visual alignment system, fast and accurate positioning and fine tuning, to ensure accuracy requirements.
Shenzhen VILITY Automatic Machinery Co.,Ltd established in 2010 year, located in Shenzhen city, China. Our company’s development approach is : People-oriented, Technological innovation , service-oriented. VILITY is a combine-word, comes from Victory& Ability and Victory &Quality which means we always pursue high quality and good service to meet customers requirements and high competitive market. We believe: Service first, customers supreme. VILITY is a Professional manufacturer, providing ONE-STOP SOLUTION for intelligent printing industry. Recent years, We have pay most of the techniques and technologies to implement Industry 4.0 Robotic. VILITY has been successfully Provide unmanned production lines for many customers. Therefore, it is honored to get a high degree of social affirmation. Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material. With substantial ongoing investment in research and development, VILITY is ideally positioned to continue doing high precision CCD robotic machines for both the commercial and domestic markets. We are looking forward to establishing well long –term business relationship with you and your esteemed companies.
Drilling of FPC, Film, PI, Cu, PET, ITO, touch panels, membrane switches
◪ High speed and precision. Machining speed 0.23 sec/hole, accuracy within ±0.020mm.
◪ Fully automatic loading and unloading. Saves labour and time.
◪ Full stack loading, full stack unloading.
◪ Tension clamping to ensure flat material.
◪ Interactive-communication operational system with mouse operating tool (Windows XP Operational System) enables the procedure of the process to become easier, faster, and more efficient.
◪ Large and wide operational stage enables the object to be moved and rotated easily.
◪ High speed: Super high punching speed enables the process of hole-recognizing and target-punching to be within one second.
◪ Precise-Transmission and Micro-Step Motor Driver is used to enhance accuracy and stability of process.
◪ Up Light or Down Light enables every materials of targeting holes to be identified easily and to enhance the accuracy of recognition in targeting shape.
◪ No Foot Paddle is needed. All the operation be finished by touch-screen. It is sensitive enough to enhance the speed of operation.
◪ User can choose different tooling size to punch different diameter and thickness material.
◪ Sampling plans can be saved, and then can be used directly next time.
◪ Computer systems can supports software upgrade for lifetime.
◪ Automatic loading, punching and unloading.
Model | VTD-D02 |
Screw | HIWIN |
Processing | Automatically loading, punching, unloading |
Control System | VT position punching system in English |
Material fixed method | Air suction nozzle fix it |
Max loading size | 450mm*450mm |
Punching Precision | ±0.02mm |
Hole Diameter | Φ1.0~5.0mm |
Working speed | 0.4s/hole |
Feeding speed | 0.6s/hole |
Max punching | 2.5KN(VT015/VT008) 0.7KN(VTZ15) |
Supply power | AC380V/50Hz/ 1KW |
Light choose | Transmitted infrared light(three colors light can be choose from) |
Air pressure | 0.4-0.8Mpa |
Machine dimension | L1890*W1500*H1404(mm) |
Weight | 450kg |
*Up Light or Down Light enables every materials of targeting holes to be identified easily and to enhance the accuracy of recognition in targeting shape.
*Its CCD camera adopts brand Mintron, control system was developed by Vility, we got patern for this invention, so, we can give client free system upgrade for longlife as long as buying our machine.
*CCD camera positioning accuracy can reach ±0.02mm, high precision, speed is 0.4s/hole, greatly improve efficiency for production.
*Computer control, interactive-communication operating system with mouse operating tool (Windows XP Operating System) enables the procedure of the process to become easier, faster, and more efficient.
*Sampling records can be saved, and then can be used directly next time.
*Computer systems can supports software upgrade for lifetime.
*Default language is Chinese-English version.

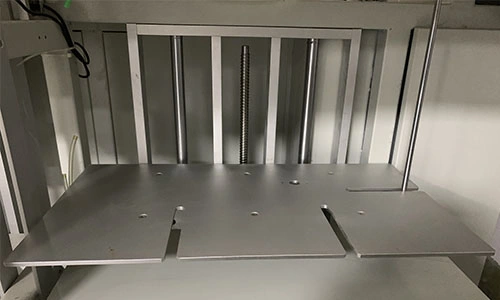

It adopts high quality aluminum plate and stainless steel rod, long life using.
Servo motor driver, it makes the platform move smoothly, stable and low sound.
It will automatically lifting according to material decreased.
The height of the frame is about 50-55cm, that means you can put a stack of about 55cm height of material on this frame, and machine will automatically punch till the material consumed.

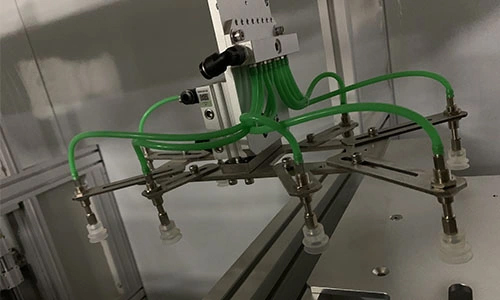

1. Adjust the position of the baffle plate of the loading lift platform, separate the first sheet from the next sheet through the air nozzle, and wait for the loading manipulator to take the material.
2. Under the action of the feeding manipulator arm and the air nozzle, the sheet material is separated and sent to the specified position on the left side of the punching machine platform.
3. Adjust the reclaiming manipulator to a suitable position, and adjust the material blocking position of the reclaiming lifting platform.
4. The reclaiming manipulator reclaims the material from the right side of the platform, and sends the piece of material to the reclaiming lifting platform.

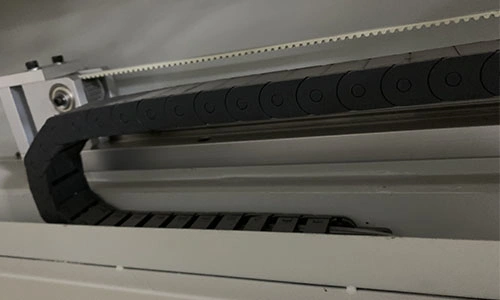

1. It has a stable transmission ratio, no sliding during work, and accurate transmission.
2. It has the ability to buffer and reduce vibration, with low noise and stable transmission.
3. The transmission efficiency is high, generally up to 98%, and the effect of environmental protection and energy saving is remarkable.
4. The range of transmission ratio is large, generally up to 10, angular speed up to 50M/S, and transmission output power from several watts to hundreds of watts.
The Product Characteristics
Automatic CCD alignment hole punching machine:
(1) Function: Sheet is all OK; CCD fully automatic positioning punching.
(2) High accuracy, overall error less than or equal to 0.015mm.
(3) Fast punching speed, the average punching speed is 7-8 times faster than manual punching speed, only 0.5 seconds per hole.
(4) No material dragging, accurate positioning of icons and automatic punching.
(5) Flexible materials and fragile materials such as acrylic sheets can be punched by the machine without damaging the material. Fast speed, software can be upgraded free of charge for life.
(6) Computerised working system, human-machine interface, direct working mode setting on the touch screen, simple and intuitive.

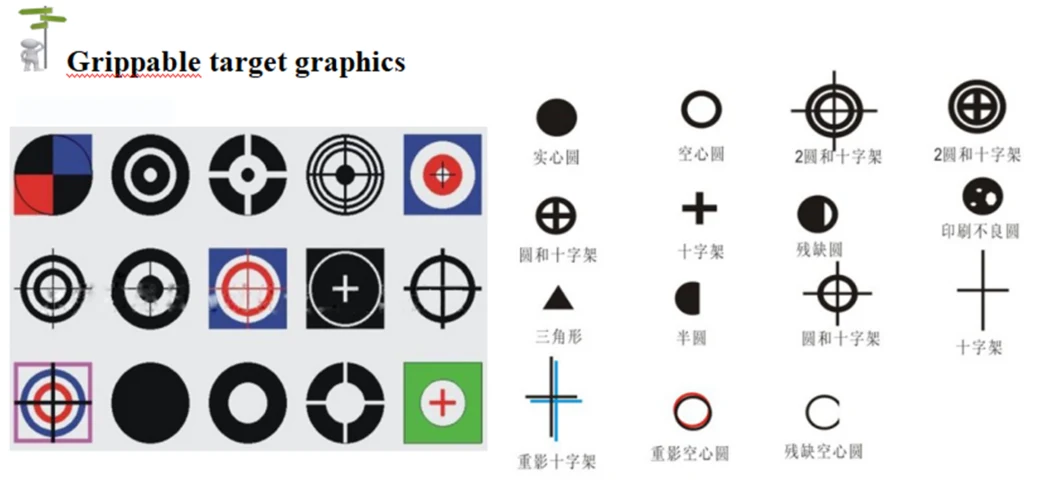

(7) Special light source identification method, can automatically identify the round figure on various materials, automatic alignment punching.
(8) Punching can be viewed directly on the 8" computer screen or at the punching station, respectively.
(9) The presser foot on the machine flattens the film to be punched during punching, making it more accurate.
(10) Specialised settings are available. The computer system can be upgraded and provides you with a strong professional technical support.
(11) Image processing: 2-value integrated image processing method.
(12) Capable of punching defective circles with unclear printing or more than half circles, special printing materials, reflective and other mirror materials, etc.
Straight view of punched position
Special light source identification method, can automatically identify the round figure on various materials, automatic alignment punching.

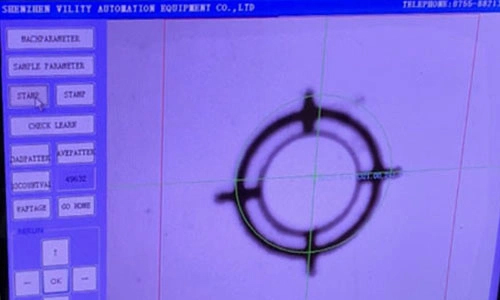

Image processing by CCD alignment system
Capable of punching defective circles with unclear printing or more than half circles, special printing materials, reflective and other mirror materials, etc.
Sample Exhibition
Automatic CCD alignment hole punching machine Suitable for: mobile phone keys / mobile phone panel,FPC flexible board, film / palm sheet /dark-frame/ diazo film, IML / IMD, electronic membrane switch and other flexible board; PCB glass fiber board, PVC / PET / PC panel, nameplate signs and other non-metallic materials positioning punching.
Packaging & Shipping
Packing remark:
The Automatic CCD alignment hole punching machine will be packed in strict safety before transportation.As shown in the figure above.Try to ensure that no damage occurs in the course of transportation.
Due to the large size and heavy mass of the printing equipment, we generally use sea or road transport for transportation. You can choose to transport by sea route or by China-Europe Railway Express. As for the terms of trade, we usually adopt EXW,FOB or CIF.
The specific way can be confirmed in the process of communication and confirmation of the order.
