Vility product line includes automatic various models of flatbed screen printing to meet demand of diverse small production or massive batch production. Vility flatbed screen printer is dedicated to print graphical multi-color for decorative and garment industry. High precise assembly is adopted for dynamical structure to attain stable movement and precise positioning. Handy adjustable structure is designed for fast setup and alignment. Additional, digital control is preset all recipe parameters, the inexperienced operator can handle quality printing. Moreover, Vility provides fully automatic cylinder press for massive production with 4000 pcs per hour.

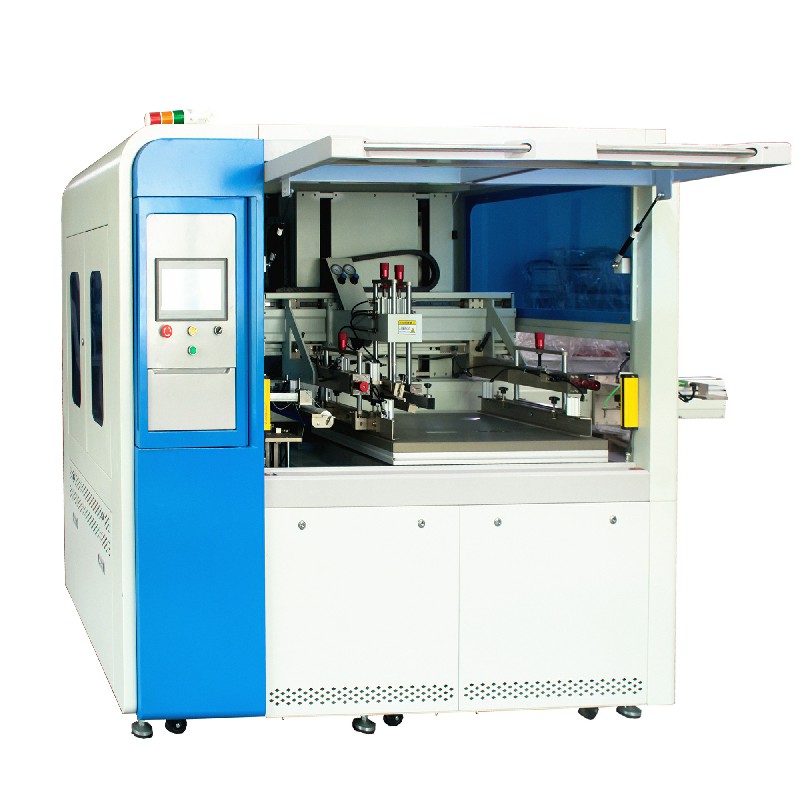

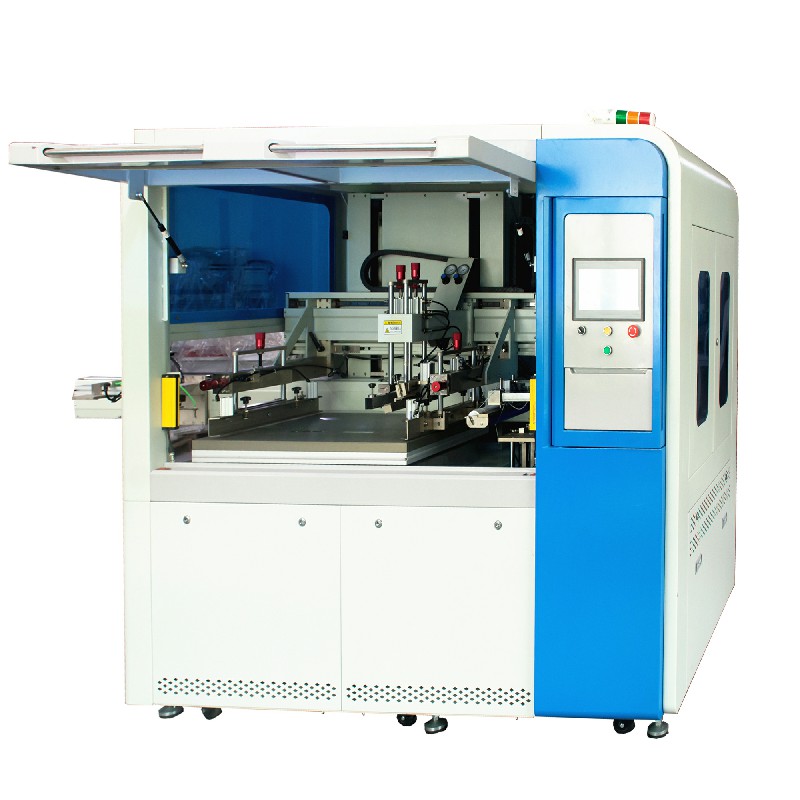

Screen printer+drier equipment
Component

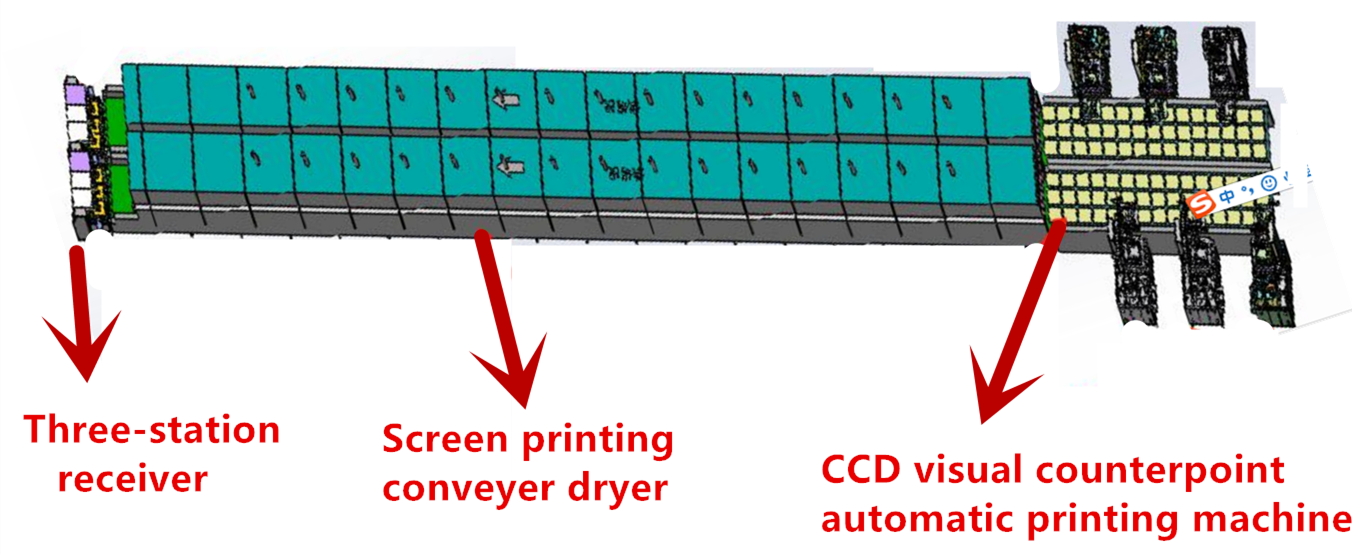

This production line is equiped with automatic loading and unlaoding manipulator, automatic material lifting platform, CCD alignment component, printing motor, dry tunnel furnace, multilayer rack and manipulator.
Function
Equipment function: automatically load and unload material, CCD camera automatically identify mark point and positioning, vacuum printing table automatically rotate, reclaiming manipulator unload material to dryer belt.
Whole production line is fully automatic, 1 people can supervise 2-3 lines, greatly improve efficiency and save labor.
| NO | Items | Printer equipment |
| 1 | Equipment size | 2800L x 1600W x 2095Hmm |
| 2 | Printing table size | 900mmx800mm |
| 3 | Max printing area | 800mmx700mm |
| 4 | Printing speed | 450PCS/H |
| 5 | Printing modes | flood/print, print/flood |
| 6 | Frame size | 700~1200mm |
| 7 | Printing size | 300x400mm~500x700mm |
| 8 | Max frame thickness | 22-55mm(can be customized) |
| 9 | Scraper angle | ±20° |
| 10 | Scraper stroke | 0-1200mm |
| 11 | CCD visual range | 200mm(range: horizontal±140mm，vertical 0mm) |
| 12 | Power | 5KW |
| 13 | Voltage | 380V 50HZ 3 phase |
| 14 | Air pressure | 5～6kg/cm2 PSI |
| 15 | Air consumption | 2.6L/cycle |
| 16 | Alignment accuracy | 0.02mm |
| 17 | Printing accuracy | ±0.025mm |
| 18 | Machine weight | 1500kg |

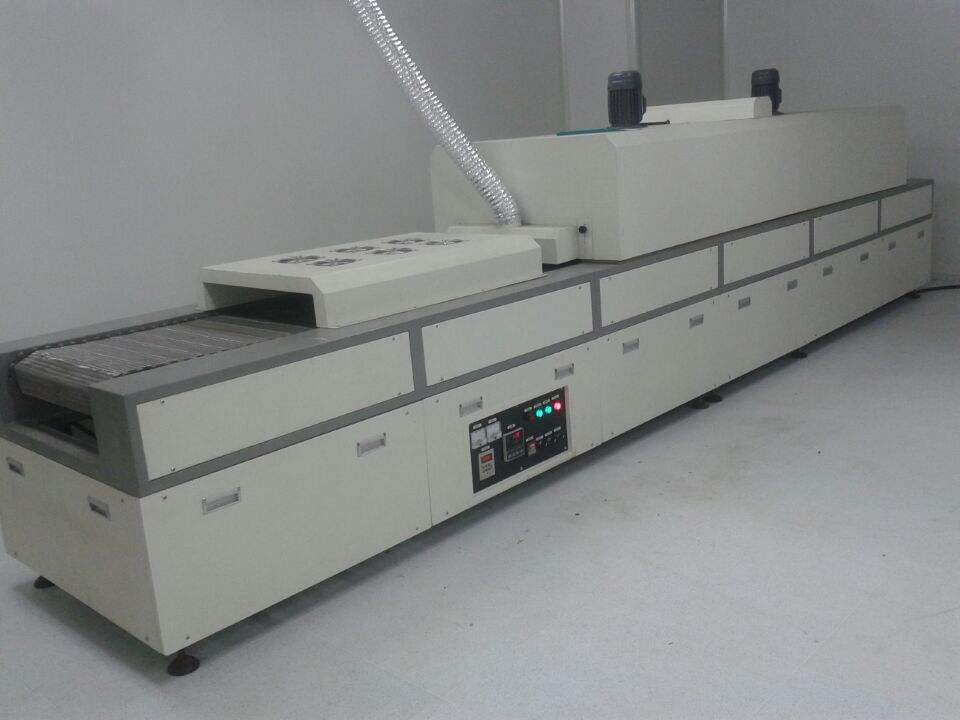

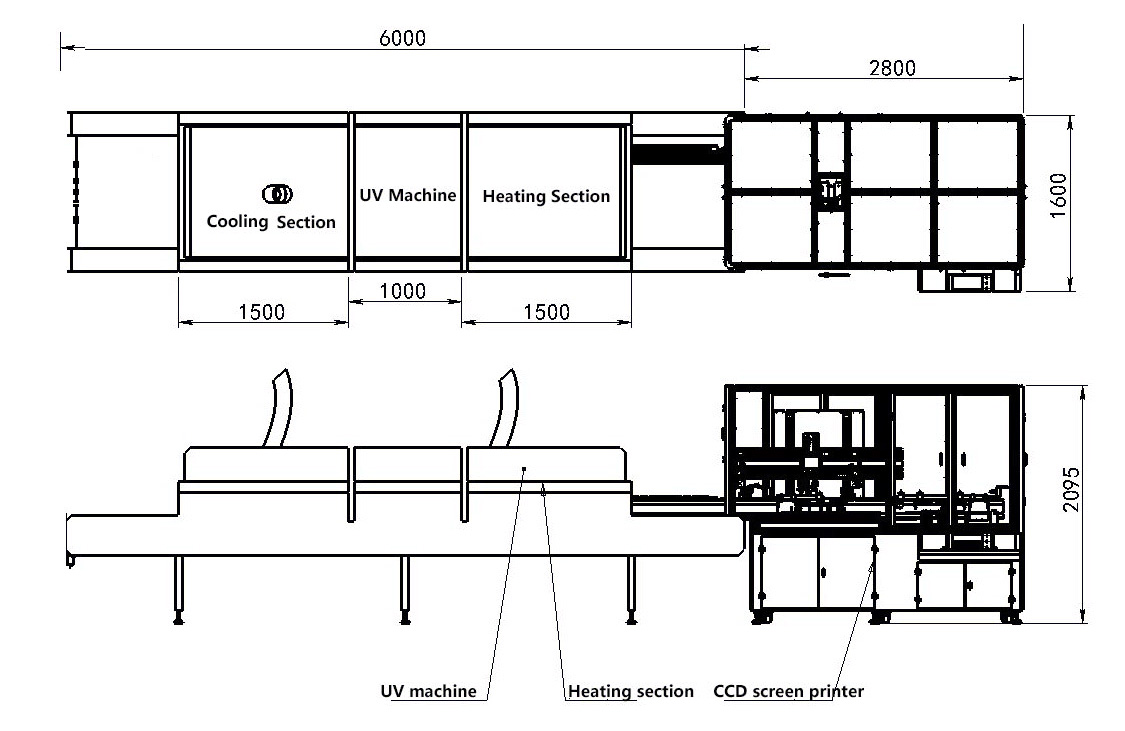

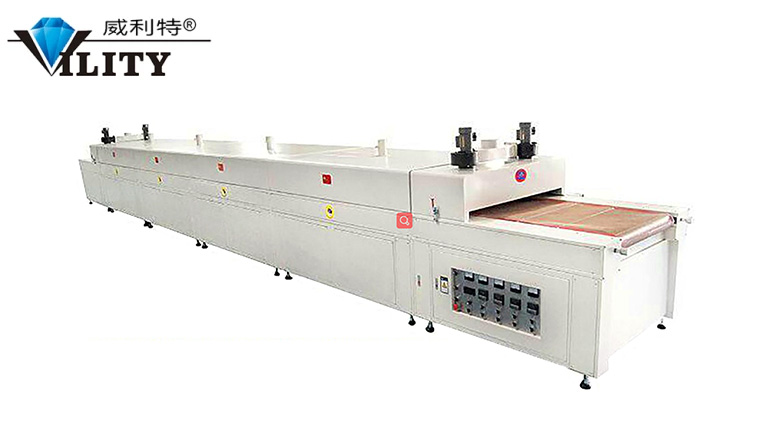

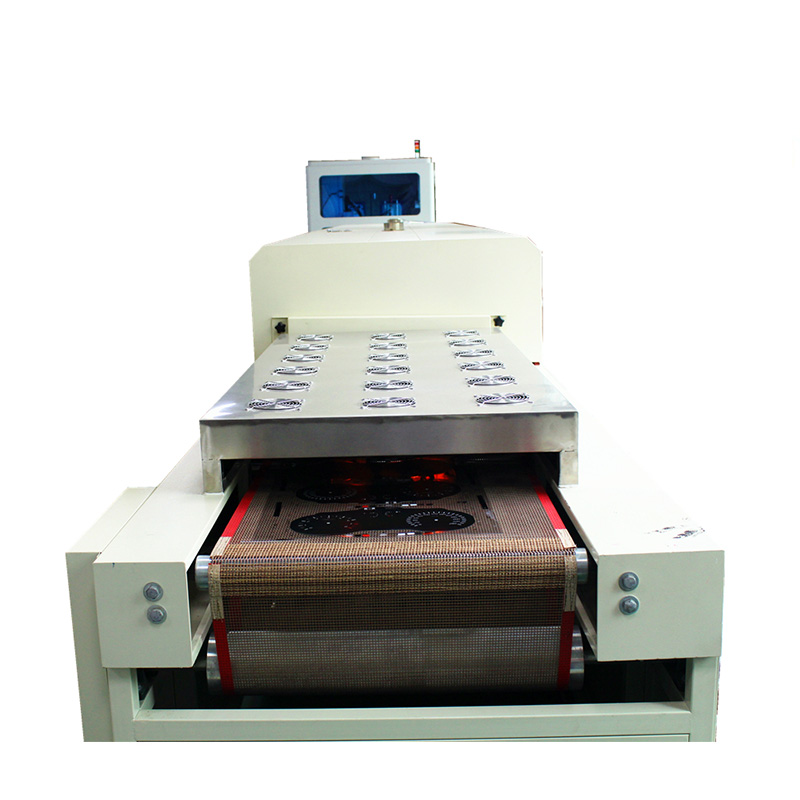

1. Tunnel furnace specifications: L6000mm*W1200mm*H900mm, (the front and rear are 1000mm long, the front and back ends are each 1500mm long, and the middle UV section is 1000mm long)
2. Tunnel furnace mesh belt: Teflon
3. Effective width of Teflon mesh belt: 900mm.
4. Tunnel furnace temperature: normal temperature 22℃-200℃
5. Control accuracy: ±3℃
6. The power part adopts 0.5HP gear reduction motor 1:30 with 1 set of 0.5HP Delixi inverter. The head and tail drive shafts are made of φ30*L600mm chrome-plated steel with bearings, gears, chains, rods, etc. 1 set. All drive shafts are installed outside the insulation cotton to prevent the bearings from being easily damaged due to high temperatures.
7. The wind transport adopts the upper and lower wind transport method, and the wind transport motor adopts 1HP motor with 1 set of 10.5-inch blades. The upper and lower air outlet screens are made of SUS201, T1.2mm stainless steel punching screens. 9. The inlet and outlet are all sealed, and the height of the inlet and outlet is kept 50mm high.
8. The electrical box is made of T1.0mm cold plate, the electrical appliances use Chint brand contactor, digital display Zhitong thermometer, heating control adopts Shiguo power regulator, ammeter, indicator light, air switch, selector switch and Tongbao brand wire and line Slot and so on.
9. Spray computer white paint, and other productions are made according to our company's routine.
◪ Automatically loading
◪ CCD priting alignment

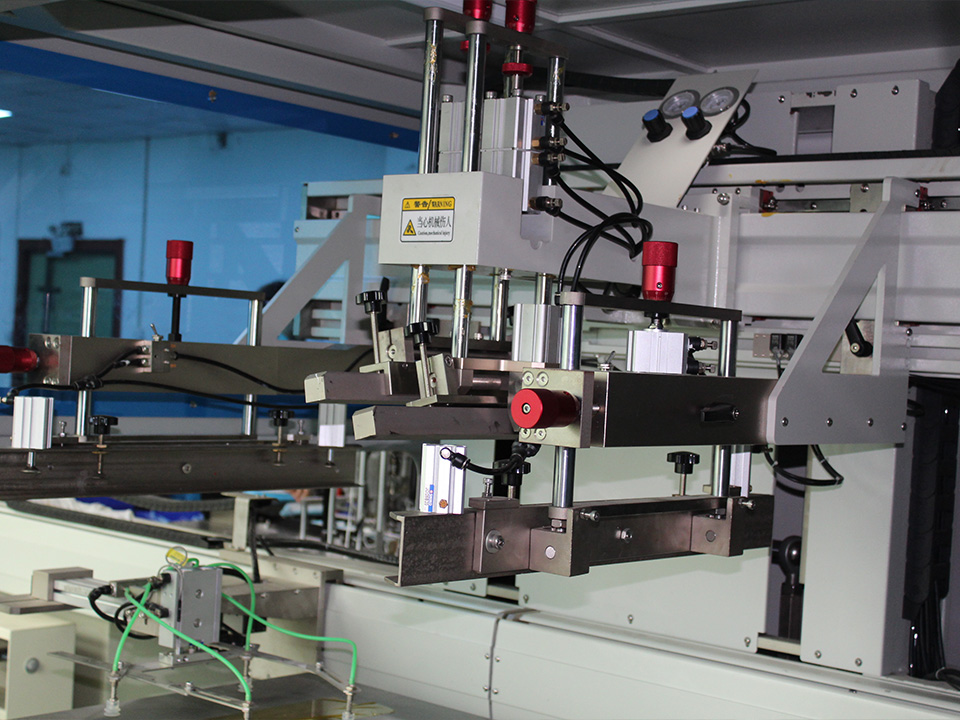

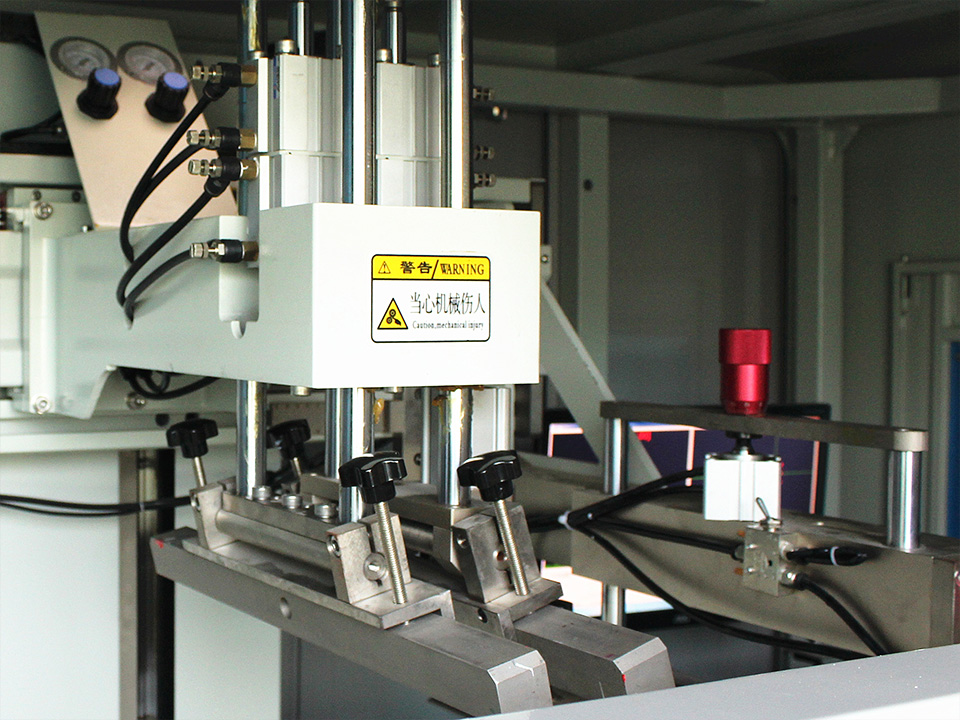

◪ Scraper moves left and right for silk screen printing

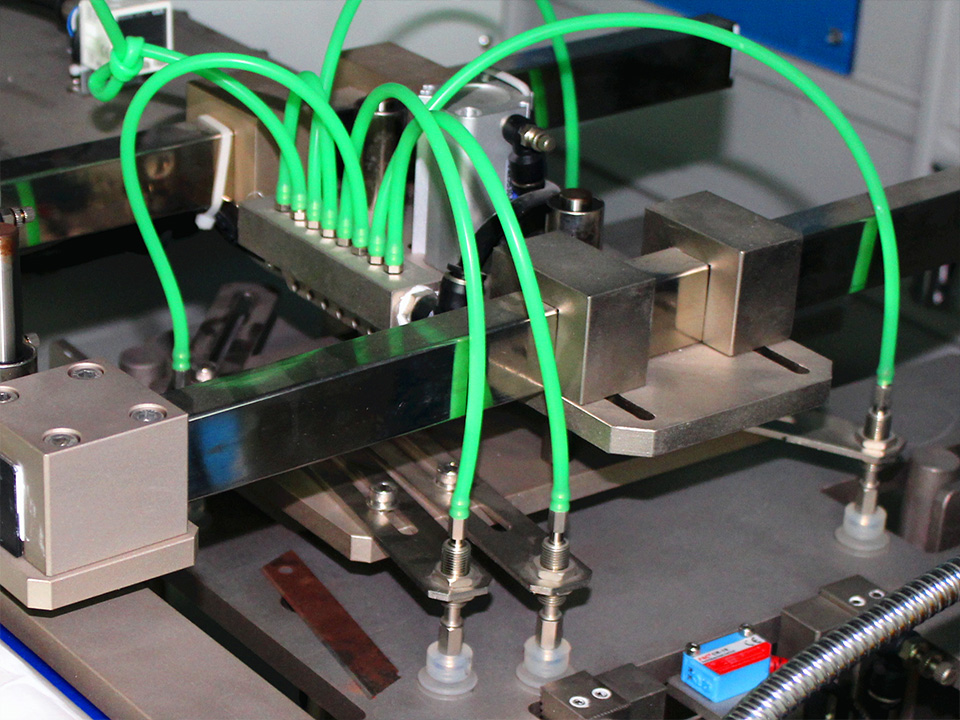

◪ The manipulator absorbs silk-screened materials
◪ The manipulator moves to the conveyor belt at the feeding end of the tunnel furnace
◪ The material enters the heating drying area for surface drying
◪ Material enters the UV machine for drying
| Configuration name | Manufacturer | Origin |
| servo motor | Mitsubishi | Japan |
| PLC | Mitsubishi | Japan |
| touch screen | Wei Lun | Taiwan |
| Linear guide | HIWIN | Taiwan |
| Cylinder | SMC | Japan |
| Bearing | NSK | Japan |
| The electromagnetic valve | SMC | Japan |
| Ball screw rod | TBI | Taiwan |
