Professional designer and manufacture of CCD machines for ONE STOP SOLUTION.
Equipment Size: 2600*1300*1600 mm
Material Size: MAX 700*700mm, MIN 300*300
Control Mode: PLC, Steper motor, cylinder, gear motor
Power Supply: AC 220V
Air Pressure: 0.6MPa ~ 2MPa
Mode Of Operation: Touch screen
Machine Weight: About 600KG
1. Material preparation and adjustment
Place the stack of materials on the loading platform, adjust the loading platform's jamming position and the loading and picking positions of the picking robot.
2. Loading and tearing the film by the tearing robot
The film tearing robot takes a sheet of material from the loading table to the film tearing loading table. When the robot returns, the sticky layer roller presses down to hold down the edge and corner of the material, and the sticky liner rolls on the roller to tear off the film.
3. Material pick-up robot pick-up
After the film is torn off from the tearing table, the material is then taken by the pick-up robot and placed on other workstations to complete the tearing process.
1: Application Scope
This machine is widely used in FPC,PET, PVC, varies of label,transfer paper (film), floor heating film, geothermal film, electro thermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, Membrane switch, trademark printing, scratch CARDS, self-adhesive stickers, paper, ribbon, aluminum foil and copper foil this roll material silk screen printing.
2: Features and performance.

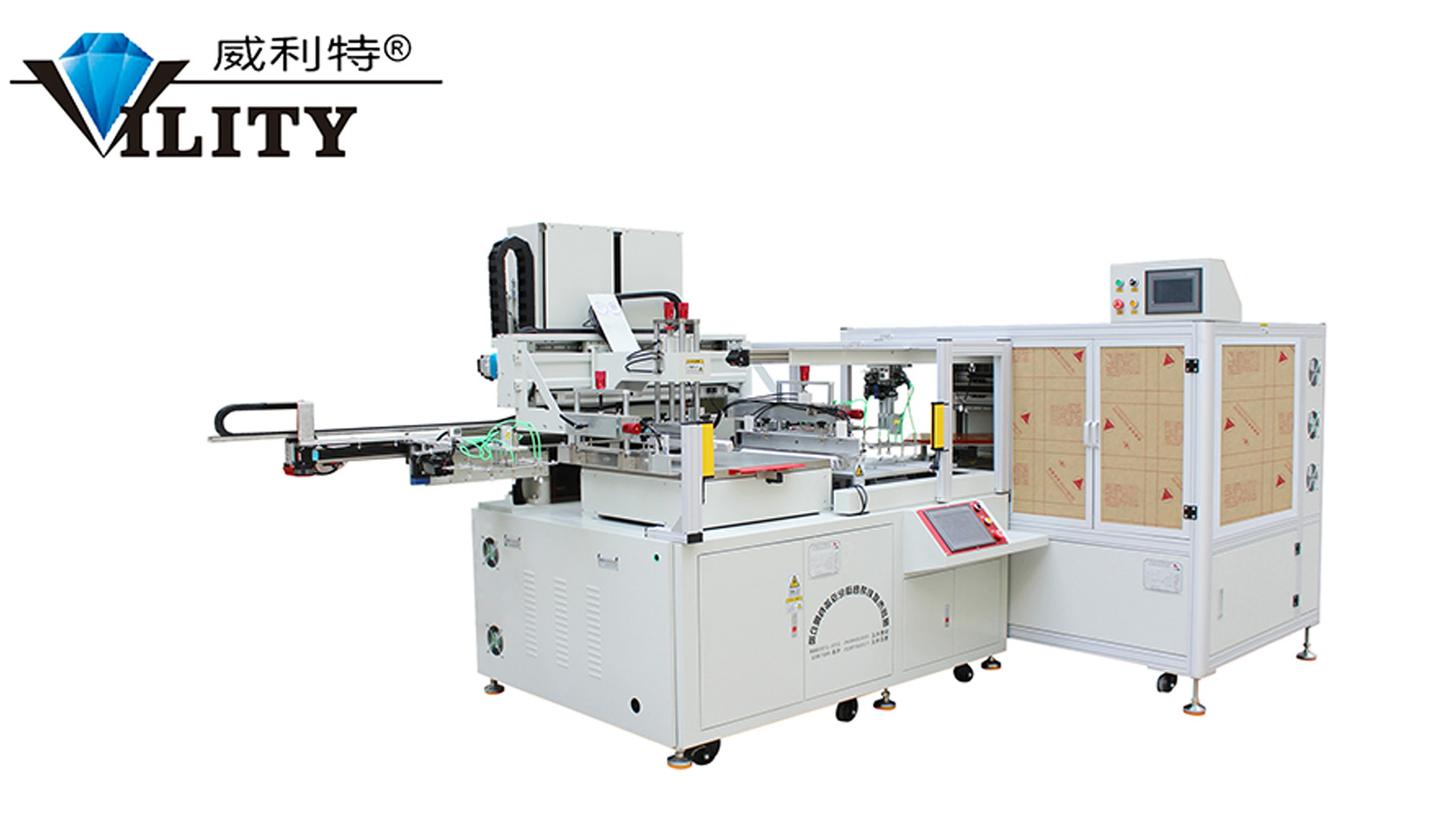

A: Main machine feature---screen printing machine
(1). CCD automatic alignment system, if the similarity is not within the setting range, any abnormal , it will stop and automatically start adjust the alignment successful and continue to work.
(2). Using numerical control motor, printing speed, return to the ink speed can be set in a random block.
(3). Using numerical control motor, printing distance, return to the ink distance can be set in a random data.
(4). Automatic computing printing, and calculate the qty, and printing can be set automatically stop.
(5). Photoelectric control feeding and discharging to avoid the surface damage of substrates, can improve the printing quality.
B: The Feeder features:
(1). Photoelectric control feeding, avoid the surface damage of the material.
(2). Feeding speed, time, can adjust at will.
(3). The feeding starting speed, can adjust at will, start frequency starting from 0 up to run slowly, avoid the start too fast, cause the material surface scratches.
(4). Equipped with an automatic protective device.
C: The dryer features:
(1). Circulating hot air drying, temperature adjustable, automatic winding.
(2). The oven cover an small area, 32-60 meters length, which can realize low temperature drying, ensure printed material no shrinkage deformation, multicolor printing.
Name | Parameter | Remark | |
CCD Printing machine | Working place area(mm) | 1000*660 |
|
Max inputting width(mm) | 450 | ||
Max printing area(mm) | 600*450 | ||
Mix printing area(mm) | 400*500 | ||
Max size of screen frame(mm) | 1100*800 | ||
Mix size of screen frame(mm) | 300*200 | ||
printing thickness(mm) | 0.075-0.125 | ||
Mix print skip distance(mm) | 2 | ||
Working voltage (v) | 380-50Hz | ||
Maine machine Max power (kw) | 40 | ||
Working pressure（kg/cm2） | 5-8 | ||
Precision of printing（mm） | ±0.05 | ||
First printing speed | 1000-1200 times / hour | ||
Second printing speed | 800-1000 times/ hour | ||
Scraper stroke（mm） | 900 | ||
CCD precision | ±0.02 | ||
CCD center space | 330mm | ||
Main machine size （mm） | 3300*1600*2200 | ||
Receiving oven | Oven temperature（℃） | 0-190 |
Laminating device can be add in Oven |
Oven working voltage（V） | 380 | ||
Oven max power （KW） | 24 | ||
Max size（mm） | 450 | ||
Oven size （mm） | L2400*W1200*H2100 | ||
feeding goods max size（mm） | 450 | ||
Feeding machine | Feeder peak voltage(V) | 220 | According to your requirement |
POWER(KW) | 0.3 | ||
size （mm） | 800*1000*1100 | ||
Raw material →Automatic feeding machine →Automatic printing→Automatic UV or oven →Automatic receiving →End product.
◪ We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.
◪ Installation and debug machine for you without any charge. Also, giving a technical training for your employees.
◪ All of our machines can have one year guarantee and lifelong maintenance.
