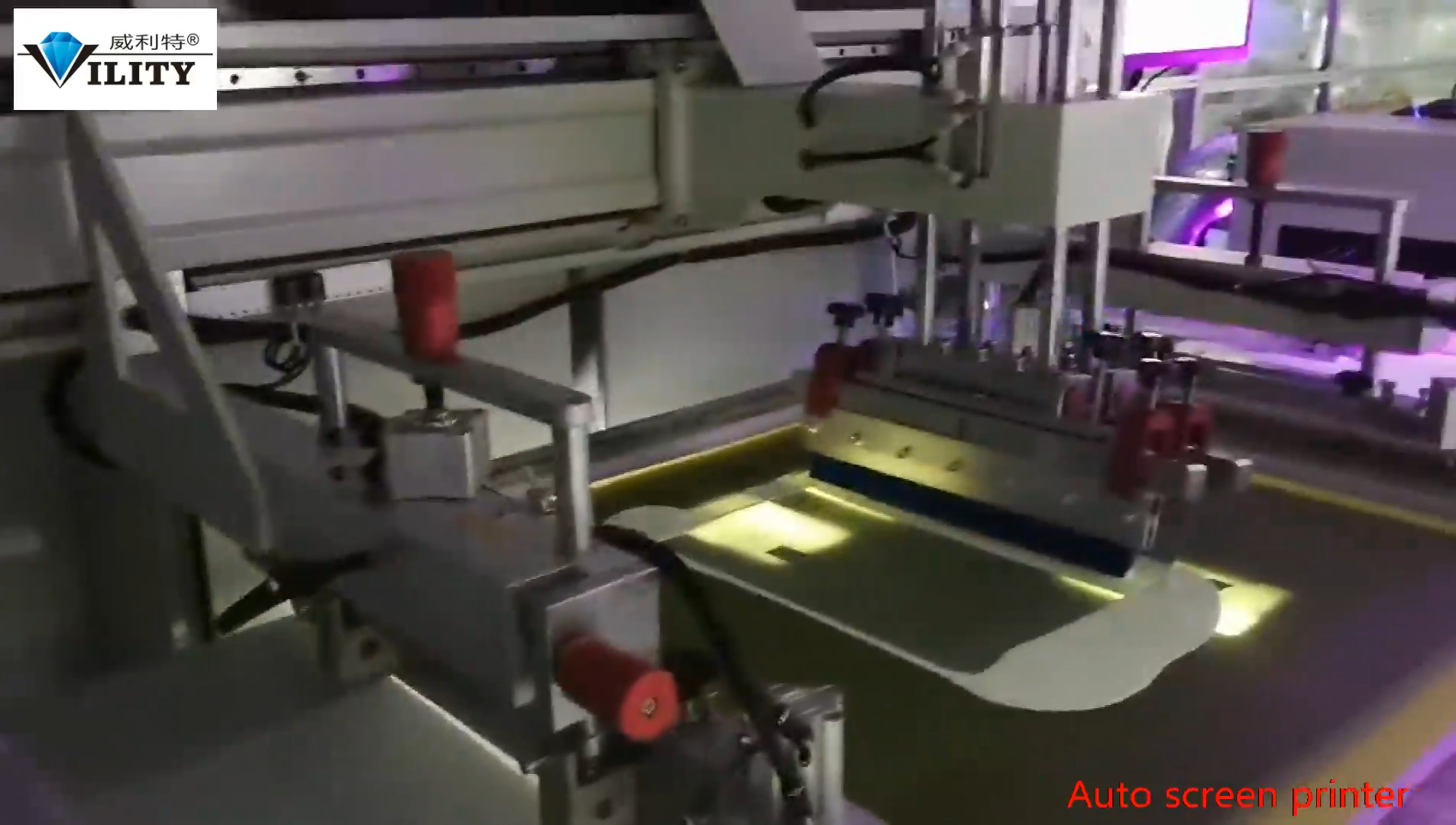

Roll to Roll Screen Printing Machine
Professional designer and manufacture of CCD machines for ONE STOP SOLUTION.
Language
Professional designer and manufacture of CCD machines for ONE STOP SOLUTION.
Features
Servo control tension : conveyor is driven by servo power rolling to work with structural EPC, tension control is adopted self-development vertical servo tension control.
Equalized control : printing head carriage is adopted equalized pressure control : squeegee / flood coater digital equalizing pressure system control, enable to preset digital pressure on HMI (3~62 kgf).
Leveling high accuracy : table is made of thick Aluminum alloyed plate with precise machining process and hard anodizing treatment, prevent scratching, table leveling precision attains ±0.02mm
1.Is it possible for you to assign engineers to our company?
yes. Our engineers can go to your company for on-site service. However, you need to pay the corresponding fee.
2.Do you provide installation and training services?
Yes, we will provide you with professional installation and training manuals and video tutorials. Live video conversations will also be provided to guide you through the operation.
3.What is your company’s production capacity?
30 Sets/ Month.
1. All equipment is CE certified. And can be customized to meet customer requirements of other certification.
2. Our equipment is highly automated, and one person can man multiple production lines.
3. Accept OEM/ODM, screen printing industry whole line customization.
4. Printing, punching, die cutting precision 0.02mm.CCD camera visual alignment system, fast and accurate positioning and fine tuning, to ensure accuracy requirements.
Shenzhen VILITY Automatic Machinery Co.,Ltd established in 2010 year, located in Shenzhen city, China. Our company’s development approach is : People-oriented, Technological innovation , service-oriented. VILITY is a combine-word, comes from Victory& Ability and Victory &Quality which means we always pursue high quality and good service to meet customers requirements and high competitive market. We believe: Service first, customers supreme. VILITY is a Professional manufacturer, providing ONE-STOP SOLUTION for intelligent printing industry. Recent years, We have pay most of the techniques and technologies to implement Industry 4.0 Robotic. VILITY has been successfully Provide unmanned production lines for many customers. Therefore, it is honored to get a high degree of social affirmation. Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material. With substantial ongoing investment in research and development, VILITY is ideally positioned to continue doing high precision CCD robotic machines for both the commercial and domestic markets. We are looking forward to establishing well long –term business relationship with you and your esteemed companies.
This set of CCD Screen printing Machine mainly combined with a feeding machine, feeding box , a screen printer , winding box, UV dryer and winding machine . There are different feeding machine for option , UV dryer is also can be assembled on printer or assembled on winding machine.
1. The effective printing area is 600*600mm;
2. The whole process of silk screen printing is in anti-scratch mode (that is, the upper and lower surfaces of the material must not have sliding friction with other objects);
3. The adjustment height of the screen from the screen printing table is about 350mm;
4. The aperture distance of the CCD glass window is increased, which is convenient for CCD identification;
5. The air blowing under the table is controlled by a 16-point solenoid valve, so that the material is evenly suspended and must not stick to the screen;
6. The cutting knife uses inlaid tungsten steel sheet, which is easy to disassemble and maintain;
7. The rectification mode of the air shaft of the coil feeder is the air shaft rectification;
8. The height of the whole machine is 900mm above the ground, and the installation method of the scraper cylinder adopts a convenient disassembly mechanism, which is convenient for operation and maintenance;
9. When the grating is blocked, the equipment will stop running, and the equipment will automatically move when there is no blocking;
10. The cutting part adopts the fixed-length mode, no need to track the sensor;
11. The number of material printing processes is one or two and then cut into slices;
12. The rest of the requirements are the same as the first process requirements.
This production line is an automated production line designed to improve production efficiency and product quality in the field of diffuser screen printing. Its characteristics are combined with your company's silk screen printing process requirements to achieve automatic tension feeding, automatic deviation correction, anti-scratch CCD printing, automatic UV curing, secondary feeding, CCD printing, UV curing, automatic slicing, automatic output and other whole-line production Process, save your company's labor costs and the original screen printing process, greatly improve production efficiency.
Coil feeding machine | 1 set |
CCD screen printing machine (with drawing and cutting) | 2 sets |
UV curing machine | 2 sets |
Transmission line | 1 set |
Scratch - proof receiving machine | 1 set |
1. Printing table size: 750*750mm
2. Maximum printing area: 600*600mm
3. Maximum frame size: 1200*950mm
4. Max. frame thickness: 25~55mm (special can be customized)
5. The fastest printing speed: 1000 P / H
6. Power supply specification: 3 phase, 380V, 50Hz
7. Air source pressure: 5 ~ 6kg/cm2 PSI
8. Air consumption: 2.6L/cycle
9. CCD positioning accuracy: 0.02mm
10. Printing accuracy (non-material shrinkage, and screen expansion): 0.05mm
11. Two CCD center distance: according to your company custom
12. Machine size: L3500*W1500*H2100mm
13. Machine weight: about 3000KG
