Professional designer and manufacture of CCD machines for ONE STOP SOLUTION.
Printing Table Size: 680*880mm500*500mm
Maximum Printing Area: 900*1100mm
Maximum Screen Frame Size: 25 ~ 55mm (special customizable)
Maximum Screen Frame Thickness: 2.3-(1.2) m X 2m X 1.6m (placed in a row on the near side)
Fastest Printing Speed: 380 v, 50 hz
Voltage: 380V/50HZ
Power: 40KW
The light diffusion sheet printing device includes an inking device and an ink scraping device. The ink scraping device is located on the top of the printing screen plate. The front and rear of the printing screen plate are provided with a transfer roller group, and an electrostatic bar is arranged between the transfer roller groups; the transfer roller A bracket is arranged at the end of the group, and the light diffuser roll transversely runs through the bracket and can be freely rotated; a set of symmetrical edges of the ink scraping device is clamped in a movable slot frame fixed laterally with the light diffusion plate; the ink scraping device includes an ink storage device. The lower end of the ink storage tank is in the shape of an inverted triangle, the bottom of the inverted triangle is provided with a rolling roller, and the scraper on one side of the rolling roller extends beyond the rolling roller; the inking device uses a liquid level controller to control its switch, and the inking device is installed in On the ink pipe, the oil storage end of the ink pipe extends in the ink storage tank; an air distribution pipe is installed in the electrostatic rod, and the air distribution pipe is connected with the compressed air pump. The utility model can complete the printing of the light diffusion sheet in an orderly and automatic manner, Save manpower, fast printing speed, high efficiency and the same printing quality.
4.We have 13 years of experience in product development and production. Professional engineer team can quickly design products according to your requirements.
The diffuser is one of the components of the backlight module, and the diffuser is also called a diffuser. Its main function is to provide a uniform surface light source for the display. The base material needs to choose a material with high light transmittance such as PET/PC/PMMA. Generally, the traditional diffusion film mainly adds chemical particles one by one into the diffusion film substrate as scattering particles, while the existing diffusion plate has particles dispersed between the finger layers, so when the light line passes through the diffusion layer It will continue to pass through two media with different refractive indices, and at the same time, the light will undergo many phenomena of refraction, reflection and scattering, thus resulting in the effect of optical diffusion.
The structure of the diffuser is usually antistatic coating layer, PET substrate, and diffuser layer from bottom to top.
The composition of the material of the backlight module from bottom to top is the reflective sheet, the light guide plate, the lower diffuser, the prism sheet, and the upper diffuser. The working principle of the diffuser is to use the refraction and reflection of the diffusing material to atomize the light source, and transmit the light from The small-angle light is concentrated on the front to improve the front brightness. The lower diffuser mainly concentrates the light emitted from the light guide plate and evenly projects it onto the prism sheet, while the main function of the upper diffuser is to atomize the light emitted by the prism sheet, and The light is evenly transmitted. At the same time, the upward expansion can also play the role of protecting the prism sheet.
1.Is it possible for you to assign engineers to our company?
yes. Our engineers can go to your company for on-site service. However, you need to pay the corresponding fee.
2.Do you provide installation and training services?
Yes, we will provide you with professional installation and training manuals and video tutorials. Live video conversations will also be provided to guide you through the operation.
3.What is your company’s production capacity?
30 Sets/ Month.
1. All equipment is CE certified. And can be customized to meet customer requirements of other certification.
2. Our equipment is highly automated, and one person can man multiple production lines.
3. Accept OEM/ODM, screen printing industry whole line customization.
4. Printing, punching, die cutting precision 0.02mm.CCD camera visual alignment system, fast and accurate positioning and fine tuning, to ensure accuracy requirements.
Shenzhen VILITY Automatic Machinery Co.,Ltd established in 2010 year, located in Shenzhen city, China. Our company’s development approach is : People-oriented, Technological innovation , service-oriented. VILITY is a combine-word, comes from Victory& Ability and Victory &Quality which means we always pursue high quality and good service to meet customers requirements and high competitive market. We believe: Service first, customers supreme. VILITY is a Professional manufacturer, providing ONE-STOP SOLUTION for intelligent printing industry. Recent years, We have pay most of the techniques and technologies to implement Industry 4.0 Robotic. VILITY has been successfully Provide unmanned production lines for many customers. Therefore, it is honored to get a high degree of social affirmation. Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material. With substantial ongoing investment in research and development, VILITY is ideally positioned to continue doing high precision CCD robotic machines for both the commercial and domestic markets. We are looking forward to establishing well long –term business relationship with you and your esteemed companies.

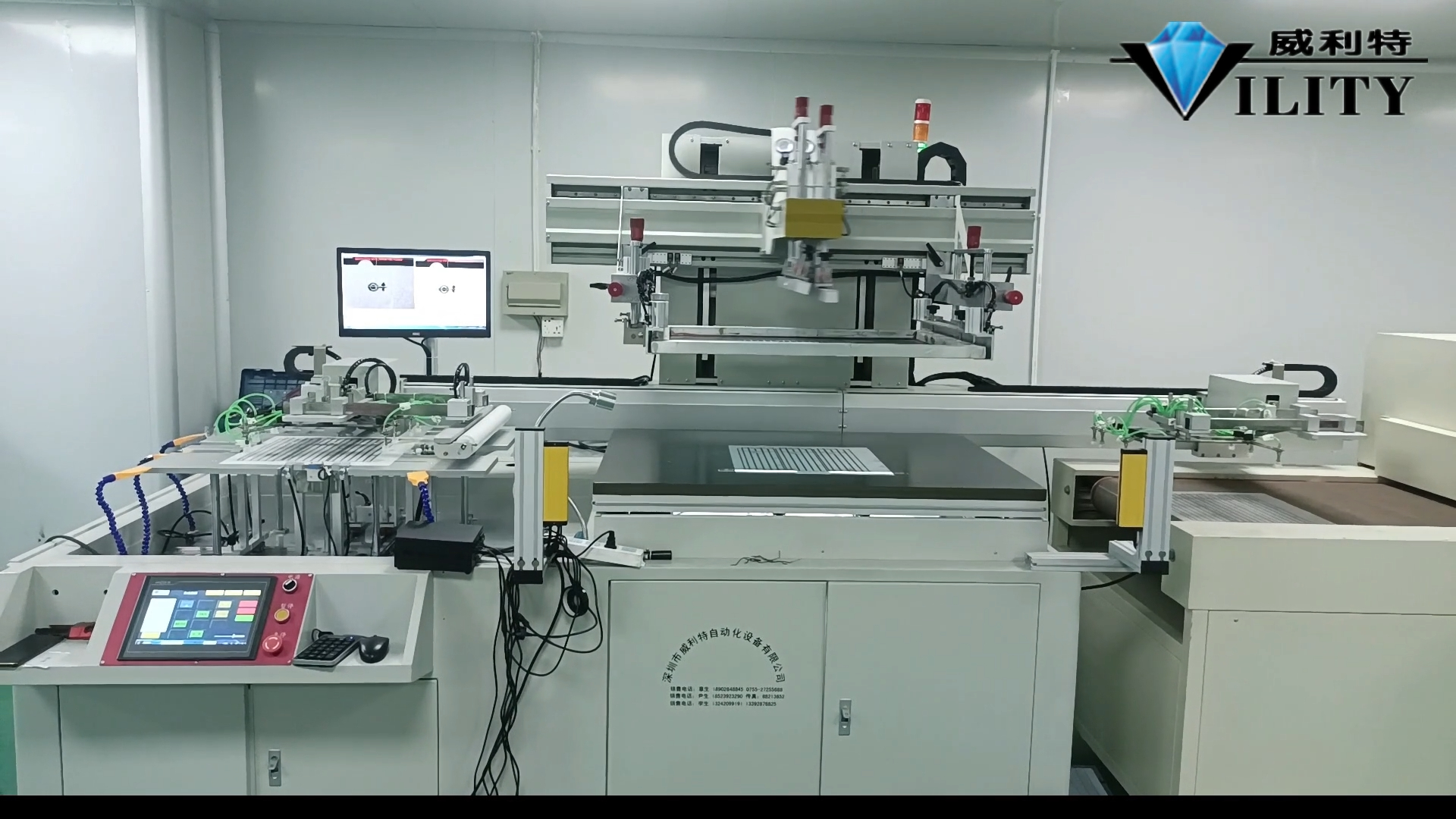

Fully Automatic Screen Printing Machine with CCD Vision Registration to meet highest demands, with CCD-camera system and movable print table to produce high-quality prints on flat materials such as EL-foils, LGP panels, BEF-films, touch screens, membrane switches, flexible printed circuits, and much more. Product Applications : LCD cell sealant, Touch panel, Touch screen, Monitor, ITO, Diffusers for back light module, Light guide plate, EL panel, Automobile glass, Automotive Glass, Car glass, LOGO printing, Graphics printing.
1. Feeding and adjustment
1) Adjust the feeding position of the manipulator and the CCD visual position of the positioning platform. Feeding and feeding position of feeding manipulator.
2) Adjust the dust removal height and position of the dust removal components.
3) According to the overall efficiency, adjust the speed of each machine to reach the optimal state.
2. The screen printing
After the positioning of THE CCD initial positioning platform is completed, the feeding mechanical arm will send the material to the printing platform for CCD positioning again, and printing will be carried out after the completion
3. After printing, the feeding manipulator sucker moves to the top of the printing table, and the sucker absorbs the unprinted part and sends the sheet into the transmission line.
1) The glass window is opened on the table, the CCD camera takes photos from bottom to top, and the field of view of CCD (customized) can be adjusted automatically according to the size of the material.
2）CCD automatically calculates the spatial position of the material and the stencil according to the Mark point on the material, and instructs the motor motion control to adjust the platform X, Y, θ rotation to position the printing automatically.
3）The cross slide base is processed with integral cast aluminum, running lightly without jitter.
4）Stencil clamping frame adopts pneumatic automatic clamping design, easy to operate.
5）The printing adopts Panasonic servo motor, with linear guide rail guidance, fast and smooth, accurate positioning.
6）Human-machine interface control + button switch, can set a variety of functions and parameters, easy to operate.
7）Safety pressure plate, photoelectric switch, emergency stop button, thorough safety protection.
Printing table size | 680*880mm500*500mm |
Maximum printing area | 900*1100mm |
Maximum screen frame size | 25 ~ 55mm (special customizable) |
Maximum screen frame thickness | 2.3-(1.2) m X 2m X 1.6m (placed in a row on the near side) |
Machine size: length -(blanking extension arm) X width X height | 2.3-(1.7) m X 2m X 1.6m (two rows on the near side) |
450 P/H | |
Fastest printing speed | 380 v, 50 hz |
The power supply specifications | The 0.02 mm |
CCD positioning accuracy | The 0.05 mm |
Printing accuracy | 330mm(adjustable range: horizontal ±40mm) |
Distance between two CCD centers | 2300(excluding tunnel overlap)*1600*2200 (including cover) mm |
Machine Dimensions (LWH) | About 1200 kg |
Machine weight | 25 ~ 6 kg/cm2 PSI |
Air pressure | 6L/cycle |
Gas consumption | 680*880mm500*500mm |
