The basic materials of bank cards and credit cards with financial attributes are PVC, and the production process is relatively complicated, such as adding signature strips, embossed character numbers, magnetic stripes, barcodes, chips, magnetic writing, etc., and more equipment is used during the period.
Detailed explanation of the production process of PVC card:
1. Offset printing: also known as offset printing, the color requirements are CMYK and other color, gradient layouts.
2. Hot stamping: The surface treatment is hot stamping, silver and laser effect on the printed semi-finished card.
3. Magnetic stripe card: Attach the magnetic stripe to the printed material before lamination, and make the magnetic stripe permanently attached to the card surface after high temperature.
4. Silk screen printing: Monochrome printing, mainly with gold and silver background colors, the printing color is single than offset printing, but the color is thick.
5. Bar code: print a bar code on the semi-finished card, which can be a serial number or a specific number.
6. UV: The surface UV treatment is carried out on the printed semi-finished product, with a bright surface and a feel.
7. Embossed characters: Press the embossed number on the semi-finished card, you can hot stamp gold and silver during the embossing process. Such as: various codes above.
What are the processes for making bank cards?
The basic materials of bank cards and credit cards with financial attributes are PVC, and the production process is relatively complicated, such as adding signature strips, embossed character numbers, magnetic stripes, barcodes, chips, magnetic writing, etc., and more equipment is used during the period.
Detailed explanation of the production process of PVC card:
1. Offset printing: also known as offset printing, the color requirements are CMYK and other color, gradient layouts.
2. Hot stamping: The surface treatment is hot stamping, silver and laser effect on the printed semi-finished card.
3. Magnetic stripe card: Attach the magnetic stripe to the printed material before lamination, and make the magnetic stripe permanently attached to the card surface after high temperature.
4. Silk screen printing: Monochrome printing, mainly with gold and silver background colors, the printing color is single than offset printing, but the color is thick.
5. Bar code: print a bar code on the semi-finished card, which can be a serial number or a specific number.
6. UV: The surface UV treatment is carried out on the printed semi-finished product, with a bright surface and a feel.
7. Embossed characters: Press the embossed number on the semi-finished card, you can hot stamp gold and silver during the embossing process. Such as: various codes above.
We have always followed the standardization rules for a rigorous production process, saving time and cost for both parties and bringing maximum benefits to you.
Widely used in the photoelectric industry, automotive industry, home appliance industry, FPC, control panel, nameplate, label, packaging material printing and post production.
We have 13 years of experience in product development and production. Professional engineer team can quickly design products according to your requirements.
Accept OEM/ODM, screen printing industry whole line customization.
1: Application Scope

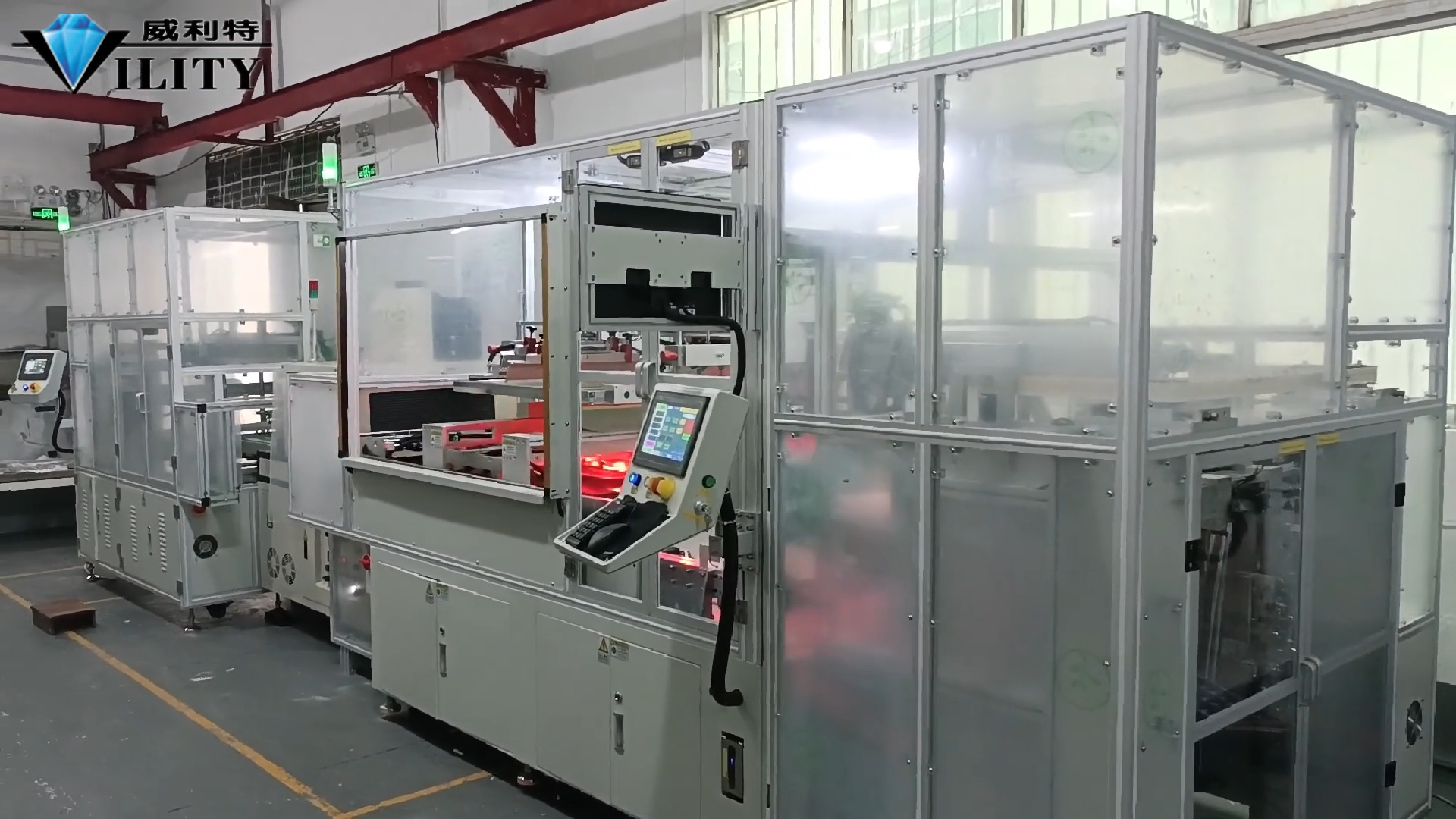

The CCD Alignment Screen Printing Machine for Sheet is the core machine of the sheet printing line.The whole process includes: automatic separate material - auto dust removal (including Initial positioning of clamping edge) - automatic loading - CCD alignment screen printing - automatic unloading - baking - auto collecting the finished product.
The machine is suitable for printing on sheet materials such as: membrane switches, glass covers, acrylic, ITO, conductive films, composite back covers, etc.High alignment accuracy, fast printing speed and the entire production line can be operated by just one person.
Video presentation link:
https://www.youtube.com/watch?v=Me9PPc0kd_I
2: Features and performance.
Main machine feature---screen printing machine
(1). CCD automatic alignment system, if the similarity is not within the setting range, any abnormal, it will stop and automatically start adjust the alignment successful and continue to work.
(2). Using numerical control motor, printing speed, return to the ink speed can be set in a random block.
(3). Using numerical control motor, printing distance, return to the ink distance can be set in a random data.
(4). Automatic computing printing, and calculate the qty, and printing can be set automatically stop.
(5). Photoelectric control feeding and discharging to avoid the surface damage of substrates, can improve the printing quality.
Raw material →Automatic feeding machine →Automatic printing→Automatic UV or oven →Automatic receiving →End product.
◪ We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.
◪ Installation and debug machine for you without any charge. Also, giving a technical training for your employees.
◪ All of our machines can have one year guarantee and lifelong maintenance.
