Professional designer and manufacture of CCD machines for ONE STOP SOLUTION.
Printing Area: 450*600mm
Printing Speed: 0~6000 pcs/hr.
Screen Frame Area: 700*900mm
Max. Substrate Width: 480mm
Registration Accuracy: ±0.02mm
Air Comsumption: 0.4-0.6mpa
4.Accept OEM/ODM, screen printing industry whole line customization.
What is the function of the printed circuit board? What are the advantages of printed circuit boards?
Printed circuit boards have developed from single-layer to double-sided, multi-layer and flexible boards, and are constantly developing in the direction of high precision, high density and high reliability. Continuously shrinking the size, reducing the cost, and improving the performance will make the printed circuit board still maintain a strong vitality in the development of electronic products in the future. In the future, the development trend of printed circuit board manufacturing technology is to develop in the direction of high density, high precision, small aperture, thin wire, small pitch, high reliability, multi-layer, high-speed transmission, light weight and thin shape. The following editor will introduce to you "what is the function of printed circuit boards and what are the advantages of printed circuit boards"
1. What is the role of printed circuit boards?
The functions of printed circuit boards in electronic equipment include: providing mechanical support for fixing and assembling for transistors, integrated circuits, resistors, capacitors, inductors and other components; realizing transistors, integrated circuits, resistors, capacitors, inductors and other components The wiring, electrical connection and electrical insulation between them meet their electrical characteristics; identification characters and graphics are provided for the inspection and maintenance of components in the electronic assembly process, and solder resist graphics are provided for wave soldering.
Second, what are the advantages of printed circuit boards
1. Due to the repeatability (reproducibility) and consistency of the graphics, wiring and assembly errors are reduced, and equipment maintenance, debugging and inspection time are saved;
2. The design can be standardized, which is convenient for interchange;
3. High wiring density, small size and light weight, which is conducive to the miniaturization of electronic equipment;
4. It is beneficial to mechanized and automated production, improves labor productivity and reduces the cost of electronic equipment;
The manufacturing methods of printed boards can be divided into two categories: subtractive method (subtractive method) and additive method (additive method). At present, large-scale industrial production is still dominated by the method of etching copper foil in the subtraction method;
5. Especially the bending resistance and precision of FPC flexible board can be better applied to high-precision instruments. (Such as cameras, cell phones, camcorders, etc.)

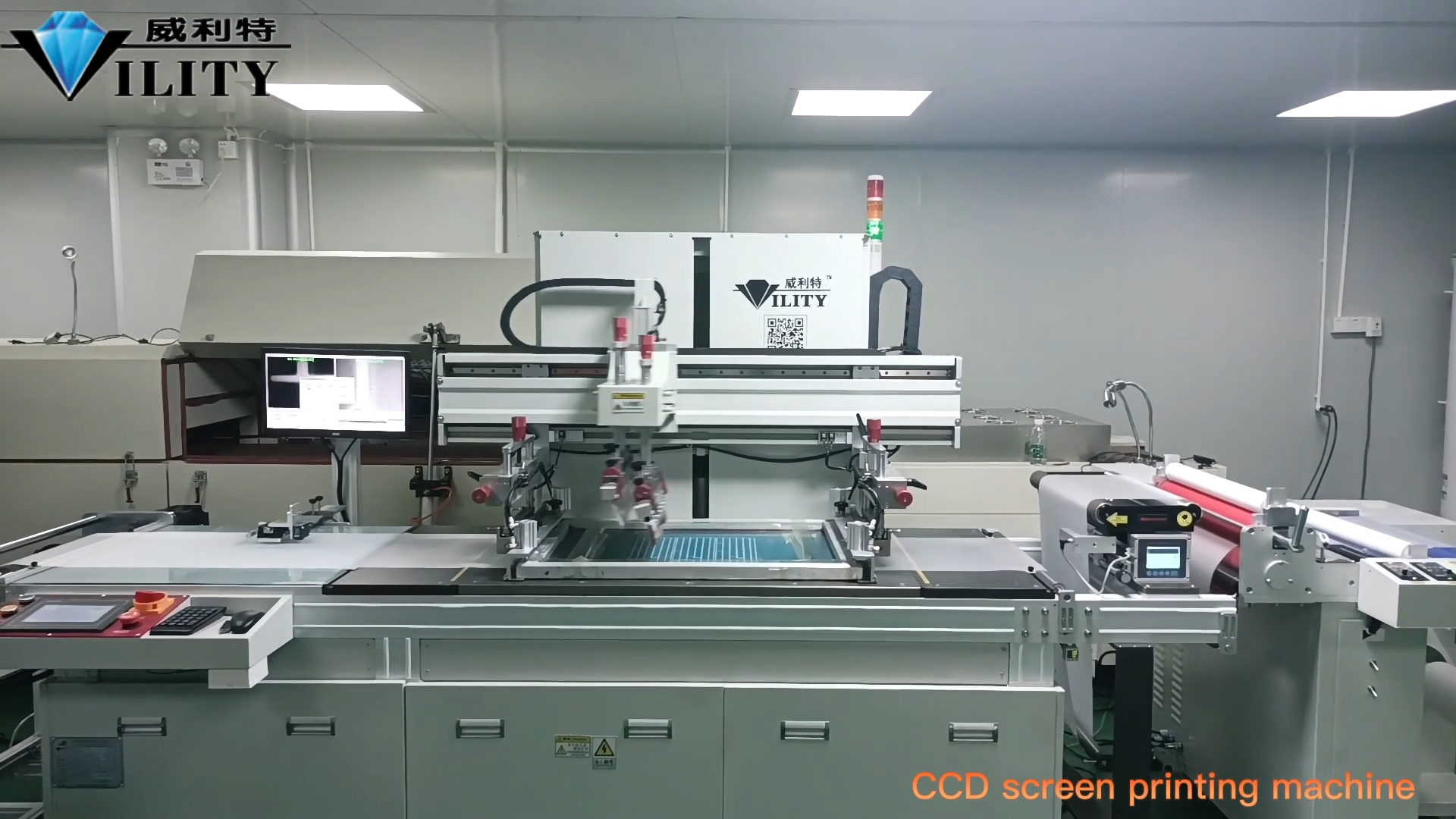

1: Application Scope
This machine is widely used in FPC,PET, PVC, varies of label,transfer paper (film), floor heating film, geothermal film, electro thermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, Membrane switch, trademark printing, scratch CARDS, self-adhesive stickers, paper, ribbon, aluminum foil and copper foil this roll material silk screen printing.
2: Features and performance
A: Main machine feature---screen printing machine
(1). CCD automatic alignment system, if the similarity is not within the setting range, any abnormal, it will stop and automatically start adjust the alignment successful and continue to work.
(2). Using numerical control motor, printing speed, return to the ink speed can be set in a random block.
(3). Using numerical control motor, printing distance, return to the ink distance can be set in a random data.
(4). Automatic computing printing, and calculate the qty, and printing can be set automatically stop.
(5). photoelectric control feeding and discharging to avoid the surface damage of substrates, can improve the printing quality.
B: The Feeder features:
(1). Photoelectric control feeding, avoid the surface damage of the material.
(2). Feeding speed, time, can adjust at will.
(3). The feeding starting speed, can adjust at will, start frequency starting from 0 up to run slowly, avoid the start too fast, cause the material surface scratches.
(4). Equipped with an automatic protective device.
C: The dryer features:
(1).Circulating hot air drying, temperature adjustable, automatic winding.
(2).The oven cover an small area, 32-60 meters length, which can realize low temperature drying, ensure printed material no shrinkage deformation, multicolor printing.
Name | Parameter | Remark | |
CCD Printing machine | Working place area(mm) | 1000*660 | / |
Max inputting width(mm) | 450 | ||
Max printing area(mm) | 600*450 | ||
Mix printing area(mm) | 400*500 | ||
Max size of screen frame(mm) | 1100*800 | ||
Mix size of screen frame(mm) | 300*200 | ||
printing thickness(mm) | 0.075-0.125 | ||
Mix print skip distance(mm) | 2 | ||
Working voltage (v) | 380-50Hz | ||
Maine machine Max power (kw) | 40 | ||
Working pressure（kg/cm2） | 5-8 | ||
Precision of printing（mm） | ±0.05 | ||
First printing speed | 1000-1200 times / hour | ||
Second printing speed | 800-1000 times/ hour | ||
Scraper stroke（mm） | 900 | ||
CCD precision | ±0.02 | ||
CCD center space | 330mm | ||
Main machine size （mm） | 3300*1600*2200 | ||
Receiving oven | Oven temperature（℃） | 0-190 |
Laminating device can be add in Oven |
Oven working voltage（V） | 380 | ||
Oven max power （KW） | 24 | ||
Max size（mm） | 450 | ||
Oven size （mm） | L2400*W1200*H2100 | ||
Feeding goods max size（mm） | 450 | ||
Feeding machine | Feeder peak voltage(V) | 220 | According to your requirement |
POWER(KW) | 0.3 | ||
Size （mm） | 800*1000*1100 | ||
Raw material →Automatic feeding machine →Automatic printing→Automatic UV or oven →Automatic receiving →End product.
◪ We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.
◪ Installation and debug machine for you without any charge. Also, giving a technical training for your employees.
◪ All of our machines can have one year guarantee and lifelong maintenance.
Printing, punching, die cutting precision 0.02mm.CCD camera visual alignment system, fast and accurate positioning and fine tuning, to ensure accuracy requirements.
We are the source factory, mastering the core equipment manufacturing technology. The price is competitive.
We have always followed the standardization rules for a rigorous production process, saving time and cost for both parties and bringing maximum benefits to you.
All equipment is CE certified. And can be customized to meet customer requirements of other certification.
