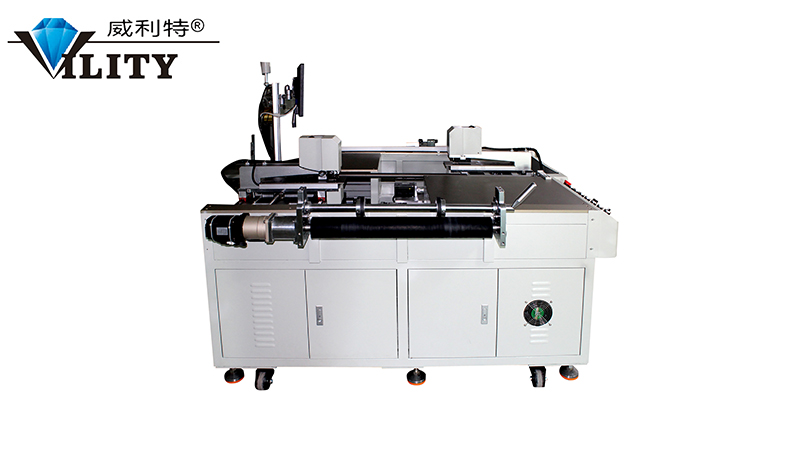

Product Model: VTQ15-08
Machining Accuracy: ≦0.015mm
Maximum Feeding Step: 8-10 groups
Whether The Nose Can Be Moved: Yes (moving range 0-550mm)
Platform Treatment: polished, smooth surface
1.Is it possible for you to assign engineers to our company?
yes. Our engineers can go to your company for on-site service. However, you need to pay the corresponding fee.
2.Do you provide installation and training services?
Yes, we will provide you with professional installation and training manuals and video tutorials. Live video conversations will also be provided to guide you through the operation.
3.What is your company’s production capacity?
30 Sets/ Month.
1. All equipment is CE certified. And can be customized to meet customer requirements of other certification.
2. Our equipment is highly automated, and one person can man multiple production lines.
3. Accept OEM/ODM, screen printing industry whole line customization.
4. Printing, punching, die cutting precision 0.02mm.CCD camera visual alignment system, fast and accurate positioning and fine tuning, to ensure accuracy requirements.
Shenzhen VILITY Automatic Machinery Co.,Ltd established in 2010 year, located in Shenzhen city, China. Our company’s development approach is : People-oriented, Technological innovation , service-oriented. VILITY is a combine-word, comes from Victory& Ability and Victory &Quality which means we always pursue high quality and good service to meet customers requirements and high competitive market. We believe: Service first, customers supreme. VILITY is a Professional manufacturer, providing ONE-STOP SOLUTION for intelligent printing industry. Recent years, We have pay most of the techniques and technologies to implement Industry 4.0 Robotic. VILITY has been successfully Provide unmanned production lines for many customers. Therefore, it is honored to get a high degree of social affirmation. Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material. With substantial ongoing investment in research and development, VILITY is ideally positioned to continue doing high precision CCD robotic machines for both the commercial and domestic markets. We are looking forward to establishing well long –term business relationship with you and your esteemed companies.
Applicable to all kinds of trademarks, self-adhesive labels, cell phone keys / cell phone panels, conductive film, membrane switches / control surface paste, film, IMD / IML, FPC flexible circuit board, PET / PVC / PC / PP and other flexible materials positioning hole punching and slicing.
NO. | Main technical parameters | NO. | Main technical parameters |
1 | Product Model: VTQ15-08 | 12 | Theoretical processing speed: 0.35s/ hole |
2 | Machining accuracy: ≦0.015mm; | 13 | Punching diameter: ø1.0-ø5.0mm(customizable) |
3 | Number of punching holes at one time: 2-8 (can be set, suitable for coil material with more holes) | 14 | Punching needle service life: 1-3 million times |
4 | Punching machine head Quantity: 2 (interlaced) | 15 | Needle punching price: 100 yuan/set (tax included 110 yuan/set) |
5 | Maximum feeding step: 8-10 groups | 16 | Maximum impulse: 4000N |
6 | Whether the nose can be moved: Yes (moving range 0-550mm) | 17 | Light source selection: projection infrared, reflection infrared |
7 | Platform treatment: polished, smooth surface | 18 | Pressure requirement: 0.4-0.8mpa, voltage requirement: 220V,50HZ |
8 | Machinable materials: film, IMD / IML, FPC flexible circuit board, PET / PVC / PC / PP | ||
9 | Actual processing speed: 1S/ hole (test condition: distance between hole and hole in assembly line direction is 100mm) | ||
10 | Material fixation: vacuum adsorption (aluminum alloy tension adsorption plate, aperture 0.8mm, hole distance 30mm) | ||
11 | Dimensions: machine length belt conveyor belt 4010mm, width 720mm, height 936mm. | ||
1. Automatic light-sensitive material release: As long as the processed material is outside the infrared sensing range, the material release machine will automatically release the material and provide the material length required for the next feeding step.
2. Automatic roller guide frame: the product is fixed by and around the guide block, which can ensure the product always keep the same direction.
3. Dust removal and anti-static function: Dust removal and anti-static rollers are installed on the worktable surface, which can remove dust and static electricity from the product surface.
4. Fast directional positioning: The worktable surface is equipped with directional positioning function to ensure that the products do not deviate from the material in the process of long-distance pulling.
5. CCD image precise positioning: CCD industrial camera precise positioning, to ensure that the product is precisely positioned, and there will never be partial hole leakage phenomenon.
6. Punching die: The punching die adopts imported high-speed steel and fine grinding processing and vacuum heat treatment to ensure the precision and service life of the die.
7. Human-machine interface display: The punching machine adopts human-machine interface display, which can synchronously watch the actual punching.
8. N C servo feeder: NC servo feeder adopts imported Japanese Yaskawa servo feeder, the control panel can set 8 kinds of step, each feeding accuracy to ensure 0.01MM.
9. CCD automatic positioning: the controller can be based on the last punching unit, through the CCD photo analysis, automatic feedback to control the pulling material fine-tuning pulling material step, to ensure the same step, quick response time.
10. Automatic cutting function: After the product positioning hole processing OK, the cutting knife can be automatically cut by PLC signal.
11. Discharge speed: It can be adjusted at will, and the starting frequency will rise slowly from 0 to running to avoid starting too fast and causing material surface abrasion.
12. Punching speed: This equipment uses our self-developed VT series software, high-speed stable motor, high computing industrial computer
13. Punching process can be set according to the whole sheet of material required punching Y direction step, longitudinal wide range of punching, to ensure that the material hole position can be all-round punching.
We have always followed the standardization rules for a rigorous production process, saving time and cost for both parties and bringing maximum benefits to you.
Accept OEM/ODM, screen printing industry whole line customization.
We are the source factory, mastering the core equipment manufacturing technology. The price is competitive.
Our equipment is highly automated, and one person can man multiple production lines.
1. Scope of application
All kinds of trademarks, labels, cell phone keys, cell phone panels, conductive film, membrane switches, film, IMD/IML, FPC flexible circuit boards, PET/PVC/PC/PP and other flexible coil positioning hole punching and roll material slicing.
1. Efficiency advantage: The efficiency of automatic double-headed punching machine is 3-4 times the efficiency of ordinary single-headed automatic punching machine, an automatic positioning punching machine greatly improves production efficiency.
2. Labor advantage: Single-headed automatic punching machine requires manual discharge, and 1 person can only operate one machine, while automatic punching machine can operate more than one machine at the same time, saving labor.
3. Functional advantage: Automatic positioning punching machine is automatic feeding, automatic positioning punching, automatic de-static, automatic cutting/receiving/die-cutting in one, one machine can realize multiple functions, which is the best choice for enterprises to realize automation.
4. Matching advantage: Many large enterprises are equipped with automatic screen printing machine, and automatic punching machine can effectively match the next process of automatic screen printing machine to realize enterprise automation.
5. Working environment: At present, the market is difficult for enterprises to recruit workers, so it is especially important to realize enterprise automation. With automatic positioning punching machine, enterprises will be transformed from the original physical technical work to easy non-technical work, the working hours can be properly extended, the working environment is greatly improved, which can effectively reduce the work pressure of workers, while helping to alleviate the problem of difficult recruitment of enterprises.
6. Process advantage: automatic positioning punching machine is automatic feeding, automatic positioning punching, automatic de-static, automatic cutting in one, can effectively save the cutting process, but also for enterprises to save the equipment and labor costs required for cutting.
Item \ Type | VTQ15-06 | VTQ15-061 |
Precision | ±0.02mm | ±0.02mm |
Material width | 100-550mm | 100-280mm |
Theoretical speed | 0.5 s/hole | 0.35 s/hole |
Actual speed | 0.8-1.2 s/hole | 0.6-1.0 s/hole |
Hole diameter | φ1.0mm-5.0mm ( customized) | φ1.0mm-5.0mm ( customized) |
Max impulse | 2500N ( customized) | 2500N ( customized) |
Running axis | 6 axes + manual adjustment of 1 axis | 6 axes + manual adjustment of 1 axis |
Light | Transmits infra-red, reflects tricolour light | Transmits infra-red, reflects tricolour light |
Air pressure | 0.4-0.8Mpa | 0.4-0.8Mpa |
Table material | Iron or aluminum | Iron or aluminum |
Dimension | 2610*780*1100mm | 2610*780*1100mm |
The above parameters are specification data for our standard roll to roll double needles automatic guide hole punching machine. If this specification meets your needs, we can ship it directly to you. If you have your own requirements for the performance of the product, we will customize it according to your requirements. All parameters can be customized. Feed direction, maximum punching force, table material and width can all be produced to your specifications.
◪ Simple operation, automatic CCD camera positioning punching
◪ High accuracy of punching target. Adopt computer control, CCD camera positioning, imported precision screw guide drive, equipped with precision punching tools, imported cylinder control punching. Ensure the punching error: ≤±0.02mm.
◪ The working mechanism adopts the combination of mechanical and pneumatic, with stable performance and much higher punching force.
◪ Put the product to be punched into the visual range of CCD, the punching machine will automatically capture the punching pattern and automatically move to complete the punching, the whole process only takes 0.4 seconds.
◪ Specify the hole pattern to be punched directly on the computer screen to set the working mode, easy to operate; special alloy steel lower die, durable; high-speed white steel punching needle, smooth punching mouth.
◪ English (customizable language) operation interface with touch screen operation.
◪ Special light source identification system, can automatically identify the round figure on various materials, automatic alignment punching. It can realize fully automatic bilateral and multilateral one-time positioning punching, double drill, can realize punching 2 holes at one time.
