Simple operation: The working mode set directly on the computer monitor.
High precision: The CCD camera automatically finds the figure in the recognition range, computer analyzes and controls the movement.
Fast speed: The CCD camera reflects the time is short, as soon as the figure is found, the position of the figure can be punched.
Simple operation: The working mode set directly on the computer monitor.

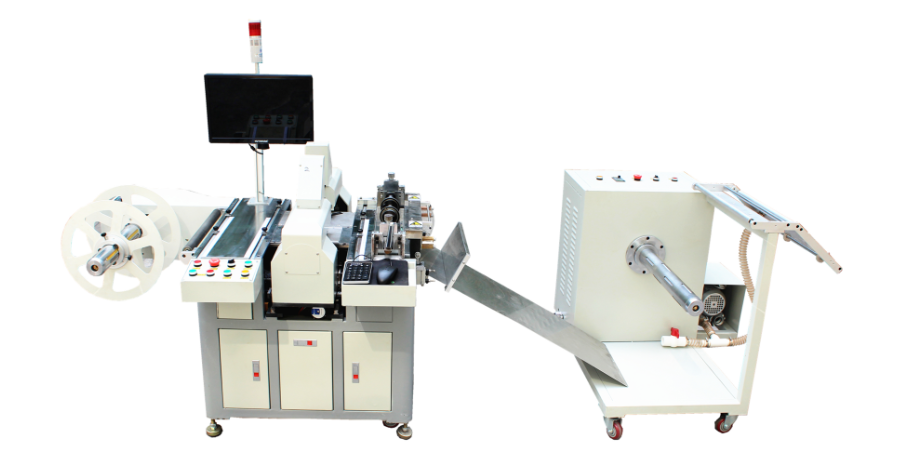

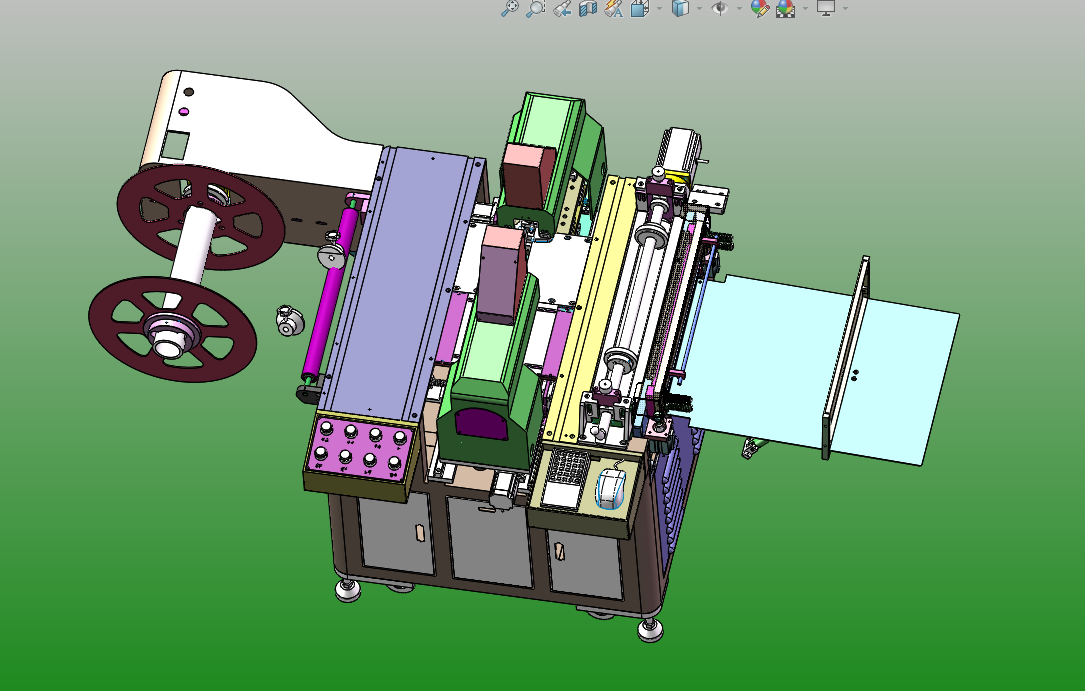

This machine with two punching heads and cut the roll material into the piece while punching. The double-head automatic punching machine system captures the sampling graphics within the visual range of the camera through the computer. Analyze and control the displacement of transmission parts, and punch the pneumatic parts. It meets the requirements of customers with fast punching speed, high precision and simple operation. The roll to piece working method allows for more efficient work.After the punching is completed, the material is cut directly into fixed length pieces, making it easier to stack, and for subsequent processes.
☆ Simple operation: the working mode set directly on the computer monitor.
☆ High precision: the CCD camera automatically finds the figure in the recognition range, computer analyzes and controls the movement.
☆ Fast speed: the CCD camera reflects the time is short, as soon as the figure is found, the position of the figure can be punched.
☆ Simple operation: the working mode set directly on the computer monitor.
☆ Powerful: Sampling chart can be saved, can be directly called, computer system, real-time software upgrade.
☆ Quality assurance: The main components such as pressure regulating valve, cylinder, solenoid valve, linear guide rail are all of high quality to ensure the service life.
☆ High recognition degree: The special light source can automatically identify the positioning hole diagram of materials with high reflection and high blackness, etc., and the incomplete icons can be automatically compensated and recognized.
Item \ Type | VTQ15-06 | VTQ15-061 |
Precision | ±0.02mm | ±0.02mm |
Material width | 100-550mm | 100-280mm |
Punching speed | 0.5 s/hole | 0.35 s/hole |
Actual speed | 0.8-1.2 s/hole | 0.6-1.0 s/hole |
Hole diameter | φ1.0mm-5.0mm ( customized) | φ1.0mm-5.0mm ( customized) |
Max impulse | 2500N ( customized) | 2500N ( customized) |
Running axis | 6 axes + manual adjustment of 1 axis | 6 axes + manual adjustment of 1 axis |
Light | Transmits infra-red, reflects tricolour light | Transmits infra-red, reflects tricolour light |
Air pressure | 0.4-0.8Mpa | 0.4-0.8Mpa |
Table material | Iron or aluminum | Iron or aluminum |
Dimension | 2610*780*1100mm | 2610*780*1100mm |
