Vility CCD Vision PVC Panel Screen Printing Machine For Home Appliance

PVC panel screen printing machine, Printing area 450*600mm, fit for home appliance panel nameplate printing. home appliance panel nameplate screen printing machine VT4560PR-1, Combined with a Feeder, a screen printer, and a set of UV dyers was assembled on a hot air dryer. This machine is especially suitable for printing all kinds of home appliance panel nameplates.

1. Japan-brand servo motors to ensure precision and stability.

2. Japan brand PLC and frequency converter for machine control.

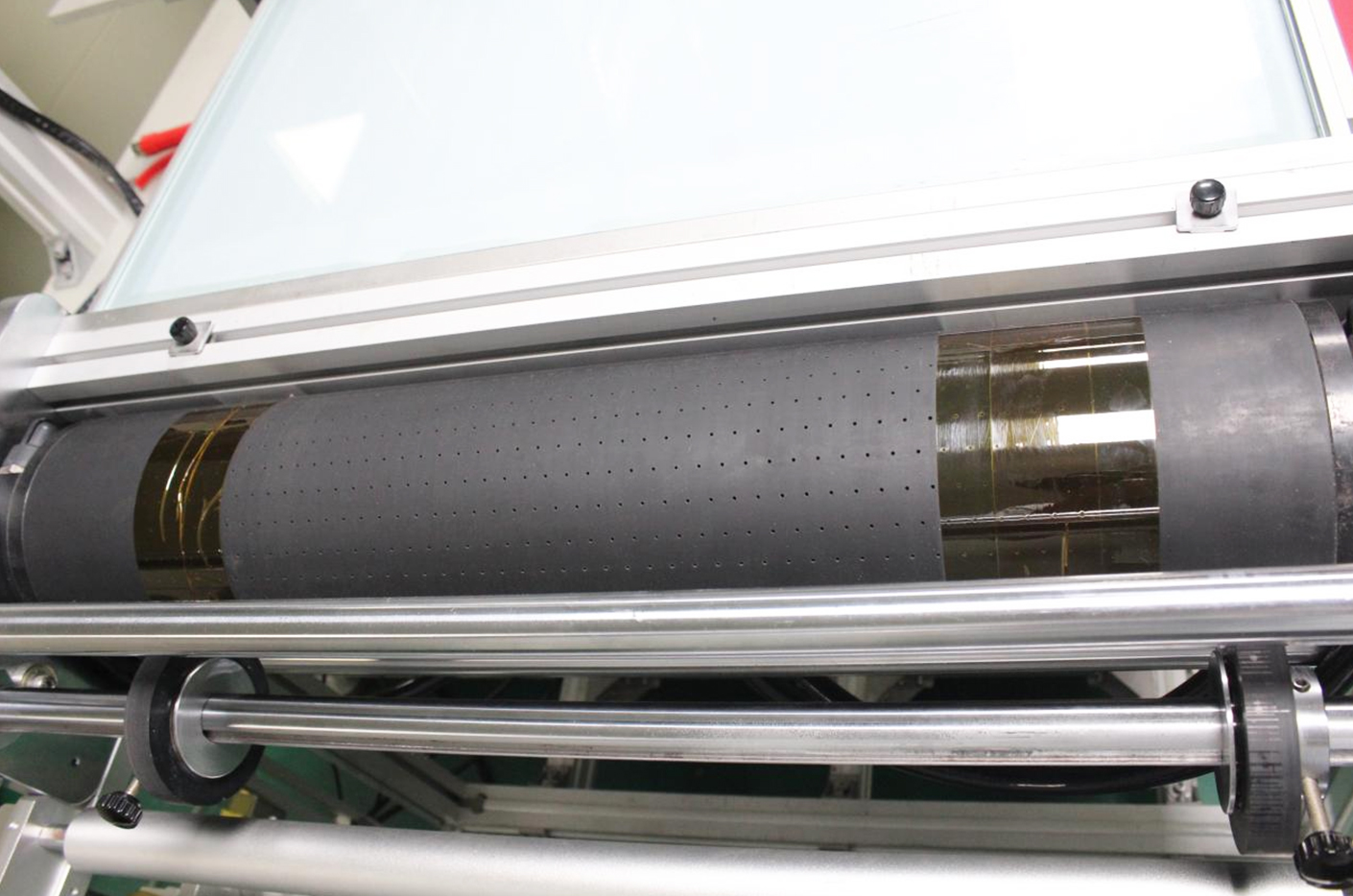

3. Vacuum pulling drum for film feeding.

4. English touchscreen control panel.

5. Vacuum the table, and white light lamps under the table for printing quality inspection.

6. Three photocell sensors, one for sensor mark, two on the right & left of screen clamps for web guide.

7. The machine body surface is painted by electrostatic spraying, resistant to rusting.

Taiwan 4-column precision linear slide

Japan Yaskawa Servo Motor

Japanese IKO、EASE or American UBC bear

Taiwan Jscc speed reducer

Taiwan Shihlin electric appliances controller

Taiwan Hiwin precision linear guider

Japan Mitsubishi 10-inch man-machine large screen, Mitsubishi latest PLC

Japan Panasonic sensor

1. Feeding Machine

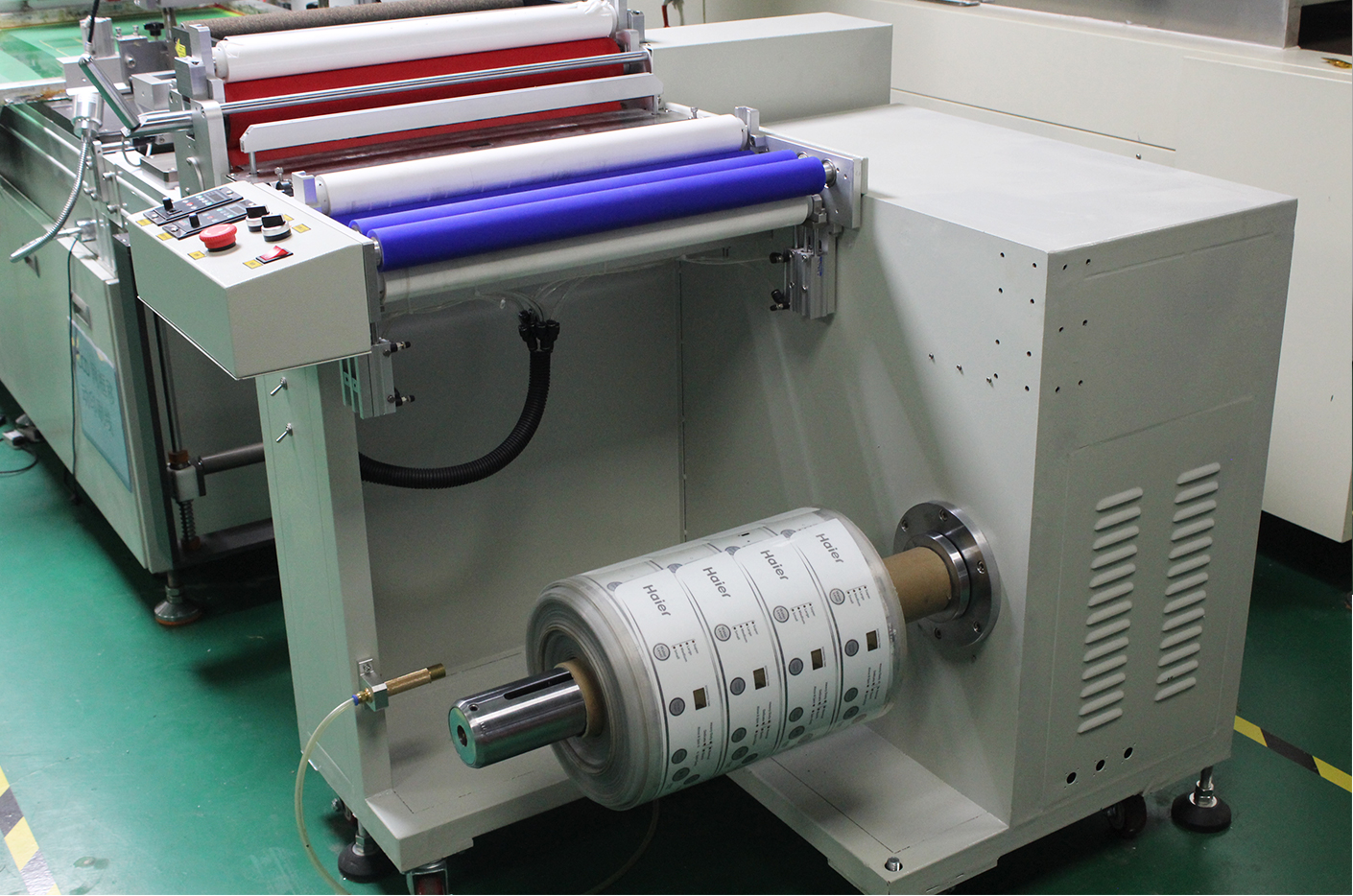

A: 3-inch air shaft for loading raw material. Charge compressed air into the shaft by the air nozzle, the air shaft will inflate and hold firm of the paper core. Press the air nozzle to let the air inside go out of the shaft, the shaft will become smaller, you can take out the paper core.

B: air gun for charging compressed air into the air shaft.

C: The unwinder power switch and indicator, press the power switch to open and close the power of the unwinder.

D: touch screen for unwinder operation.

E: Web-guiding system for PVC film deviation correction, so the film will be fed straight to the printing machine.

F: Splice station with 2 clamp bars for press material when changing roll or connect or splice material.

2. Screen printing machine

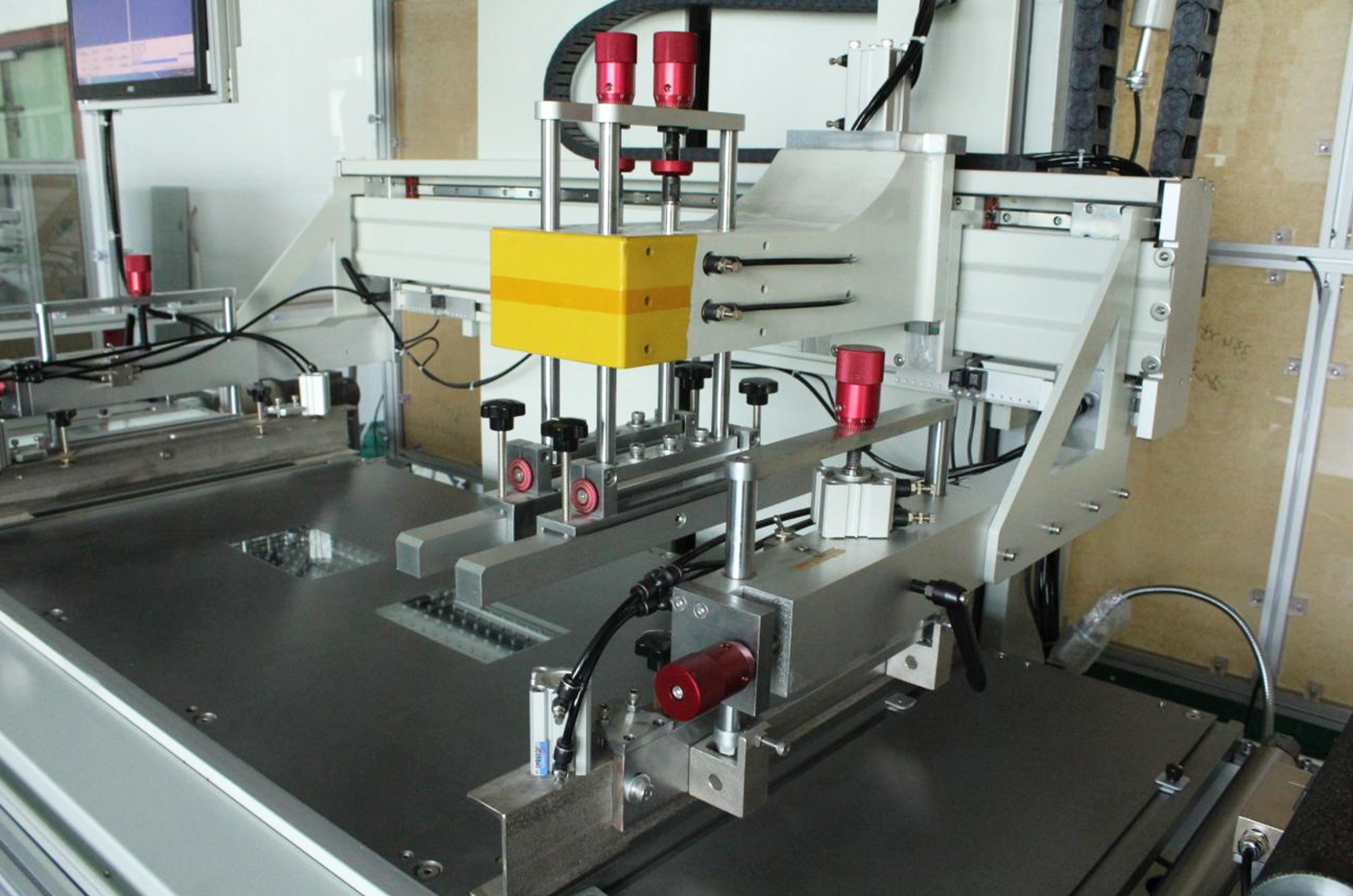

A. There is a small servo motor inside which is the drive of two sensors on the arm for film edge alignment during repeat printing.

B. Pansonic sensor for repeat printing, to read the sensing mark or hole or colour in X  direction. This sensor works together with two edge alignment sensor ， ensuring high printing precision +-0.01mm

The printing table is a vacuum table, when the film starts feeding and in the feeding process, the vacuum is automatically closed, when the film feeding stops and during the printing process, the vacuum is automatically opened to hold the film firm and flat on the table for nice printing on it

D. Nice quality vacuum pulling cylinder.

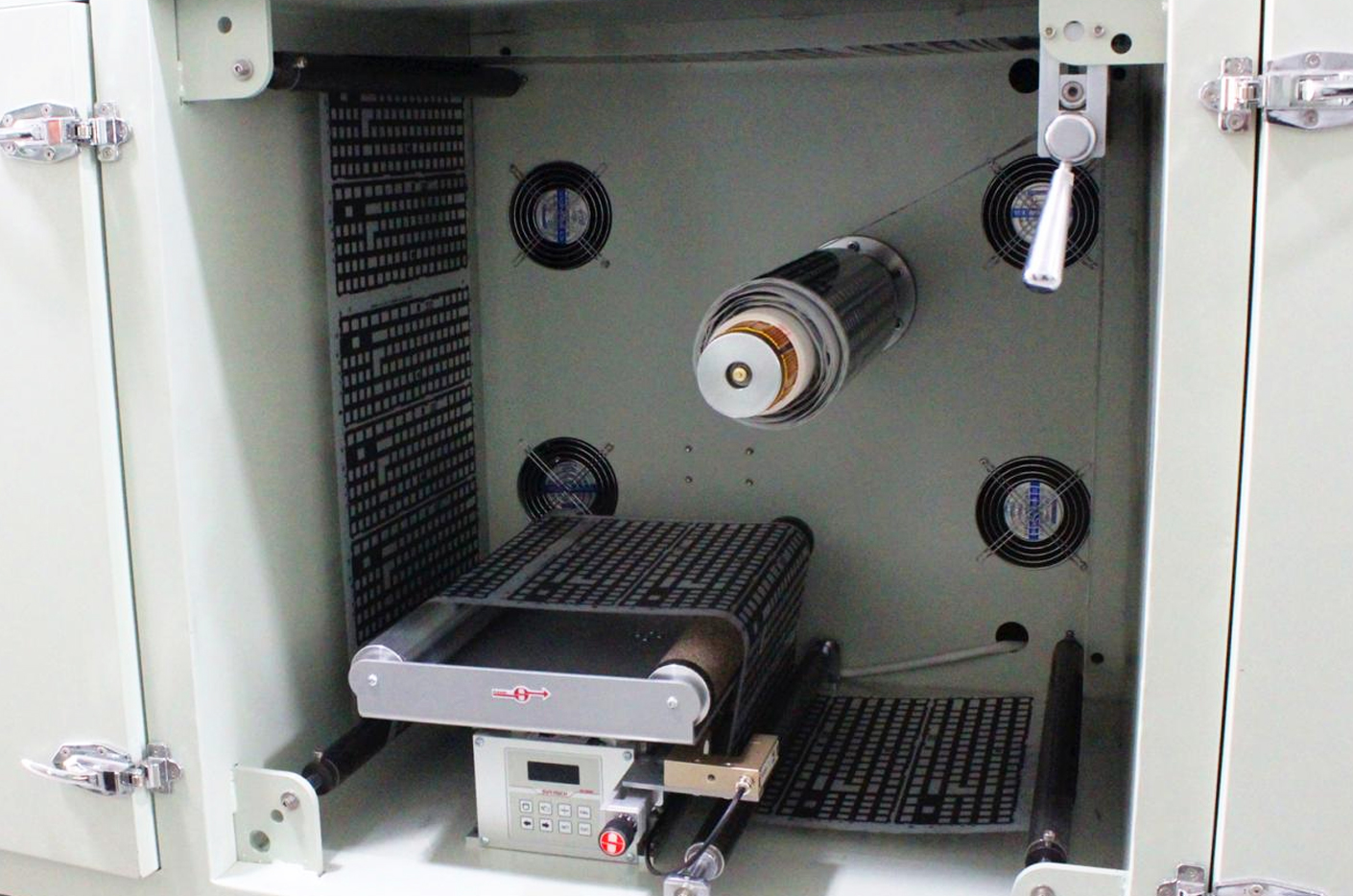

3. Hot air dryer VTH-500/600

A. Inner loop length 60 meters.

B. 4-side heating and each side temperature can be controlled separately.

C. Deviation correction device for trimly rewinding the printed material.

D. lamination function for option.

E. Uniform speed function

F. Substrate conveying speed can be adjusted.

G. Automatic rewinding of the substrate after the drying process.

H. Wheels in the bottom for easy moving.

I. Japan brand frequency converter.

J. Machine body surface is painted by electrostatic powder spraying, resistant to rusting.
