Screen printing machines are called universal printing machines, which can print on a variety of substrates, with excellent printing quality and accurate images and text. Screen printing originated in my country and has a history of more than 2,000 years of development and application. Screen printing can be applied to a variety of materials. Screen printing machine is also a printing machine with the highest degree of automation in the printing industry at home and abroad. The equipped optical vision alignment system further improves the printing precision of the printing machine. The screen printing machine can realize multi-color printing, and the visual alignment system is matched with the screen overprinting positioning marks of different printing colors, which can carry out high-accuracy automatic production. The best screen printing machine can control the position adjustment time within 1 second, and the position accuracy can reach ±0.01mm. The cooperation of CCD and industrial telecentric lens, coaxial point light source and other visual equipment can further improve the accuracy, the accuracy can be to 0.003mm, and a more accurate printed image edge can be obtained.

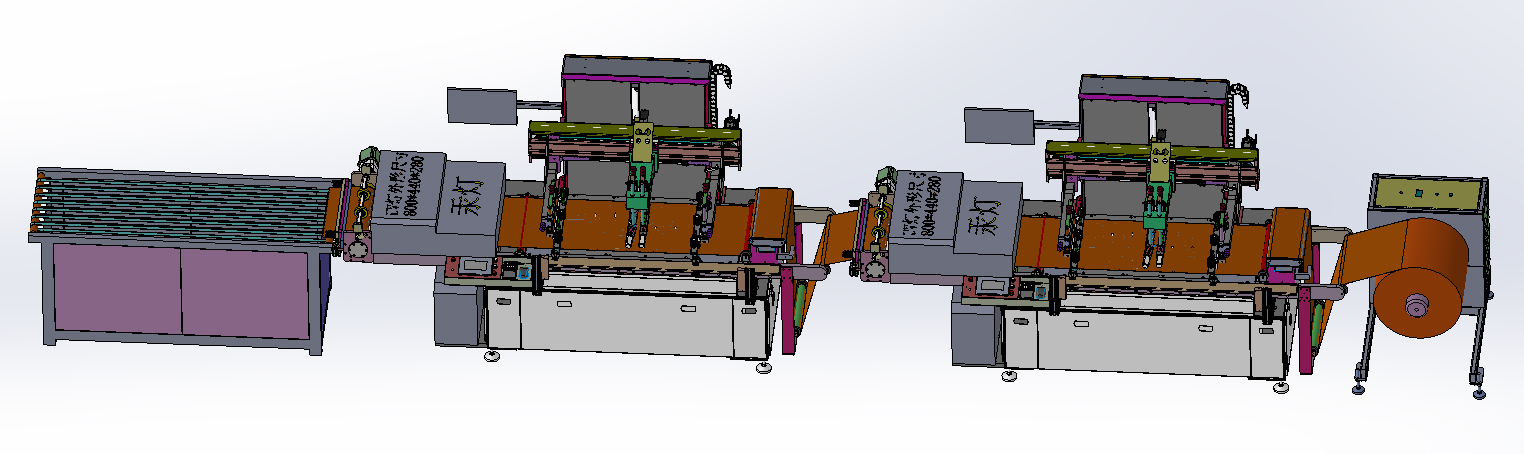

This set of CCD Screen printing Machines is mainly combined with a feeding machine, feeding box, screen printer, winding box, UV dryer and winding machine. There are different feeding machines for option, UV dryer is also can be assembled on the printer or assembled on a winding machine.
1. The effective printing area is 600*600mm;
2. The whole process of silk screen printing is in anti-scratch mode (that is, the upper and lower surfaces of the material must not have sliding friction with other objects);
3. The adjustment height of the screen from the screen printing table is about 350mm;
4. The aperture distance of the CCD glass window is increased, which is convenient for CCD identification;
5. The air blowing under the table is controlled by a 16-point solenoid valve so that the material is evenly suspended and must not stick to the screen;
6. The cutting knife uses an inlaid tungsten steel sheet, which is easy to disassemble and maintain;
7. The rectification mode of the air shaft of the coil feeder is the air shaft rectification;
8. The height of the whole machine is 900mm above the ground, and the installation method of the scraper cylinder adopts a convenient disassembly mechanism, which is convenient for operation and maintenance;
9. When the grating is blocked, the equipment will stop running, and the equipment will automatically move when there is no blocking;
10. The cutting part adopts the fixed-length mode, no need to track the sensor;
11. The number of material printing processes is one or two and then cut into slices;
12. The rest of the requirements are the same as the first process requirements.
This production line is an automated production line designed to improve production efficiency and product quality in the field of diffuser screen printing. Its characteristics are combined with your company's silk screen printing process requirements to achieve automatic tension feeding, automatic deviation correction, anti-scratch CCD printing, automatic UV curing, secondary feeding, CCD printing, UV curing, automatic slicing, automatic output and other whole-line production Process, save your company's labour costs and the original screen printing process, greatly improve production efficiency.
Coil feeding machine | 1 set |
CCD screen printing machine (with drawing and cutting) | 2 sets |
UV curing machine | 2 sets |
Transmission line | 1 set |
Scratch-proof receiving machine | 1 set |
1. Printing table size: 750*750mm
2. Maximum printing area: 600*600mm
3. Maximum frame size: 1200*950mm
4. Max. frame thickness: 25~55mm (special can be customized)
5. The fastest printing speed: 1000 P / H
6. Power supply specification: 3 phase, 380V, 50Hz
7. Air source pressure: 5 ~ 6kg/cm2 PSI
8. Air consumption: 2.6L/cycle
9. CCD positioning accuracy: 0.02mm
10. Printing accuracy (non-material shrinkage, and screen expansion): 0.05mm
11. Two CCD centre distance: according to your company's custom
12. Machine size: L3500*W1500*H2100mm
13. Machine weight: about 3000KG
