Experience the power and precision of Vility’s large-format 4-post screen printing machine in action — demonstrated here printing directly onto copper foil. Engineered for high-precision applications, this advanced equipment is ideal for electronics manufacturing, PCB production, and industrial foil processing.
Our 4-post design ensures consistent downward pressure, perfect alignment, and excellent registration, making it suitable for printing on flexible or sensitive materials like copper foil. The machine integrates modern automation and stability features to ensure excellent repeatability, even at large sizes.
Why It Matters – Industry Context:
In 2025, screen printing continues to evolve with rising demand for precision and scalability in electronic materials like copper foil, used in EV batteries, flexible circuits, RF shielding, and wearable electronics. The industry trend favors high-stability equipment with better material adaptability — and Vility’s 4-post screen printer meets these needs.
This video showcases not only the mechanical performance but also Vility’s commitment to innovation in high-end screen printing systems for modern electronics manufacturing.
🔔 Subscribe to our channel for more industrial printing insights, machine demos, and real-world applications.
Vility Large Size Sheet to Sheet 4-Post Automatic CCD Screen Printing Line
Overview
This production line is a fully automatic screen printing equipment based on the printing field of PC, PP, sand PC, conductive film, glass, paper and other materials in order to improve production efficiency and product quality. Its characteristics are that it can realize the unmanned production of the whole line, fully automatic loading, fully automatic CCD printing, fully automatic pick-up, IR baking, tail-end collection and other fully automatic production line process.

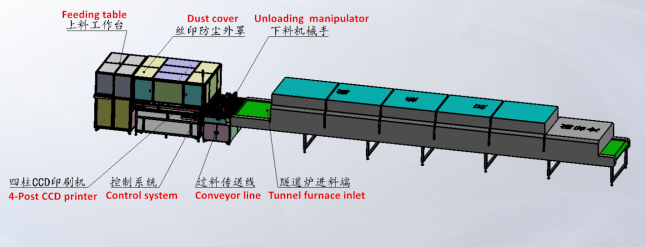

The fully automatic screen printing machine, model VT-10120P, adopts CCD automatic alignment, with two CCD cameras mounted on the lower part of the platform, to achieve precise centering of the product by grasping the MARK points on the edge of the material. The stage is driven by 4 motors for X-axis, Y-axis and θ-axis alignment. The size and effect of the whole line are as follows.
Main features of this automatic screen printing line.
1. The first new design theory in China, modular combination unit can be combined with multi-color screen printing at will.
2. Flowing operation process, automatic loading, automatic positioning printing, automatic drying and manual receiving in one go.
3. Adopt gantry type take and put material mechanism, feed material smoothly, ensure the high efficiency and high quality of printing to complete printing.
4. The whole machine is protected by outer cover, and the gas is uniformly exhausted to protect the workshop working environment.
5. Automatic visual aid function for plate alignment and digital compensation for printing position to improve production and adjustment efficiency.
6. Software interface to set the printing speed, scraping pressure, screen distance and other convenient process settings and adjustments.
Performance and parameters introduced.
(I), the main paramete
| NO. | Item | Unit | Note. |
Model | VT-10120P | ||
| 1 | Applicable size | mm | 300*400-1000*1200 |
| 2 | Platform siz | mm | 1400*1600*50 |
| 3 | Screen size | mm | 700*700-1600*1400 |
| 4 | Printing speed | PCS/ | 300 |
| 5 | Squeegee strok | mm | Max：1300 |
| 6 | Material thickness | mm | 0.5~2.0 |
| 7 | Screen height | mm | 3-10 |
| 8 | Off-screen height | mm | 0-25 |
| 9 | Height of working surface | mm | 900±30 |
| 10 | Power supply | V/ KW | 380/12 |
| 11 | Air source | Mpa | 0.6~0.8 |
| 12 | Squeegee printing directio | Y direction | |
| 13 | Applicable material | PVC、PET、conductive film | |
| 14 | Positioning method | 2 sets of CCD centered positioning | |
| 15 | Cleanliness measure | Dust cover, ion wind bar (three static removal) | |

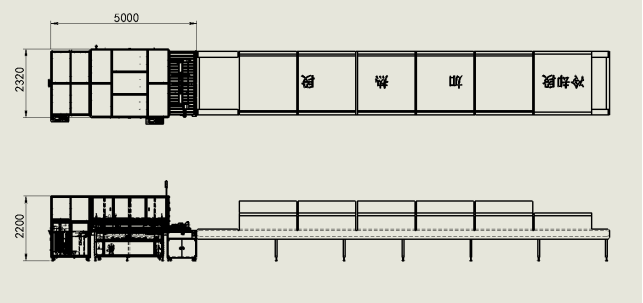

| 16 | Dimension (reference | mm | 5000(L) × 2320(W) × 2600(H) |
| 17 | Air source requirement | 0.8MPa/ 10mm diameter air hose connection |
Printing machine illustration

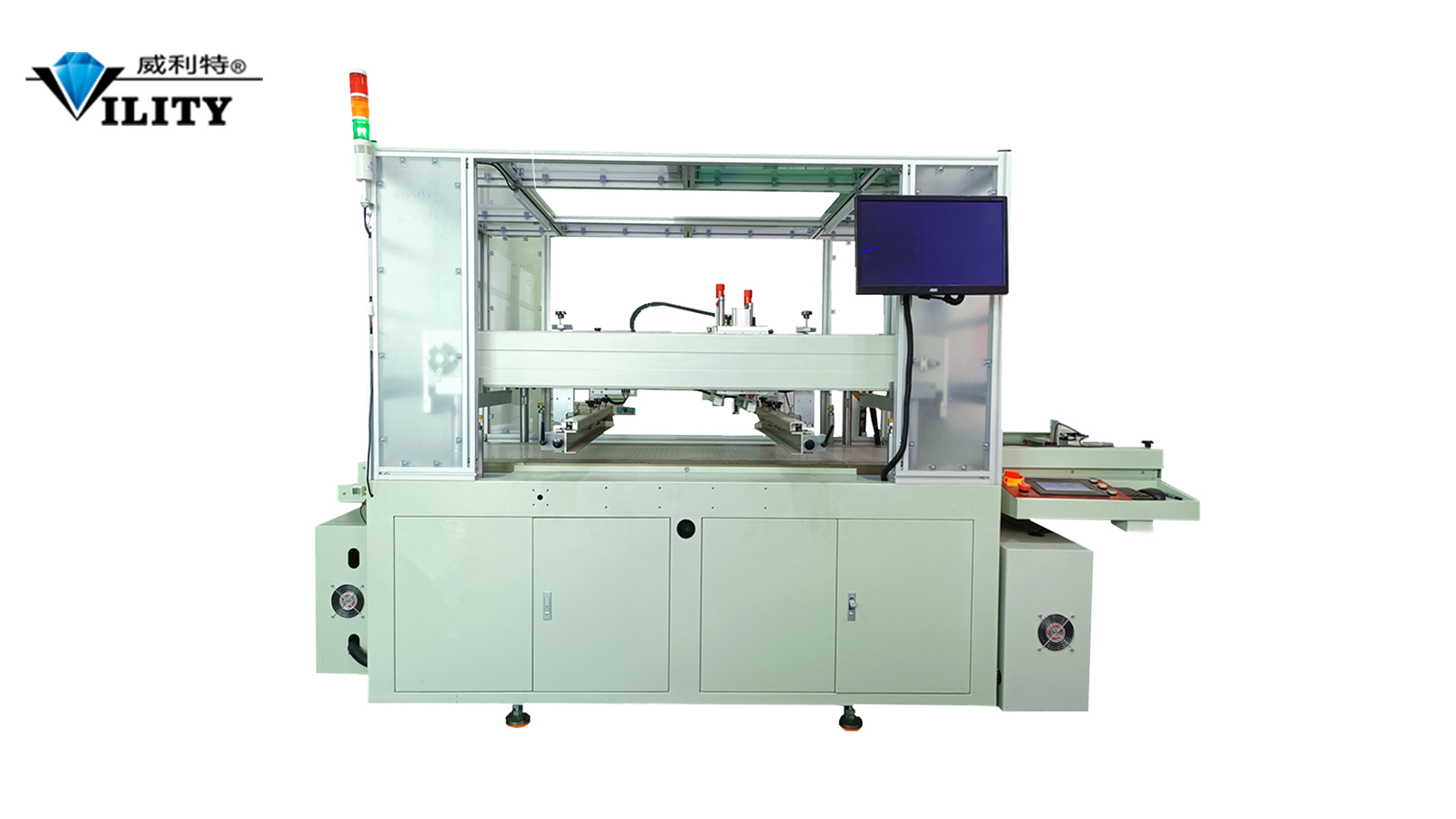

1. Appearance of printing machine

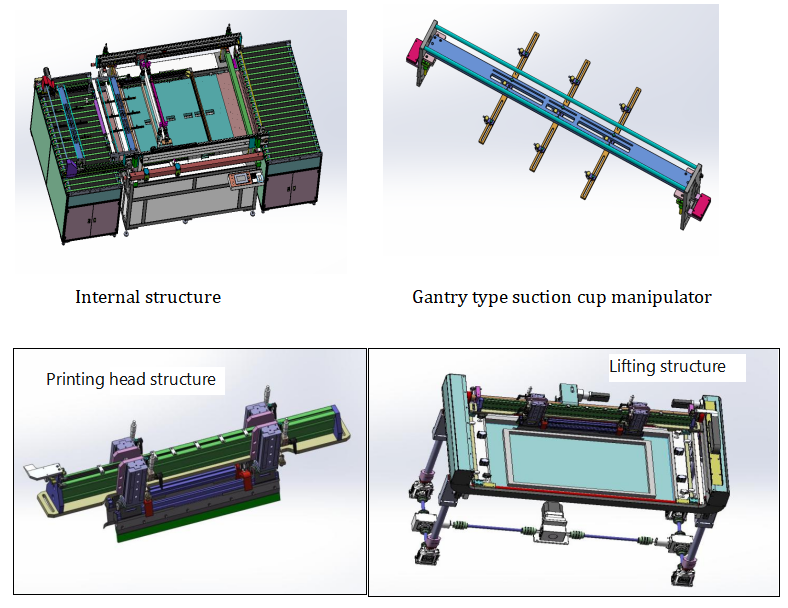

2. Partial structure diagram of printing machine
