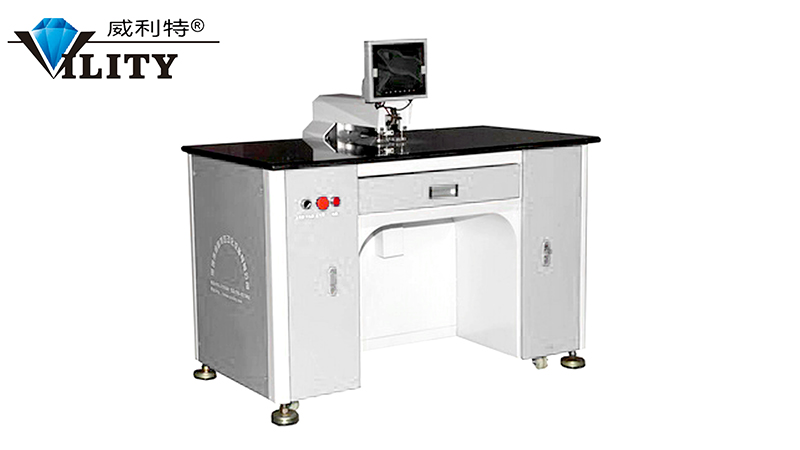

The Vility High-Precision CCD Punching Machine is a specialized piece of equipment designed for the electronic panel manufacturing industry. It employs advanced CCD (Charge-Coupled Device) technology for precise and automated punching, ensuring exact alignment and consistency in every panel. This machine is ideal for applications such as touchscreen and display production, where accuracy and efficiency are paramount. With its robust design and cutting-edge technology, the Vility CCD Punching Machine enhances production speed and quality, making it an essential tool for manufacturers aiming for top-tier performance in electronic component fabrication.
Automatic target punching machine are also known as automatic punching machine, computer target punching machines, computer punching machines, automatic positioning punching machine, automatic positioning punching machines,according to different regions and industries. Different names, but actually the same kind of eq.
Uipment widely used in printing and packaging, electronic printing, nameplates and signs and other industries post-printing alignment hole punching! The equipment is used in PCB circuit boards, FPC flexible boards, IMD/IML, filaments, diazo sheets, mobile phone panels, mobile phone keys, stickers, membrane switches, films, PE, PC, PVC, PET film, polyester film, thin aluminium, aluminium substrates, FR4 glass fibre boards and many other materials.
(1) Suitable for: mobile phone keys / mobile phone panel,FPC flexible board, film / palm sheet /dark-frame/ diazo film, IML / IMD, electronic membrane switch and other flexible board; PCB glass fiber board, PVC / PET / PC panel, nameplate signs and other non-metallic materials positioning punching.
◪ Function: Sheet is all OK; CCD fully automatic positioning punching.
◪ High accuracy, overall error less than or equal to 0.015mm.
◪ Fast punching speed, the average punching speed is 7-8 times faster than manual punching speed, only 0.5 seconds per hole.
◪ No material dragging, accurate positioning of icons and automatic punching.
◪ Flexible materials and fragile materials such as acrylic sheets can be punched by the machine without damaging the material. Fast speed, software can be upgraded free of charge for life.
◪ Computerised working system, human-machine interface, direct working mode setting on the touch screen, simple and intuitive.
◪ Special light source identification method, can automatically identify the round figure on various materials, automatic alignment punching.
◪ Punching can be viewed directly on the 8" computer screen or at the punching station, respectively.
◪ The presser foot on the machine flattens the film to be punched during punching, making it more accurate.
◪ Specialised settings are available. The computer system can be upgraded and provides you with a strong professional technical support.
◪ Image processing: 2-value integrated image processing method.
◪ Capable of punching defective circles with unclear printing or more than half circles, special printing materials, reflective and other mirror materials, etc.
In accordance with the equipment name and specifications stipulated in Article 1, the equipment shall be delivered with the following accessories:
Number | The Name Of The Accessories | Unit | Amount | Remark |
1 | The mould | set | 4 |
|
2 | AC power cord | piece | 1 |
|
3 | Ø8 air tube | meter | 3-10 |
|
4 | Wrench of the mould | set | 1 |
|
5 | Pressed corner gaskets | piece | 2 | These accessories are for later use |
6 | Clamping screws | piece | enough | |
7 | Springs, spacers, studs | piece | enough | |
8 | Instruction booklet | copy | 1 |
Number | Name Of The Accessories | Brand/Model | Service life | Remark |
1 | Guide rail | THK | More than 3 years | Japan |
2 | Screw Rod | HIWIN | More than 3 years | Taiwan |
3 | CCD Camera | AVENIR | More than 3 years | Japan |
4 | Motherboard / Software | VILITY | More than 3 years | Independent development (free upgrade for life) |
5 | Air cylinder | SMC | More than 3 years | Japan |
6 | Solenoid valves | SMC | More than 3 years | Japan |
7 | Drives/motors | Leadshine | More than 3 years | Japan |
8 | The mould | Hardening | 1 - 3 million times |
◪ 1 year warranty for the whole machine, no charge for the repair of the machine during the warranty period. (Wear and tear parts and man-made damage are excluded).
◪ Lifetime free software system upgrade, you do not need to worry about any costs incurred during the period.
◪ We have a strong after-sales system. You buy our equipment, as long as there is a problem, call our after-sales phone at any time that there will be staff to solve your problems in a timely manner!
