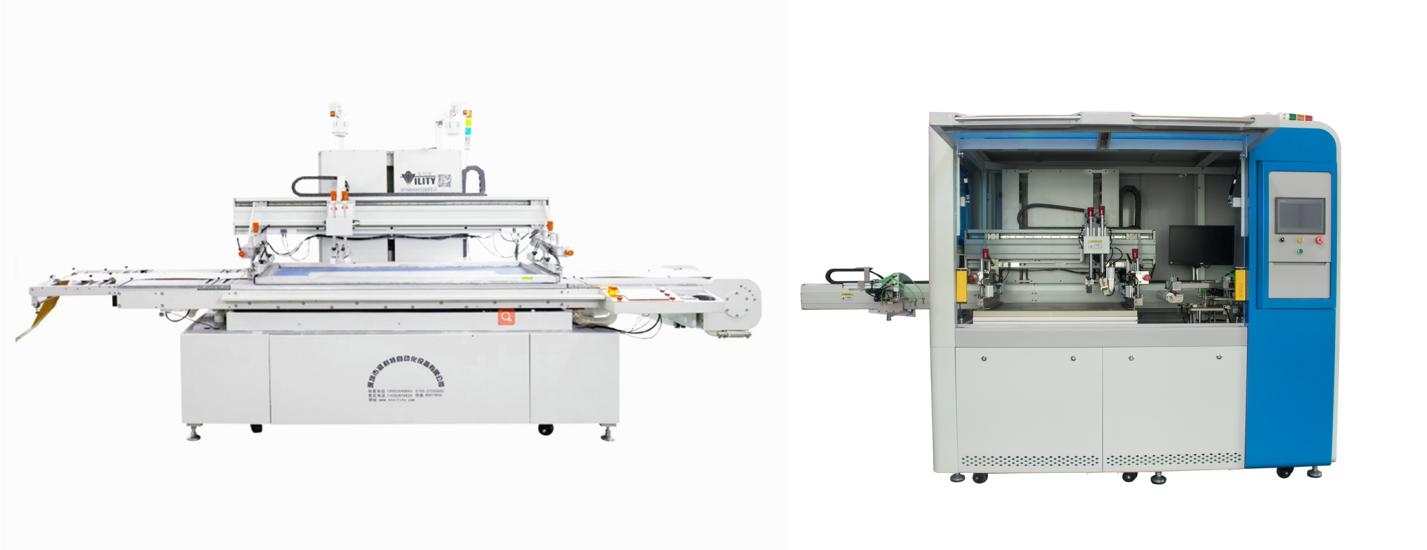

Name: Sheet by Sheet CCD Screen printing Machine

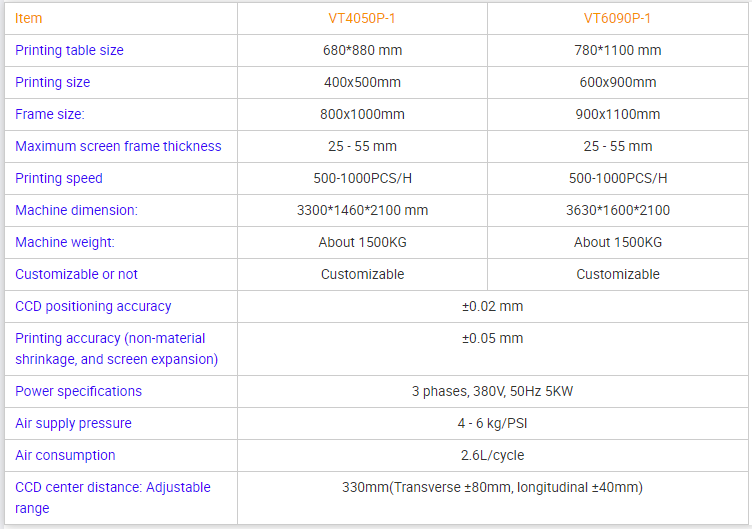

Printing Table Size: 680*880 mm (special dimensions customizable)
Printing Size: 400x500mm (special dimensions customizable)
Frame Size: 800x1000mm (special dimensions customizable)
Maximum Screen Frame Thickness: 25 - 55 mm (special dimensions customizable)
Maximum Printing Speed (Full Speed): About 500 P/H
Power Specifications: 3 phases, 380V, 50Hz 5KW
Air Supply Pressure: 4 - 6 kg/PSI
1: Application Scope
The CCD Alignment Screen Printing Machine for Sheets is the core machine of the sheet printing line. The whole process includes automatic separate material - auto dust removal (including Initial positioning of clamping edge) - automatic loading - CCD alignment screen printing - automatic unloading - baking - and auto auto-collecting of the finished product.
The machine is suitable for printing on sheet materials such as membrane switches, glass covers, acrylic, ITO, conductive films, composite back covers, etc. High alignment accuracy, fast printing speed and the entire production line can be operated by just one person.
Video presentation link: https://www.youtube.com/watch?v=Me9PPc0kd_I
2: Features and performance.
Main machine feature---screen printing machine
(1). CCD automatic alignment system, if the similarity is not within the setting range, any abnormal, it will stop and automatically start adjusting the alignment successfully and continue to work.
(2). Using a numerical control motor, printing speed, and return to the ink speed can be set in a random block.
(3). Using a numerical control motor, printing distance, and return to the ink distance can be set in random data.
(4). Automatic computing printing, and calculating the qty, and printing can be set automatically stop.

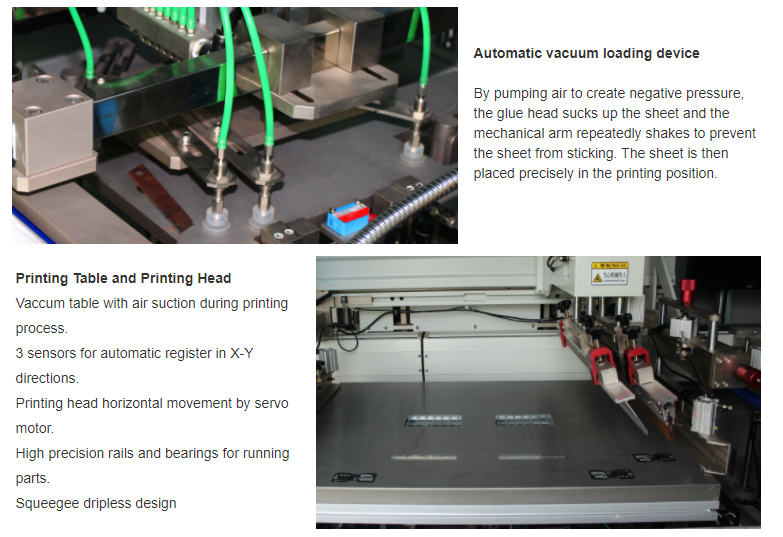

(5). Photoelectric control feeding and discharging to avoid the surface damage of substrates, can improve the printing quality.

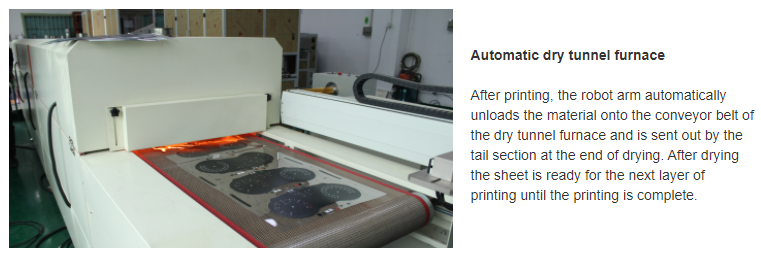

Raw material →Automatic feeding machine →Automatic printing→Automatic UV or oven →Automatic receiving →End product.
◪ We have rich experience, technical goods, and service awareness ahead of the professional team, and can be timely and effective in solving the problem for you.
◪ Installation and debug machine for you without any charge. Also, giving a technical training for your employees.
◪ All of our machines can have a year guarantee and lifelong maintenance.
