Application Scope:
Be applied to flat printing for glass, CD, nameplates, stickers, credit card, ceramic decals, wooden toy puzzles, PCB, SMT tin ointment, and membrane switch, etc in electronic industry. It is also applicable to the flat printing such as golden and silver cardboard, metal sheet, and other products, which require highly in flat printing.
Features and Performance:
1. Vertical structure with the pneumatic drive printing head goes up and down vertically, and the electronic drive print head moves left/right.
2. Single chip controlled circuit, printing and screen go up and down using an independent driving source.
3. Pneumatic controller controls the printing knife moving up and down, and the photocell eye controls the stroke, tuning separately.
4. Three modes: manual/semi-automatic /automatic, the break time of printing is digitally controlled.
5. Independent printing head up-and-down movement device makes the loading and discharging of screen, ink blade, and washing screen frame more convenient.
6. Double guide column clamping arm makes the installation and adjustment of screen frame more convenient. Be applied to flat printing for glass, CD, nameplates, stickers, credit card, ceramic decal, wooden toys puzzles, PCB, SMT tin ointment, and membrane switch ,etc in electronic industry. It is also applicable to flat printing such as golden and silver cardboard, metal…

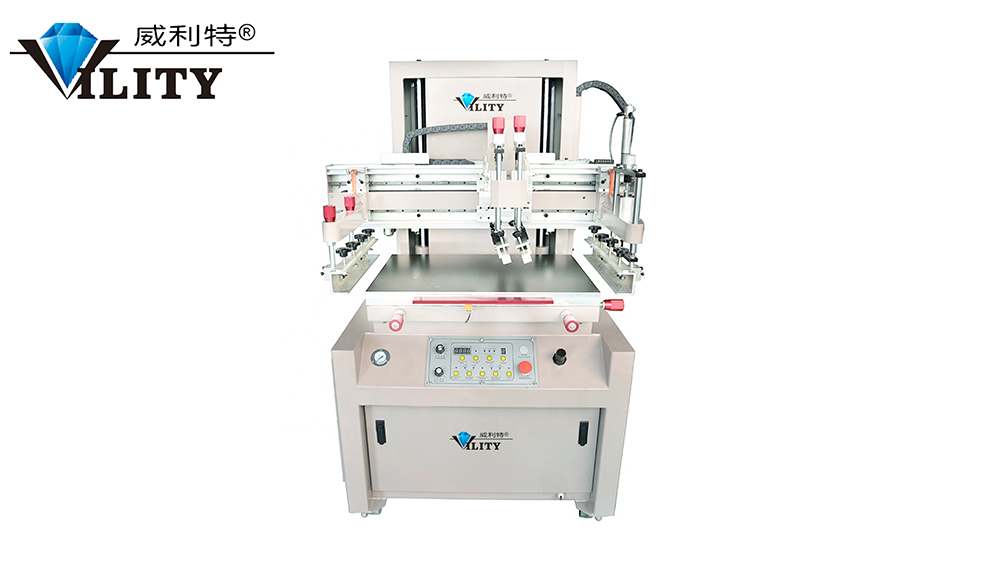

VT6090 semi-automatic screen printing machine
1: Application Scope
The machine is suitable for printing on sheet materials such as: membrane switches, glass covers, acrylic, ITO, conductive films, composite back covers, etc.High alignment accuracy, fast printing speed and the entire production line can be operated by just one person.
2: Features and performance.
Main machine feature---screen printing machine
1. PLC coordinating soft-touch panel compile programms
2. Auto 4-digit counter built-in
3. kinds of printing cycle designed by printing action, you can be free to choose according to your printing craftwork.
4. Airframe adopts coin alloy,and metal coating surface
5. distyle vertical constructure, high precision, steady operation
6. installing scraper constant pressure equipment
to make sure pressure is steady when printing
7. the angle of scraper and reclaim blade can be adjusted randomly
8. you can regulate work-table back and forth or right and left, and then fastening it
9. you can regulate screen frame back and forth, right and left or level orientation
10. printing head can be liftuped, that is convenient to pick-and-place sreen frame
Machine size | L1200*W1000*H1650mm |
Maximum frame size | 900*1100mm |
Printing station | 780*1100mm |
Maximum printing area | 600*900mm |
Scraper pressure | 3-5kg/cm2 |
Printing speed | 500-900 times/ hour |
Air pressure | 6-8kg/cm2 |
Voltage | 220V/50HZ |
Total power | 2.7KW |
Weight | 400KG |
Printing accuracy | 0.2mm |
◪ We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.
◪ Installation and debug machine for you without any charge. Also, giving a technical training for your employees.
◪ All of our machines can have one year guarantee and lifelong maintenance.
