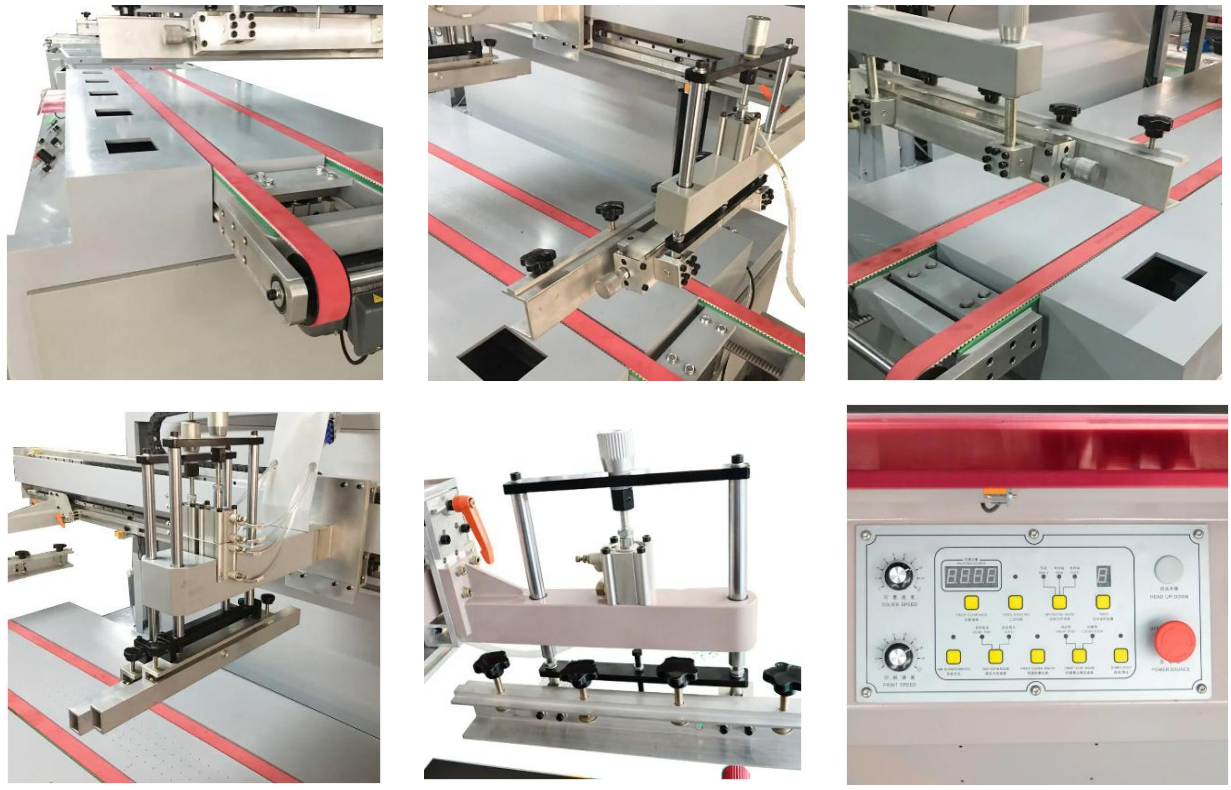

PRODUCT FEATURES:
• The aligning accuracy within +0.01mm, to provide excellent function and improve production yield rate.
• The structures of machine is lighter and stronger, and with the top servo motor and drive motor, more stable, quiet, and fast.
• The integrated table is made by aluminium, the flatness is within +0.05mm,and the printing evenness is excellent.
• Provide four post-locking system on printing device, to ensure thickness of printing membrane accuracy.
• The servo motor for peeling function and high precision digital constant pressure printing head, to show constant pressure effect completely.
• Operation by touch panel, easy to set up(setting) and operate, the memory of HMI save 100 unit conditions of production, and provide other function, such as auto exanimate breakdown and display troubleshooting.
• The auto loading/unloading device for ITO auto assembly to improve capacity and yield rate.
• The loading/unloading section to connect the front/back process to deliver ITO glass through a contactless power link for anti-dust production only.
•Provide safety device, such as safety return to origin, auto detect error system, safety optical grating, Emergency switch, alarm light, etc.
• Optional accessory: antistatic bar, anti-dust cover for optical industry, auto loading/unloading device.

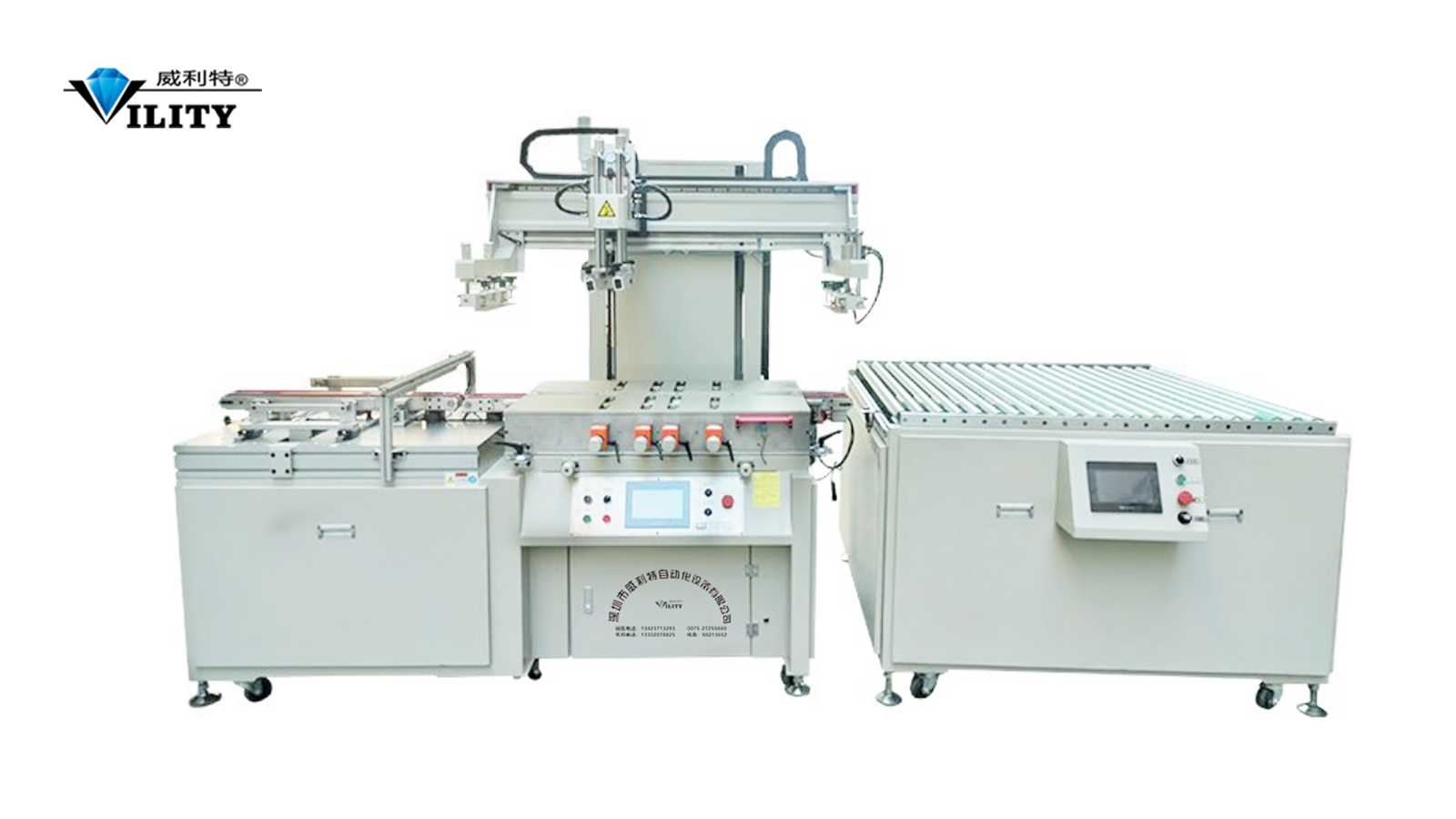

Vility Automatic High Precision Glass Screen Printing Machine
I. Scope of application
■ Suitable for high precision screen printing of various flat substrates.
For example: rigid circuit boards, optoelectronic display glass substrates (ITO conductive glass, touch panels, cold light panels, light guide plates, diffusion sheets, etc.), EL cold light panels, LCD backlight module light guide plates, etc. of various conductive, luminescent, packaging paste printing.
II. The specification overview
1.PLC program control.
2.Fully automatic feeding → screen printing → automatic discharge.
3.Printing with independent drive source, coordinated action, stable and adjustable speed.
4. Servo motor driven printing, photoelectric control stroke, independent adjustment.
5. The printing head is lifted and lowered by servo motor driven ball screw to achieve position switching, with stable and adjustable speed.
6. With three printing modes: manual/semi-automatic/automatic, with a maximum of 13 pieces per minute.
7. The runner adopts servo motor with imported guide rail linear drive, the repeat positioning accuracy reaches 0.01mm.
8. The net frame is mechanically locked, which is convenient and firm to lock the net.
9. Scraping pressure using imported precision regulator control, angle and balance can be adjusted, with a scale display table.
10. CCD lens adjustment using precision displacement table adjustment, accurate positioning, simple operation.
11. The whole machine is equipped with safety guards to ensure the safety of workers' operation.

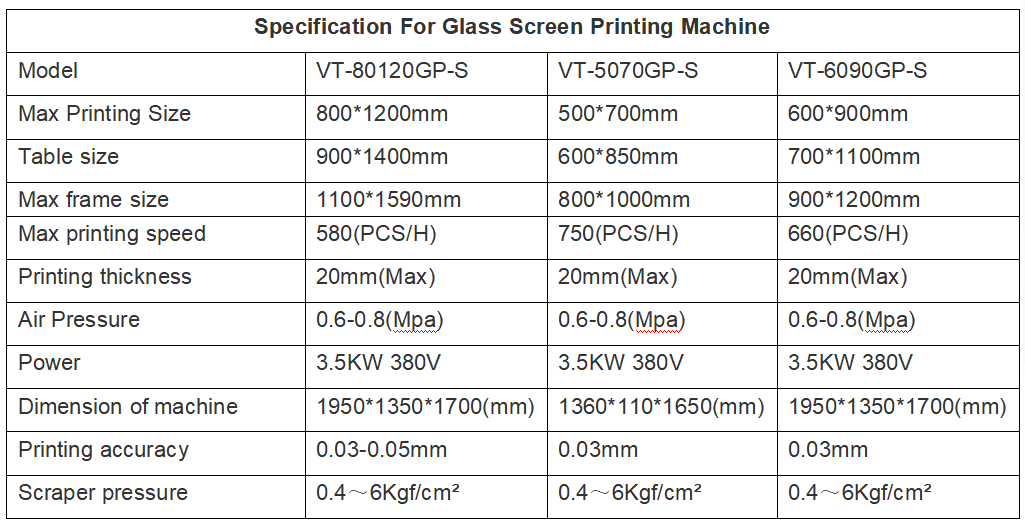

III. Main parameters

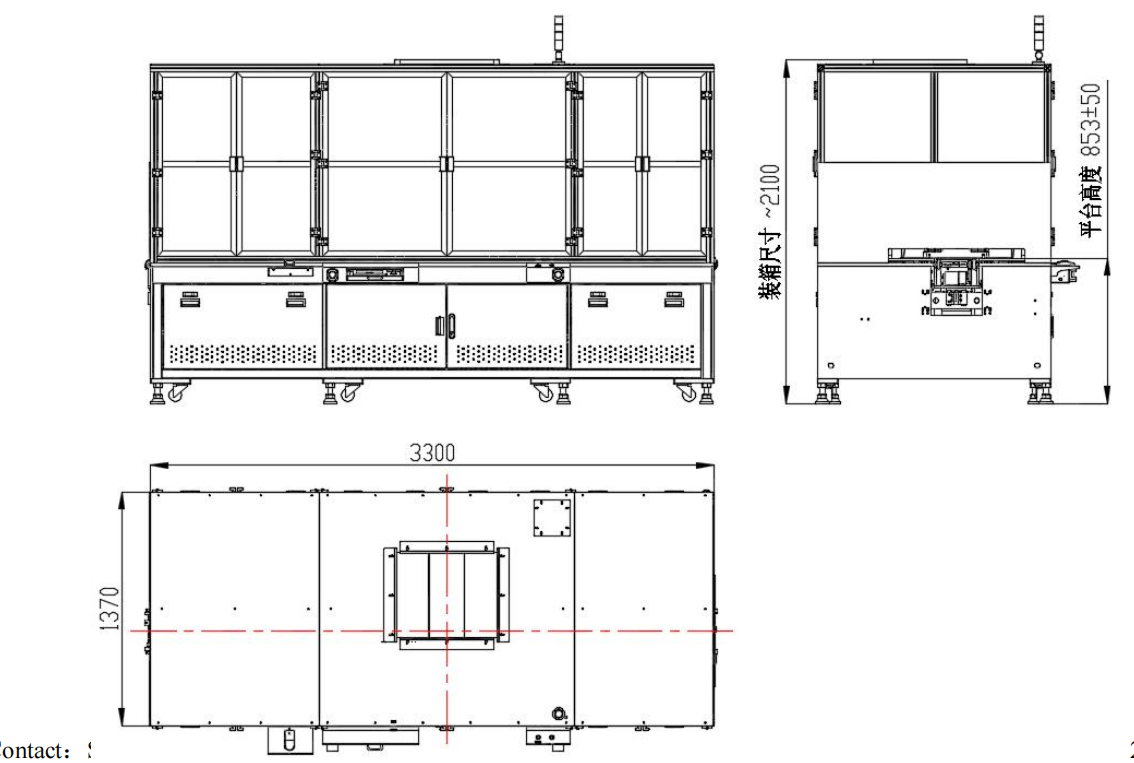

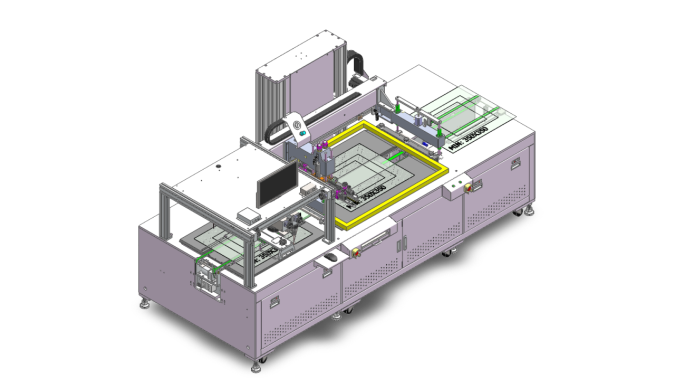

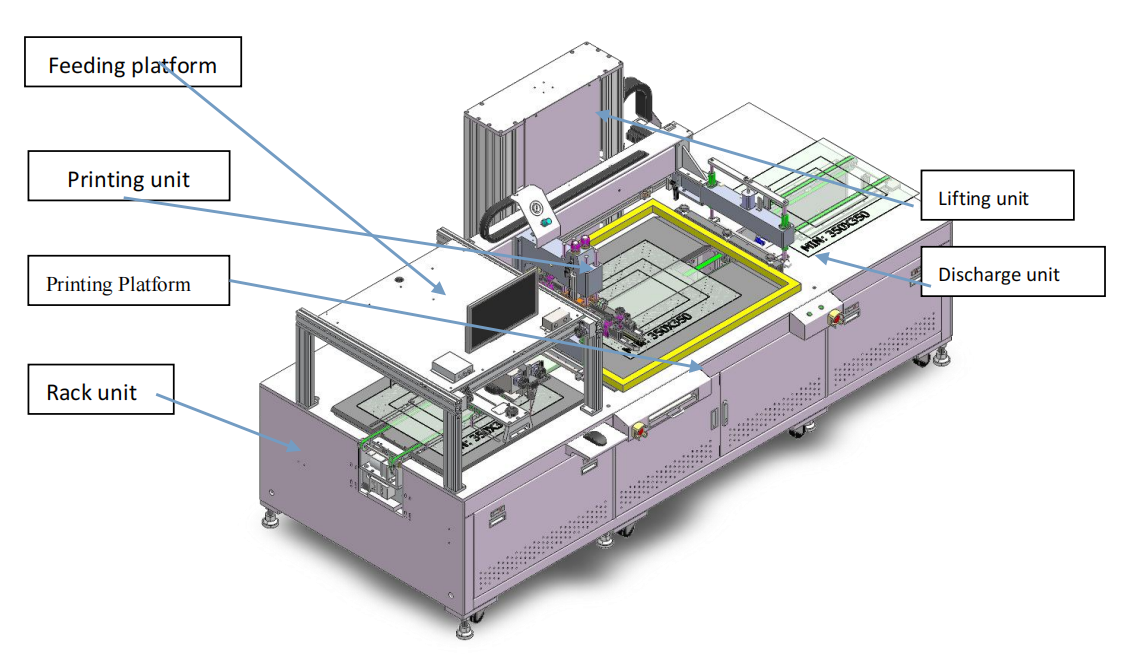

IV. Overall structure
After the initial positioning of the substrate at the infeed station, the vision system drives the alignment platform for precise positioning, and then the printing shift table on the running shuttle mechanism feeds the substrate to the printing platform, where printing is performed. After the printing is completed, the outfeed .
transfer table takes out the printed substrate from the printing platform and transports it to the outfeed station. At the same time, the printing transfer table feeds the substrate into the printing platform.
V. Structure description
1. Rack Module
The frame adopts high strength 80*80*10 square pass as the skeleton, and different shapes are designed according to the rigidity requirements of each part to achieve local strengthening. The reinforced frame module weighs nearly 1800KG and is supported by eight 32 diameter feet, with plastic pads at the bottom of the feet to enhance the resonance frequency and make the equipment run quietly and stably.

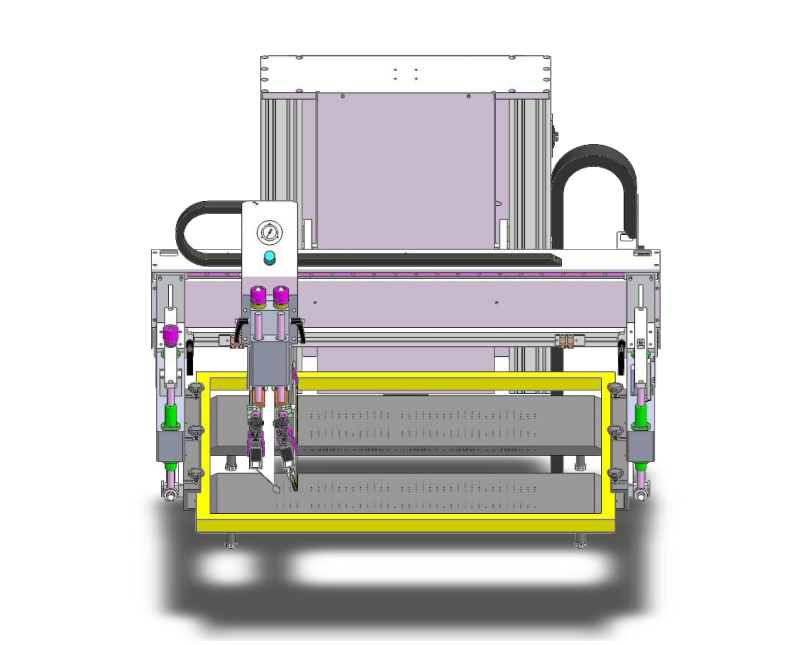

2. Printing module
Stencil holder fixed, stencil front-insert loading, manual locking of the screen.
The mesh distance adjustment is set in the touch screen, and the setting range is 0～20mm.
Printing / ink return - constant speed and independently adjustable.
Printing drive - servo motor drive, no crawl at low speed, no jitter at high speed.
Printing stroke - can be set according to product specifications photo eye adjustment
Scraper frame - Scraper frame is automatic balance structure, angle can be adjusted, flexible action, strong rigidity.
Squeegee pressure - Squeegee pressure is controlled by a precision regulator.
Off-grid mechanism - right side electric off-grid

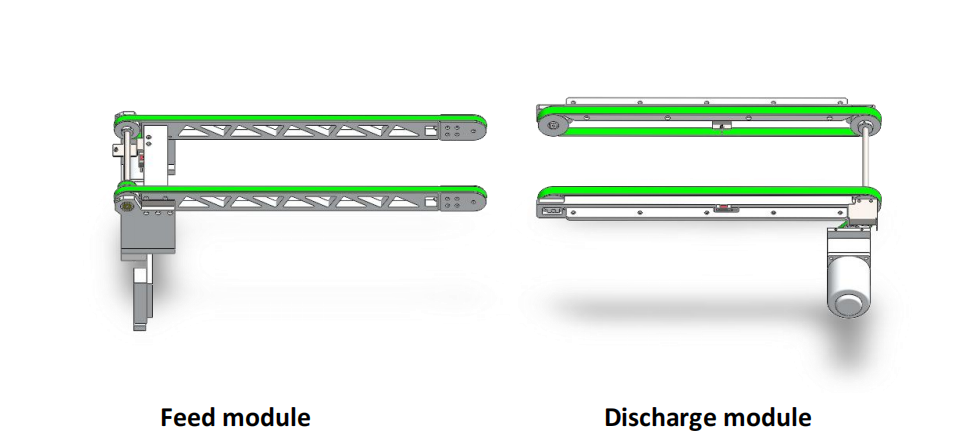

3. Feed module, discharge module
The infeed and outfeed modules are powered by speed-controlled motors with arbitrary speed control and infinitely variable speed for stable operation. The use of belt as the carrier of the substrate increases the friction with the substrate and prevents displacement in conveying.The conveyor belt can be connected to the tunnel furnace for drying. After drying, the glass can proceed to a second printing.

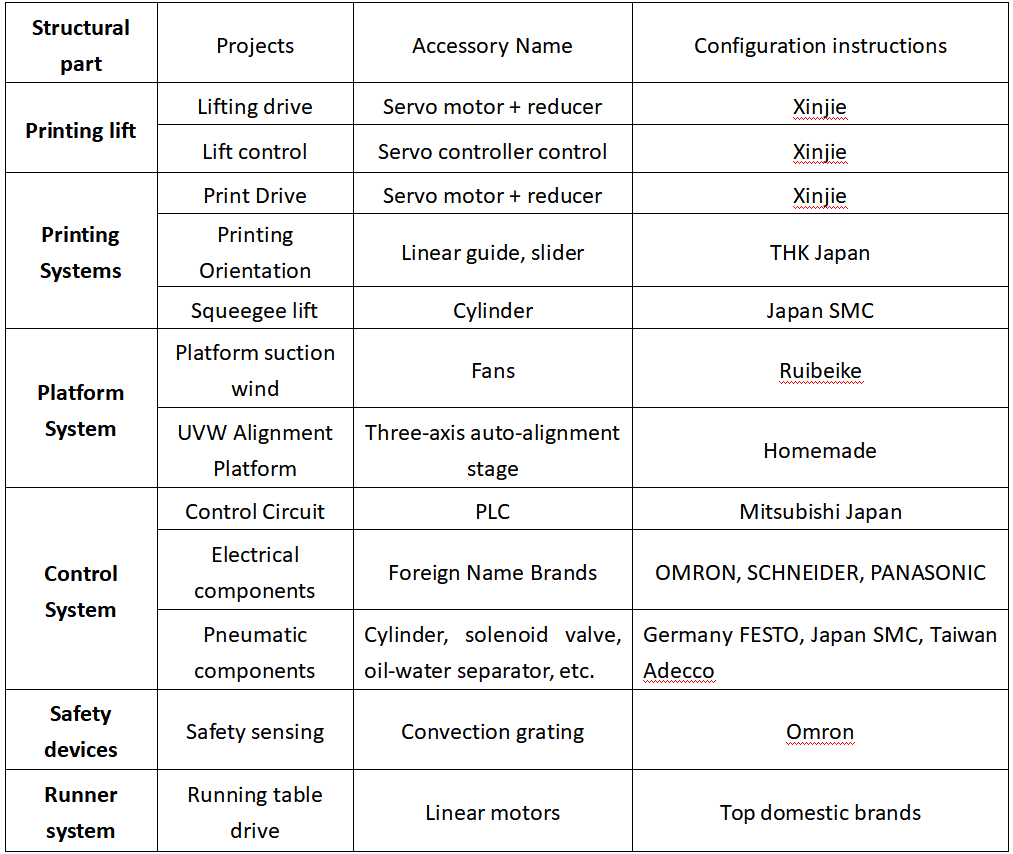

VI. Structure configuration description
Option Configuration
□ Special air suction aperture/area
□ Vision systems customized to different types of products
□ Other
Note: Adhering to the principle of continuous technological progress, so the description and parameters in this statement are for reference only, subject to the latest physical or contract negotiations between the two sides.
