Professional designer and manufacture of CCD machines for ONE STOP SOLUTION.
Single-axis machines for small lot, multi-product production with a variety of applications, from high-precision products to R&D products.
Equipped with the Vision system to allow for X, Y and θ axis compensation and high-precision processing including back-drilling and flip processing.
1. Robust construction with granite.
2. High Accuracy linear guide and ball screw.
3. Automatic tool change, tool length detection, broken tool detection, auto-unloading PIN system.
Motorized Spindle | Speed 50,000 rpm, suitable for inflexible cem, fr2, fr4 pc board drilling. |
Drilling Ability | t= 0.1 ~ 3.0 mm, ø=0.1 ~ 3.0 mm |
P.S. IT IS NECESSARY TO USE DISTILLED WATER FOR WATER TANK. BESIDES, PLEASE ADD ANTIFREEZE AND ANTIRUST FOR THE COOL AREA. THE ABOVE 2 ITEMS ARE FOR PREVENTING THE ALLOY ATTACHED. | |
Working Time | 0.6 sec / hole, under t=0.1 mm, dia.=2 mm, including image processing. |
Work Area | 850 x 650 mm |
Required Air Supply | 800 liter nl/min,5-8 kgf-cm2 with dry process and clean. |
Power supply | Ac220v, 50/60 hz,10a |
Machine Weight | 230 kgs |
Machine Dimension | 870x850x1300 mm |
Drilling Accuracy | ±0.02 mm |
CCD Automatic target hole drilling machine is also known as automatic target drilling machine, CNC drilling machine, automatic positioning drilling machine, different names, but actually the same kind of equipment .widely used in printing and packaging, electronic printing, nameplate signs and other industries post-printing alignment drilling!

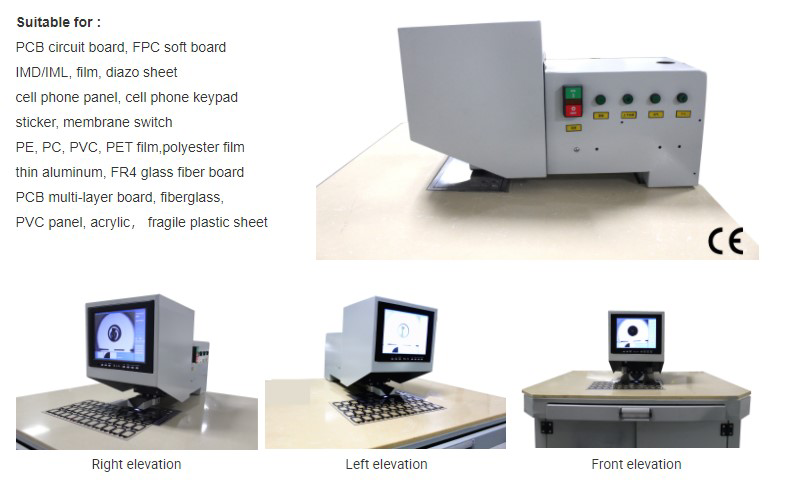

The equipment is used in PCB circuit board, FPC soft board, IMD/IML, film, diazo sheet, cell phone panel, cell phone keypad, sticker, membrane switch, film, PE, PC, PVC, PET film, polyester film, thin aluminum, aluminum substrate, FR4 glass fiber board and many other materials. CCD automatic hole drilling machine is suitable for single and double panel, PCB multi-layer board, fiberglass, PVC panel, acrylic and other fragile plastic sheet positioning drilling.

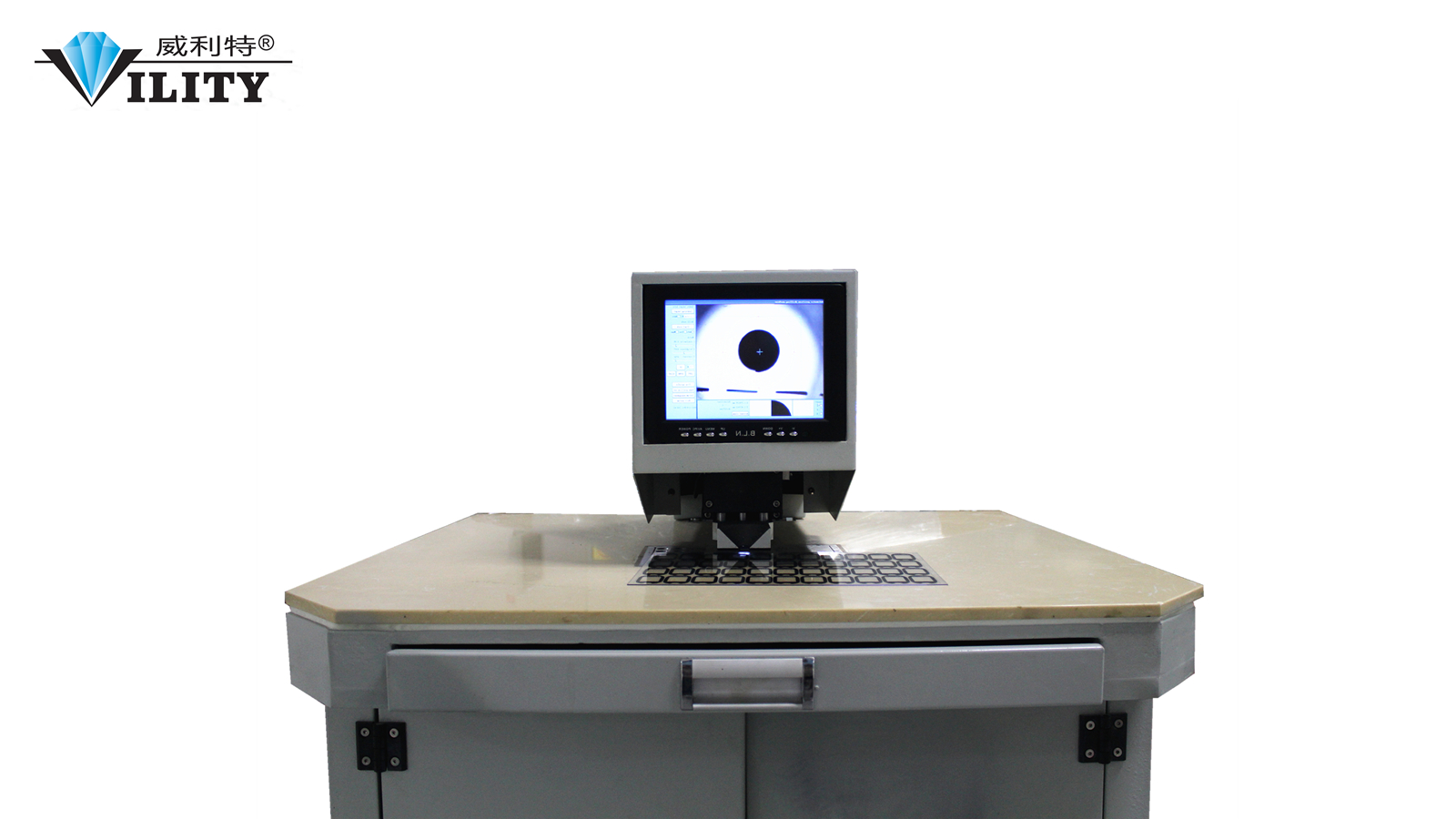

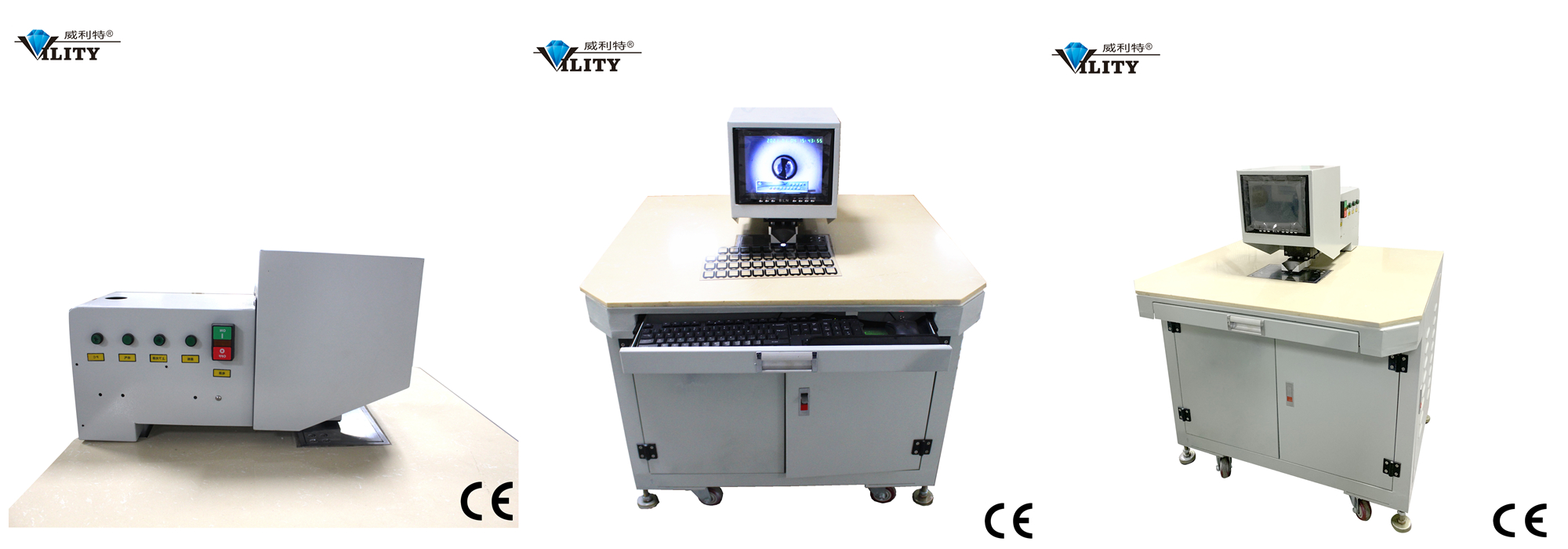

Auto hole drilling machine pictures 2

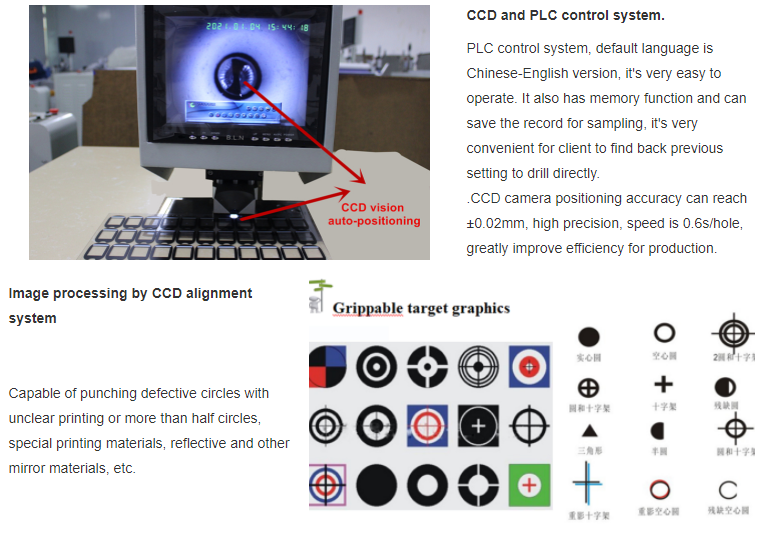

This equipment mainly includes hole drilling unit, equipped with CCD moving platform , high precision XYθ alignment platform, stable alignment, human-machine interface control + button switch, can set a variety of functional parameters, easy to operate; CCD automatic positioning punching, can automatically adjust the field of view of CCD according to the size of the material. CCD automatically calculates the spatial position of material and mold according to the MARK point on the material, and instructs the motor motion control to adjust the platform XYθ rotation for automatic hole drilling.
1. Alignment XYθ platform: Alignment XYθ platform is the core part of the machine, used for CCD vision alignment, this alignment platform is composed of XYθ4 axes, with alignment eccentricity function, alignment accuracy can be controlled within 0.02mm.
◪ Function: Sheet is all OK; CCD fully automatic positioning drilling.
◪ High accuracy, overall error less than or equal to 0.015mm.
◪ Fast drilling speed, the average drilling speed is 7-8 times faster than manual drilling speed, only 0.5 seconds per hole.
◪ No material dragging, accurate positioning of icons and automatic punching.
◪ Flexible materials and fragile materials such as acrylic sheets can be punched by the machine without damaging the material. Fast speed, software can be upgraded free of charge for life.
◪ Computerised working system, human-machine interface, direct working mode setting on the touch screen, simple and intuitive.
◪ Special light source identification method, can automatically identify the round figure on various materials, automatic alignment punching.
◪ Punching can be viewed directly on the 8" computer screen or at the punching station, respectively.

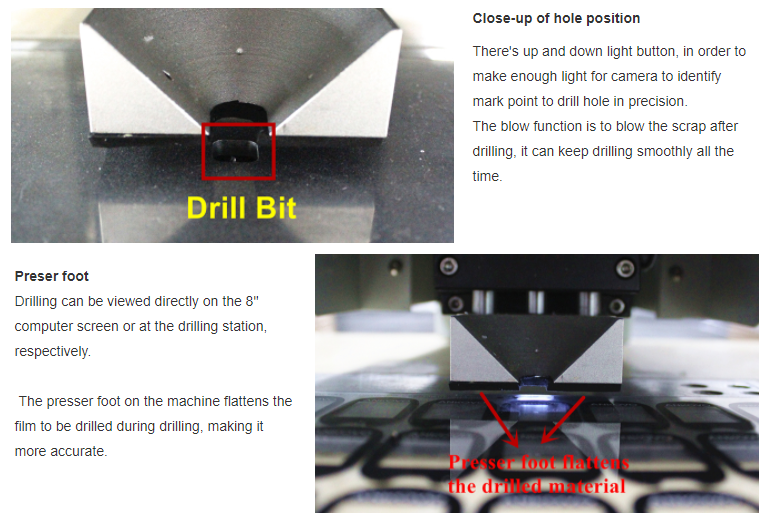

◪ The presser foot on the machine flattens the film to be punched during punching, making it more accurate.
◪ Specialised settings are available. The computer system can be upgraded and provides you with a strong professional technical support.
◪ Image processing: 2-value integrated image processing method.
◪ Capable of punching defective circles with unclear printing or more than half circles, special printing materials, reflective and other mirror materials, etc.
Linear guide | Taiwan HIWIN |
Pulling material motor | Chine Leadshine servo motor + type heart reducer |
CCD 5 million pixels | Quaternion numerical control |
Photoelectric switch | Japan Omron |
Bearing | Japan NSK |
Cylinder solenoid valve | Taiwan SHAKO |
Ball screw | TBI |
Mould | Shenzhen Vility |
Item | Parameter |
Hole diameter | 0.1mm-3.0mm(Acrylic/PVC) |
Drilling precision | ±0.02mm |
Drilling speed | 0.6s/hole |
Material width | 0.1-3mm |
Power consumption | 1kw/h |
Max rotating speed | 24000-42000run/min |
Drilling method | Drilling from bottom to up |
Air pressure | 0.4-0.8Mpa |
Machine dimension | W900mm*D900mm*H(770+260)mm |
Weight | 230kg |
Waste disposal | With vacuum cleaner |
Power supply | AC220V±10V-50HZ 1KW |
◪ We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.
◪ Installation and debug machine for you without any charge. Also, giving a technical training for your employees.
◪ All of our machines can have one year guarantee and lifelong maintenance.
