Die Cutting Machines
Professional designer and manufacture of CCD machines for ONE STOP SOLUTION.
Language
Professional designer and manufacture of CCD machines for ONE STOP SOLUTION.
Classification : Die Cutting
Applications: Other Brightening Diffusion Films
1. Max. cutting square is 1500x1500mm special for punching material used in large LCD panels. The machine cutting capability can be reached 80 times/per minute in continuous die cutting running, and the production capability is upgraded 2.5 times than the traditional hydraulic machine.
2. PLC computer touch-panel screen control system – clear & easy in operate.
3. Full Servo drive type, high speed die cutting, Full die cutting and half die cutting in process.
4. Equipped with high precision mould high fine adjustment control, Four-columns can be micro-adjusted independently by computer setting parameters, to save time and to raise the production rate.
5. Precision die cut position matching; save time & accuracy in die cut mold replacement. Die mould less worn, a Long lifetime in use. Also, Optional equipped with knife mold rotative mechanism, it makes the knife mould replaced conveniently.
6. The knife mould board is available to be replaced in any size in large die cutting machine.
7. Equipped with a specific transmission mechanism, while the knife mould reaches cutting BDC, it will lower the cutting speed and make the cutting working staple. No burr or No press indentation occurred on the finished product, Making high yield rate of production.
8. Equipped with a safety shelf and safety sensor on each size of the machine in order to avoid any dangers while operation.
9. Non-hydraulic design, no pollution, low vibration and low noise, to save more than 30% of energy loss compared with the traditional hydraulic machine, best for use in the dustless room.
10. Optional mechanisms: Rewind stacking system, Unwind system (shelf system or selfless system).
11. Valuable, full-featured equipment, to improve plant ROI.
1.Is it possible for you to assign engineers to our company?
yes. Our engineers can go to your company for on-site service. However, you need to pay the corresponding fee.
2.Do you provide installation and training services?
Yes, we will provide you with professional installation and training manuals and video tutorials. Live video conversations will also be provided to guide you through the operation.
3.What is your company’s production capacity?
30 Sets/ Month.
1. All equipment is CE certified. And can be customized to meet customer requirements of other certifications.
2. Our equipment is highly automated, and one person can man multiple production lines.
3. Accept OEM/ODM, screen printing industry whole line customization.
4. Printing, punching, die cutting precision 0.02mm.CCD camera visual alignment system, fast and accurate positioning and fine tuning, to ensure accuracy requirements.
Shenzhen VILITY Automatic Machinery Co.,Ltd was established in 2010 year, located in Shenzhen city, China. Our company’s development approach is : People-oriented, Technological innovation , service-oriented. VILITY is a combine-word, comes from Victory& Ability and Victory &Quality which means we always pursue high quality and good service to meet customers requirements and high competitive market. We believe: Service first, customers supreme. VILITY is a Professional manufacturer, providing ONE-STOP SOLUTION for intelligent printing industry. Recent years, We have pay most of the techniques and technologies to implement Industry 4.0 Robotic. VILITY has been successfully Provide unmanned production lines for many customers. Therefore, it is honored to get a high degree of social affirmation. Our main products are CCD automation alignment machines which are included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material. With substantial ongoing investment in research and development, VILITY is ideally positioned to continue doing high precision CCD robotic machines for both the commercial and domestic markets. We are looking forward to establishing well long –term business relationship with you and your esteemed companies.

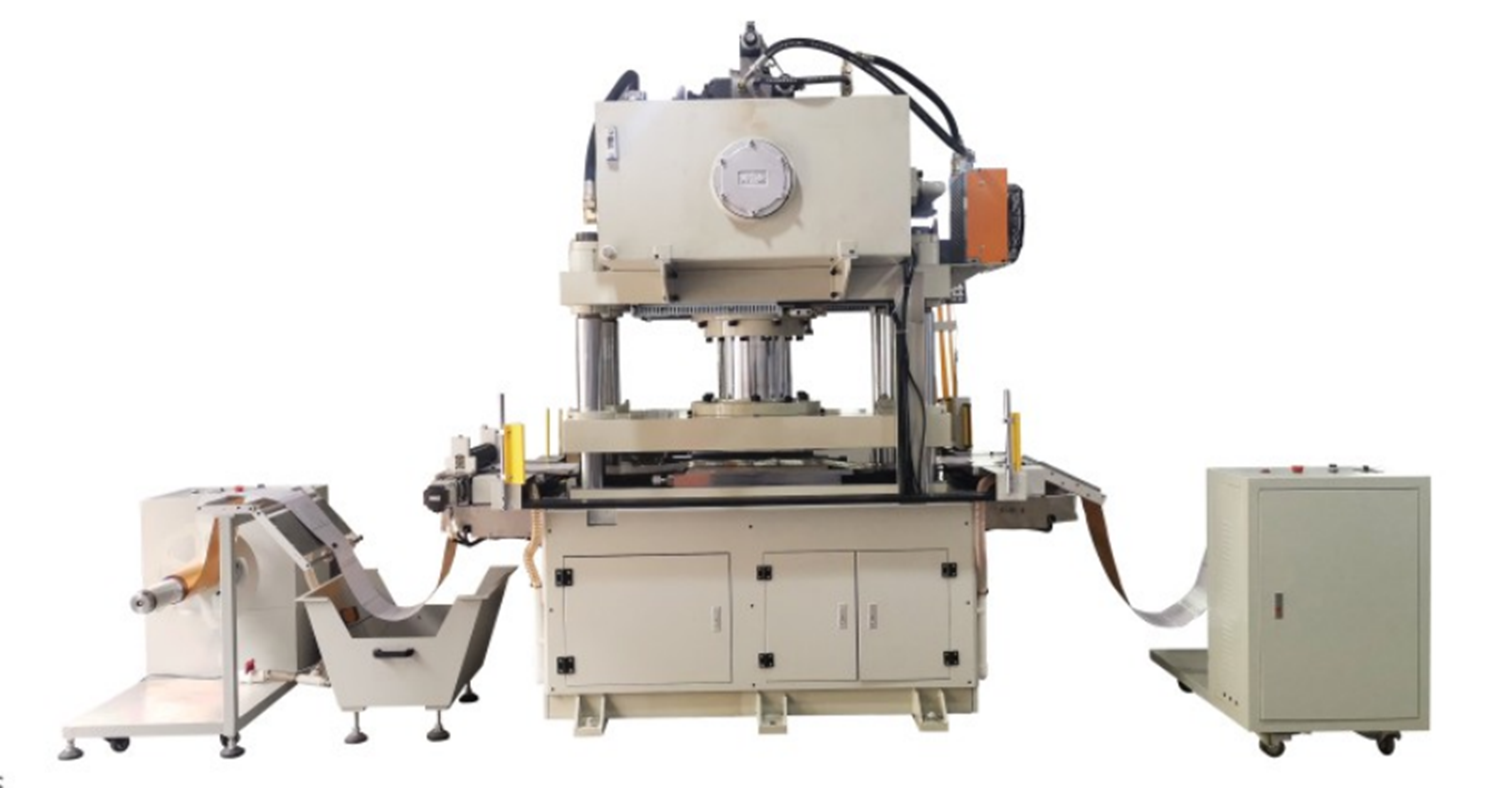

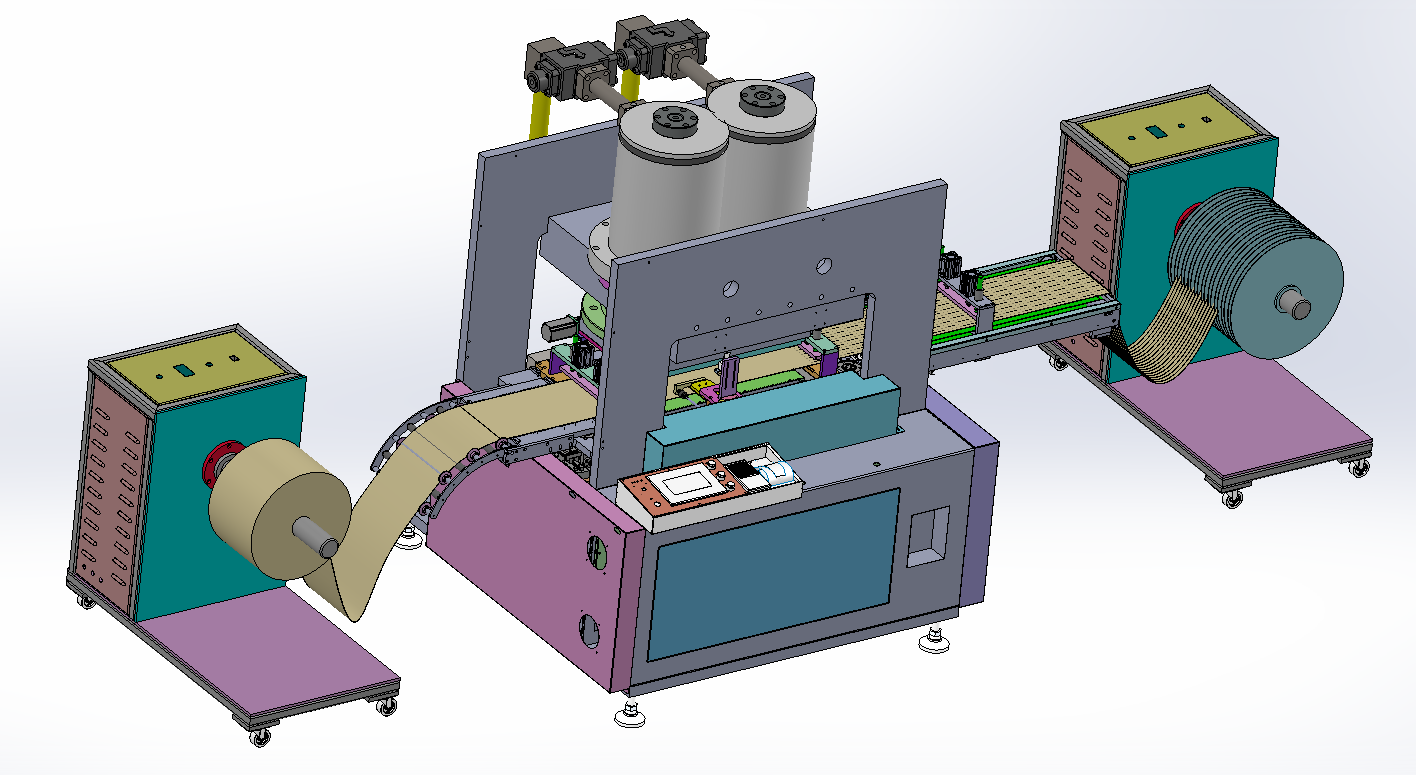

This is a hydraulic press specifically designed for LED strip circuit boards, with both die-cutting and slitting functions. The die-cutting machine has the functions of automatic material pulling, automatic alignment, automatic slicing, etc. The finished die-cutting products and scrap are separated according to the specified track. Once the equipment is adjusted, the machine will be automatically completed without any operation by personnel. The picture below is the machine design and the actual picture of the die cutting machine.
Electronic Samples Roll to Roll CCD regulation stamping and die cutting machine,Advanced & durable hydraulic circuit and steady electronic control system circuits adopted in the hydraulic system enable to achieve high operating performance.
Features
1) Adjust the feeding position of the manipulator and the CCD visual position of the positioning platform. Feeding and feeding position of feeding manipulator.
Equipment Composition
After the positioning of THE CCD initial positioning platform is completed, the feeding mechanical arm will send the material to the printing platform for CCD positioning again, and printing will be carried out after the completion
Process flow chart

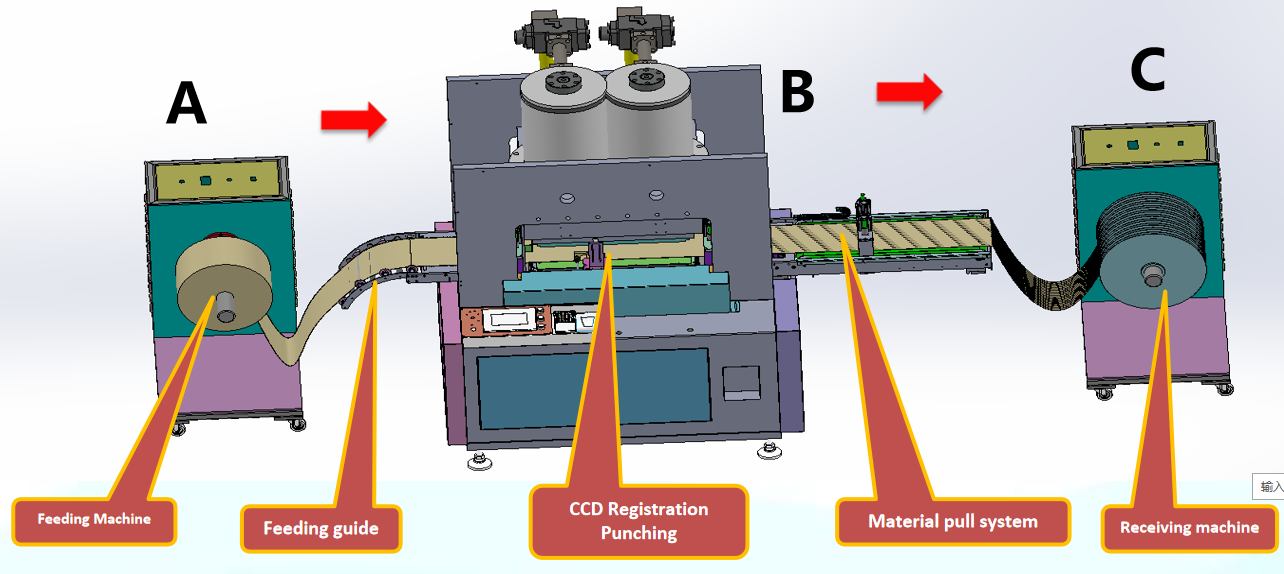

Feeder feeding - pulling system (pull material from point A to point B) - platform suction - CCD photography - platform alignment - punching - pulling system (pull material from point B to point C) - repeated production
CCD automatic positioning punching, can automatically adjust the CCD field of view according to the size of the material.CCD automatically calculates the spatial position of the material and the die according to the MARK point on the material, and instructs the motor motion control to adjust the platform XYθ rotation automatic punching.

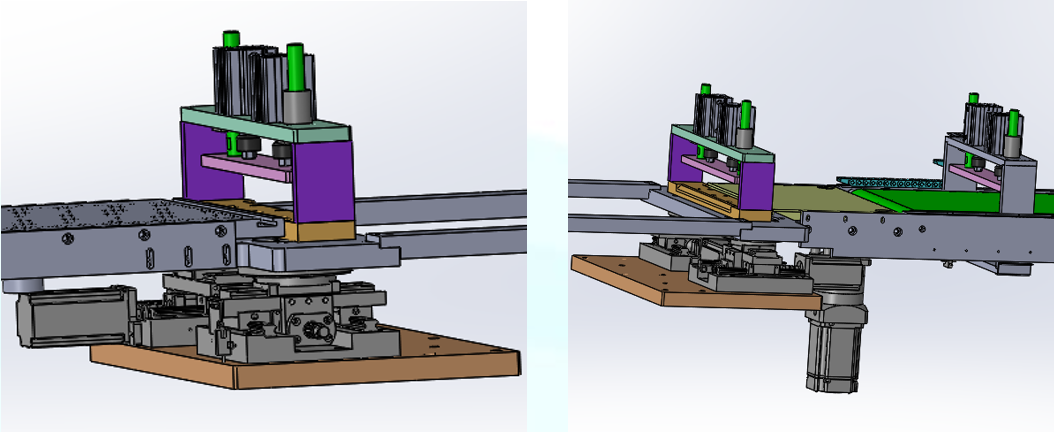

Alignment XYθ platform: Alignment XYθ platform is the core part of the machine, used for CCD visual alignment, this alignment platform is composed of XYθ4 axes, with alignment eccentricity function, alignment accuracy can be controlled within 0.02mm.
Punching shear | 120T |
Punching material dimensions | length：MAX600mm X width：255mm |
Cutting material | FPC |
Maximum blanking speed | 600P/H |
CCD positioning accuracy | ±0.02mm |
Die cutting precision | ±0.05mm |
Distance between two CCD centers | 250mm(Adjustable range: Transverse±100mm) |
Height of operating surface | 800±30 |
The device size (mm) | 2800X1850X1950 |
Machine weight | About 2500KG |
Air pressure | 5～6kg/cm2 PSI |
Gas consumption | 2.6L/cycle |
Power supply | 380V—50Hz |
