Discover how roll-to-roll (R2R) systems enable scalable flexible electronics production through continuous manufacturing, CCD vision registration, and Industry 4.0 automation. Learn how VILITY's integrated roll-to-roll production lines achieve positioning accuracy up to ±0.015 mm, improve production efficiency, reduce material waste, and support high-volume manufacturing of flexible circuits, automotive functional films, medical electronics, RFID products, and other advanced electronic components.
How Roll-to-Roll Systems Enable Scalable Flexible Electronics Production
Why Roll-to-Roll Manufacturing Is Driving the Future of Flexible Electronics
Flexible electronics are transforming industries ranging from consumer electronics and automotive systems to medical devices and wearable technology. As demand for thinner, lighter, and more functional electronic products continues to grow, manufacturers need production methods that can deliver both high precision and high output.
Traditional sheet-fed manufacturing is often sufficient for small production volumes, but it becomes less efficient as demand increases. Frequent loading and unloading, longer cycle times, and higher labor requirements limit scalability and increase manufacturing costs.
Roll-to-roll (R2R) manufacturing has become the preferred production method for large-scale flexible electronics because it enables continuous processing, higher productivity, and more consistent product quality.
What Is Roll-to-Roll Manufacturing?

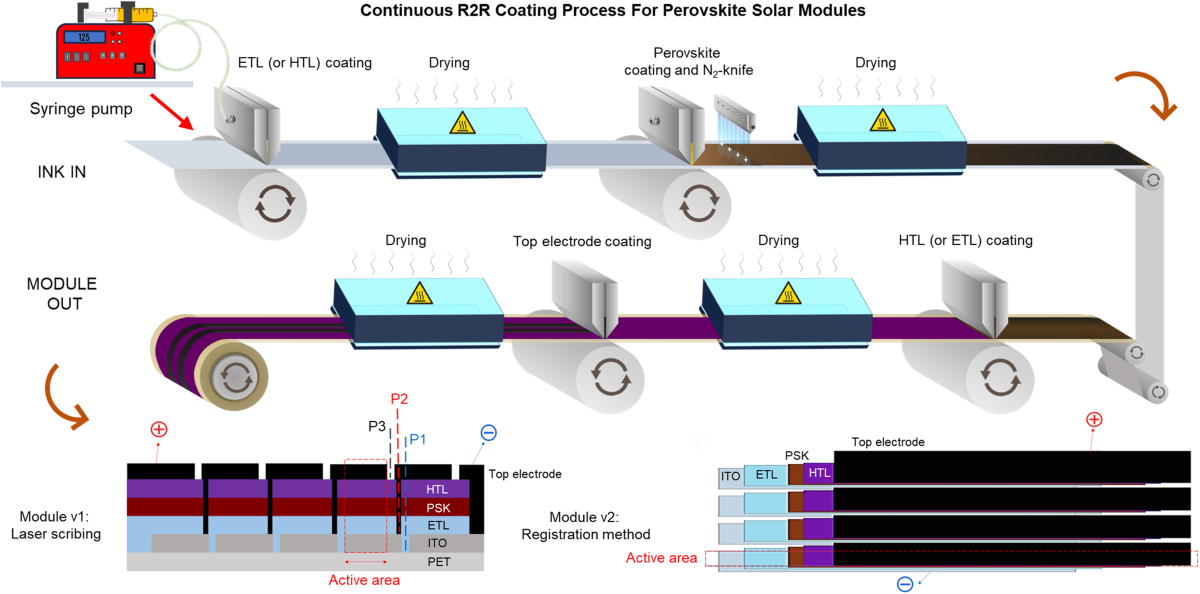

Roll-to-roll manufacturing is a continuous production process in which flexible materials such as PET, PI, TPU, or other functional films are unwound from a roll, processed through multiple manufacturing stages, and rewound into finished rolls or converted into individual products.
Unlike sheet-fed production, R2R systems eliminate repeated material handling and allow continuous manufacturing at high speed.
A typical roll-to-roll production line may include:
* Automatic unwinding and rewinding
* Web tension control
* CCD vision registration
* High-precision screen printing
* IR or UV drying
* Precision punching
* Die cutting
* Automatic inspection
* Material collection and stacking
By integrating multiple processes into one production line, manufacturers can significantly improve production efficiency while maintaining stable product quality.
Why Scalability Matters in Flexible Electronics Manufacturing
The rapid expansion of electric vehicles, smart wearables, flexible displays, medical sensors, and printed electronics has dramatically increased production demand.
Manufacturers must be able to scale production without sacrificing quality or increasing labor costs.
An ideal production system should provide:
* Continuous manufacturing
* Stable production quality
* High equipment utilization
* Minimal manual intervention
* Fast product changeovers
* Consistent precision across long production runs
Roll-to-roll technology is specifically designed to meet these requirements.
Continuous Production Improves Manufacturing Efficiency
One of the biggest advantages of R2R manufacturing is continuous material flow.
Instead of processing one sheet at a time, flexible materials move continuously through every production stage.
This approach provides several benefits:
* Higher production speed
* Reduced machine idle time
* Lower labor requirements
* Better equipment utilization
* Shorter production cycles
Continuous production allows manufacturers to produce significantly more products using the same factory space and workforce.
CCD Vision Ensures High-Precision Registration
High production speed alone is not enough. Maintaining precise alignment throughout continuous production is equally important.
VILITY integrates advanced CCD vision registration systems into its roll-to-roll production lines.
The CCD system automatically:
* Detects registration marks
* Measures positional deviations
* Adjusts alignment in real time
* Maintains multi-layer registration accuracy
With positioning accuracy of up to ±0.015 mm, VILITY R2R systems ensure consistent printing and punching accuracy even during long production runs.
This level of precision is particularly important for flexible circuits, conductive films, and multilayer electronic structures.
Intelligent Tension Control Maintains Material Stability
Flexible materials naturally expand, contract, or stretch during production.
Without precise web tension control, even small material movements can create registration errors and reduce product quality.
Modern roll-to-roll systems continuously monitor and adjust web tension throughout the production process.
Benefits include:
* Reduced material deformation
* Improved registration accuracy
* Stable printing quality
* Better dimensional consistency
* Lower material waste
Stable material handling is one of the key reasons why R2R manufacturing achieves higher yields than conventional production methods.
Integrating Multiple Processes into One Smart Production Line
Traditional manufacturing often separates printing, drying, punching, inspection, and material transportation into independent operations.
Each transfer introduces opportunities for positioning errors and production delays.
VILITY's integrated roll-to-roll solutions combine multiple manufacturing processes into one automated production line, including:
* Automatic feeding
* CCD vision alignment
* High-precision screen printing
* IR drying
* Precision punching
* Die cutting
* Automatic inspection
* Material collection
This integrated workflow improves production consistency while reducing manual handling and production interruptions.
Industry 4.0 Enables Intelligent Manufacturing
Roll-to-roll manufacturing becomes even more powerful when combined with Industry 4.0 technologies.
Connected production equipment continuously exchanges production data, allowing manufacturers to monitor performance in real time.
Typical Industry 4.0 capabilities include:
* Real-time production monitoring
* Equipment status management
* Process traceability
* Predictive maintenance
* Production data analysis
* Remote diagnostics
Digital manufacturing enables manufacturers to optimize production continuously while maintaining stable product quality.
Applications of Roll-to-Roll Manufacturing
Roll-to-roll production is widely used across numerous flexible electronics applications, including:
* Flexible Printed Circuits (FPC)
* Automotive functional films
* EV seat heating elements
* Battery heating films
* Membrane switches
* Flexible sensors
* Medical electronic devices
* RFID antennas
* Flexible displays
* Conductive film production
As demand for flexible electronics continues to grow, R2R manufacturing has become the foundation of modern electronic production.
Business Benefits of Roll-to-Roll Manufacturing
Manufacturers that transition from conventional production to intelligent roll-to-roll systems can typically achieve:
* Continuous 24/7 production
* Production efficiency improvements of up to 300%
* Positioning accuracy up to ±0.015 mm
* Scrap rates reduced from approximately 10% to below 1%
* Labor cost reductions exceeding 70%
* Higher first-pass yield
* Better product consistency
* Faster return on investment
These improvements help manufacturers increase production capacity while lowering overall operating costs.
How VILITY Supports Flexible Electronics Manufacturers
VILITY specializes in complete roll-to-roll manufacturing solutions for flexible electronics production.
Our solutions integrate:
* CCD Vision Registration Systems
* Roll-to-Roll Screen Printing Machines
* Automatic Feeding Systems
* Precision Punching Equipment
* Die Cutting Systems
* IR Drying Equipment
* Intelligent Material Handling
* Industry 4.0 Smart Production Line Integration
Rather than providing standalone machines, VILITY delivers complete production systems designed to improve manufacturing efficiency, precision, and scalability.
Conclusion
As global demand for flexible electronics continues to accelerate, manufacturers need production systems that can scale efficiently without compromising quality.
Roll-to-roll manufacturing provides the continuous production capability, precision, and automation required for next-generation electronics manufacturing.
By combining advanced CCD vision technology, intelligent web handling, automated production processes, and Industry 4.0 integration, VILITY helps manufacturers build scalable production lines capable of supporting future growth while maintaining exceptional manufacturing quality.
FAQ
What is roll-to-roll manufacturing?
Roll-to-roll (R2R) manufacturing is a continuous production process in which flexible materials are processed directly from one roll to another through multiple manufacturing stages such as printing, drying, punching, and inspection.
Why is roll-to-roll manufacturing suitable for flexible electronics?
Because flexible electronic materials are supplied in roll form, R2R systems enable continuous production with higher efficiency, lower labor costs, better material utilization, and more consistent product quality than sheet-fed manufacturing.
How does CCD vision improve roll-to-roll production?
CCD vision systems automatically detect registration marks, compensate for material movement in real time, and maintain positioning accuracy of up to ±0.015 mm, ensuring stable printing and punching throughout continuous production.
What products can be manufactured using roll-to-roll systems?
Roll-to-roll systems are widely used to manufacture flexible printed circuits (FPC), automotive functional films, battery heating films, membrane switches, flexible sensors, RFID antennas, medical electronics, and printed electronic components.
What are the advantages of Industry 4.0 roll-to-roll production lines?
Industry 4.0 integration enables real-time monitoring, predictive maintenance, process traceability, intelligent quality control, and continuous production optimization, resulting in higher productivity and lower manufacturing costs.
Why choose VILITY roll-to-roll manufacturing solutions?
VILITY provides complete roll-to-roll production lines that integrate CCD vision registration, precision screen printing, intelligent material handling, punching, die cutting, and Industry 4.0 automation, helping manufacturers improve productivity, reduce scrap rates, and scale flexible electronics production efficiently.
